工作室PPW/NWLND Rogiers Vandeputte

工作室PPW/NWLND Rogiers Vandeputte+Kris Broidioi
Atelier PPW / NWLND Rogiers Vandeputte + Kris Broidioi

简洁的空间布局：Atelier PPW项目通过将建筑和绘画工作室整合在一个柱状系统中，实现了空间的高效利用。这种设计不仅满足了功能需求，还创造出一个开放且灵活的工作环境。工作室的堆叠方式使得两个功能区相互独立又紧密联系，为使用者提供了清晰的空间导向和自由的创作氛围。这种简洁而富有逻辑的空间布局是该项目的一大亮点。

与环境的融合：项目在设计中充分考虑了与周边环境的互动。向街道开放的底层空间和连接庭院的入口区域，增强了建筑与城市肌理的融合。向南延伸的树冠不仅管理了太阳能收益，还引入了绿色景观元素，为操场增添了生态美感。这种设计不仅提升了建筑的环境适应性，还为校园创造了一个更具活力和可持续性的外部空间。

结构与功能的统一：Atelier PPW的结构设计巧妙地服务于功能需求。混凝土结构与轻质玻璃填充物的结合，既保证了建筑的稳定性，又赋予了其通透感。垂直和水平循环核心位于主玻璃体积之外，使建筑外观简洁明了。此外，无障碍屋顶的设计为公共聚会提供了空间，进一步拓展了建筑的功能性。这种结构与功能的完美统一展现了设计的精妙之处。

建筑师提供的文字描述工作室PPW位于城市化地区的校园内。该项目旨在将背景简化为一个简单明了的建筑。简报要求提供一个工作室空间来容纳建筑课程，一个工作室用于绘画课程。这些体量被保存在一个柱状系统中，该系统允许两个体量堆叠在一起，在一楼建筑工作室和一楼绘画工作室创建一个开放灵活的工作空间。

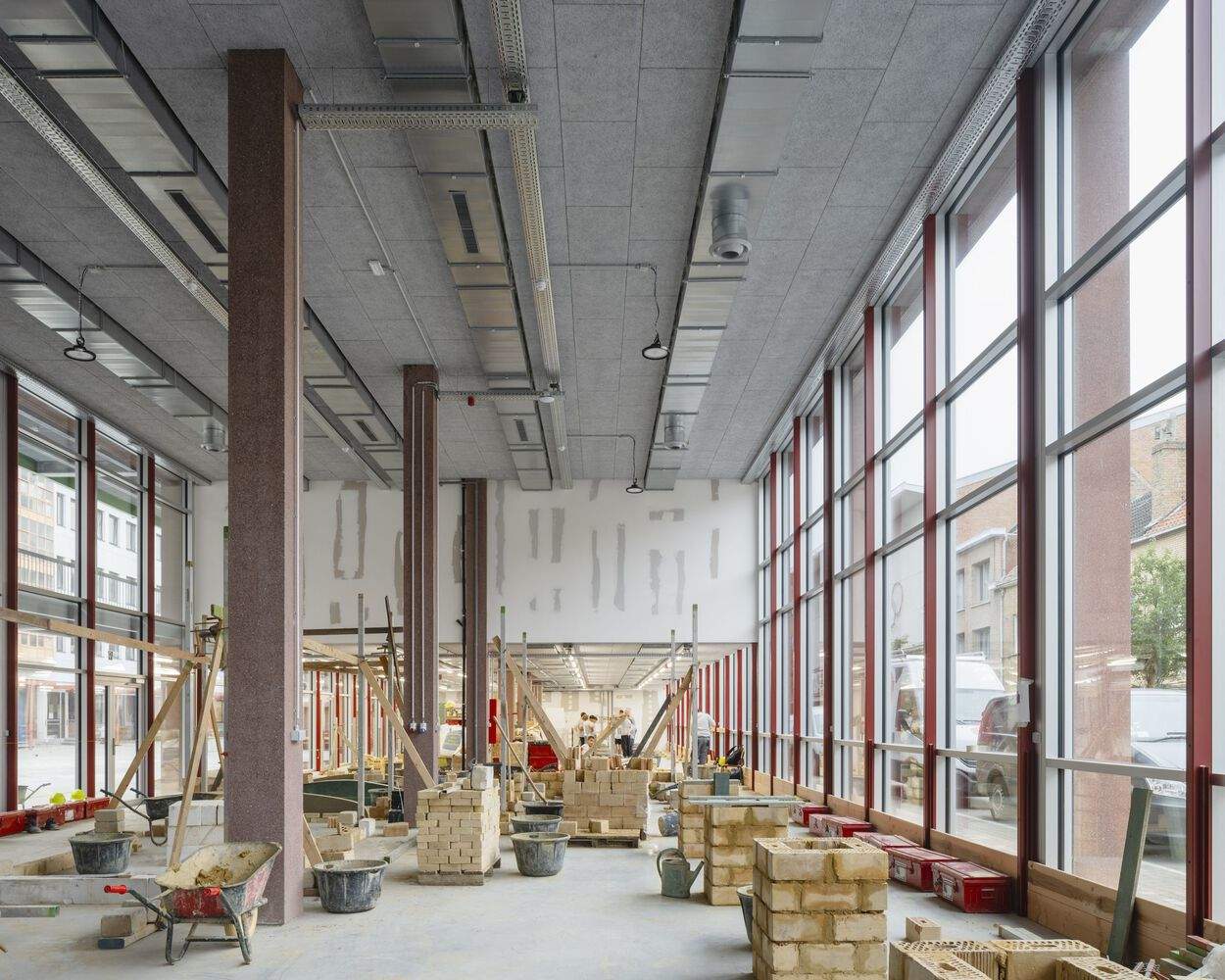

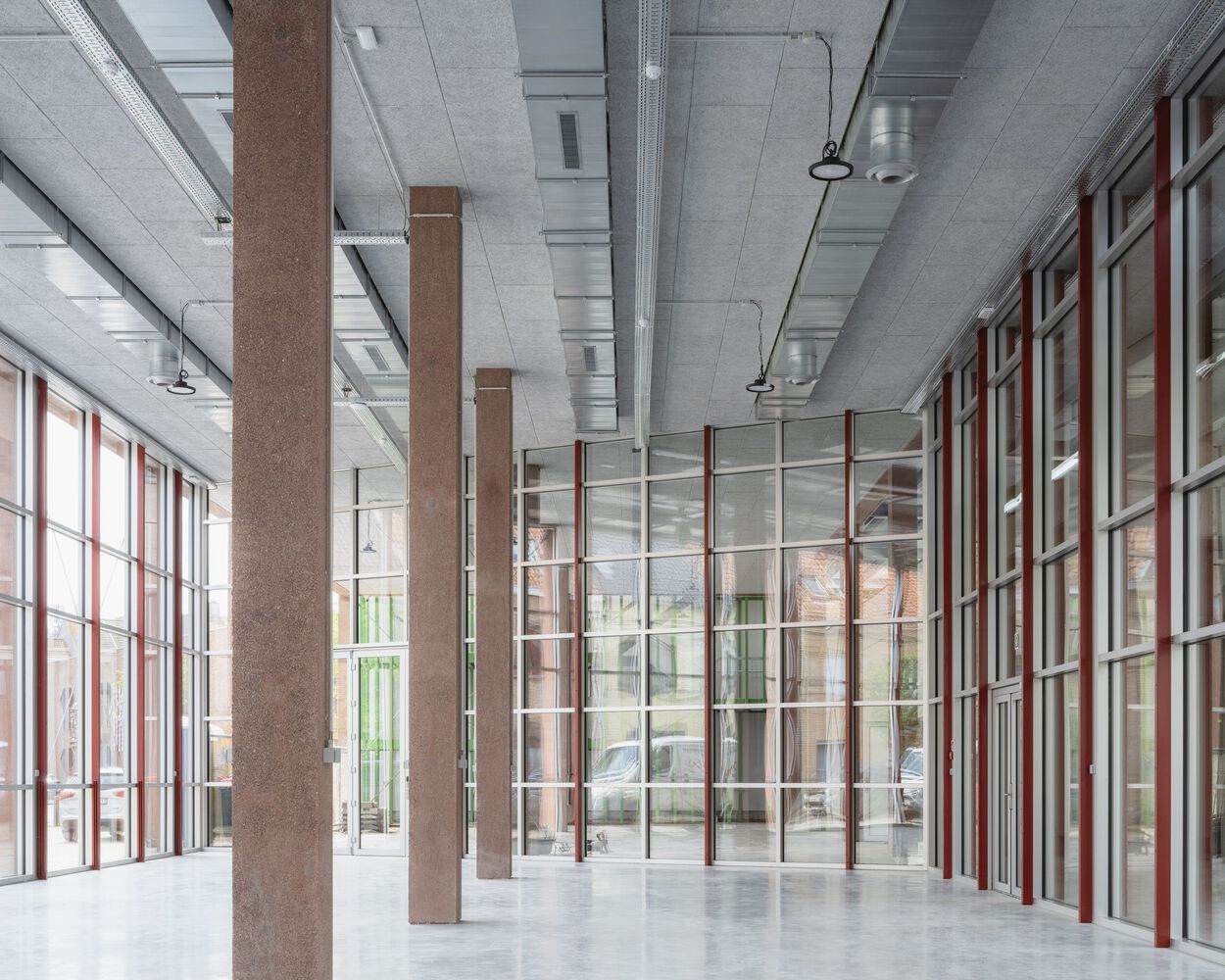

Text description provided by the architects. The Atelier PPW is located on a school campus in an urbanized area. The project is an exercise in reducing context into a simple and clear building. The brief called for one workshop space to accommodate building courses and one studio for painting courses. These volumes are held within a column system that allows the two volumes to be stacked to create an open and flexible workspace on both the ground-floor building atelier and the first-floor painting atelier.

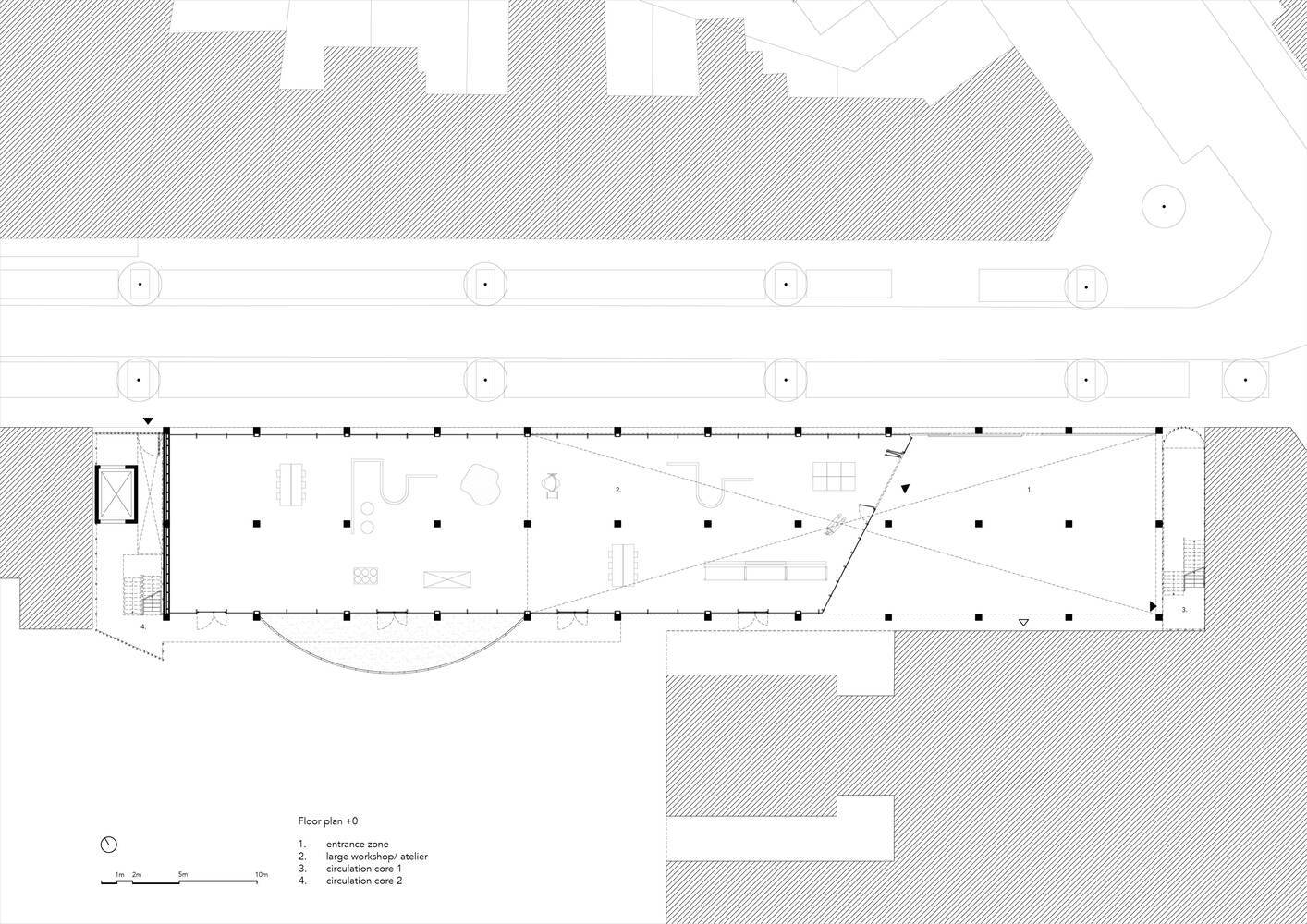

Ground Floor Plan

结构系统还允许在一楼向街道开放。这创造了一个有盖的入口区域，在街道和通往学校入口的相邻庭院之间建立了连接。结构系统可以在建筑的立面中得到最好的理解，因为人们可以看到两个空间的框架以及相邻立面的关系和抽象。

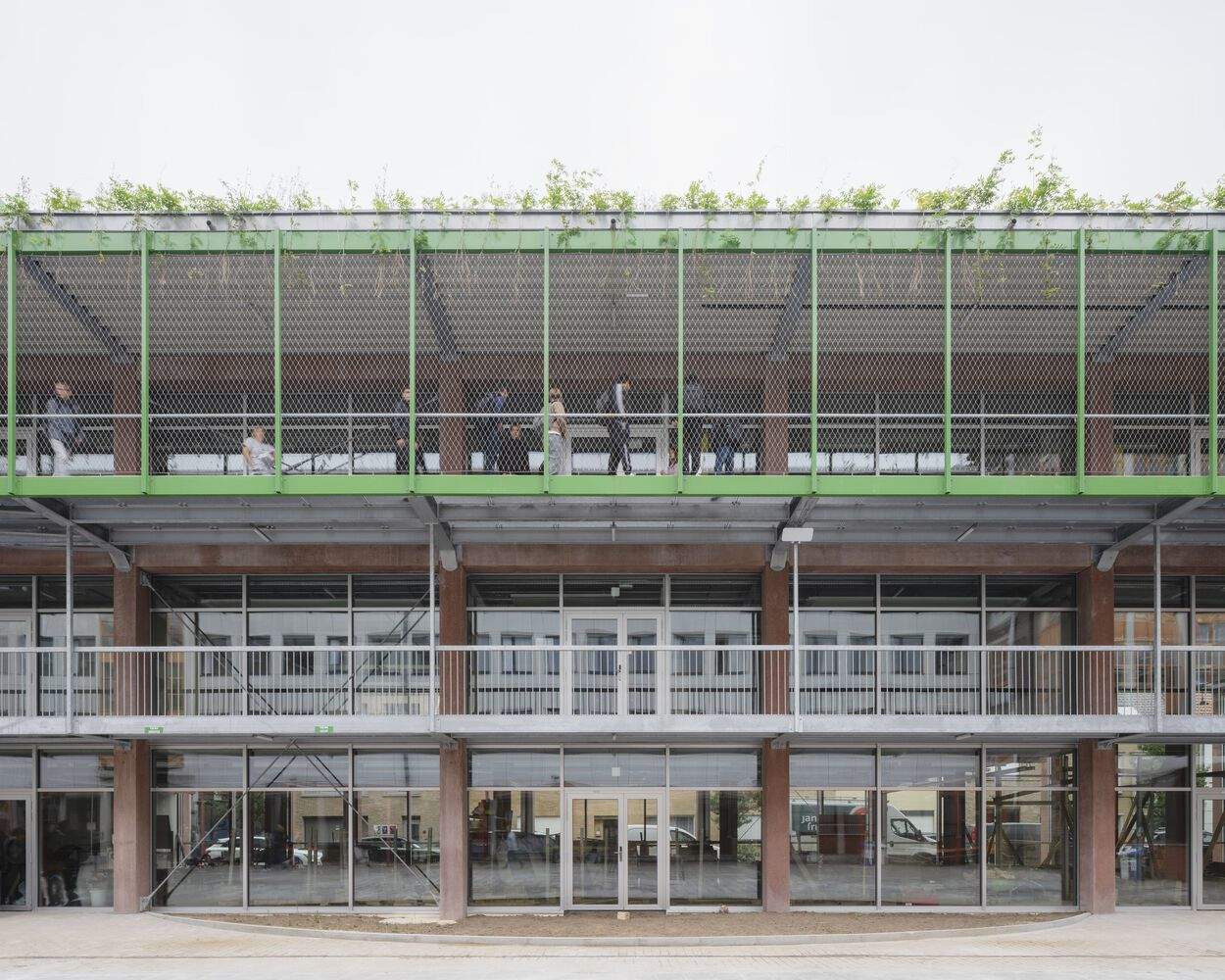

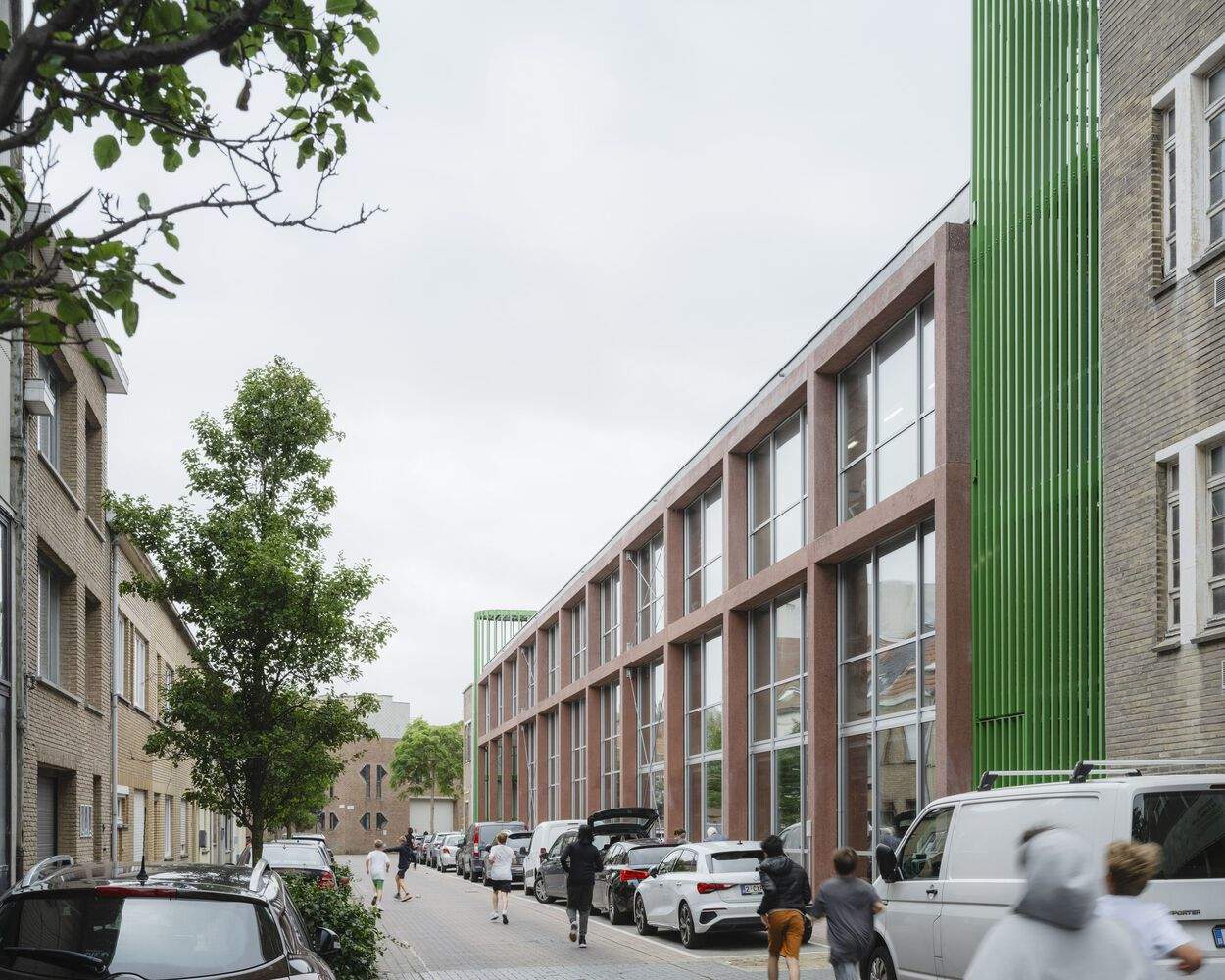

The structural system also allows for a generous opening towards the street on the ground floor. This creates a covered entrance zone that establishes a connection between the street and the adjacent courtyard that leads to the school's entrance. The structural system can be best understood in the building's elevation, as one can see the framing of two spaces and the relationship and abstraction of the neighbouring elevations.

向南，该结构延伸形成了一个延伸到操场的树冠。这管理了太阳能收益，并引入了种植的屏幕，作为将现有的矿物游乐场转变为绿色景观的第一步。天棚作为一楼工作室的外部走廊。所有垂直和水平的循环核心都位于主玻璃体积的外部，以使项目外观清晰简洁。此外，我们建议建造一个无障碍屋顶，用于流通和公共聚会空间。

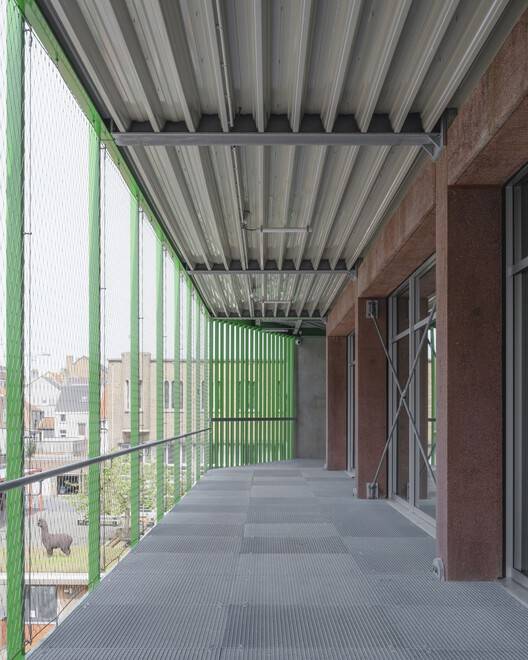

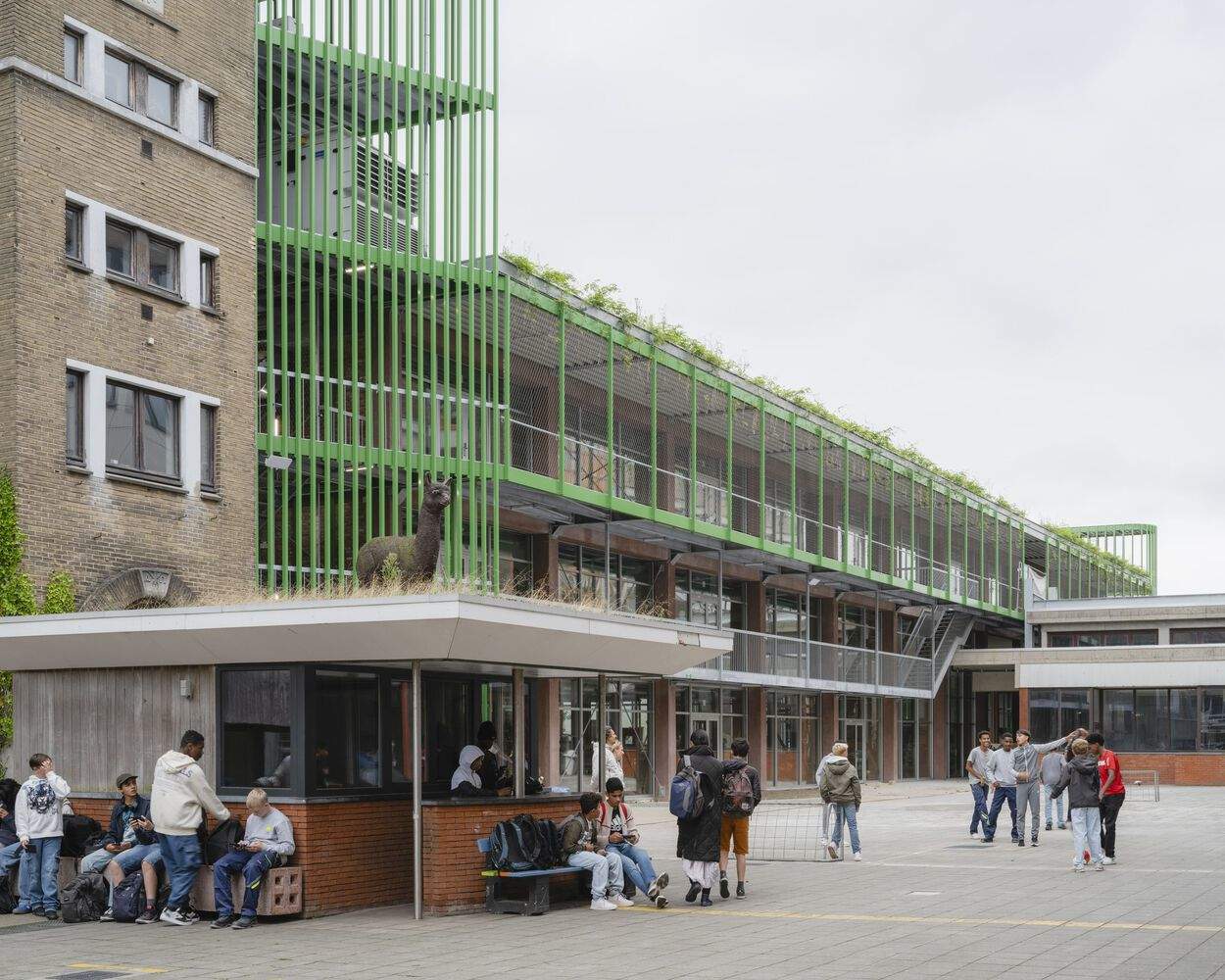

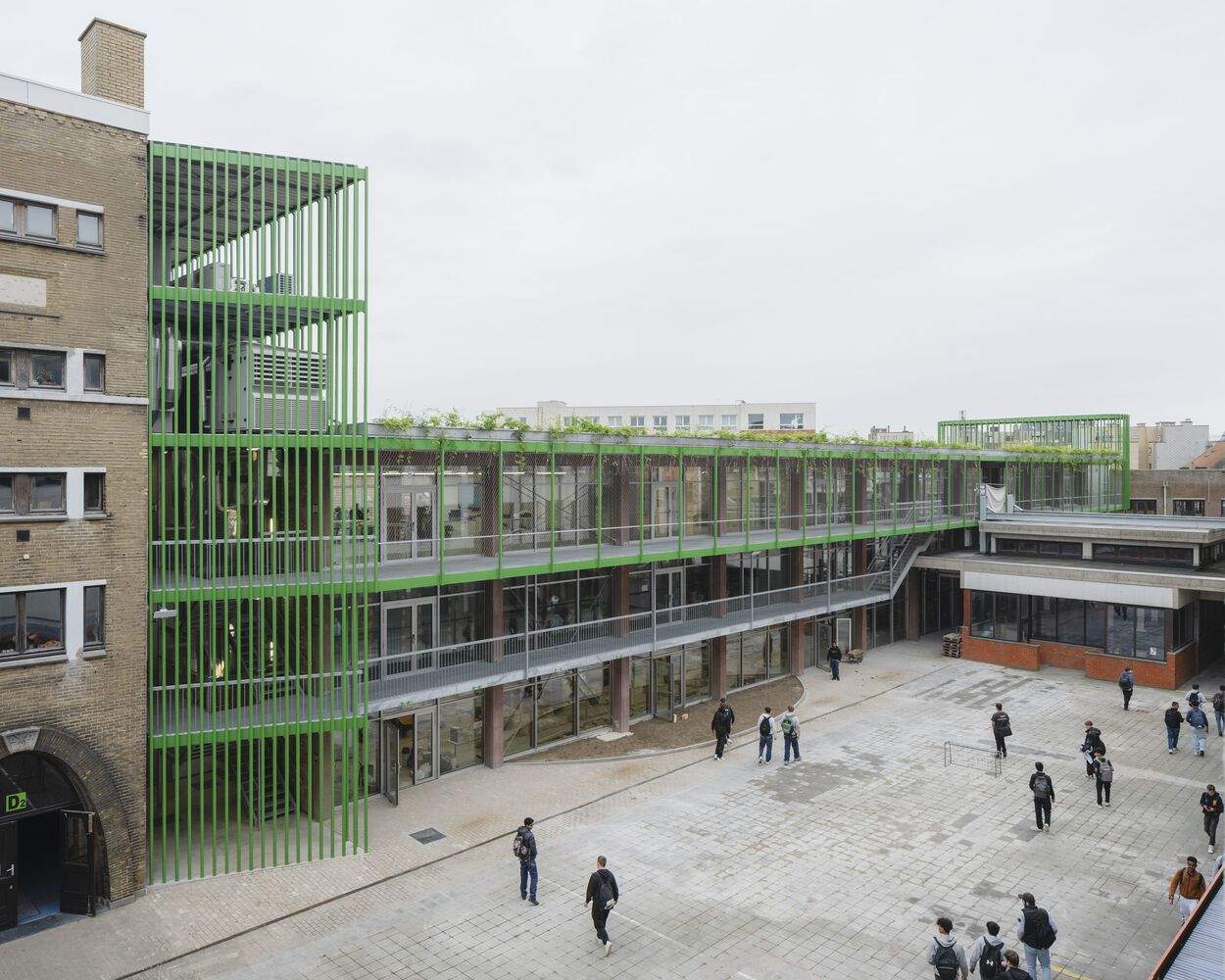

Towards the south, the structure extends to create a canopy that reaches towards the playground. This manages the solar gains and introduces a planted screen as a first step in converting the existing mineral playground into a green landscape. The canopy functions as an external corridor for the ateliers on the first floor. All circulatory cores, both vertical and horizontal, are external from the main glass volumes to allow for a clear and simple appearance to the project. Moreover, we propose an accessible rooftop for circulation and as a communal gathering space.

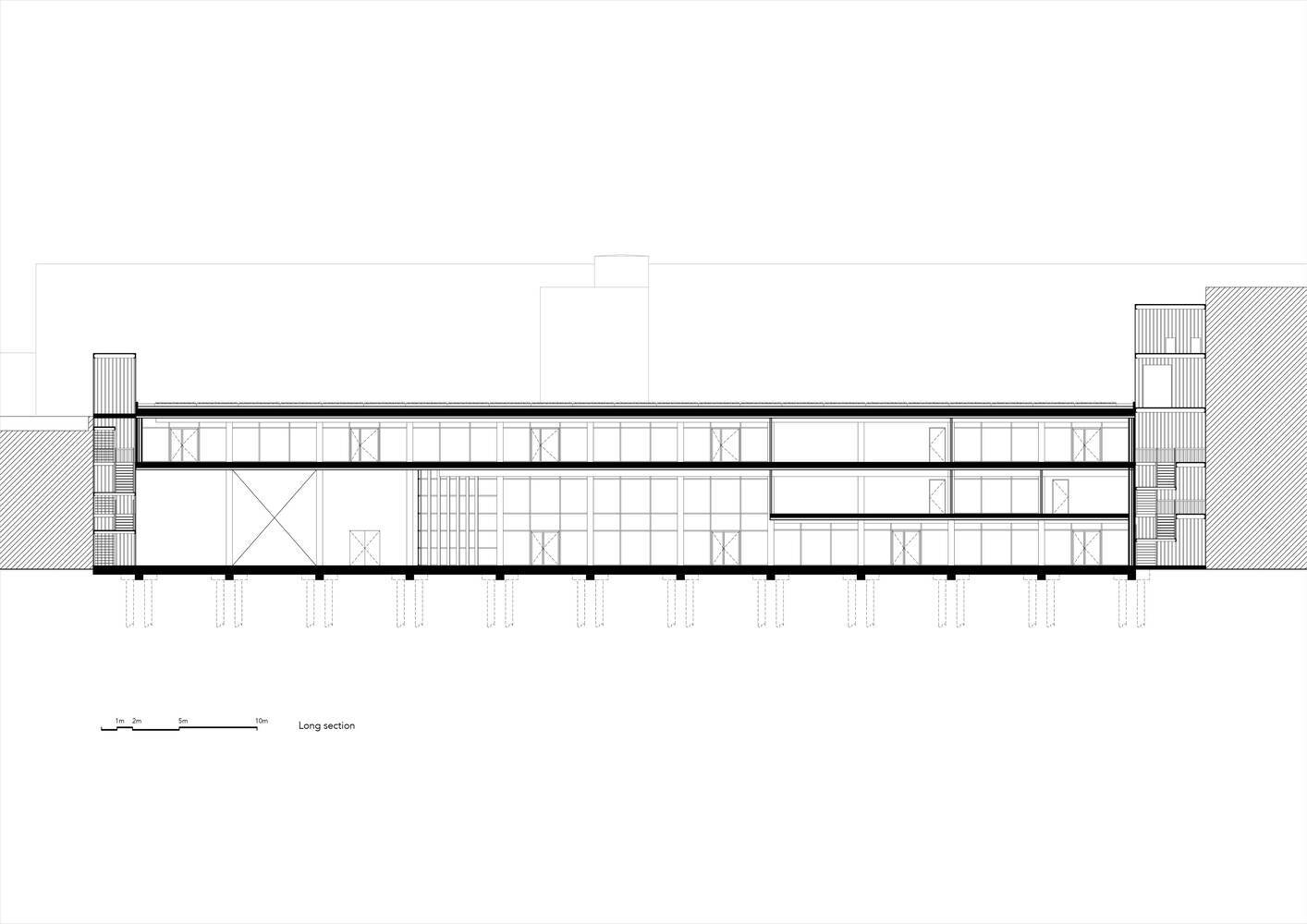

Longitudinal Section

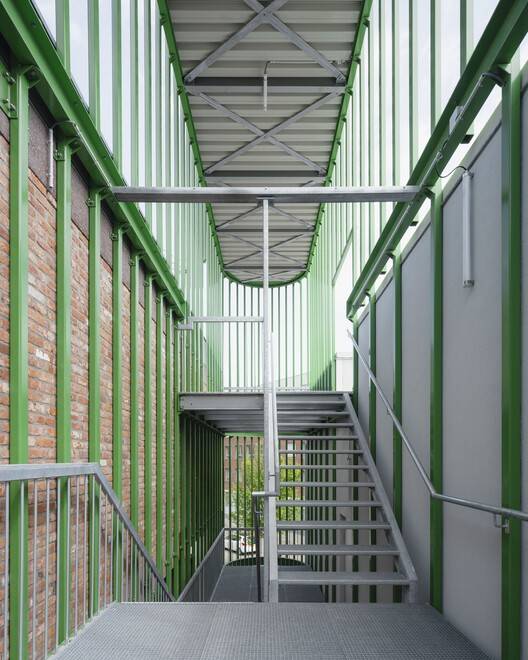

带有轻质玻璃填充物的混凝土结构与两侧现有的相邻建筑之间留有间隙。在这里，两个垂直循环核心被整合在一起，以解决现有建筑和Atelier PPW之间复杂的高度差。这些垂直结构可以适应未来的发展，因为人们可能会考虑在未来取代过时的相邻卷。

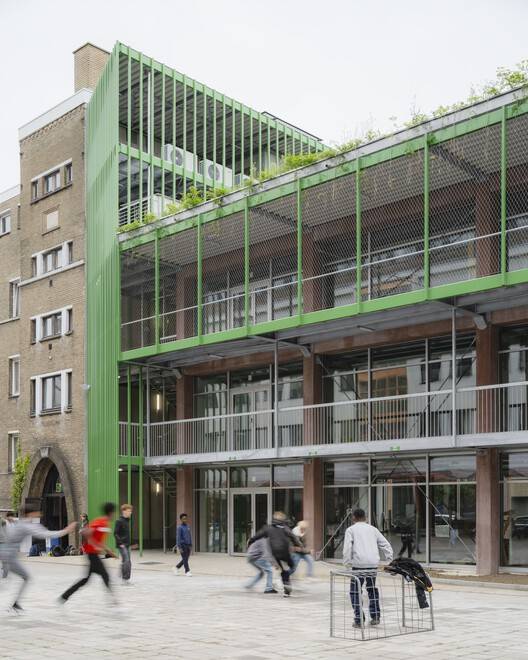

The concrete structure with light glass infill leaves a gap from the existing neighbouring buildings on both sides. Here, two vertical circulation cores are integrated to solve the complex height difference between the existing buildings and Atelier PPW. These vertical structures can be adaptable for future developments, as one might consider replacing the outdated neighbouring volumes in the future.
