Parental Shed / Vector Plinth

空间体验与功能性：这个项目最引人注目的亮点在于其对空间体验的精心设计。建筑师并非仅仅满足于提供一个等待的场所，而是努力创造一个舒适、温馨且具有独特性的环境。五边形的几何形状以及全高的倾斜幕墙和倾斜的天花板，共同营造出宽敞的错觉，使空间感得到了极大的提升。这种设计不仅满足了功能性需求，也极大地提升了空间的品质，使得等待的过程不再枯燥，而是成为一种愉悦的体验。幕墙的设计巧妙地将周围的绿色景观引入室内，实现了室内外空间的融合，增强了空间的亲和力。

自然采光与材料运用：项目的精髓之一在于对自然采光的巧妙运用。倾斜的玻璃幕墙不仅提供了充足的采光，还能有效防止阳光直射和高温，从而营造出舒适的室内环境。结合陶瓷屋顶瓦片的使用，进一步降低了热量进入建筑的可能，体现了对节能和舒适度的关注。这种对自然元素的尊重和运用，使得建筑与周围环境和谐共生。此外，框架结构系统的运用以及无内部柱的设计，也极大地提升了空间的通透性，使得光线能够自由流动，进一步增强了空间的视觉效果，为用户提供了极致的舒适体验，展现了设计师对细节的把控。

室内外融合与人性化设计：项目的另一大亮点在于室内外空间的无缝融合。建筑师通过空间的透明性，成功地建立了室内外、自然与人造、光与影之间的联系。这种设计手法营造出独特的氛围，提升了空间的吸引力。绿化、休息区和景观的高度变化，也创造了多样化的空间，鼓励用户亲近自然、互动交流。此外，对座位安排的精心组织，确保了学生和家长拥有宽敞、易于流通的活动空间，体现了以人为本的设计理念。这种人性化的设计细节，使得建筑不仅仅是一个空间，更是一个能够促进交流、提供舒适体验的场所，充分体现了建筑师对用户需求的深刻理解。

建筑师提供的文字描述查特图姆的宿营区被称为一个宁静的环境，学院周围环绕着绿地。Chattogram Cantonment Public College位于DOHS，成立于1978年，由孟加拉国军队管理。

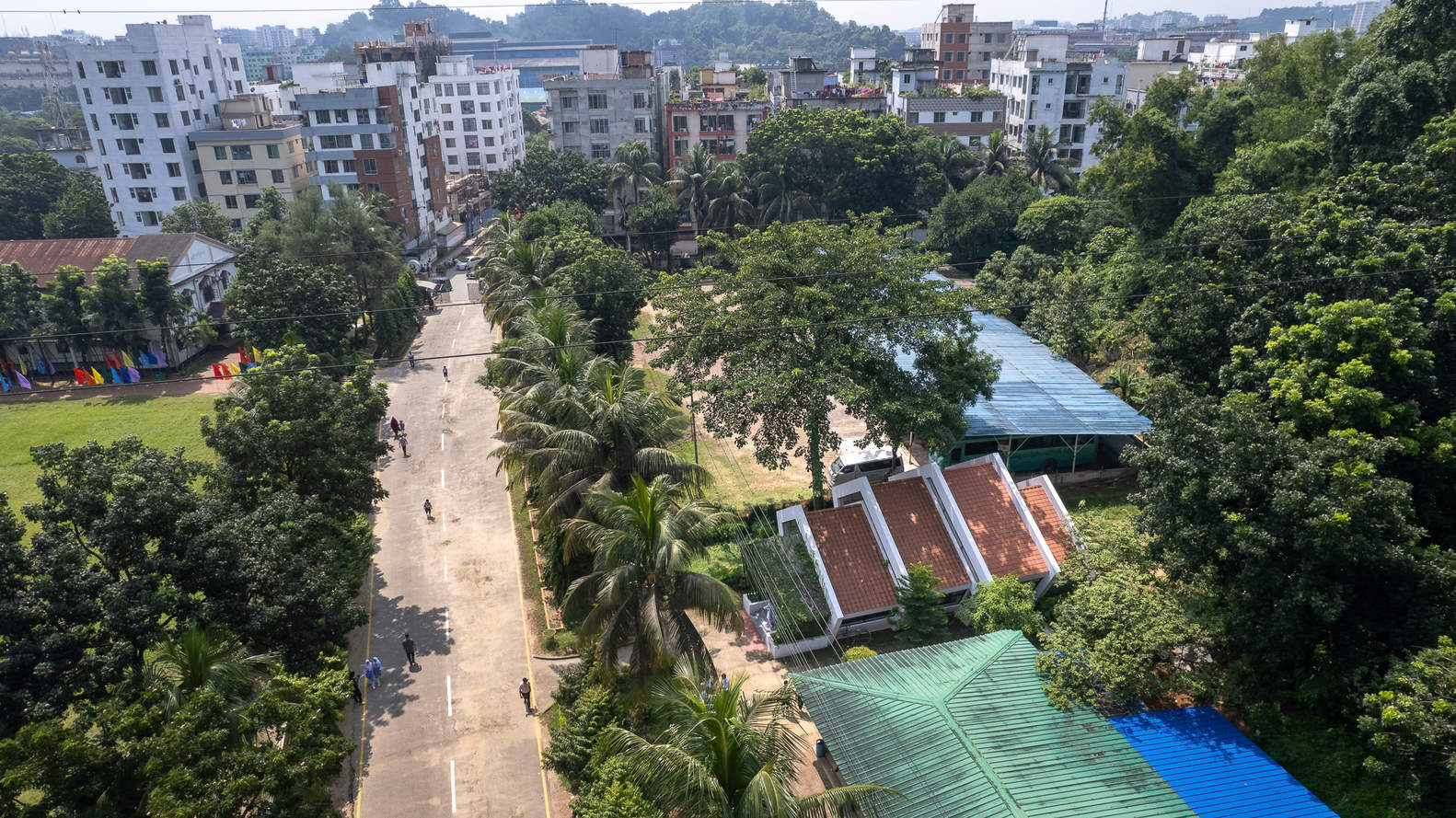

Text description provided by the architects. The Cantonment area in Chattogram is known as a serene environment wrapped with greeneries all around the institute's ground. Chattogram Cantonment Public College situated in DOHS - was established in 1978, and is administrated by the Bangladesh Army.

这个项目的主要重点是为父母在等待时创造一个体验空间，使这个小屋成为一个舒适温馨的环境。一开始，该项目的建筑师旨在创造一种独特的设计，为相对紧凑的区域增添一丝独特性。该结构的五边形几何形状为用户提供了一个艺术流动的容器。

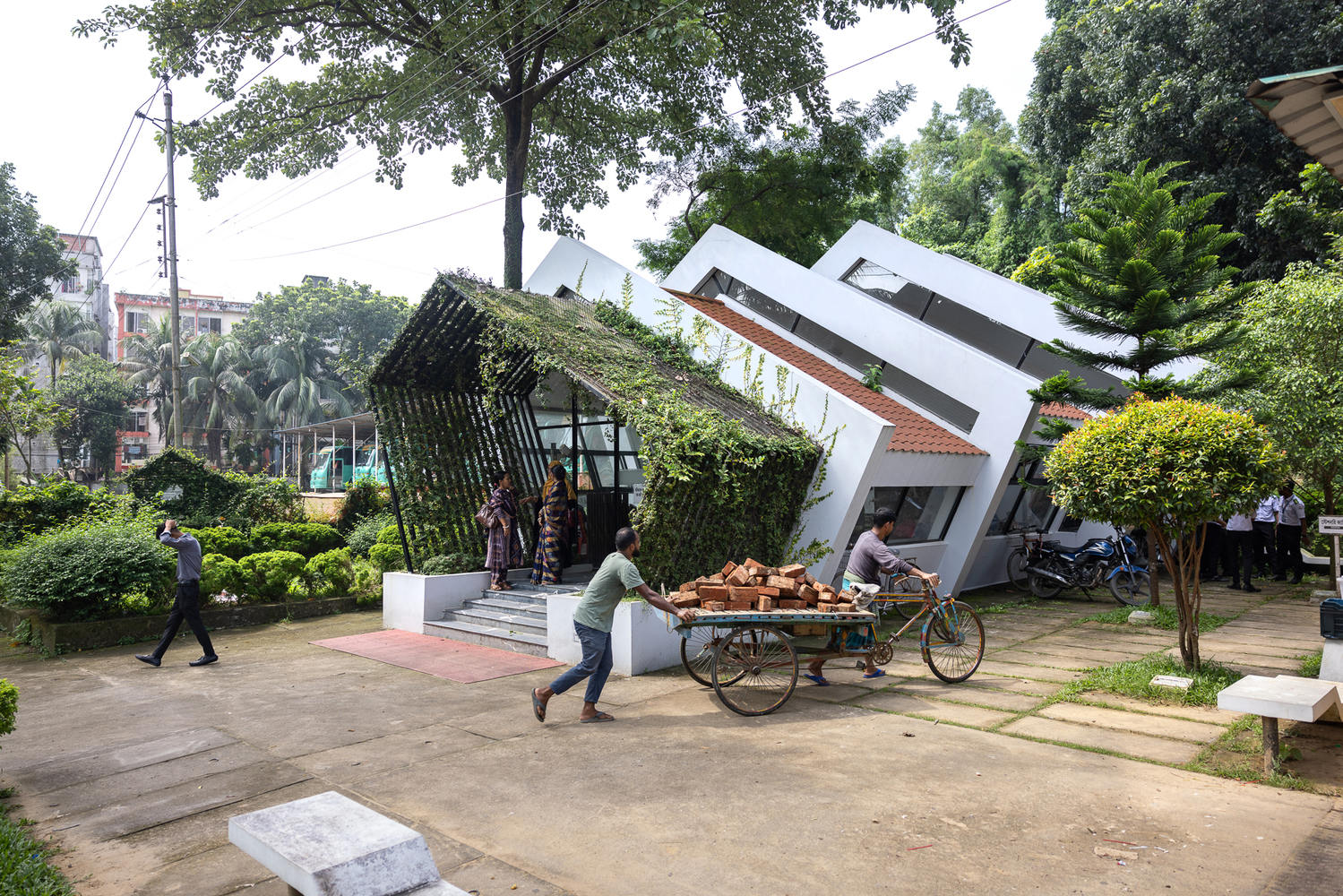

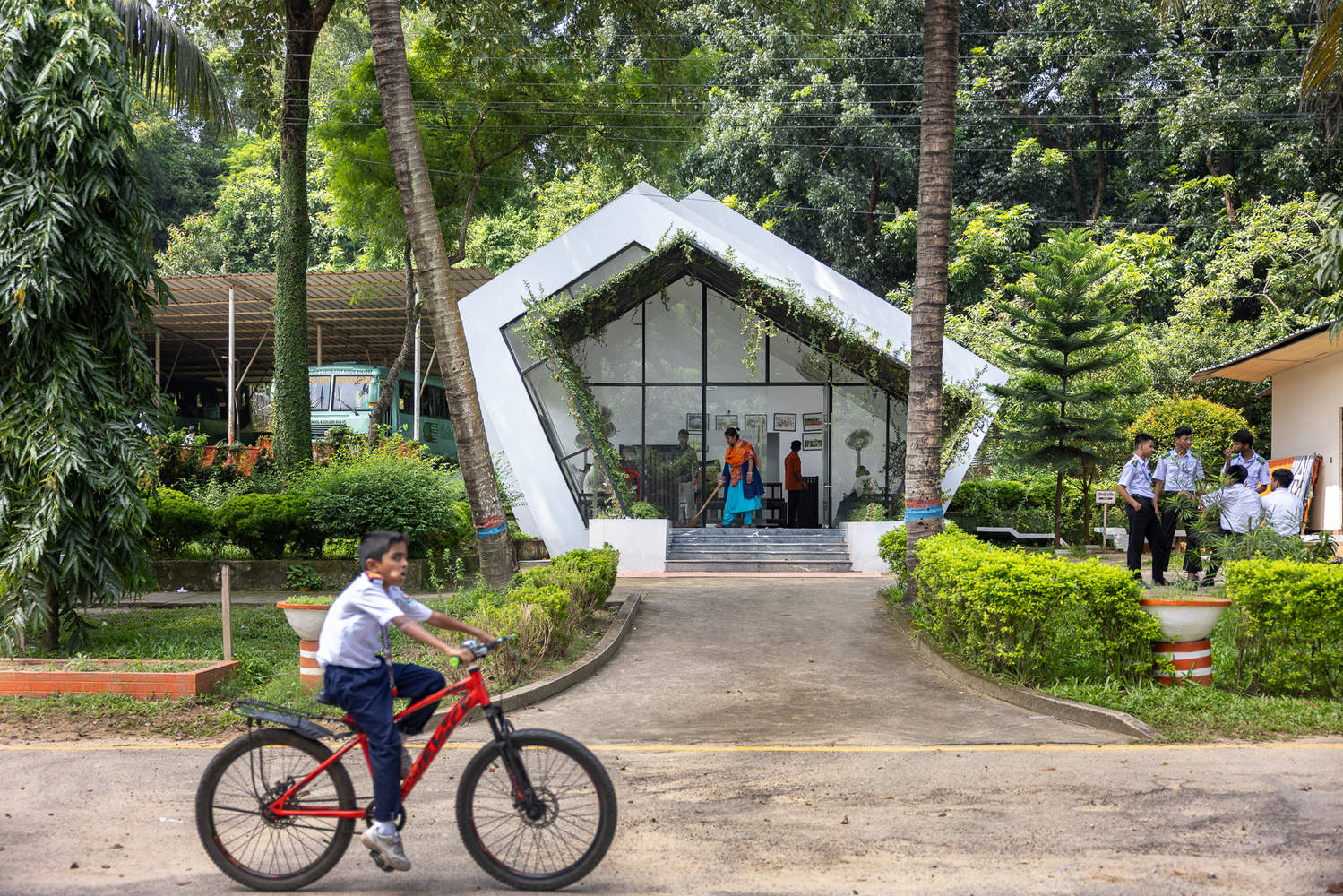

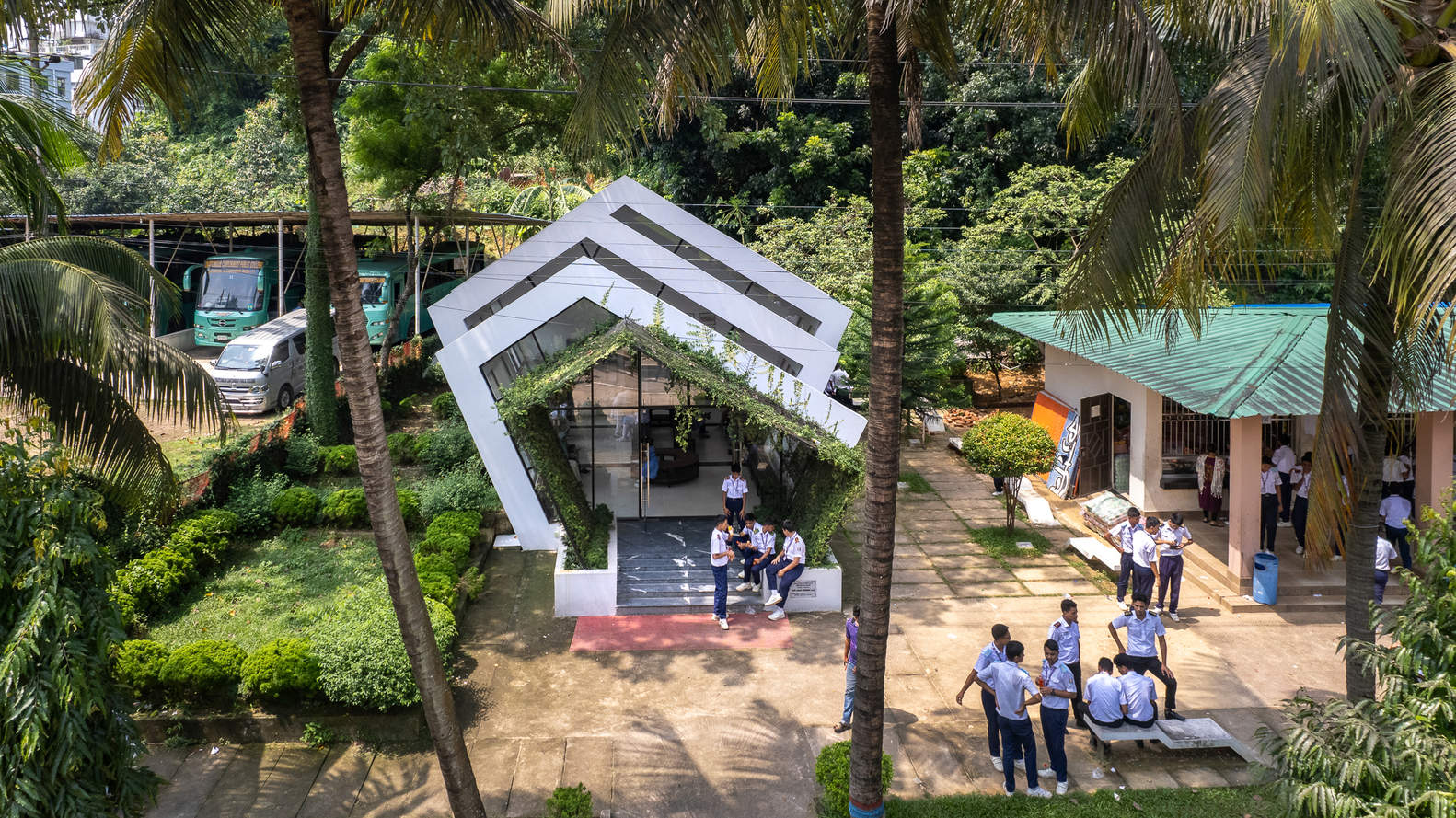

The primary focus of this project was to create an experiential space for parents while they wait, making this small shed a comfortable and welcoming environment. At the outset, the project's architects aimed to create a unique design that would add a touch of exclusivity to a relatively compact area. The pentagonal geometrical shape of the structure serves as a vessel for an artistic flow for the users.

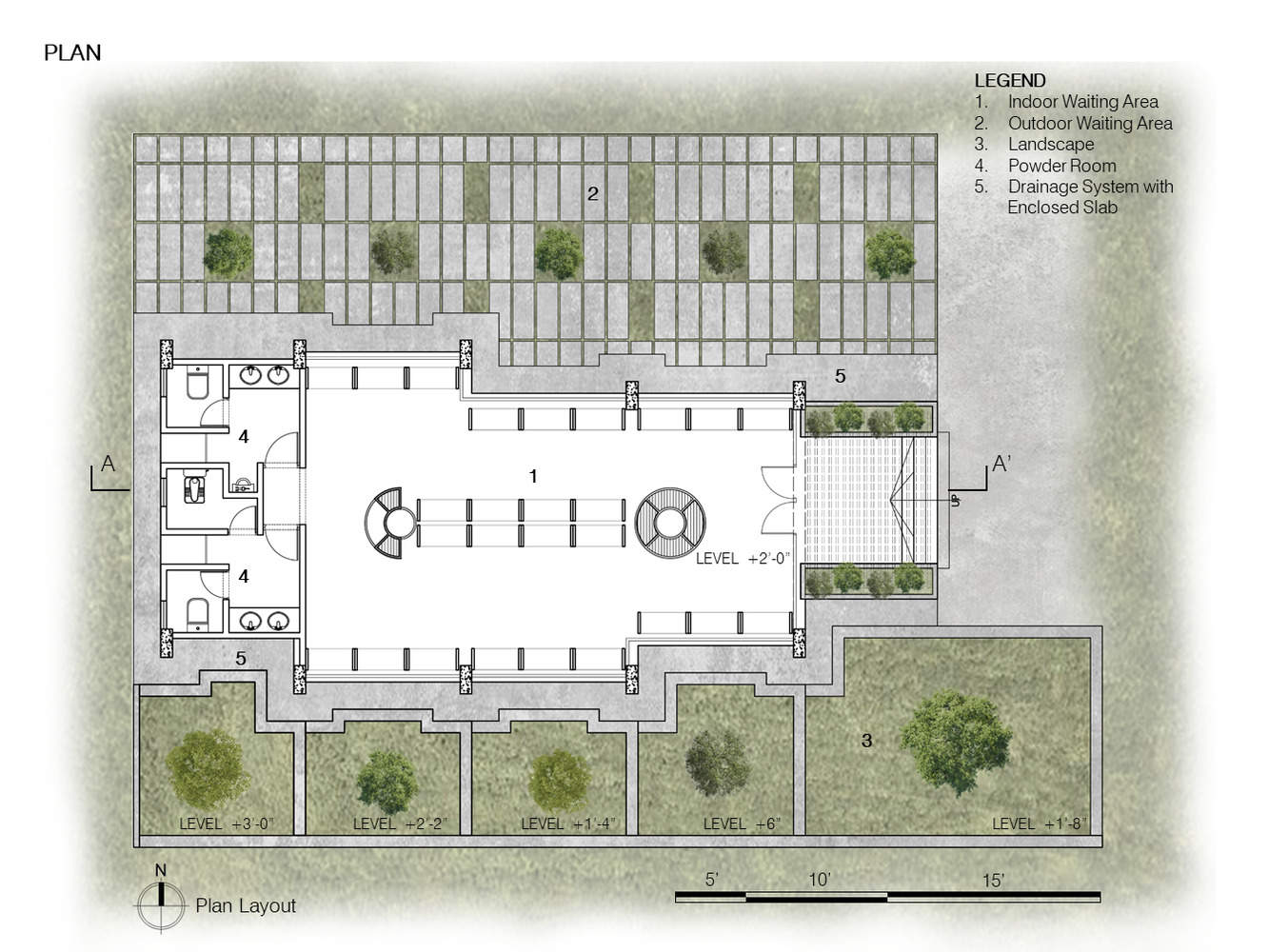

Floor Plan

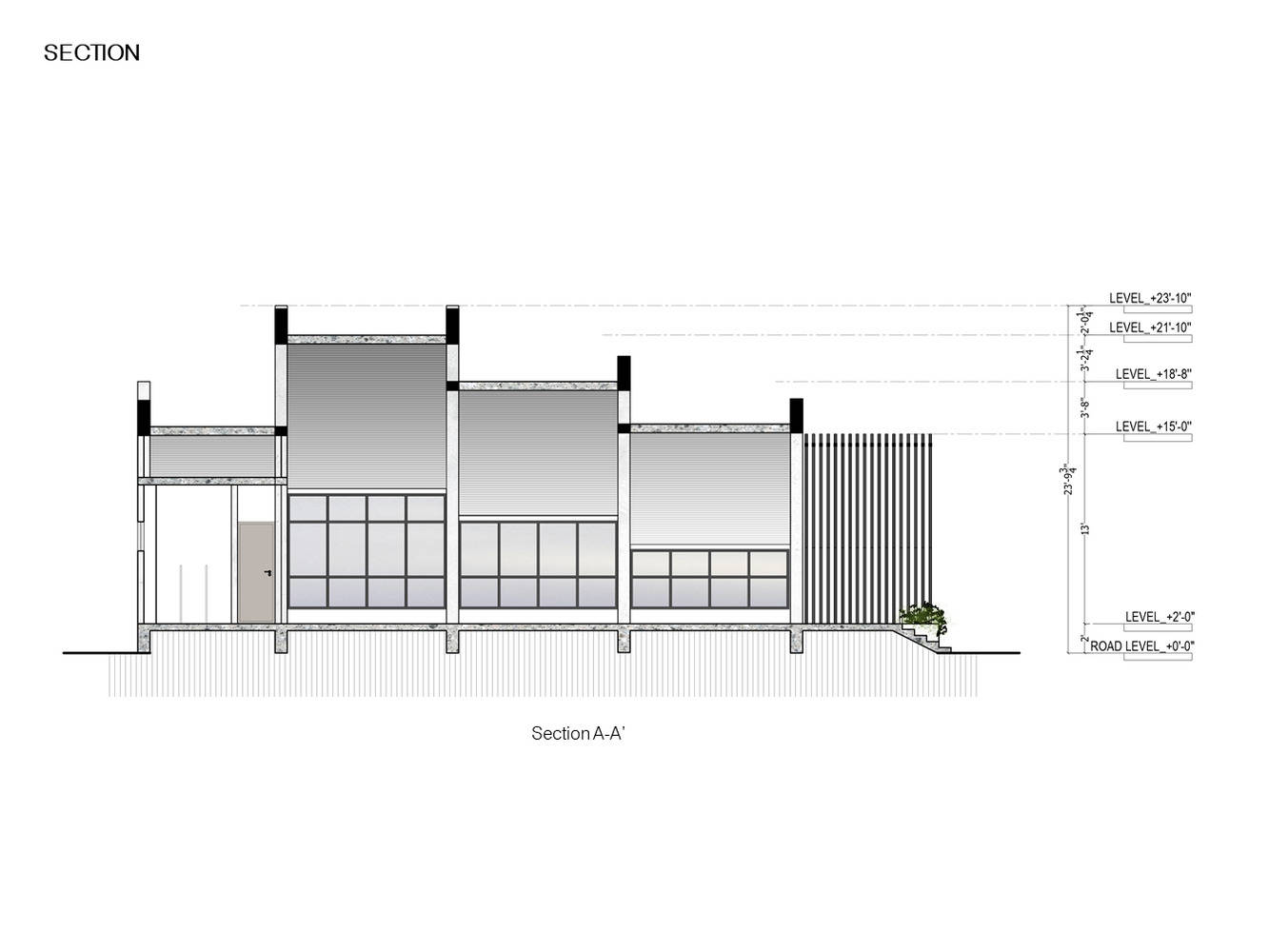

Section

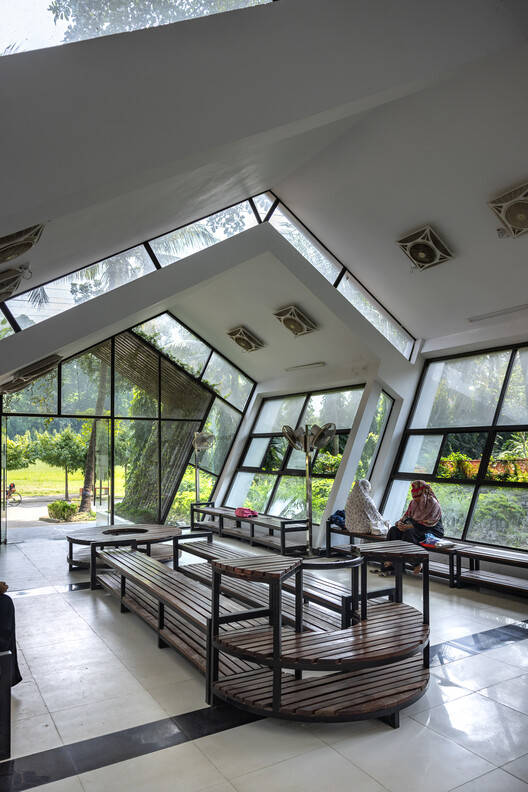

占地2000平方英尺，面积1100平方米。建筑面积有全高的倾斜幕墙和倾斜的天花板，营造出宽敞的错觉。该项目的主要目标是确保其功能和效率。使用全高幕墙的决定主要是为了将周围的绿色景观带入室内空间。倾斜的窗帘玻璃还可以防止阳光直射和高温。

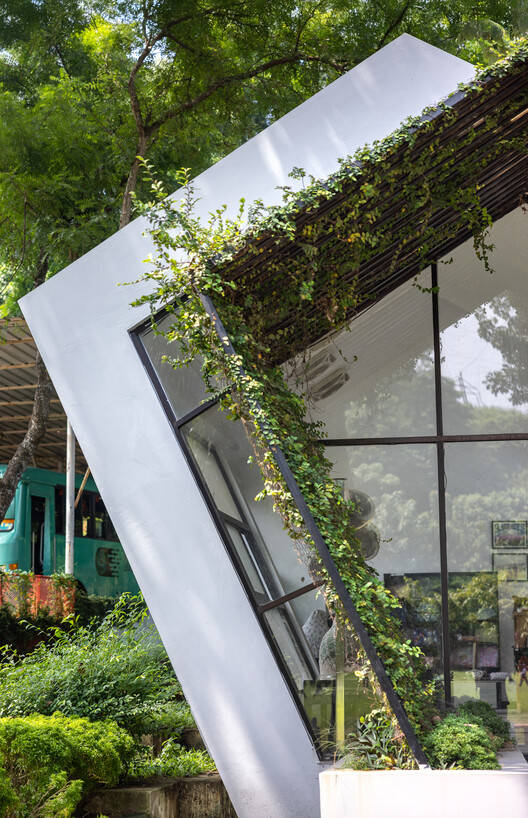

A 2000 sq. ft. area withan 1100sq. ft. built area has full-height inclined curtain walls and sloped ceilings, creating a spacious illusion.The main objective of this project is to ensure that it is functional and efficient. The decision to use full-height curtain glass walls was mainly to bring the surrounding green landscape into the interior spaces. The angled curtain glasses also serve as protection against direct sunlight and heat.

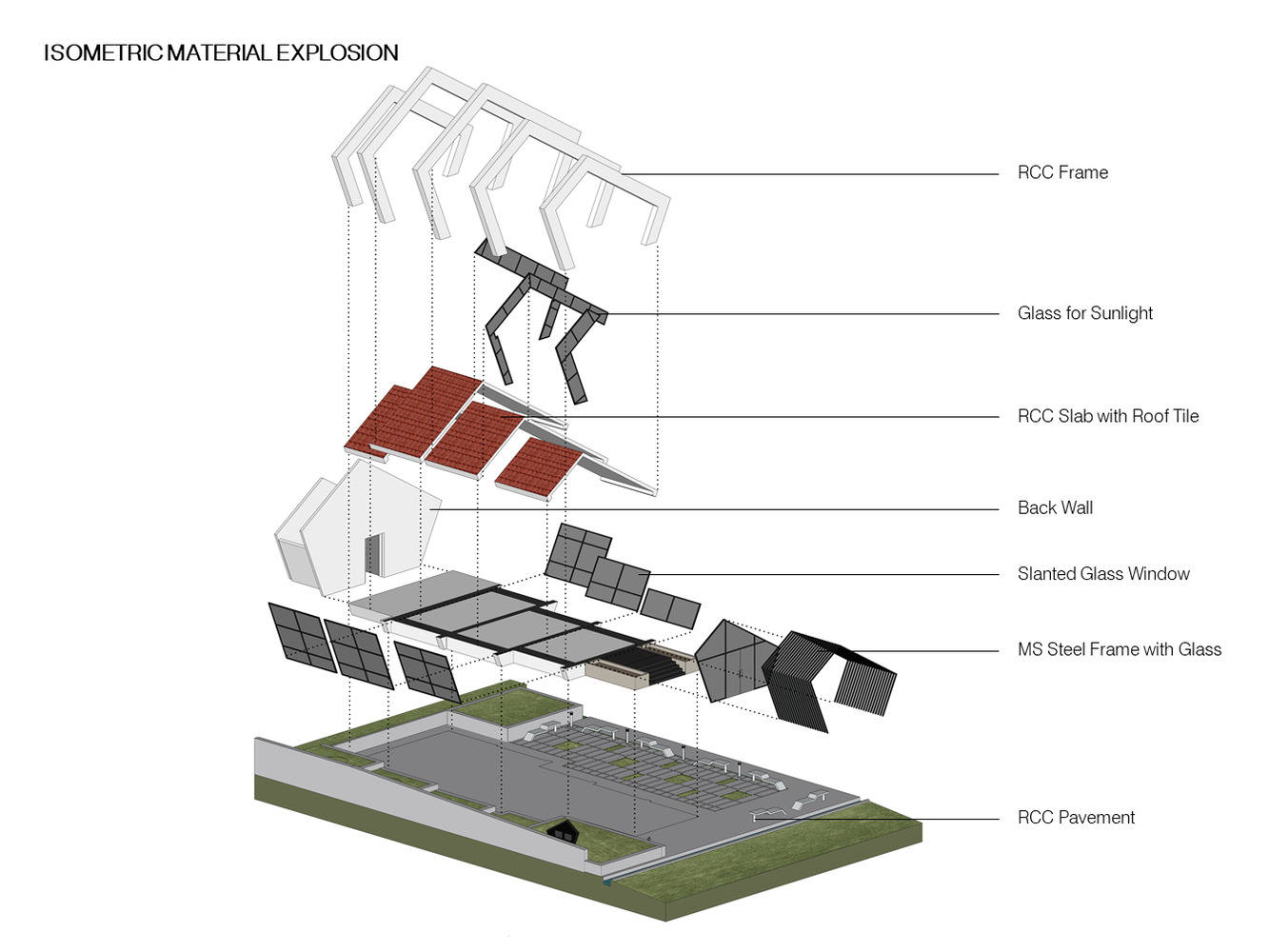

Isometric Material Explotion

整个建筑由框架结构系统支撑。此项目中未使用内部列。使用陶瓷屋顶瓦片是减少进入结构的热量的有效解决方案。这座建筑被光滑的屋顶高玻璃隔开，让自然阳光毫不费力地涌入。对于用户来说，这是一个完美的解决方案，可以在享受室内空间舒适的同时沐浴在阳光的亮度下。

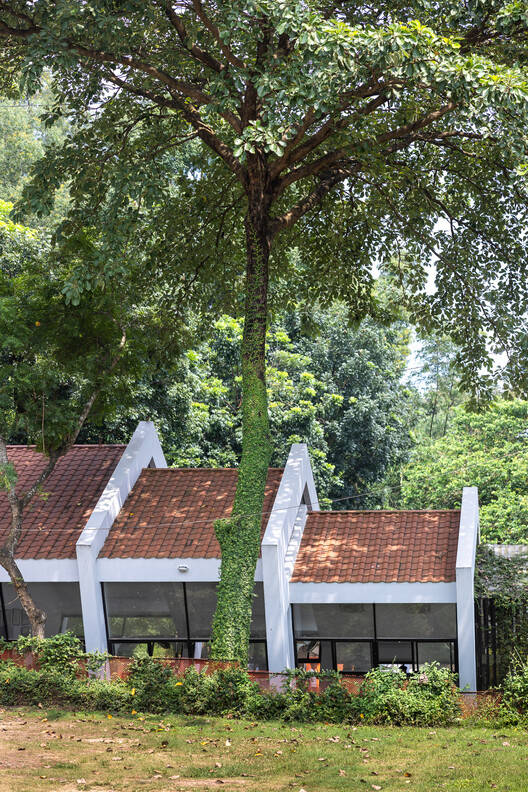

The entire building is supported by a frame structure system. No internal columns were used in this project. Using ceramic roof tiles was an effective solution for reducing the amount of heat that enters the structure. The building was divided with sleek roof-high glasses, which allowed the natural sunlight to flood in effortlessly. It's a perfect solution for users to bask in theluminanceof the sun while enjoying the comfort of an indoor space.

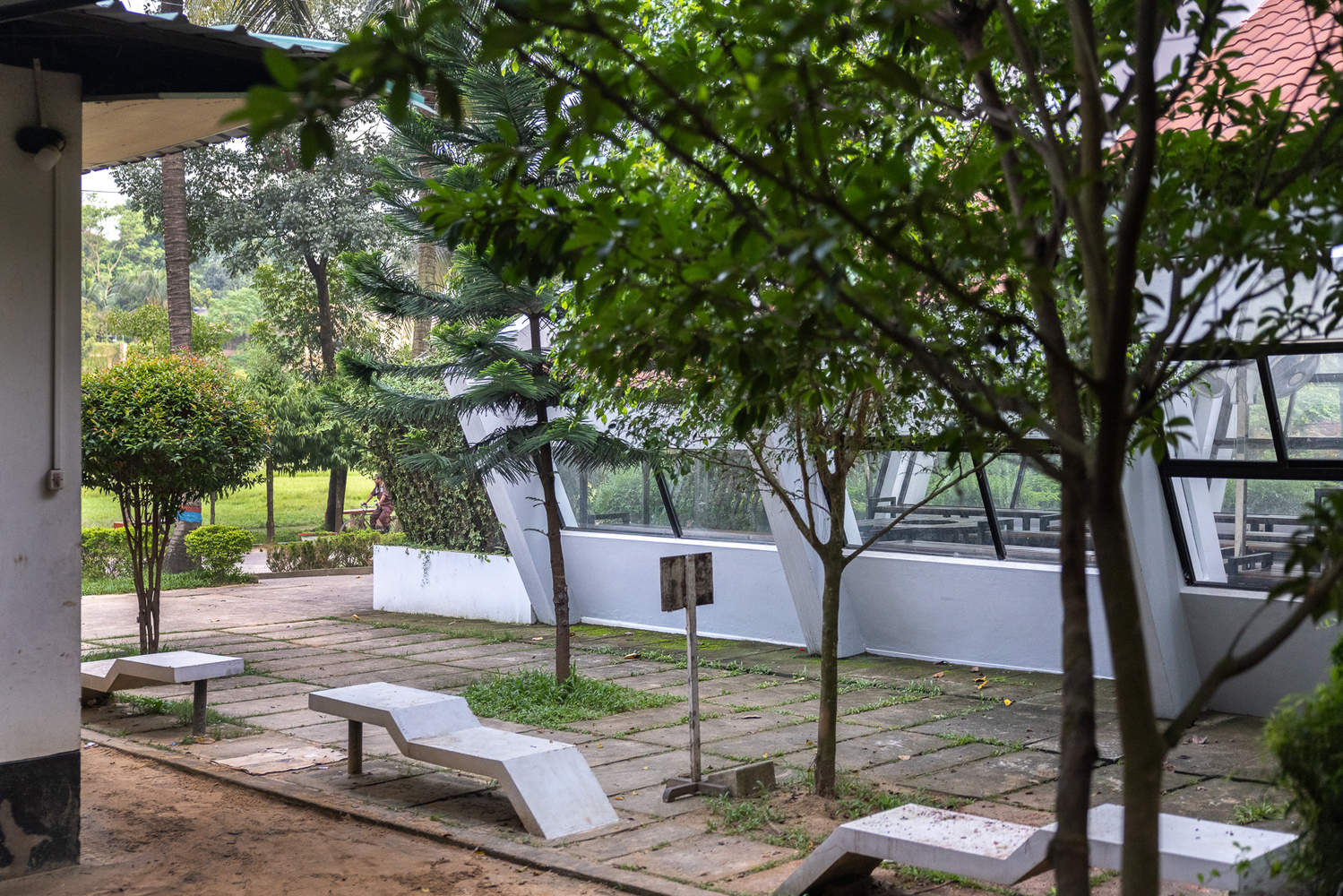

凭借空间的透明度，建筑师成功地在室内和室外、自然和人造结构、光明和黑暗、阴影和阴影之间建立了联系和沟通，为建筑增添了独特的氛围。绿地、休息区和景观的高度变化创造了多样化的空间，鼓励用户享受自然和参与讨论。

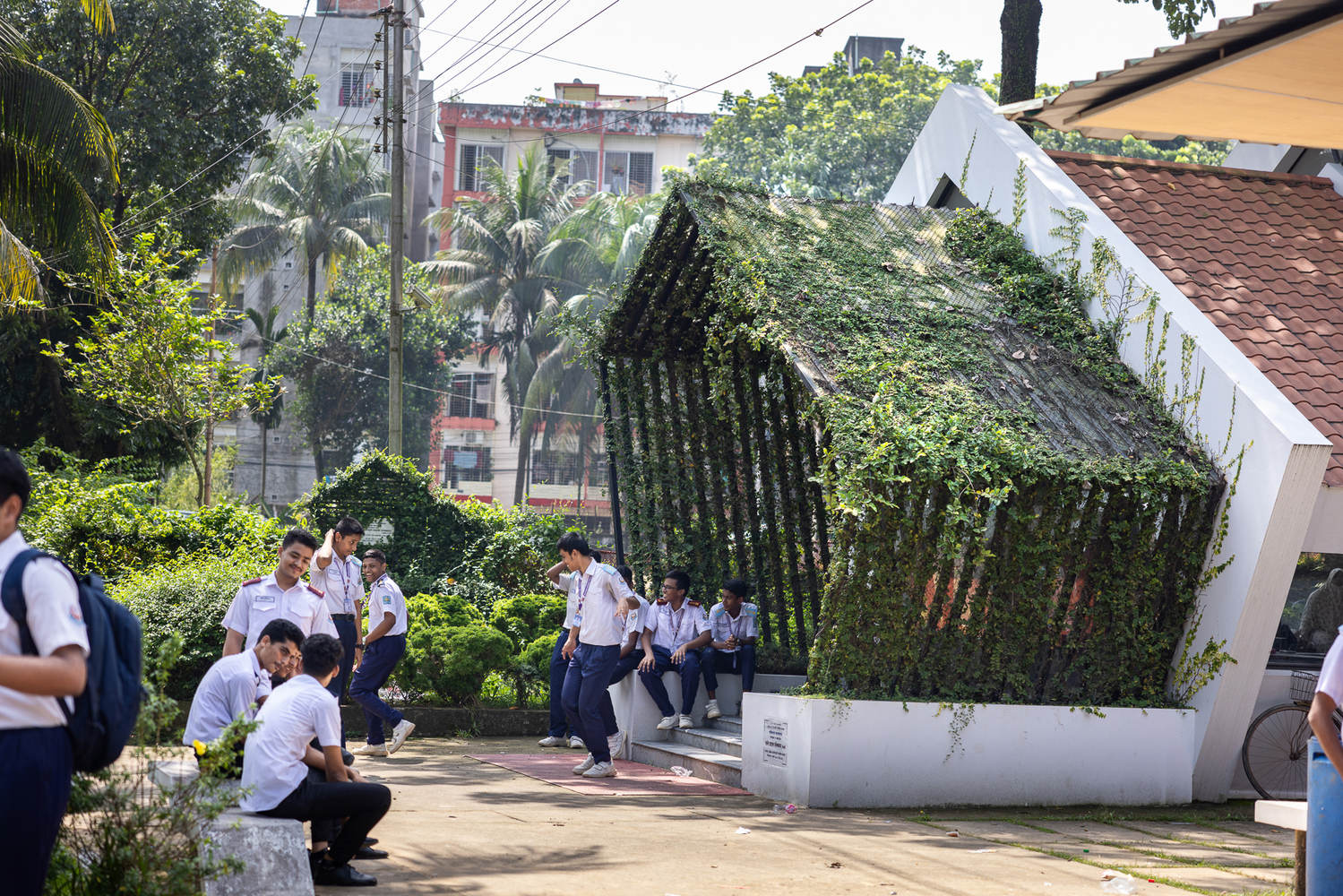

With the transparency of the space, the architects have successfully created connection and communication between the indoors and outdoors, nature and man-made structures, light and darkness, and shades and shadows, which adds a unique ambiance to the building. The greeneries, resting areas, and height variations of the landscape create a diversity of spaces to encourage users to enjoy nature and engage in discussions.

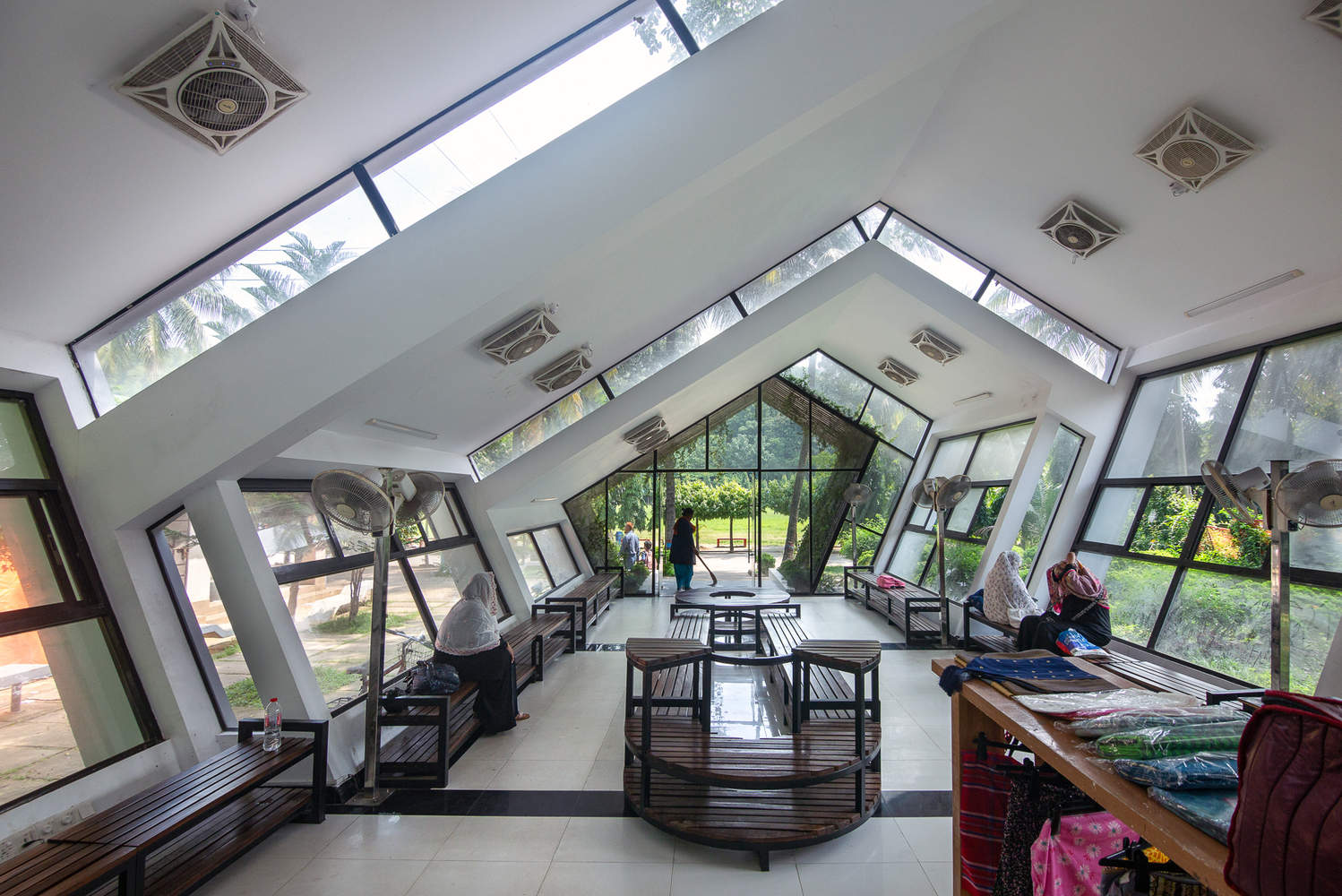

座位安排经过精心组织，为学生和家长创造了一个宽敞、易于流通的环境。因此，每个人都可以轻松地在空间中移动，没有任何障碍物。
The seating arrangement hasbeen thoughtfully organizedto create a spacious and easy-to-circulate environment forthestudents and their parents. As a result, everyone canmove around the space with ease, without any obstructions or obstacles in their way.
