Cityplot Buiksloterham C14 Building / Studioninedots

设计创新与功能融合：Cityplot Buiksloterham C14大楼的设计展现了卓越的创新性。其倾斜的仓库造型不仅呼应了场地的工业历史，还通过现代手法重新诠释了传统建筑形式。钢立面的设计尤为突出，锯齿状的阳台既为居民提供了遮蔽的户外空间，又最大化地引入自然光，同时保留了建筑的原始工业质感。这种设计不仅满足了功能需求，还赋予了建筑独特的视觉效果，使其成为城市中一个引人注目的存在。

可持续性与环境适应性：C14大楼在可持续性方面表现出色。建筑通过角形结构的设计，在一侧增强自然光的同时，另一侧则创造了阴凉，有效避免了夏季过度加热，确保了整个立面的保护性小气候。此外，大型玻璃墙将阳台与室内无缝连接，进一步提升了采光效果和室内外的互动性。雨水收集系统的设置也体现了对环境的尊重和资源的高效利用，展现了建筑在生态设计上的前瞻性和责任感。

社区活力与空间多样性：C1plot Buiksloterham C14大楼在社区营造方面发挥了重要作用。通过将自行车停车场移出建筑，一楼为海滨的创意企业和住宅提供了空间，使公共区域全天充满活力。建筑内部则提供了从沿街房屋到顶层公寓的多样化住宅选择，满足了不同居民的需求。这种设计不仅提升了建筑的功能性，还为社区创造了丰富的空间体验，使其成为城市中一个充满活力和吸引力的居住区。

建筑师提供的文字描述Studionedots将C14设计为一个现代的倾斜仓库，反映了其工业起源和新兴的城市地块Buiksloterham的象征
Text description provided by the architects. Studioninedots designs C14 as a contemporary, tilted warehouse — a reflection of its industrial origins and symbol of the emerging Cityplot Buiksloterham

在阿姆斯特丹的Buiksloterham，Studioninedots早些时候与DELVA合作创造了城市概念的Cityplot地区正在变得生动起来。我们的计划将废弃的工业区改造成一个生动而可持续的城区，在这里，集体、地方价值、多样性和韧性成为中心舞台。为此，建筑、公共空间和景观作为一个综合系统协同工作。
In Amsterdam's Buiksloterham, the Cityplot area, for which Studioninedots created the urban concept earlier in collaboration with DELVA, is coming to life. Our plan transforms the disused industrial site into a vivid and sustainable urban district, where the collective, local value, diversity and resilience take centre stage. To this end, buildings, public space and landscape work together as an integrated system.

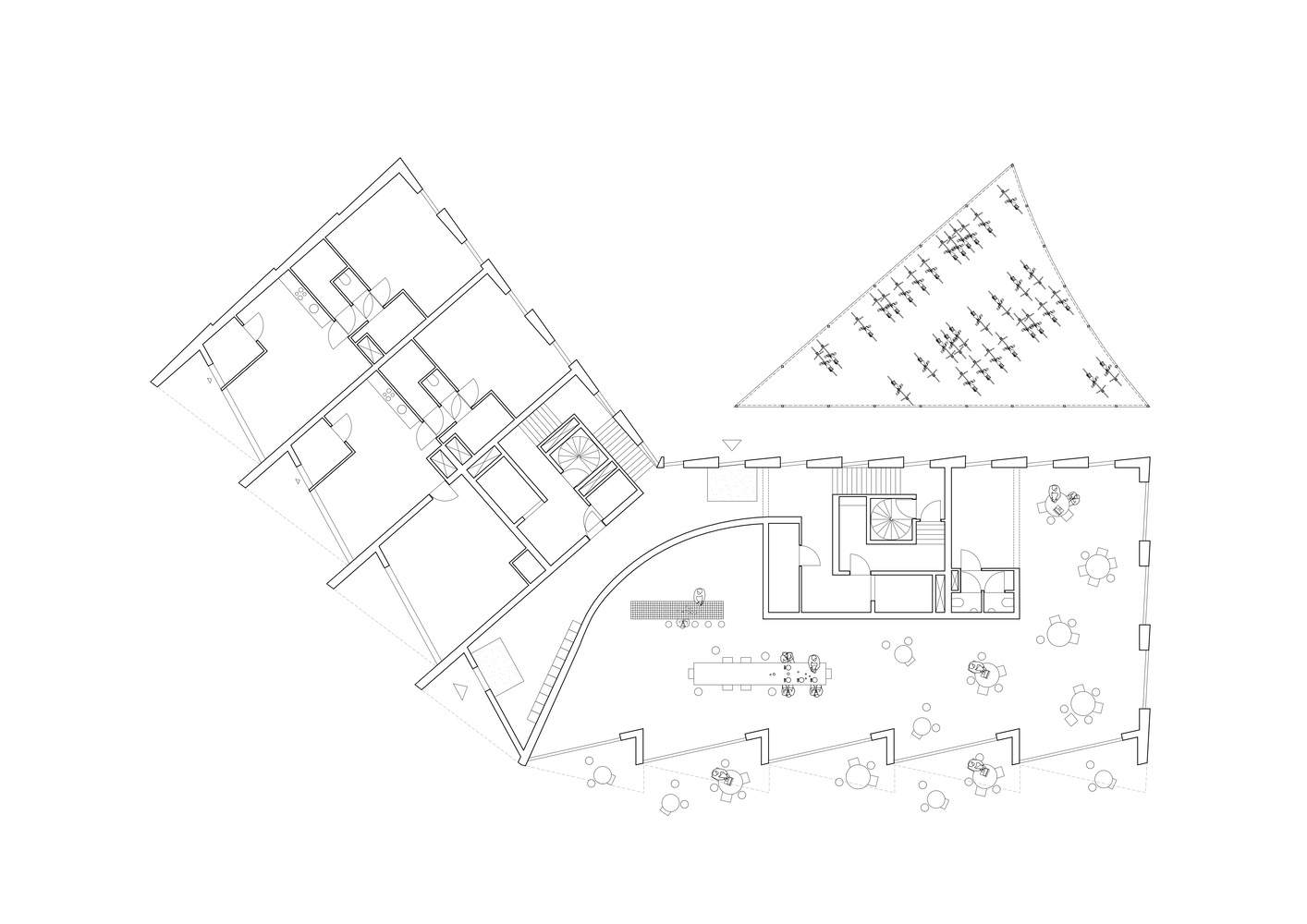

Plan - Ground floor

C14是Cityplot Buiksloterham的最新建筑，作为一个抽象的物体，在Tolhuiskanaal的海滨有着神秘的外观。我们的设计的一个决定性特征是它的钢立面，同时实现了多种功能。一下子，锯齿状的阳台序列为新居民创造了遮蔽的户外空间，最大限度地利用了通过大窗户进入的日光和建筑的原始特征。

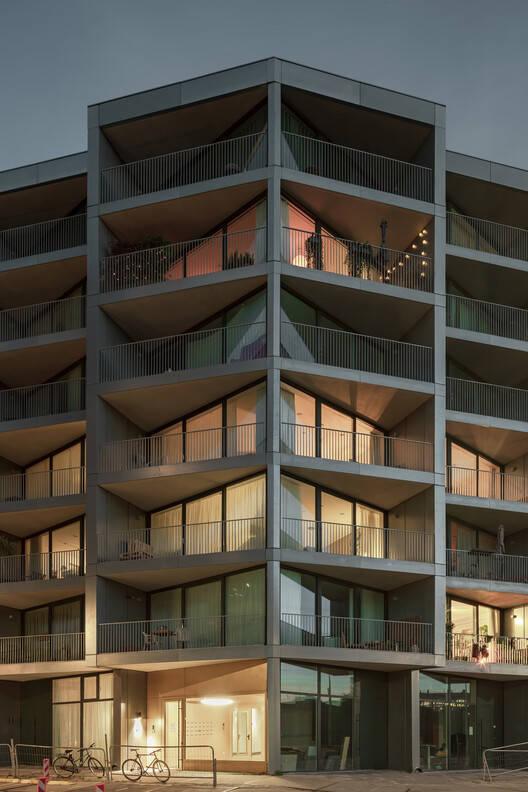

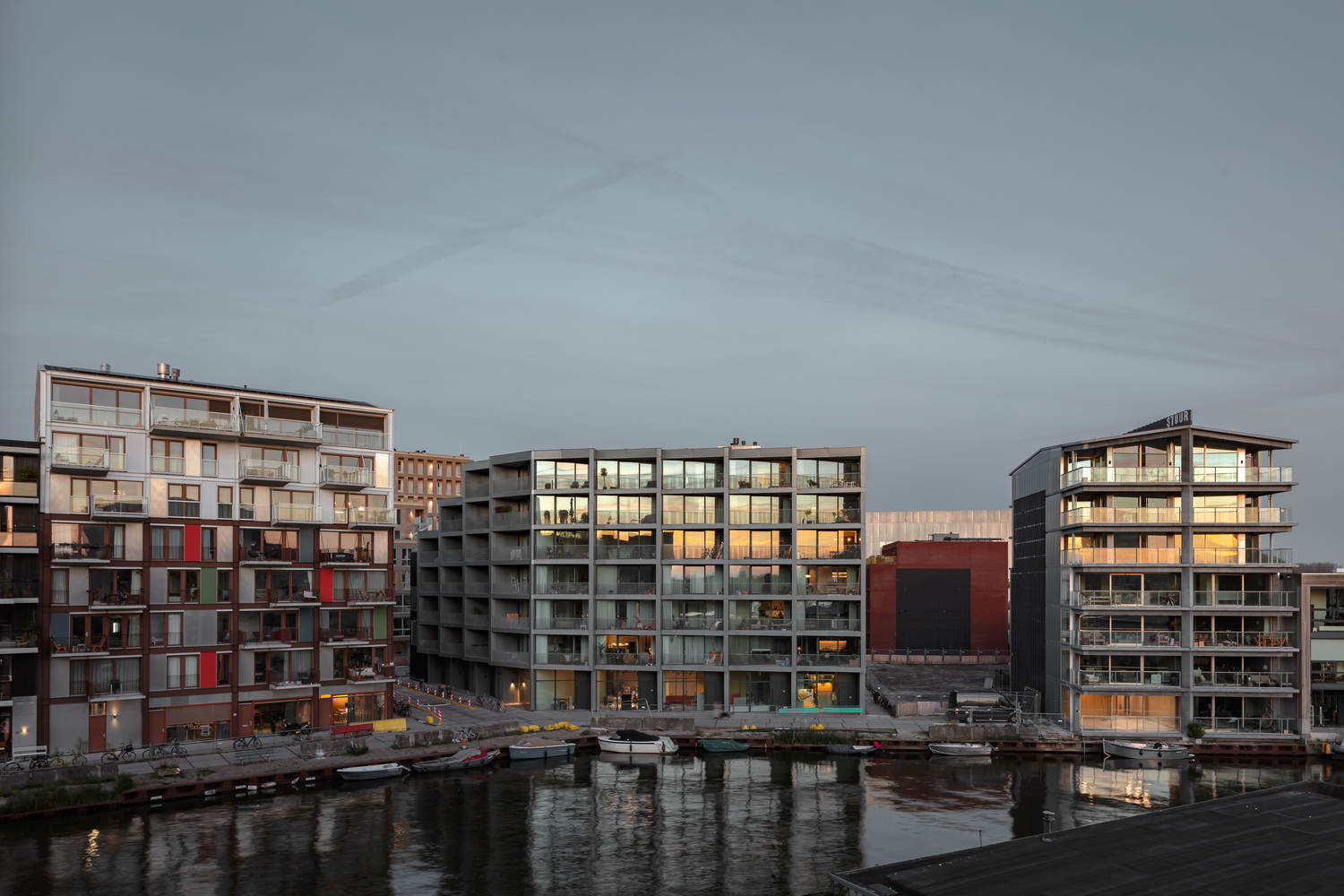

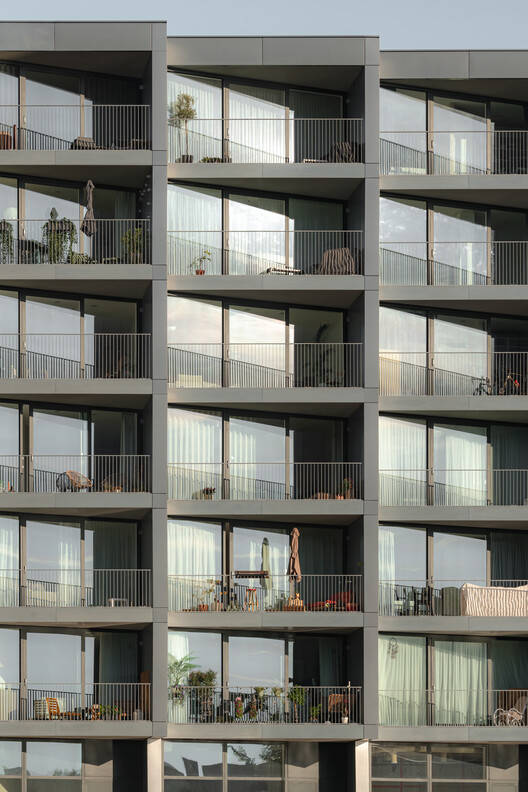

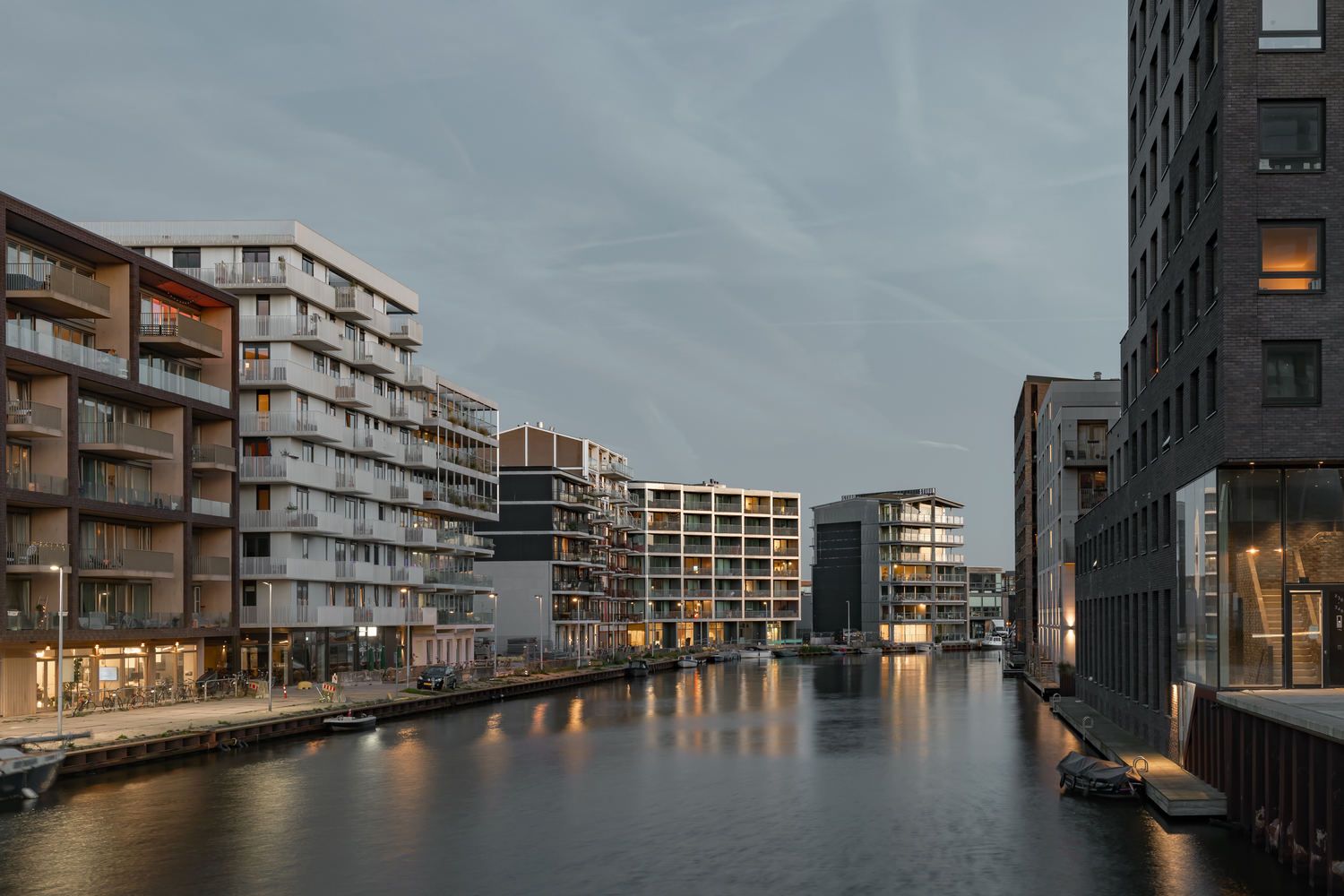

Standing as an abstract object with a mystical appearance on the waterfront of the Tolhuiskanaal, C14 is Cityplot Buiksloterham's newest building. One of our design's defining features is its steel facade, fulfilling several functions at once. In one stroke, the sequence of jagged balconies creates the sheltered outdoor spaces for the new residents, maximised daylight entry through the big windows and the building's raw identity.

我们把C14想象成一个仓库——然而，它却翻转过来，以现代的方式重新设计。通过这种方式，我们参考了该地点的工业历史，同时利用了仓库棚屋顶的功能。虽然角形结构在一侧增强了自然光，但在另一侧，它创造了阴凉，避免了夏季的过度加热，并确保了整个立面的保护性小气候。

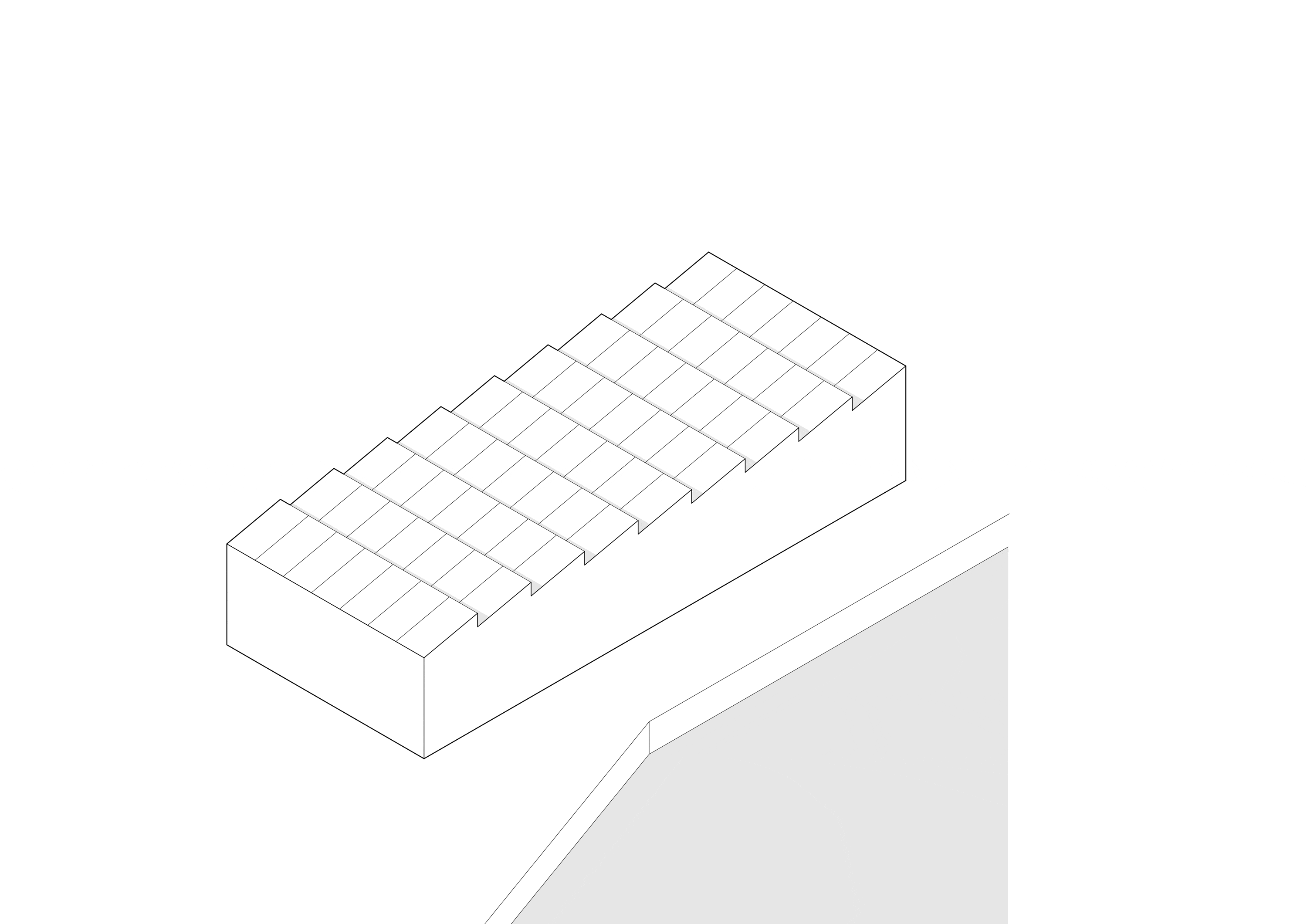

We imagined C14 as a warehouse — yet, flipped on its side and redesigned in a modern interpretation. With this, we reference the industrial history of the site, while at the same time making use of the functionality of a warehouse's shed roof. While the angular structure enhances natural light on one side, on the other it creates shade that avoids excessive heating in summer and ensures a protective microclimate across the facade.

这个想法使我们能够将C14的所有户外空间都朝南，并位于海滨。大型玻璃墙将阳台与房屋无缝连接，让自然光和景色充斥着室内。

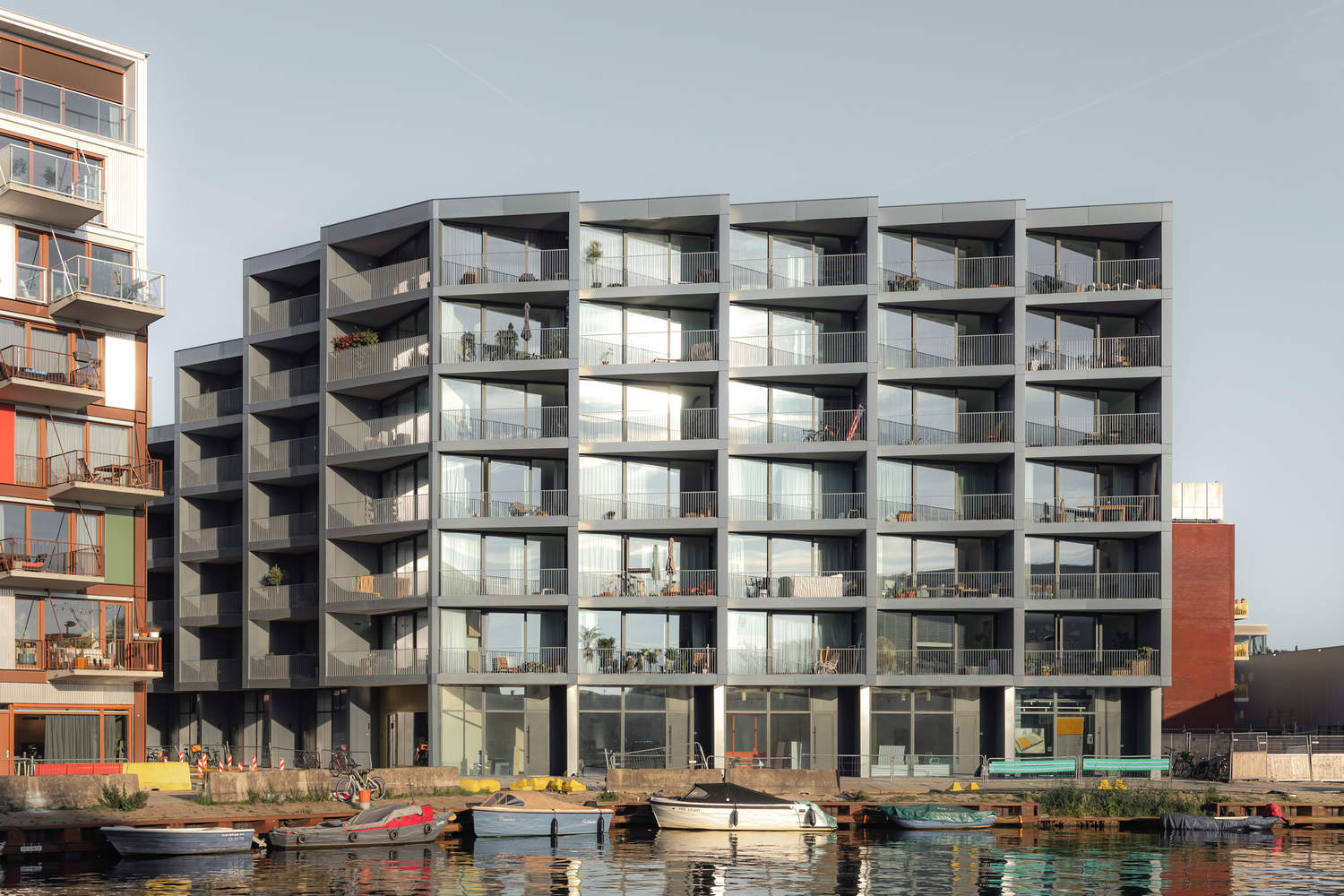

This idea allowed us to position all outdoor spaces in C14 facing south and on the waterfront. Large glass walls seamlessly connect the balconies to the houses, letting natural light and views flood the interiors.

通过将自行车停车场搬出大楼，我们在一楼为海滨的创意企业和街道玻璃幕墙后的住宅提供了空间，使公共空间全天候充满活力。在统一的室外空间墙后面是各种各样的住宅，从沿街的一楼房屋延伸到建筑尖端的一间宽敞的顶层公寓。
By taking the bicycle parking out of the building, we provided the space on the ground floor for creative businesses on the waterfront and residences behind glass fronts in the street, which energise the public space around the clock. Behind the uniform wall of outdoor spaces lies a variety of residences, stretching from ground-floor houses along the street to a wide top-floor apartment in the building's tip.

C14是C地块上较大的建筑之一，我们正在建造总共七栋建筑。C地块，也称为Tolhuiskade，被规划为城市地块，我们的概念是将以前的工业和工厂用地改造成新的城区，理想的地块面积为100x100米。
C14 is one of the larger buildings on Plot C, on which we are working on a total of seven buildings. Plot C, also known as Tolhuiskade, is laid out as a Cityplot, our concept that we use to transform former industrial and factory sites into new city districts, with an ideal plot size of 100x100 metres.

在城市地块上，通常分布在整个城市的不同功能被合并成一个密集的城市社区。用自己的视觉语言设计独立的建筑，可以确保建筑的多样性和具有独特身份的区域。
On a Cityplot, different functions that are normally spread across the city are merged into an intensive urban neighbourhood. Designing the separate buildings in their own visual language ensures architectural variety and an area with a distinct identity.

因此，在Tolhuiskade的内侧，C14是较小、富有表现力的建筑的抽象背景，如黑色的C19。这座建筑有两个堆叠的两层住宅，是同类建筑中的第一座。从现在开始，其他小型建筑将被添加到地块中。

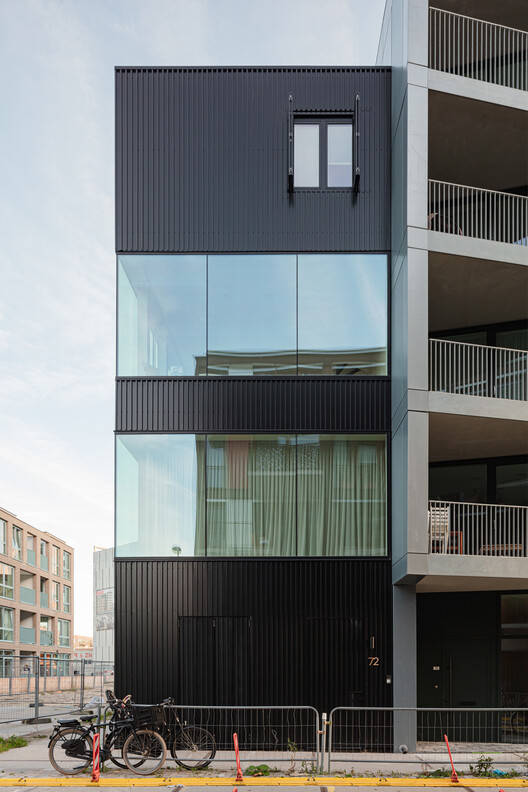

On Tolhuiskade's inner side, C14 is therefore the abstract backdrop for the smaller, expressive buildings, such as the black-coloured C19. This building with two stacked two-storey dwellings is the first of its kind. From now, the other small-scale structures will be added to the plot.

C14有一层闪亮的Magnelis钢皮，这是一种在焊池中镀锌的金属。这赋予了建筑双重性质，既可以融入天空，也可以在反射阳光时吸引你的眼球。同时，这种钢是指别克斯洛特勒姆的工业历史，在未来可以重复使用。

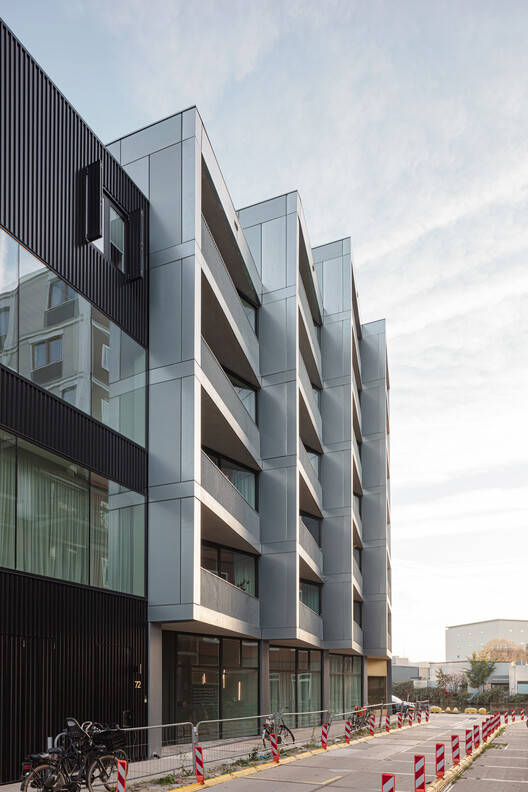

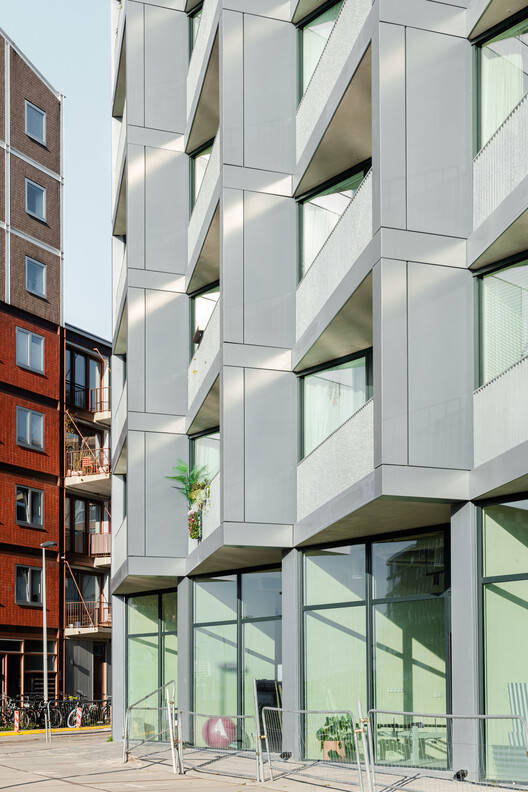

C14 has a shiny skin of Magnelis steel, a type of metal galvanised in a weld pool. This gives the building its dual nature, dissolving into the sky or catching your eye as it mirrors sunlight. Meanwhile, the steel refers to Buiksloterham's industrial past and is re-usable in the future.

在球场一侧，我们增加了一个小型木亭，用于存放自行车和挡水。这里收集的雨水被居民重新利用。我们发现木材的温暖氛围与C14的实心钢形成了鲜明对比，很快与Tolhuiskade即将建成的其他建筑形成了对比。夜晚，这座带有板条立面的展馆像灯笼一样亮起，成为新兴社区的友好灯塔。

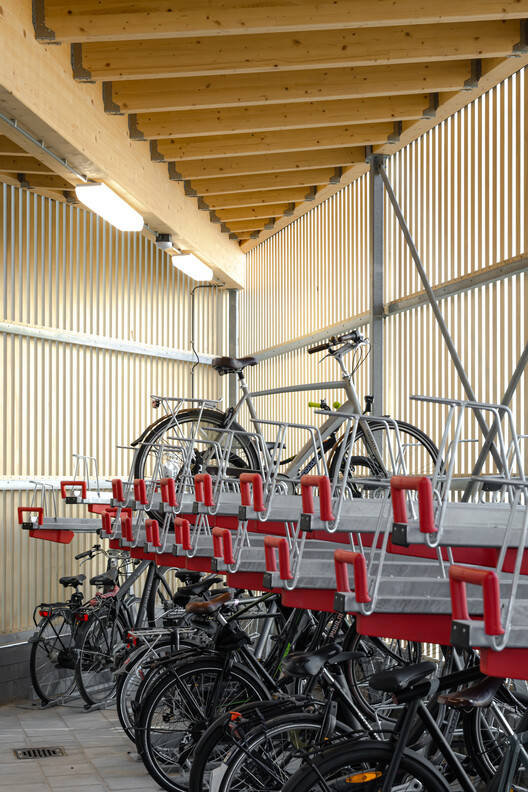

On the court side, we added a small-scale timber pavilion, housing the bicycle storage and water retention. The rainwater collected here is re-used by the residents. We found the warm atmosphere of the wood to contrast with the solid steel of C14, and soon with the other buildings that will come into being at Tolhuiskade. At night, the pavilion with its slatted facade lights up like a lantern and becomes a friendly beacon in the emerging neighbourhood.
