Mega Floor (Seoul AI Hub) / stpmj

建筑师提供的文字描述佐治亚州的萨凡纳和纽约的曼哈顿在城市内形成和使用公园的方法非常不同。萨凡纳采用了一个引人入胜的口袋公园的形式，定期放置几个小公园，为附近的居民提供日常休息。相比之下，曼哈顿的中央公园很大，位于市中心，被用作一个综合公园，供全体公众共享和享受，可以举办各种活动和事件。这个大型公园将城市网格内的道路区域整合到公园中，节省了不必要的移动，并作为一个容纳各种活动和事件的大型共享和社交空间。
Text description provided by the architects. Georgia's Savannah and New York's Manhattan have very different approaches to forming and using parks within the city. Savannah adopts the form of an absorbing Pocket Park, placing several small parks at regular intervals to provide nearby residents with everyday rest. In contrast, Manhattan's Central Park is large and in the center of the city, utilized as an integrated park that the entire public shares and enjoys, allowing for various activities and events. This large park integrates the areas of roads within the city's grid into the park, saving unnecessary movement and serving as a large shared and social space that accommodates various activities and events.

Mega Floor是一个共享办公设施新原型的提案。通常，办公空间围绕一个核心布置，四面面向外部。共享和社交空间被降级到中心区域，该区域很小，环境孤立。在以人工智能为中心的第四次工业革命办公空间框架内，考虑到与各行业的合作、共享和协同，该区域的规模及其环境绩效需要提高。
Mega Floor is a proposal for a new prototype of shared office facilities. Typically, office spaces are arranged around a core, with the four sides facing the outside. Shared and social spaces are relegated to the central area, which is small and environmentally isolated. In the framework of AI-centered 4th industrial revolution office spaces, considering cooperation with various industries, sharing, and synergy, the size of that area and its environmental performance need to be enhanced.

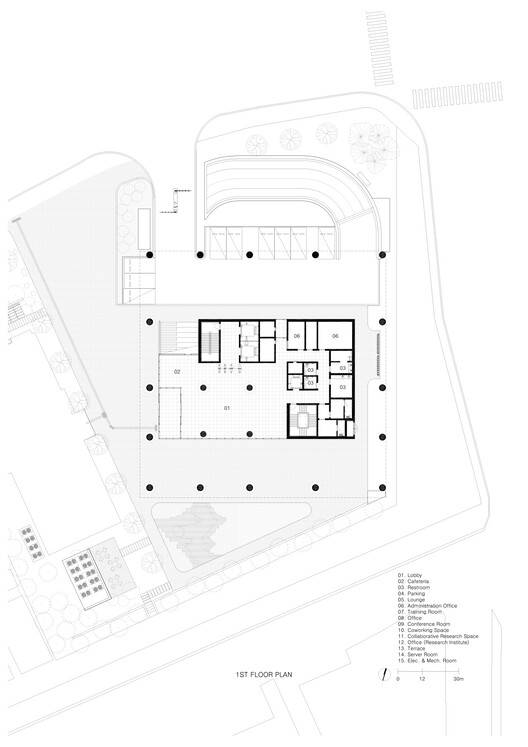

1st Floor Plan

Mega Floor将“共享”的扩展概念应用于平面图、横截面和外部空间。围绕L形核心，办公空间布置在北部和东部，为居民公司提供了良好的视野。在阳光充足的南部和西部规划了大型、未指定的共享空间（中性空间）。在核心的一侧，这个空间与会议室和重点工作区融为一体，其位置根据楼层间共享空间的利用情况进行调整。

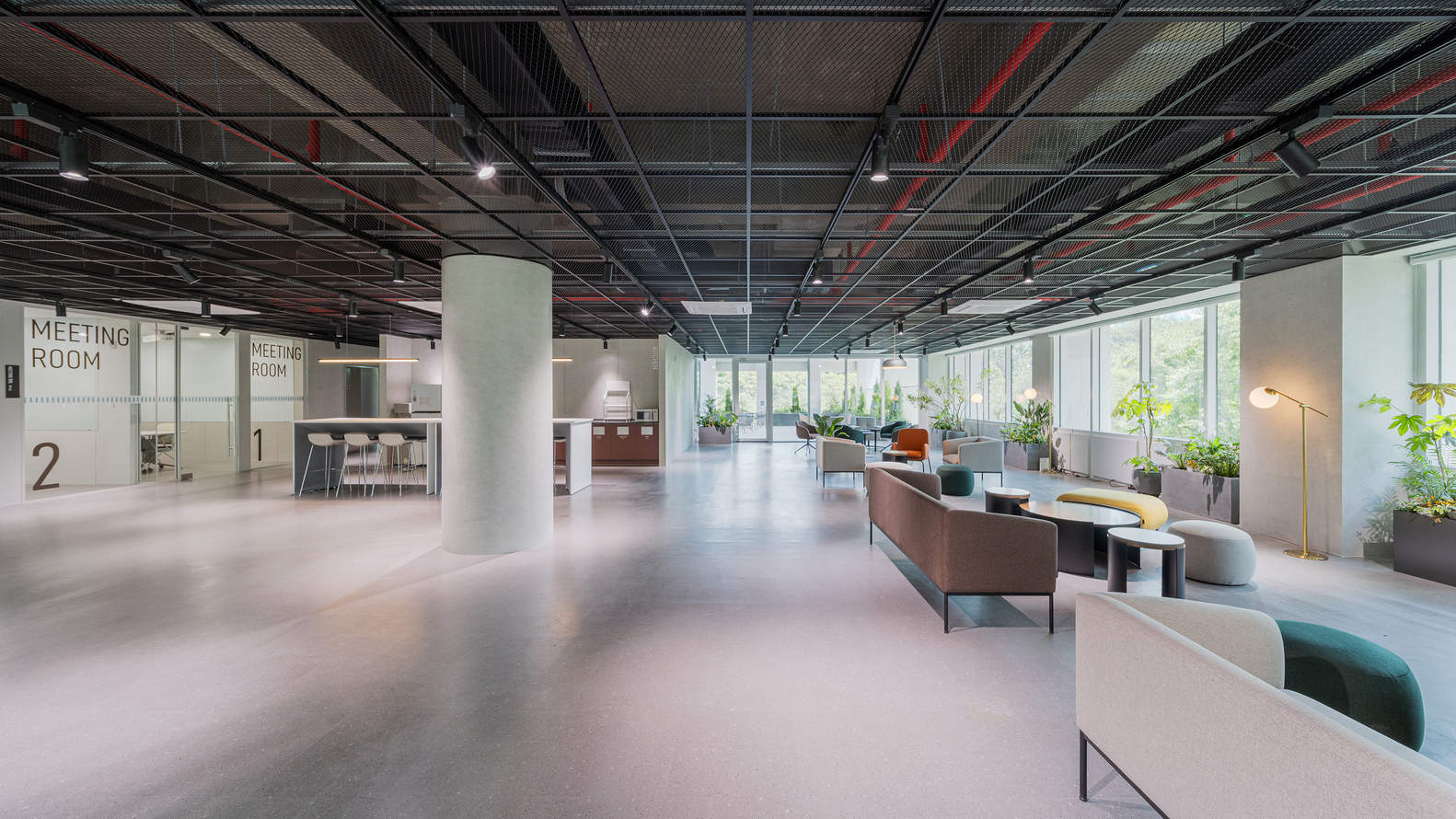

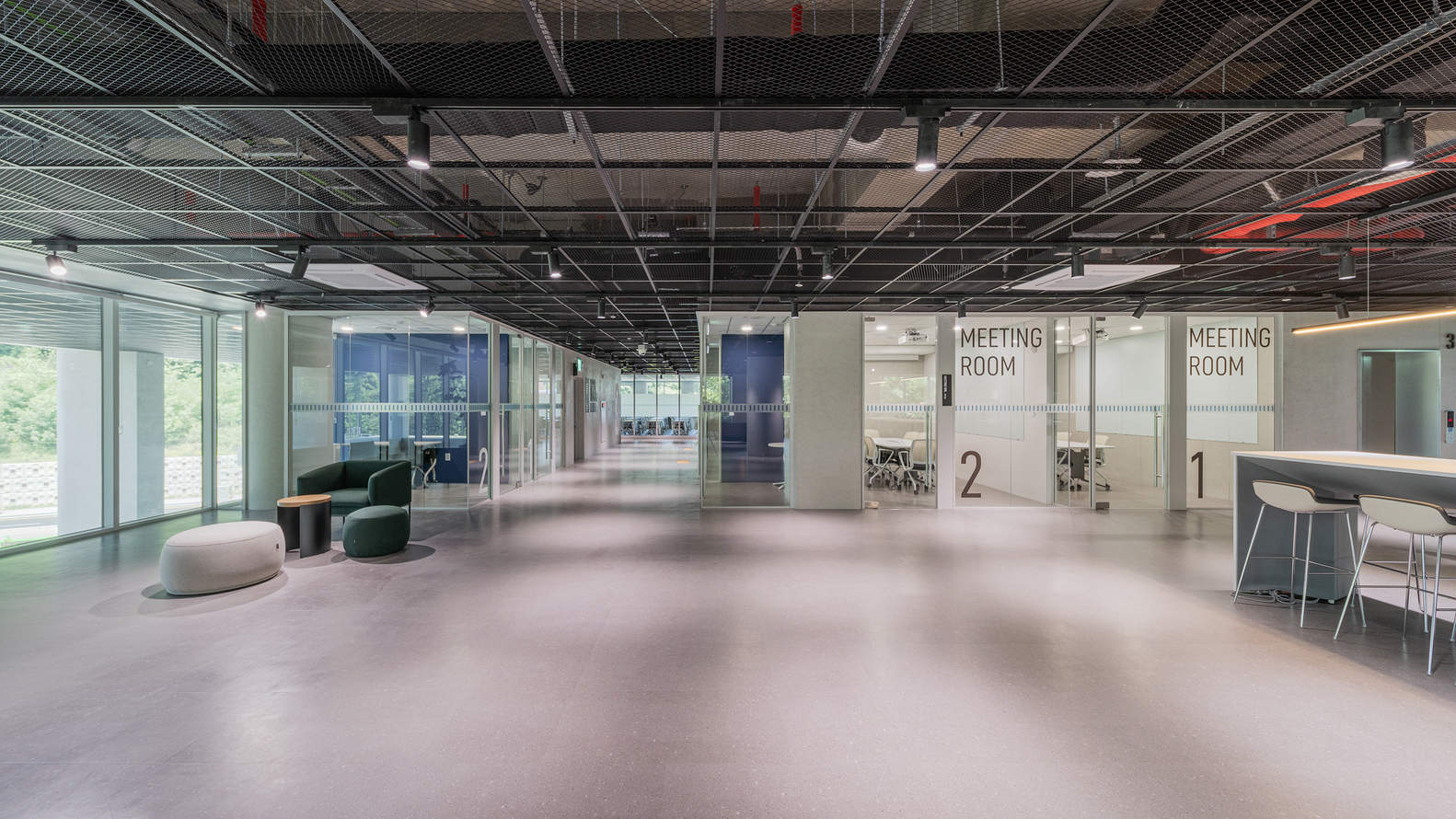

Mega Floor applies the expanded concept of 'sharing' to the plan, cross-section, and external spaces. Around an L-shaped core, office spaces are arranged to the north and east, offering good views for resident companies. Large, unspecified shared spaces (neutral spaces) are planned on the south and west, where sunlight is abundant. On one side of the core, this space is integrated with meeting rooms and focused work areas, and its location is adjusted based on how the inter-floor shared space is utilized.

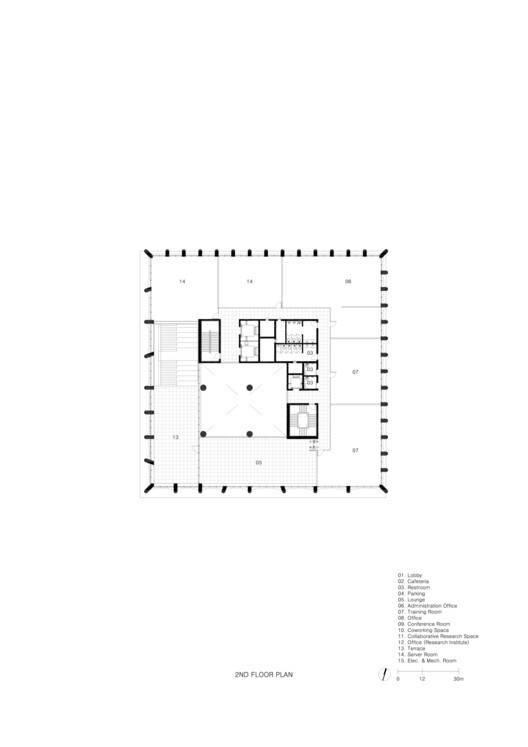

2nd Floor Plan

最终，每个平面图上的层次结构从私人和安全区域延伸到公共和开放空间，将居民公司（私人/安全）、核心区的共享办公空间（半私人/半安全）、共享空间（公共/非安全）和外部空间联系起来。这种方法也适用于横截面，其中两层楼的共享空间结合在一起，以扩大楼层之间的视线和流通。这与贯穿整个地板的空隙有关，调节照明、温度和湿度，降低能耗，同时提供舒适的室内环境。

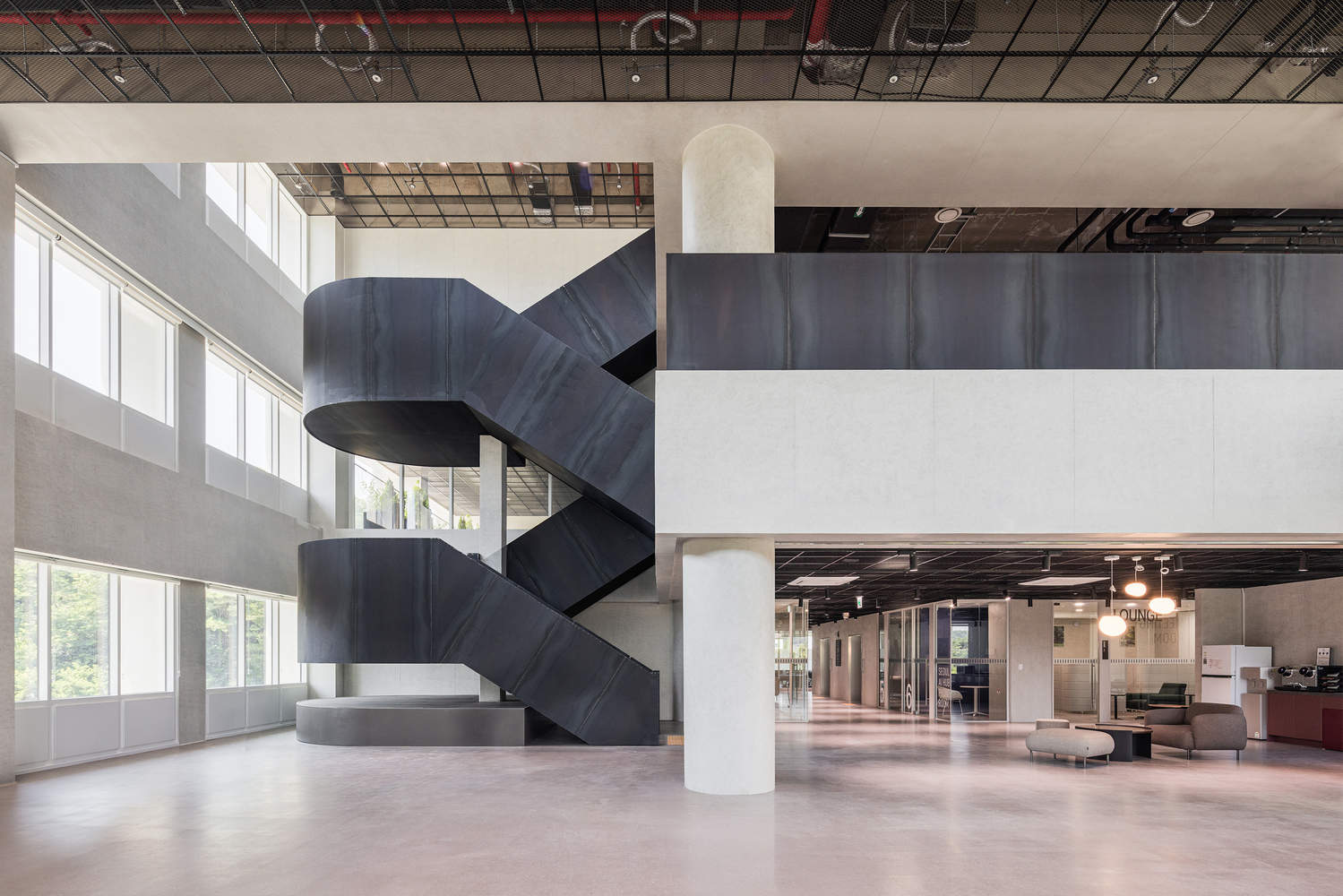

Ultimately, the hierarchy on each floor plan extends from private and secure areas to public and open spaces, linking resident companies (Private/Secured), shared office space in the core zone (Semi-Private/Semi-Secured), shared spaces (Public/non-secured), and external spaces. This approach is also applied in the cross-section, where shared spaces on two floors are combined to expand sightlines and circulation between floors. This is linked to a void that penetrates the entire floor, regulating lighting, temperature, and humidity, reducing energy consumption while providing a comfortable indoor environment.
