104号住宅
House 104 / FLORA
功能与美学的融合:104号住宅的设计巧妙地将功能性和美学相结合。以中央核心为布局中心,集中了厨房、浴室、楼梯和储物区等主要服务设施,不仅实现了设施的高效分配,还优化了空间的使用。这种设计既满足了居住的实用性需求,又通过简洁的线条和合理的空间划分,营造出一种现代而舒适的居住氛围,体现了建筑的功能美学。
材料与环境的和谐:在材料选择上,该住宅采用了裸露的实心砖,立面由双墙组成,带有气室和隔热层,有效抵御了巴哈布兰卡市极端的气候条件。这种材料的使用不仅体现了对当地环境的适应性,还赋予了建筑一种质朴而坚固的外观。同时,建筑的朝向设计充分利用了自然光线和通风,进一步增强了建筑与环境的和谐共生,展现了建筑对可持续发展的追求。
室内外空间的无缝连接:104号住宅通过半覆盖式扩建和三轨滑动开口,实现了室内外空间的无缝连接。这种设计不仅提供了从室内到室外的直接过渡,还为居民提供了在享受户外空间的同时保持舒适和保护的灵活性。它模糊了室内外的界限,使居住者能够更好地与自然环境互动,享受户外生活,同时也体现了现代建筑设计中对空间流动性和开放性的重视。
© Sergio García Pedroche
© Sergio García Pedroche

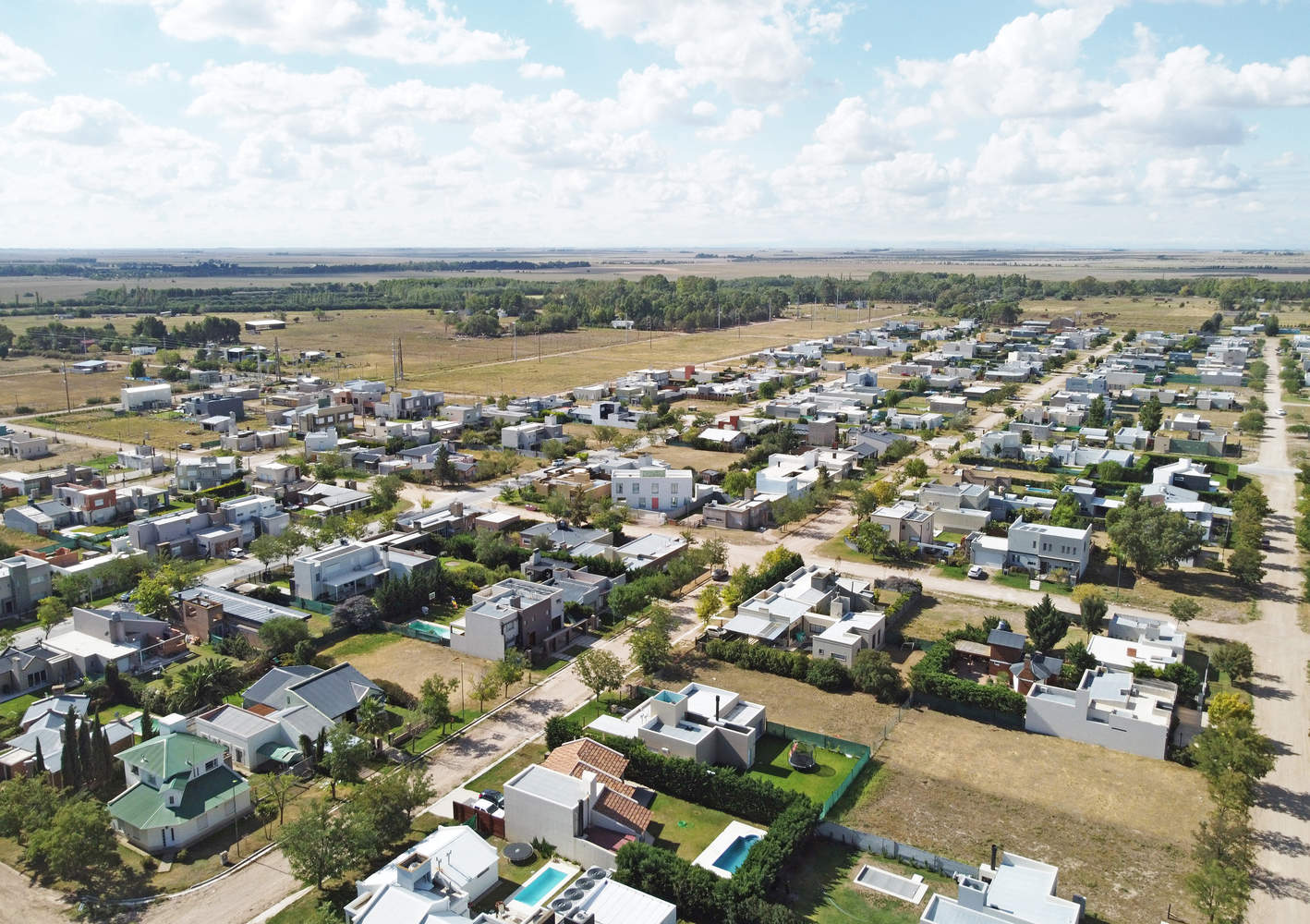

建筑师提供的文字描述这座名为104的住宅由建筑工作室FLORA设计,位于布宜诺斯艾利斯省南部布兰卡市的外围社区Las Acacias。Las Acacias的特点是低密度城市化,低高度的独栋房屋占主导地位。
Text description provided by the architects. The residence known as 104, designed by the architecture studio FLORA, is located in Las Acacias, a peripheral neighborhood in the city of Bahía Blanca, in the southern part of the province of Buenos Aires. Las Acacias is characterized by being a low-density urbanization, where single-family homes of low height prevail.
© Sergio García Pedroche
这座房子以其独特的结构为特色,以其功能性和美学的方式脱颖而出。它是围绕一个中心核心而设计的,服务集中在这里,让周围的空间自由流通和扩展。中央核心作为房屋的中心,容纳了厨房、浴室、楼梯和储物区等主要服务设施,实现了设施的高效分配,优化了所含空间的使用。
The house features a unique structure that stands out for its functional yet aesthetic approach. It has been conceived around a central core where the services are concentrated, leaving the perimeters free for circulation and the expansion of spaces. The central core, which acts as the house's hub, houses the main services such as the kitchen, bathrooms, stairs, and storage areas, allowing for an efficient distribution of installations and optimizing the use of the contained space.

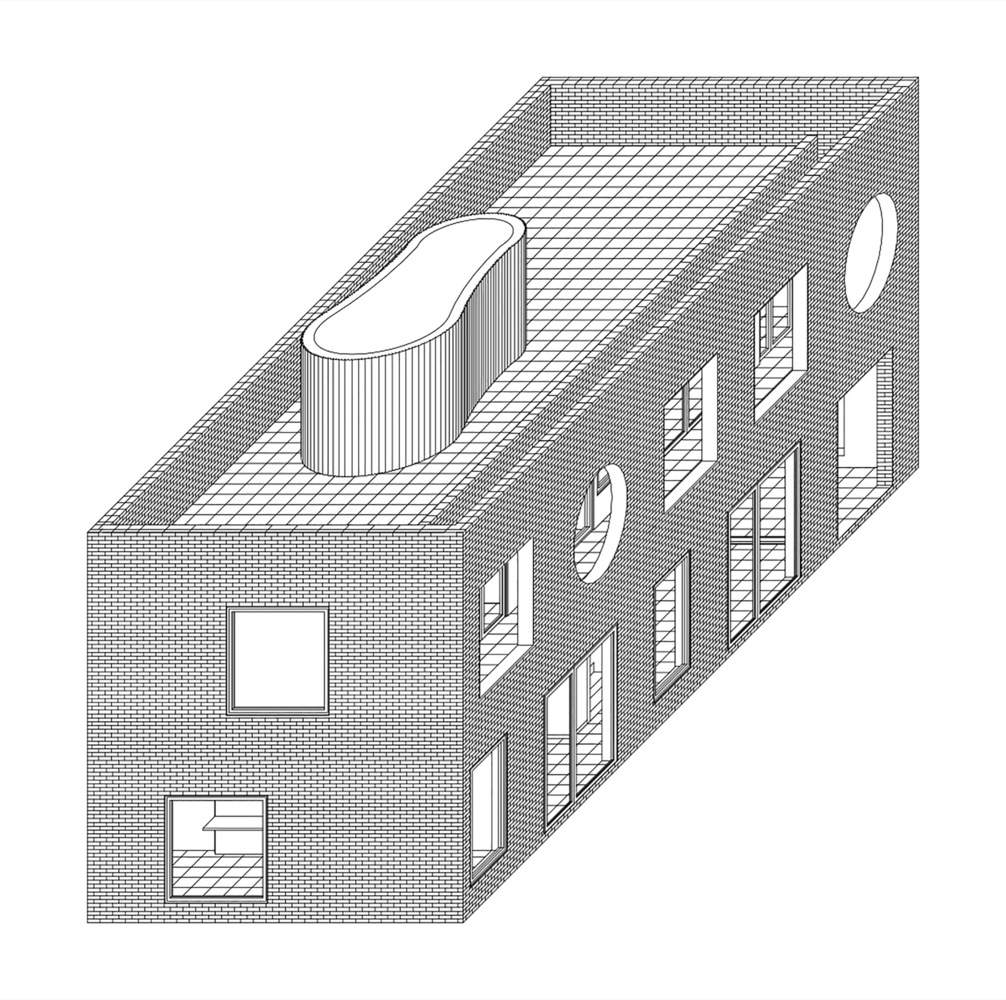

Axo

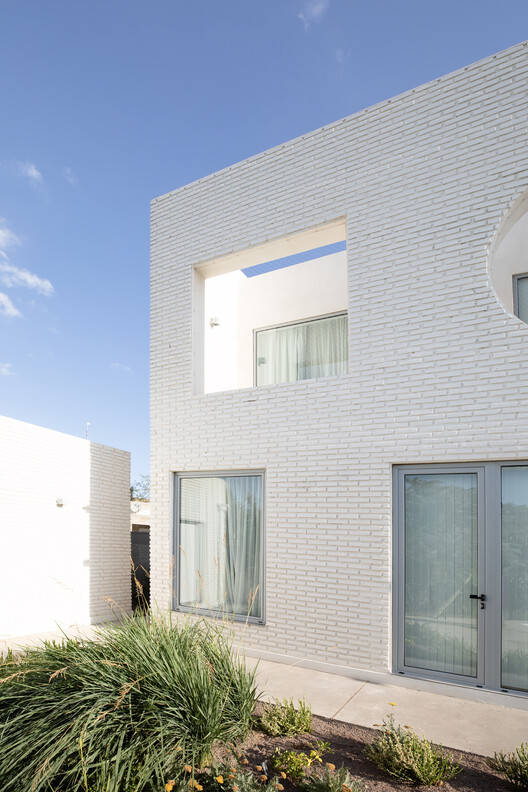

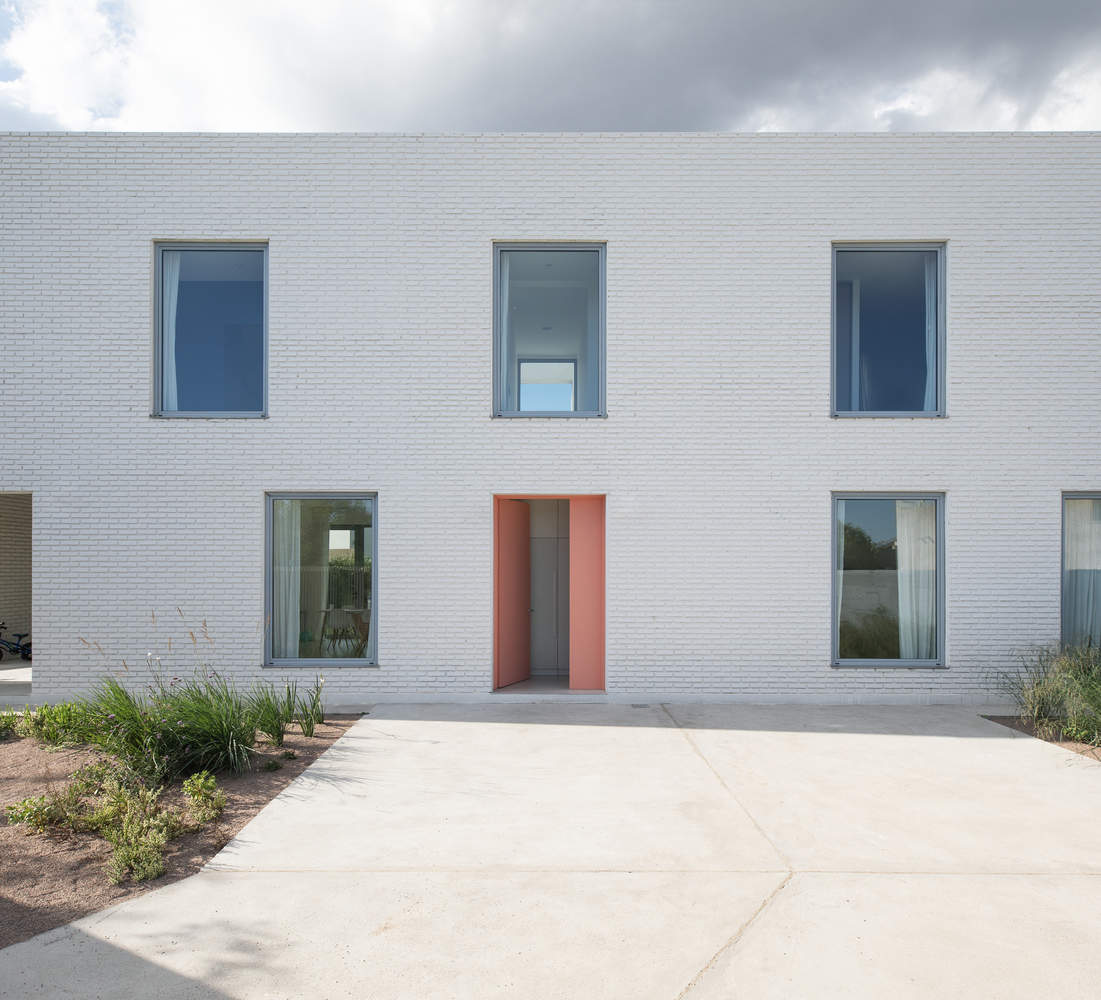

在材料方面,这座房子呈现为一块裸露的实心砖,立面由双墙组成,带有各自的气室和50mm厚的膨胀聚氨酯隔热层。这座建筑的设计是为了保护其内部免受冬季和夏季巴哈布兰卡市特有的极端气候条件的影响。
In terms of materials, the house presents itself as a solid block of exposed bricks, with façades composed of double walls with their respective air chambers and 50mm thick expanded polyurethane thermal insulation. This building has been designed to protect its interiors from the extreme climatic conditions characteristic of the city of Bahía Blanca during the winter and summer months.
© Sergio García Pedroche
© Sergio García Pedroche
它的结构完全由钢筋混凝土制成。工作室选择了传统的建筑系统,确保可以根据办公室提供的技术规范远程执行。已经实施了一项技术指导,以证明布兰卡铁路专业人员与布宜诺斯艾利斯工作室之间的进展。
Its structure is entirely made of reinforced concrete. The studio has opted for a traditional construction system, ensuring that the execution can be carried out remotely in accordance with the technical specifications provided by the office. A technical direction has been implemented to certify the progress between professionals in Bahía Blanca and the studio in Buenos Aires.
© Sergio García Pedroche

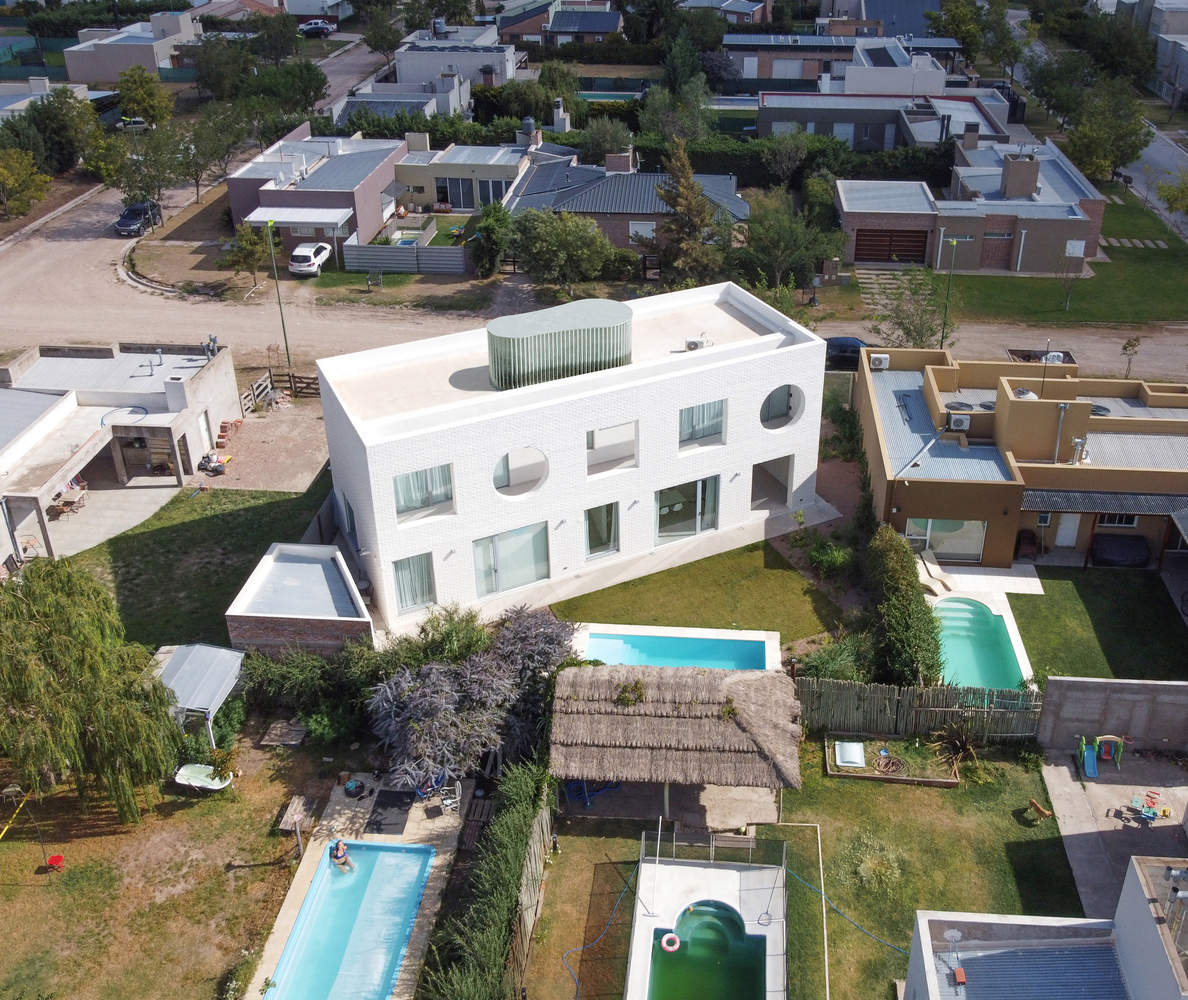

拟议的建筑设计受益于一块方形地块,使房屋在后视图中直接朝北的位置达到最佳。这种朝向保证了全天捕获阳光,从而最大限度地提高了能源效率、照明和室内舒适度。由于地块的四面都是免费的,因此实现了房屋周围立面的公平分布。这提供了充分利用景观和交叉通风的机会,此外还便于从外部不同地点进入。
The proposed architectural design benefits from a square lot, allowing for an optimal positioning of the house directly facing north in its rear view. This orientation guarantees the capture of sunlight throughout the day, thus maximizing energy efficiency, lighting, and interior comfort. With all four sides of the lot free, an equitable distribution of façades around the house is achieved. This provides the opportunity to fully take advantage of the views and cross ventilation, in addition to facilitating access from different points outside.
© Sergio García Pedroche

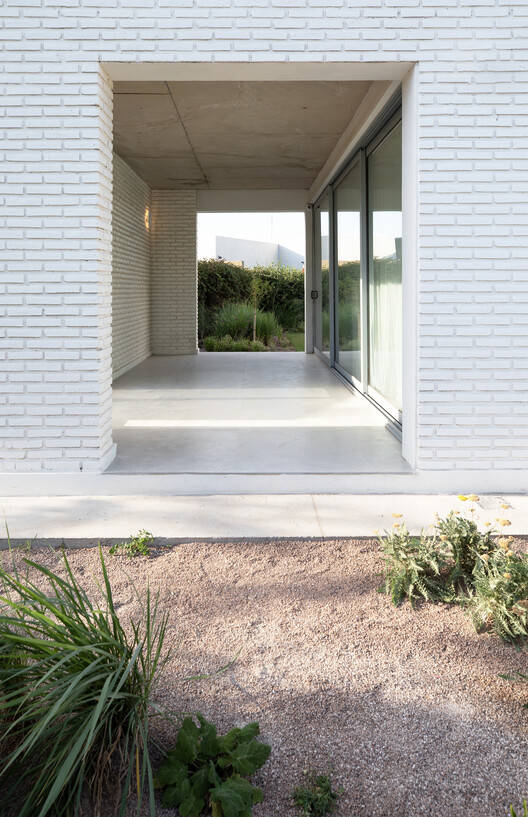

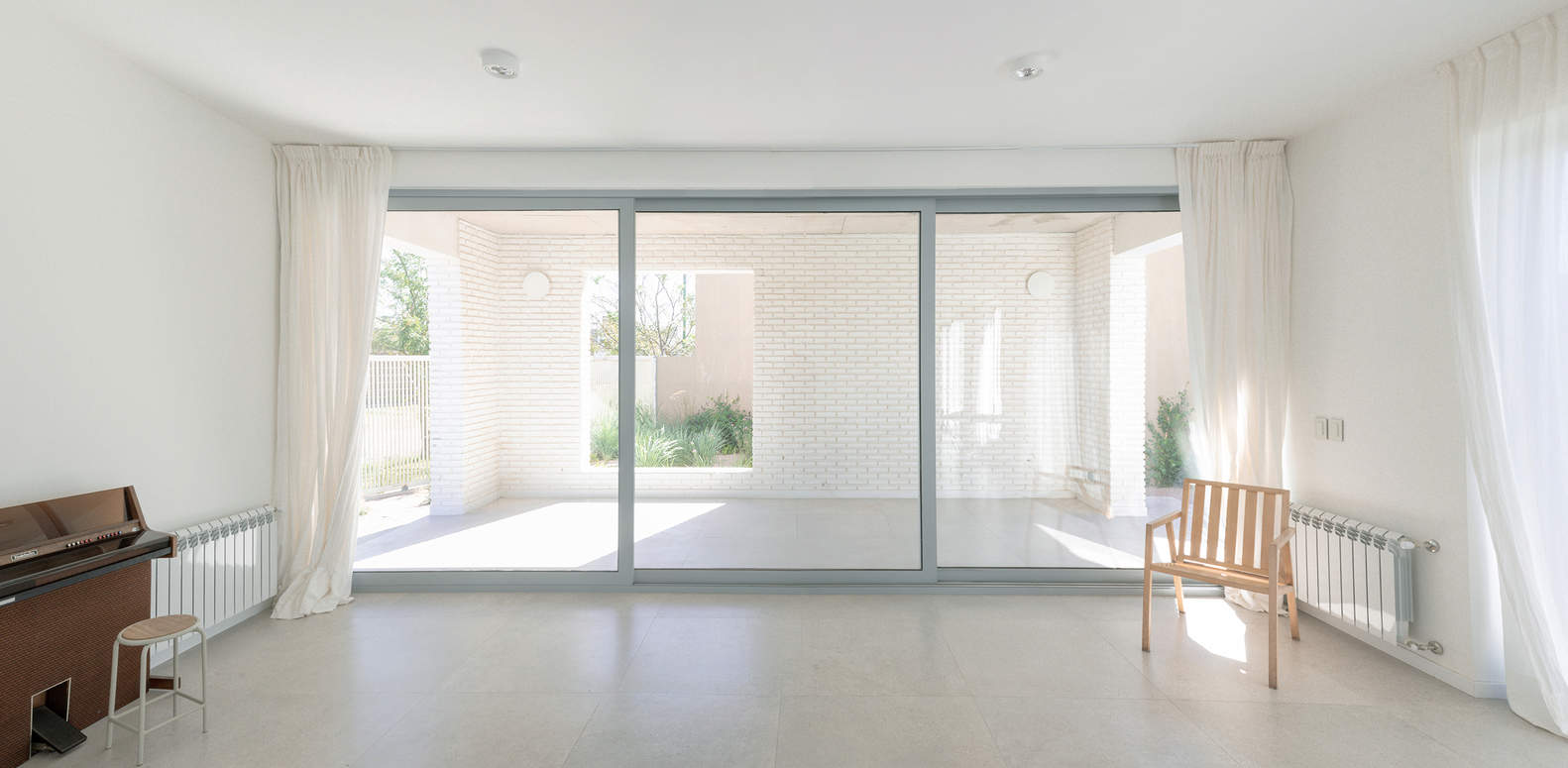

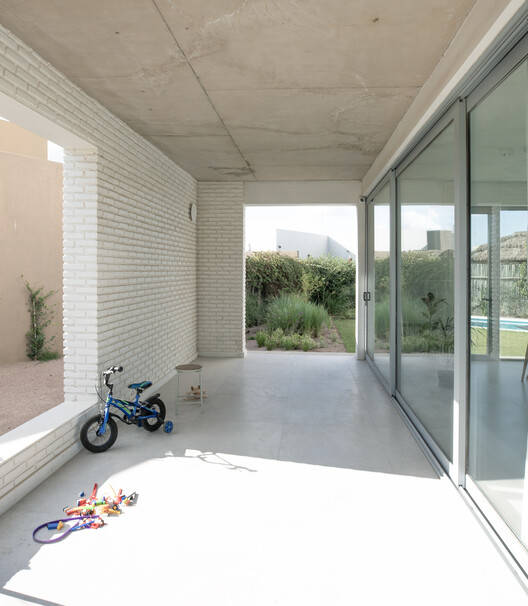

该房屋采用半覆盖式扩建,通过三轨滑动开口与内部融为一体,实现了内部和外部的直接过渡。这一特性提供了在享受户外空间的同时保持舒适和保护的灵活性。
The house features a semi-covered expansion that integrates with the interiors through triple-rail sliding openings, allowing for a direct transition between the interior and exterior. This characteristic offers flexibility to enjoy the outdoor space while maintaining comfort and protection.
© Sergio García Pedroche
