屏幕办公室
The Screen Office / ARK-architecture + AUDA

创新设计与功能融合：“屏风”项目巧妙地将创新设计与实用功能相结合。其5.5m x 5.5m的重复网格地板设计，不仅为技术系统和内部布局提供了极大的灵活性，还通过中央网格容纳技术设备，为面向立面的网格腾出最大高度，从而最大化自然光照，提升生产力和居住者福祉。这种设计在满足当代可持续性和舒适性标准的同时，也为未来业务发展提供了优化的住宿空间。

美学与文化融合：从美学角度看，该项目精心雕刻，主入口的壮观玻璃结构与双层倾斜的钢筋混凝土墙，以及荧光黄色HPL面板的使用，赋予了建筑独特而刺激的身份。特别是从主立面悬臂伸出的独特结构元素中所种植的橄榄树，不仅向突尼斯的农业遗产致敬，还为建筑增添了绿色，体现了建筑与当地文化的深度融合。

节能与环境融合：建筑的外墙采用当地生产的双层隔热砖，中央填充岩棉隔热材料，这种设计既节能又体现了地中海建筑的特点。外墙被漆成白色，与突尼斯的建筑景观无缝融合。通过强调开放性、自然光和居住者福祉，“屏风”项目不仅改变了工作空间，还代表了突尼斯办公建筑的显著进步，体现了对环境的尊重和对可持续发展的追求。

建筑师提供的文字描述这座大厦坐落在突尼斯首屈一指的商业区Les Berges du Lac 2内，充分利用了其优越的地理位置，位于该国经济和金融活动的中心，是渴望在这个充满活力的环境中蓬勃发展的企业的理想选择。
Text description provided by the architects. Nestled within Tunisia's premier business district, Les Berges du Lac 2, this edifice fully capitalizes on its prime location, situated at the heart of the country's economic and financial activities, making it an ideal choice for businesses eager to thrive in this dynamic environment.

“屏风”的设计对建筑师来说是一个重大挑战，他们的任务是充分利用一个地理位置优越的地块，为城市建造一个新的城市地标。目标很明确：创造一个功能性和标志性的空间，吸引租户、游客和路人，同时满足当代可持续性和舒适性的标准。
The design of "The Screen" posed a significant challenge for architects, who were tasked with making the most of a strategically located plot that could house a new urban landmark for the city. The objective was clear: to create a functional and iconic space that would attract tenants, visitors, and passersby while meeting contemporary standards of sustainability and comfort.

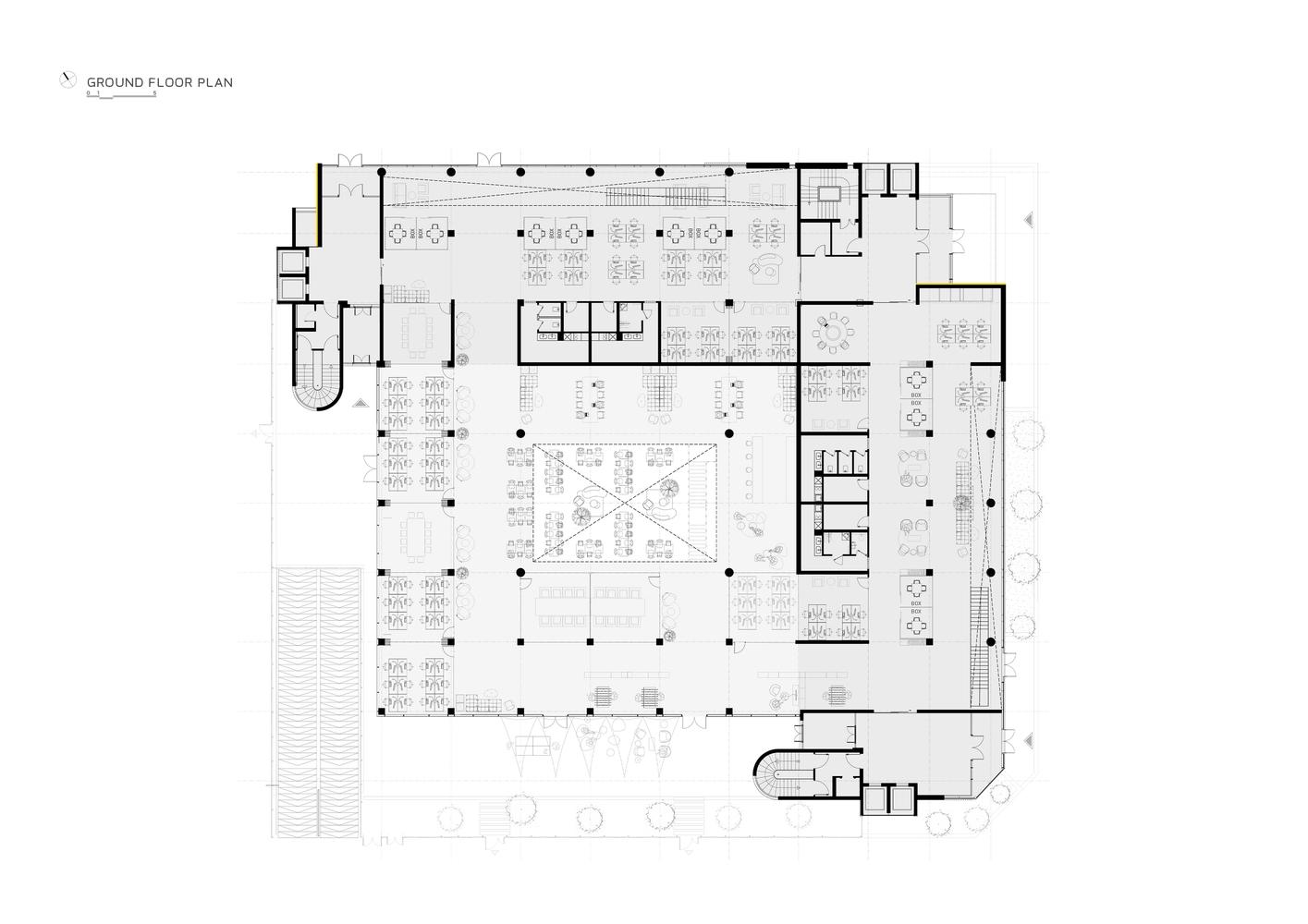

Ground Floor Plan

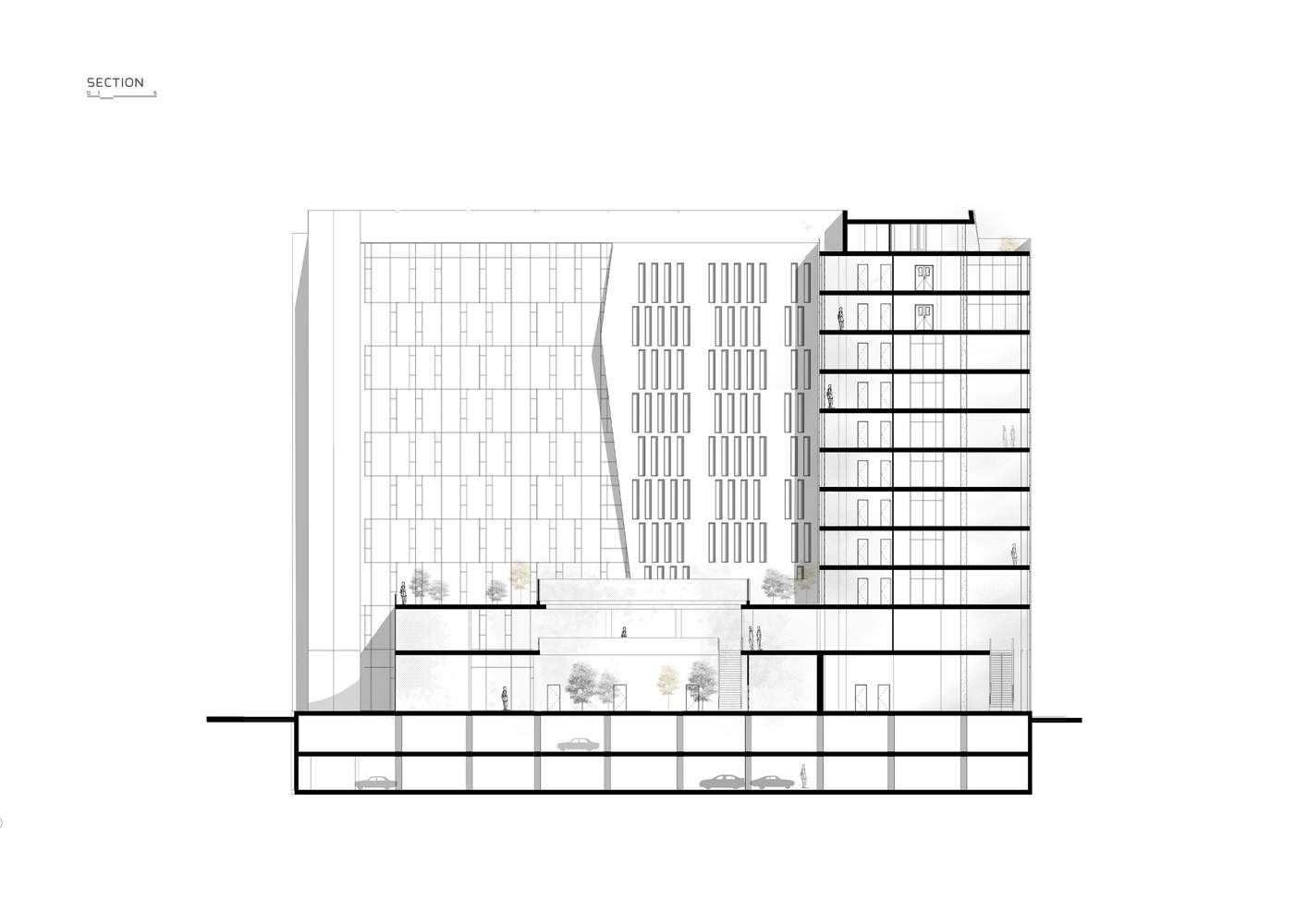

Section

该项目的办公目的由客户决定，旨在优化未来业务的住宿。主要的挑战是重塑办公空间，以预测未来的发展。因此，建筑的架构需要融入基本特征。该项目的结构体系是其设计的核心。
The project's office-oriented purpose, decided by the client, aimed to optimize the accommodation of future businesses. The major challenge was to reinvent office space to anticipate future developments. Thus, the building's architecture needed to incorporate essential features. The structural system of the project was at the core of its design.

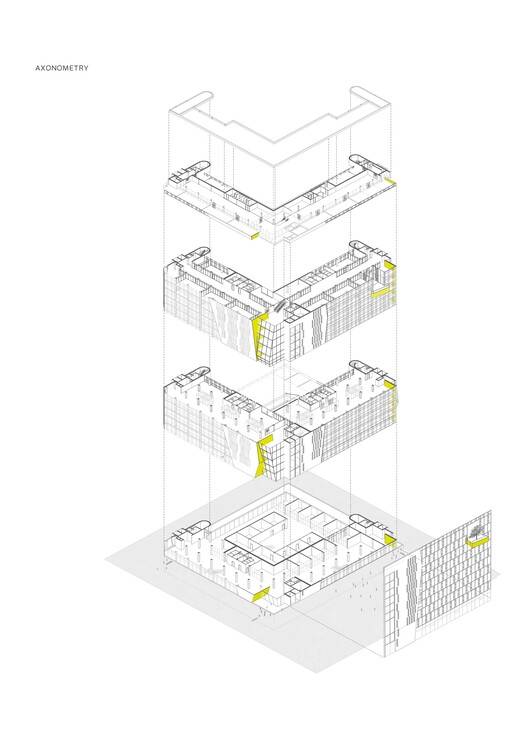

Axonometry

地板由5.5m x 5.5m的重复网格定义，平梁不突出，为技术系统和内部布局提供了极大的灵活性。该项目的体量跨度为16米，分为三个不同高度的网格。主要用于流通的中央网格容纳了所有技术设备，为面向立面的网格腾出了最大高度。这种安排有利于充足的自然光，从而提高生产力和居住者的福祉。在阳光明媚的突尼斯，“屏风”通过适应建筑朝向的大窗户最大限度地利用了这种能源。选用高性能太阳能和热玻璃，营造明亮舒适的工作环境。

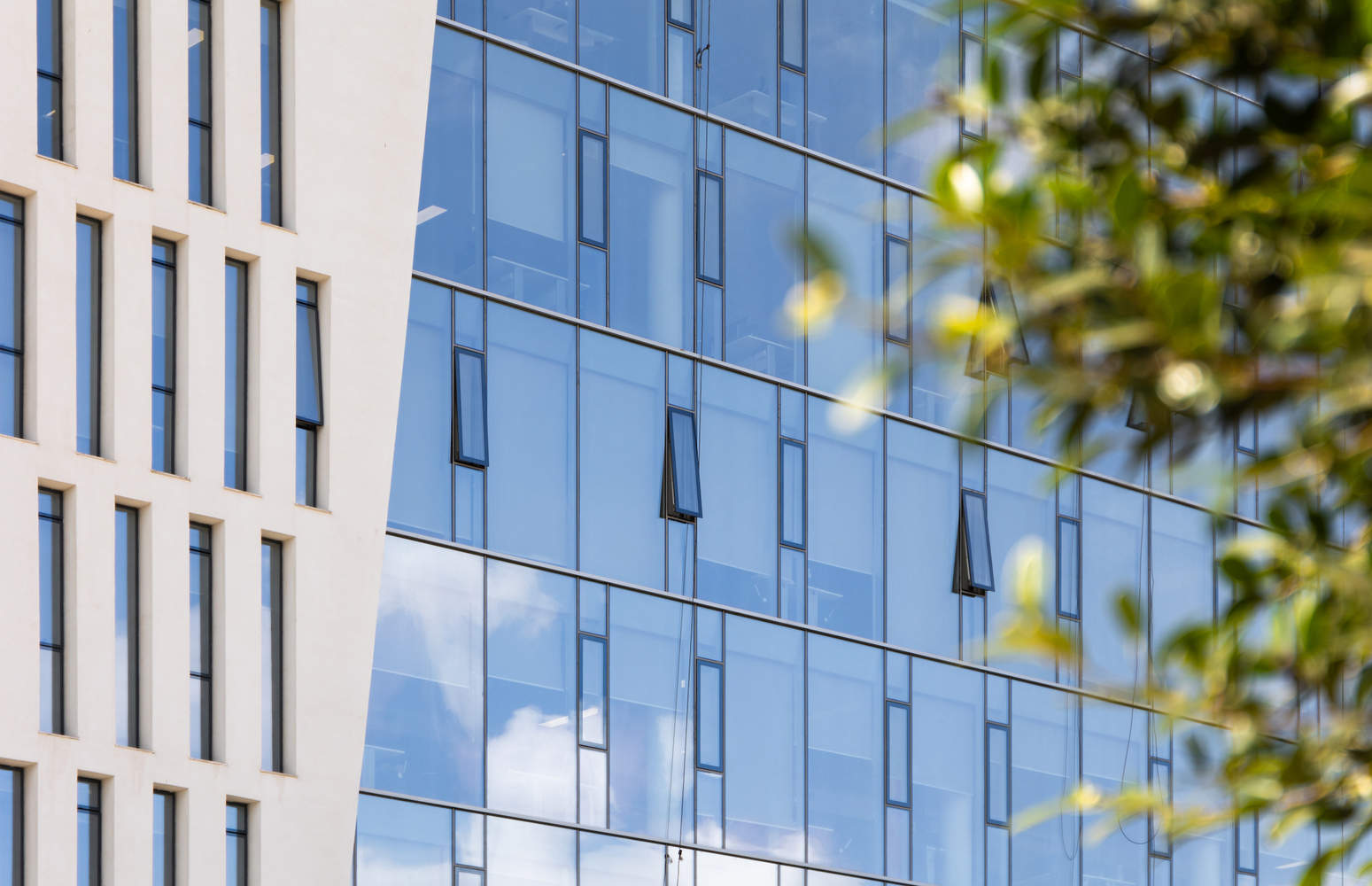

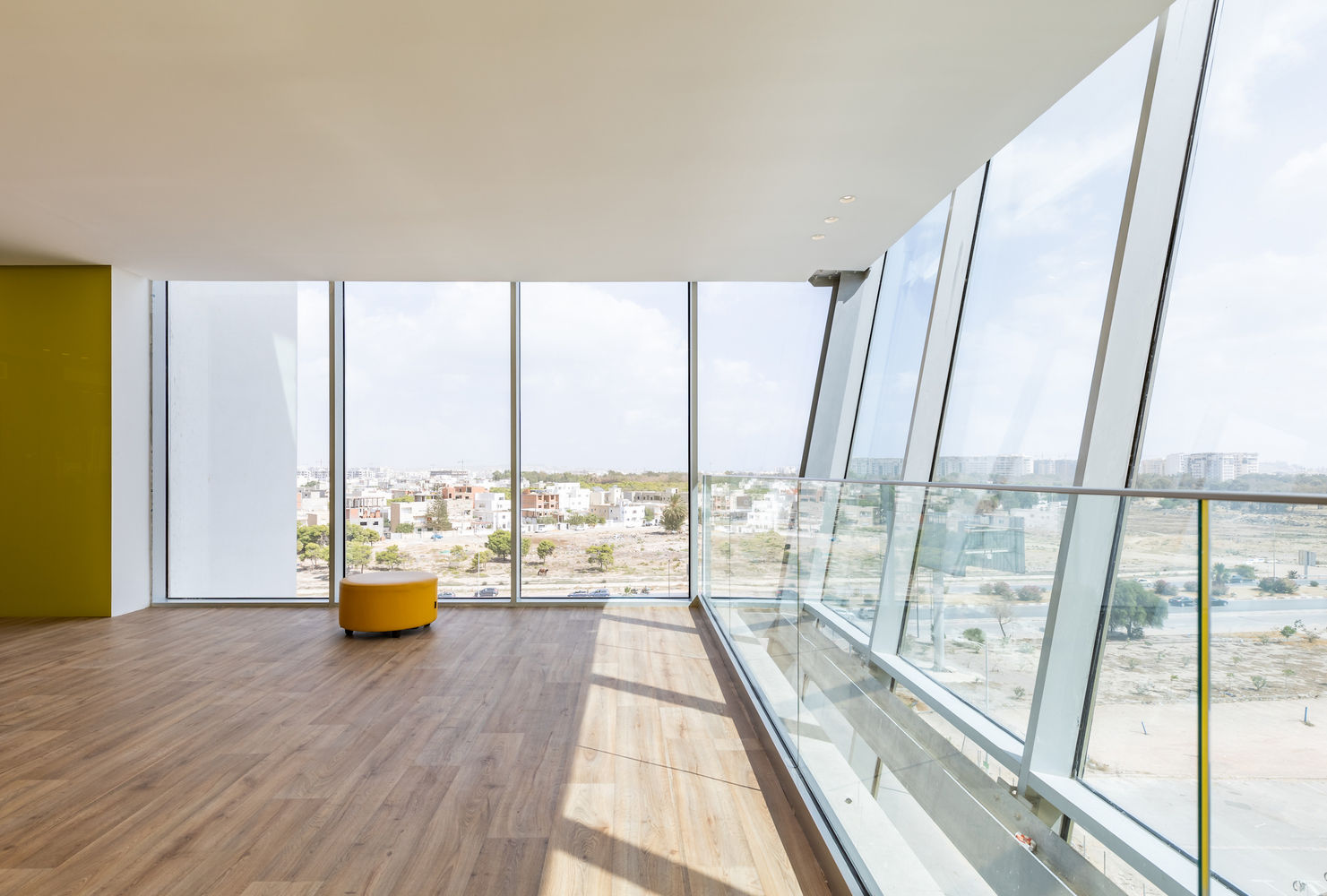

The floors are defined by a repetitive grid of 5.5m x 5.5m, with flat beams that do not protrude, offering great flexibility for technical systems and interior layouts. The project's mass spans 16 meters in width, divided into three grids of varying heights. The central grid, primarily for circulation, houses all technical equipment, freeing up the maximum height for the grids facing the façades. This arrangement favors an abundance of natural light, thereby boosting productivity and the well-being of occupants. In Tunisia, where the number of sunny days is high, "The Screen" maximizes this energy resource through large windows adapted to the building's orientations. High-performance solar and thermal glazing has been selected to create a bright and comfortable work environment.

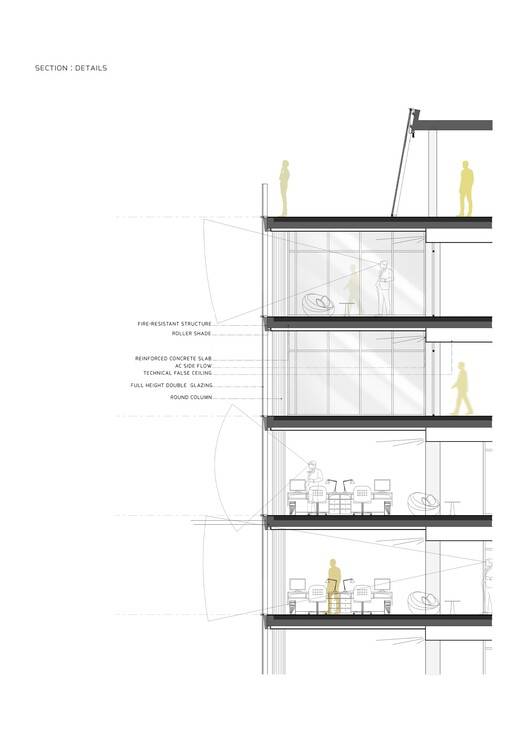

Section Detail

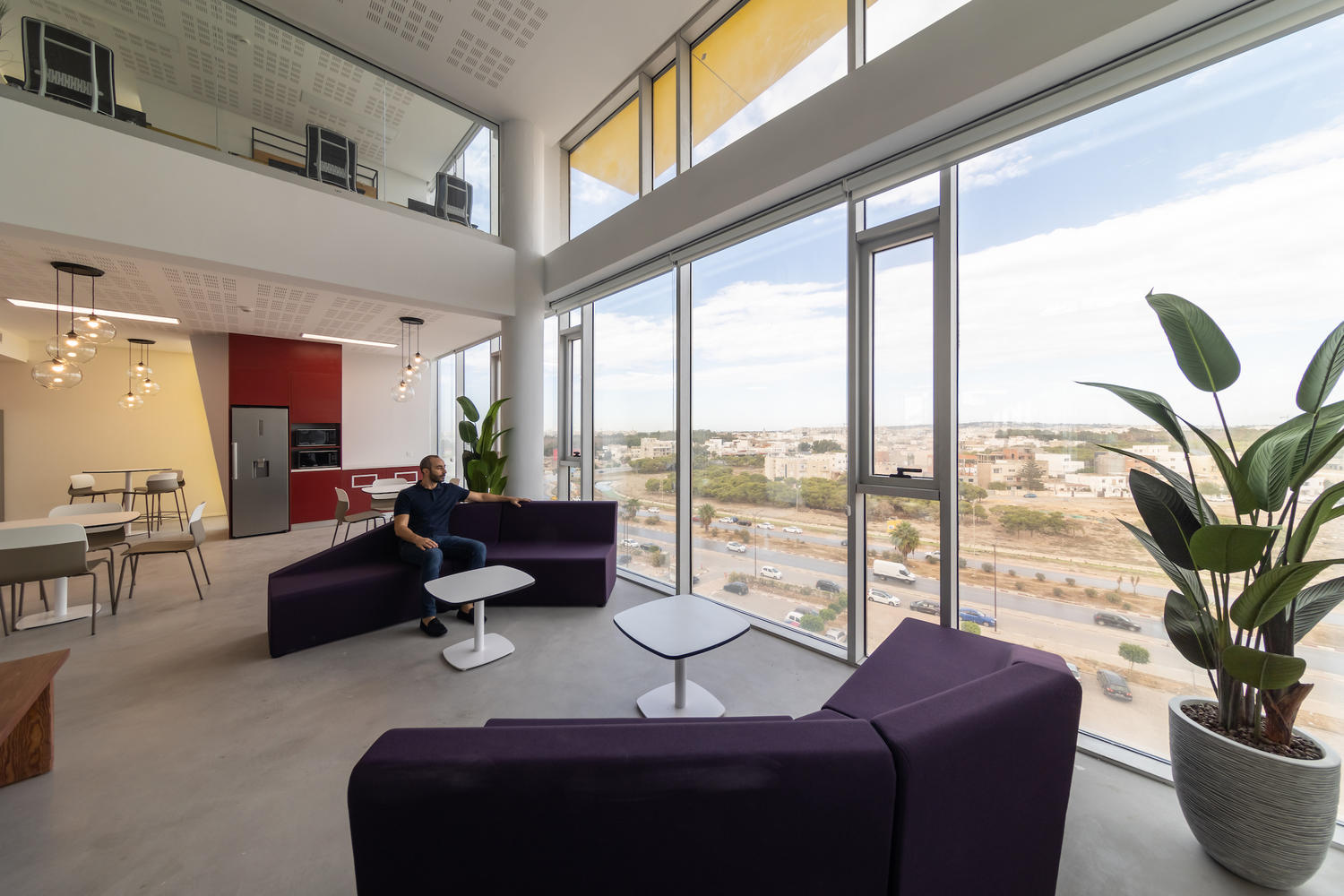

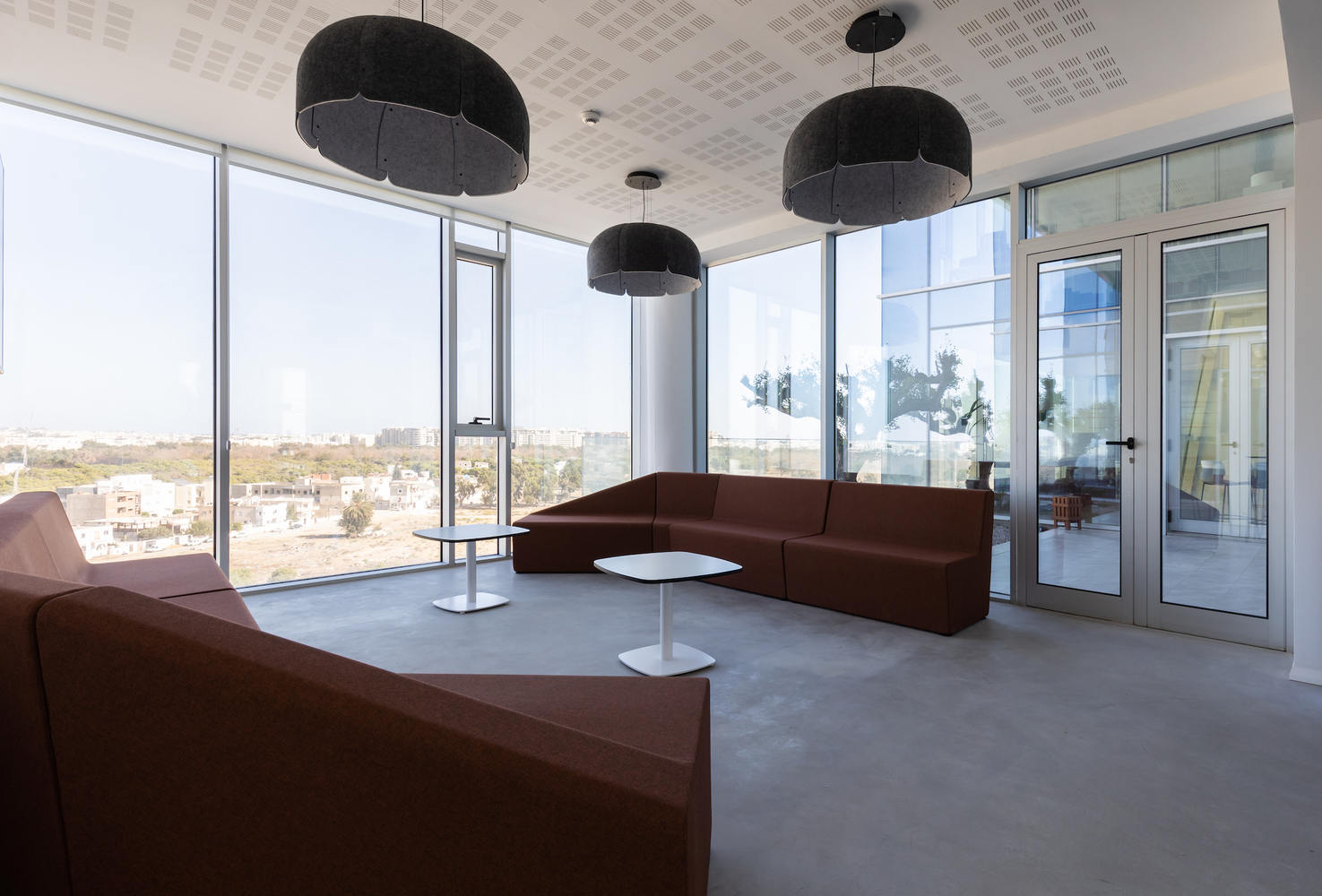

该项目包括两个专用于停车和技术空间的地下室，以及由六部全景电梯连接的十层办公楼，为居住者提供持续的城市环境景观。“The Screen”的顶部是一个带放松和用餐区的屋顶，设有一个可以360°全景欣赏突尼斯的露台。该设施旨在为用户提供放松和休闲的结合。
The project includes two basements dedicated to parking and technical spaces, as well as ten office floors connected by six panoramic elevators, offering occupants constant views of the urban environment. The top of "The Screen" is crowned by a rooftop with relaxation and dining areas, featuring a terrace that offers a 360° panoramic view of Tunis. This facility aims to combine relaxation and leisure for users.

从美学上讲，这座建筑经过了精心的雕刻。主入口以一个壮观的玻璃结构为标志，后面是一堵双层倾斜的钢筋混凝土墙，外墙覆盖着荧光黄色的HPL面板。这种在当地建筑中很少使用的色调赋予了该项目独特而刺激的身份。在同样的荧光黄色面板的覆盖下，一个独特的结构元素从主立面的悬臂中伸出，里面有一棵橄榄树，向突尼斯的农业遗产致敬，并为构图增添了一丝绿色。

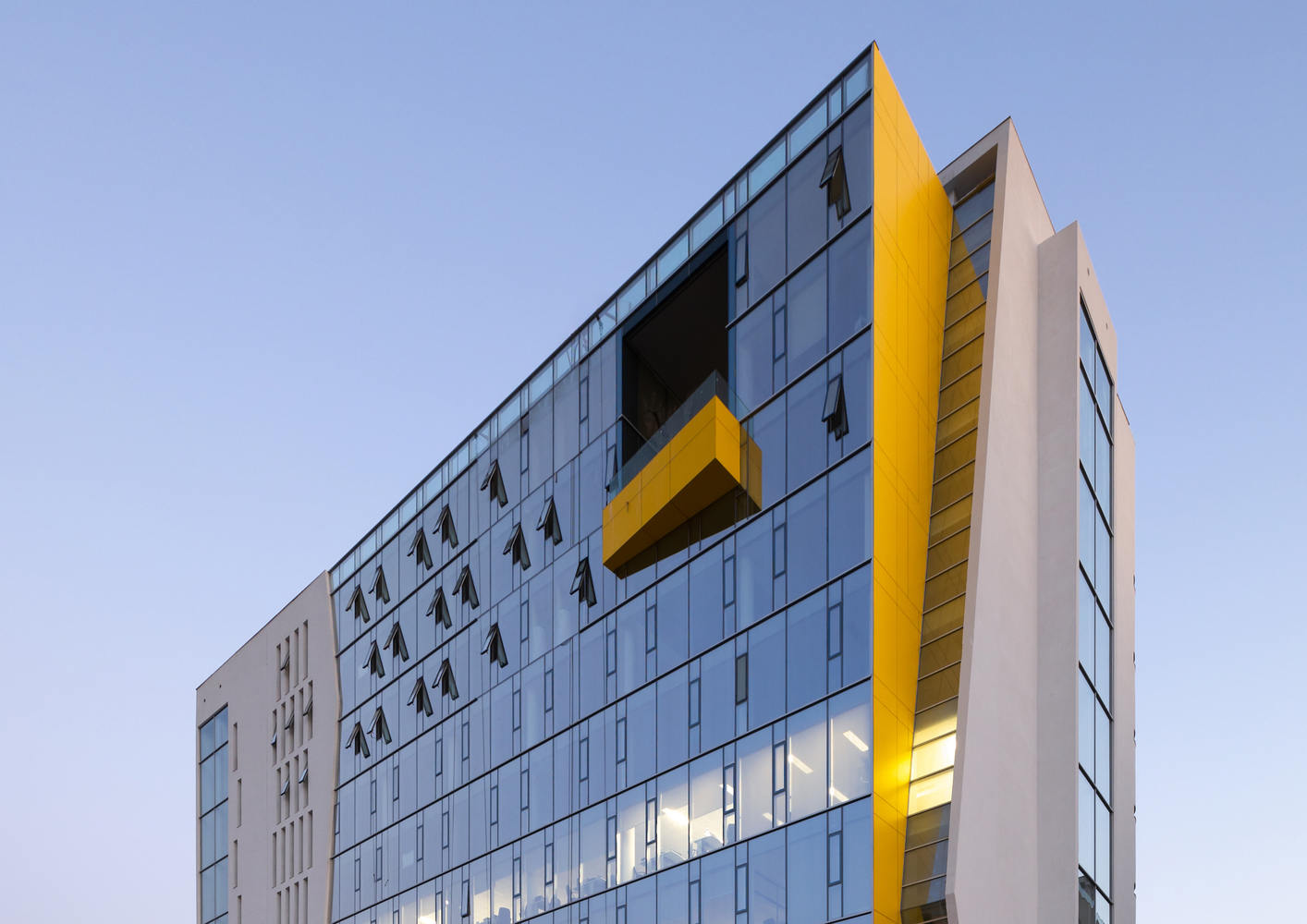

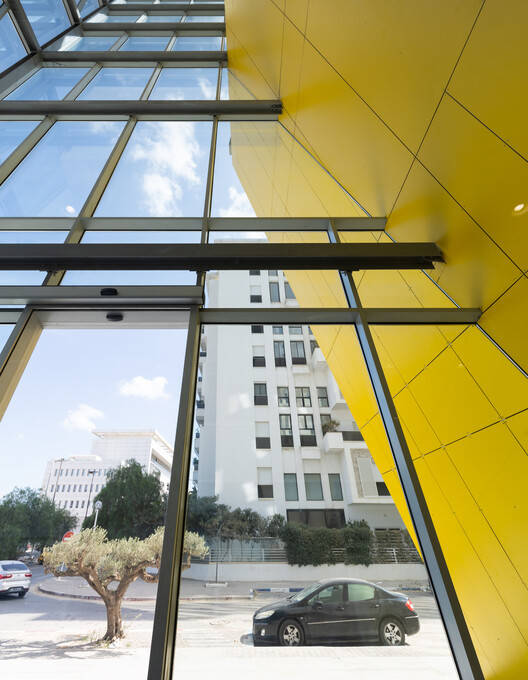

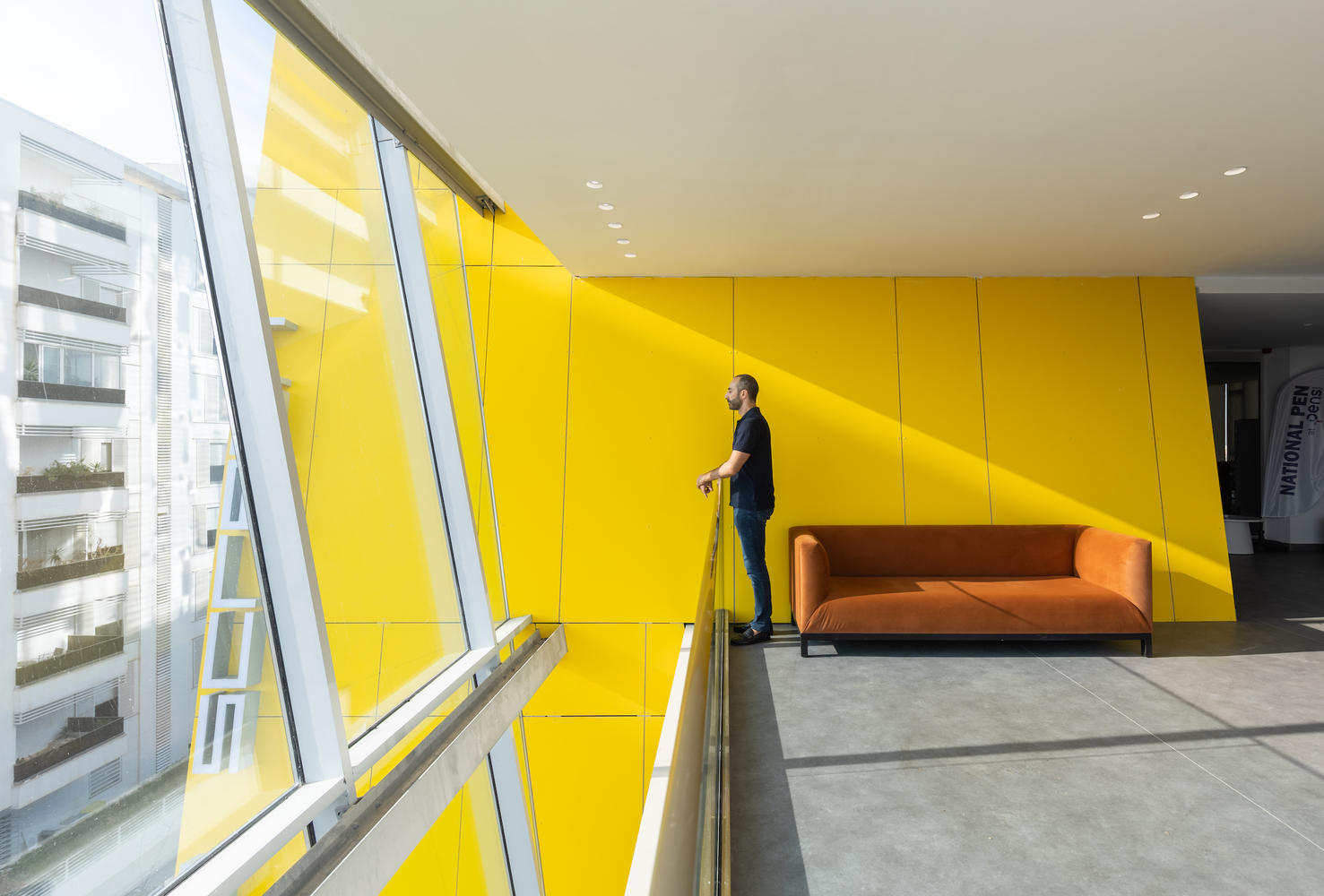

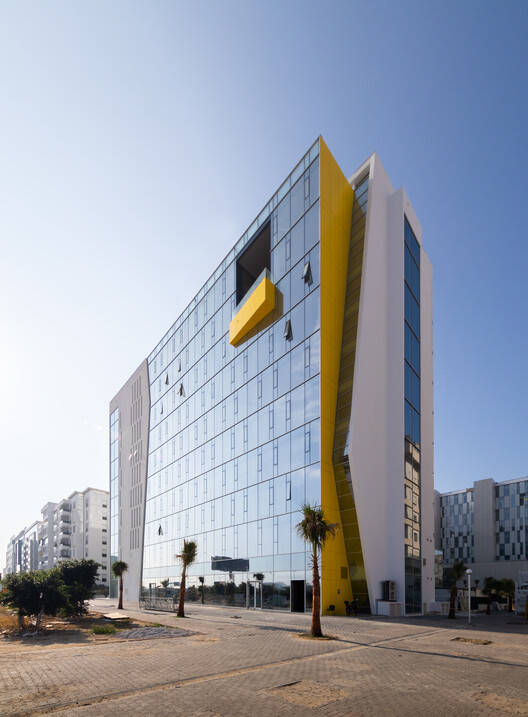

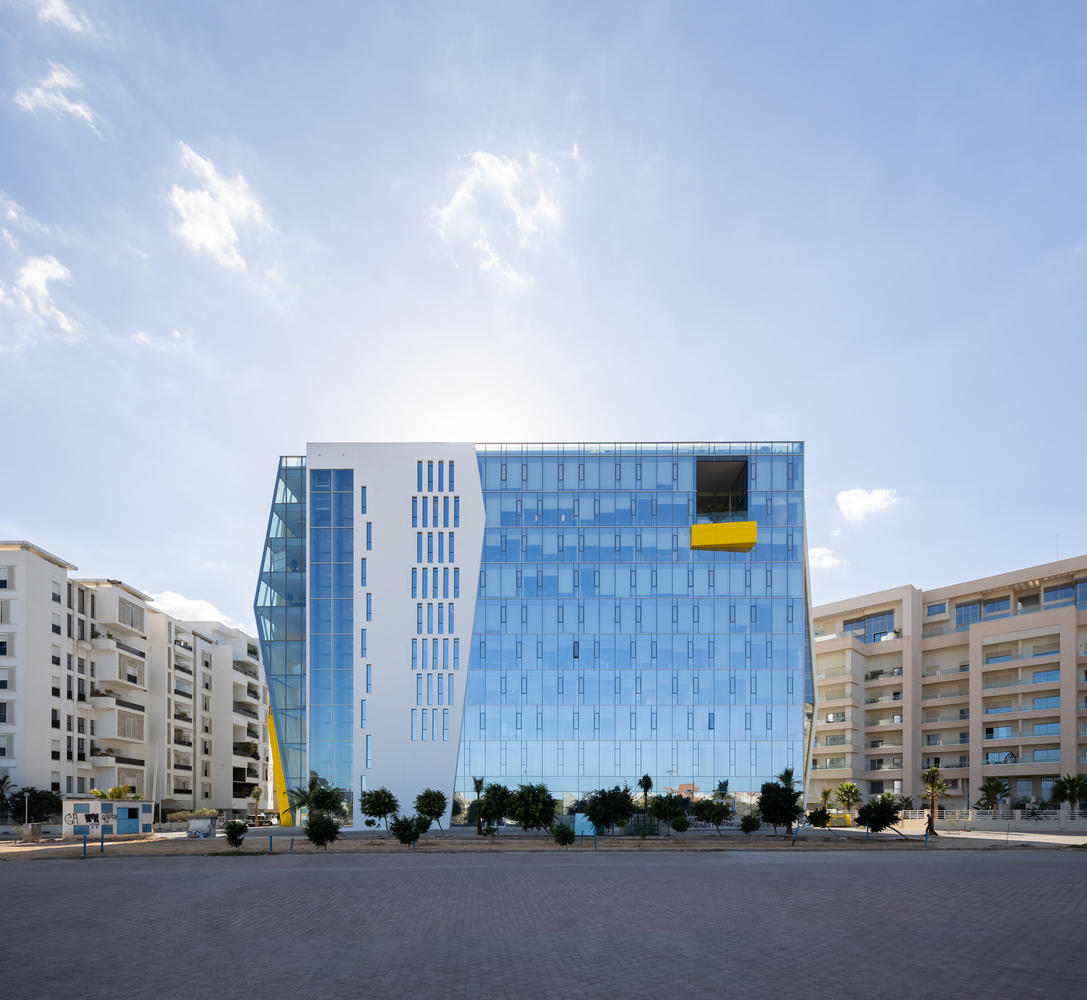

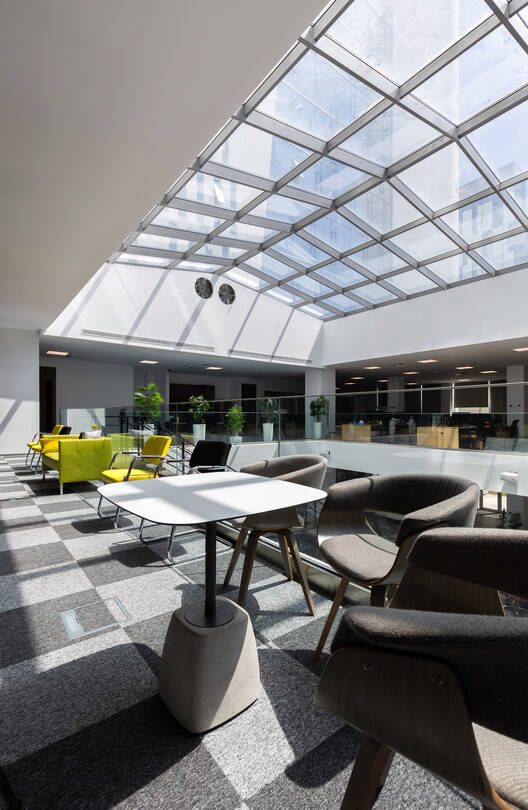

Aesthetically, the building has been meticulously sculpted. The main entrance, marked by an imposing glass structure, is backed by a double-inclined reinforced concrete wall clad in fluorescent yellow HPL panels. This hue, rarely used in local architecture, gives the project a unique and stimulating identity. Covered by the same fluorescent yellow panels, a distinctive structural element juts out from the main façade in a cantilever, housing an olive tree, paying homage to Tunisia's agricultural heritage and adding a touch of greenery to the composition.

该建筑的外墙由当地生产的双层隔热砖制成，中央采用岩棉隔热材料，在节能的同时参考了地中海建筑。它们被漆成白色，与突尼斯的建筑景观无缝融合。“屏幕”通过强调开放性、自然光和居住者的福祉来改变工作空间。该项目体现了创新，代表了突尼斯办公建筑的显著进步。

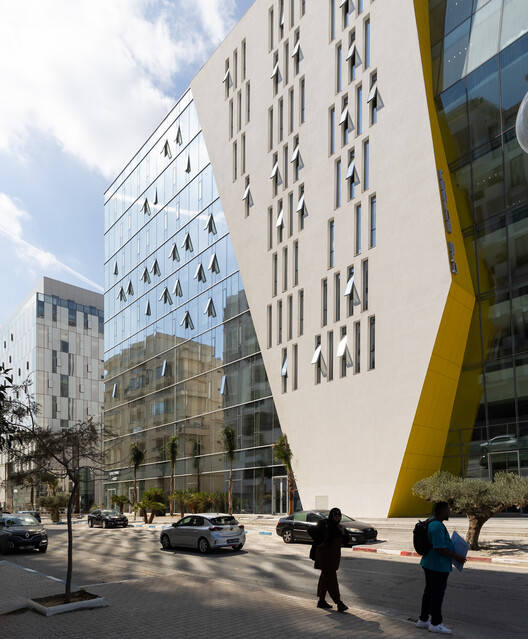

The building's exterior walls, made of double-layered thermal bricks locally produced with central rock wool insulation, reference Mediterranean architecture while being energy-efficient. Painted white, they seamlessly blend into the Tunisian architectural landscape. "The Screen" transforms the workspace by emphasizing openness, natural light, and the well-being of its occupants. This project embodies innovation and represents a notable advancement in office architecture in Tunisia.
