Piranesian HQ and Park / BIG

集成LEAPP方法的典范：Piranesian总部和公园项目是BIG集成LEAPP方法的典范，展现了跨学科合作的力量。项目通过整合景观、工程、建筑、规划和产品设计，实现了一个多功能、高效能的工作环境。这种一体化的设计方法不仅提升了建筑的功能性和美学，也为建筑行业的未来发展树立了新的标杆。

可持续建筑的先锋：该建筑在可持续性方面的表现尤为突出，通过整合太阳能和地热能系统，实现了60%的能源来自可再生资源。这种对环境负责的设计，结合被动设计策略，如自然通风，不仅减少了能源消耗，也提升了建筑的舒适度和健康性，体现了建筑与环境和谐共生的理念。

创新设计与空间体验：建筑的设计巧妙地将结构与空间体验相结合，通过减少柱子数量和增加室外露台，创造出连续的室内外空间体验。这种设计不仅增强了建筑的视觉效果，还提供了实际的功能便利，如屋顶至地面的连续步行路径，以及通过室外楼梯实现的楼层间移动，这些都极大地提升了建筑的实用性和互动性。

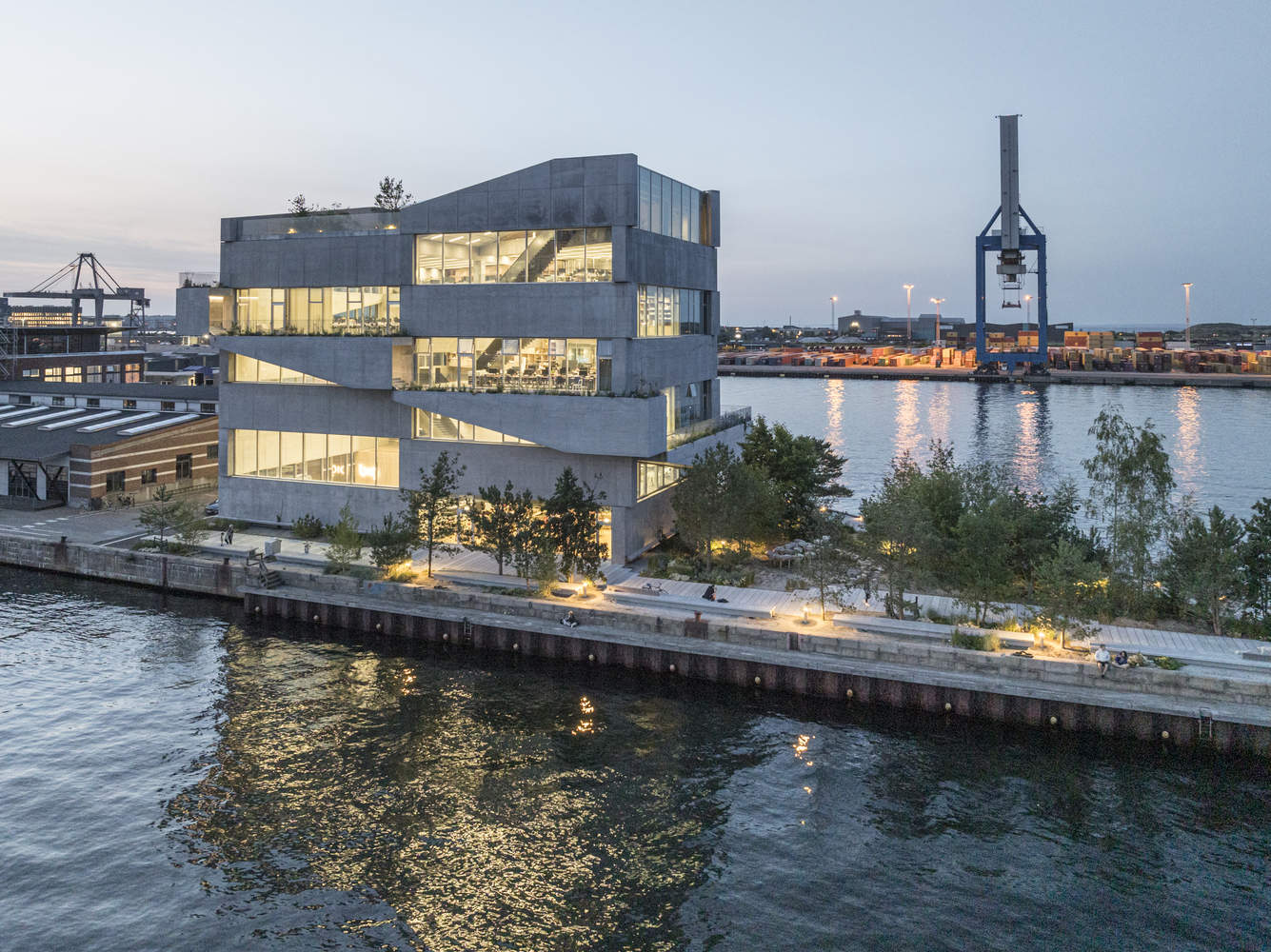

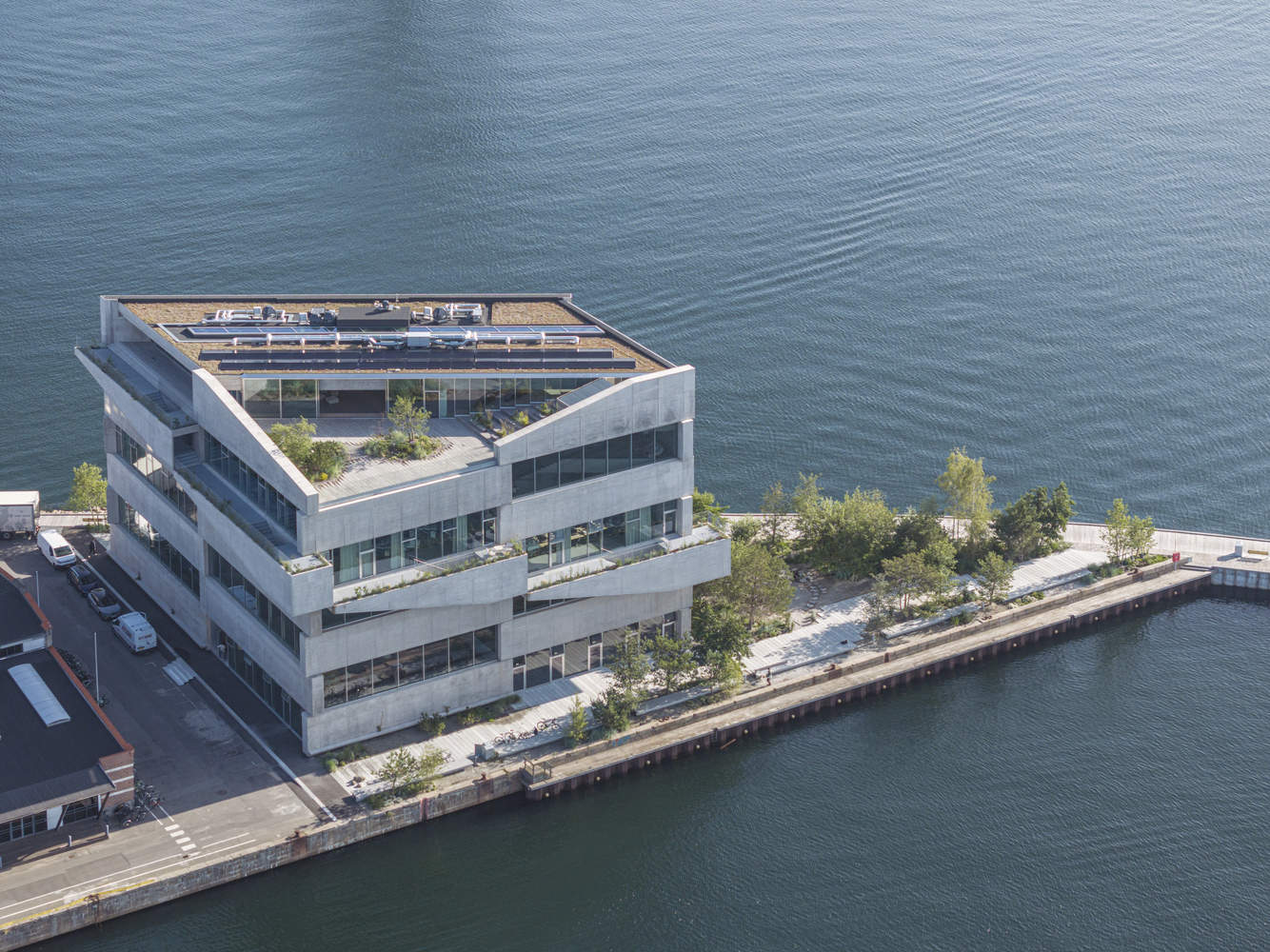

建筑师提供的文字描述BIG的新总部位于哥本哈根孙德蒙的顶端，占地4488平方米，坐落在仓库和海事基础设施之间。该总部于2024年春季完工，是该工作室首批实现BIG集成LEAPP方法的例子之一，这是BIG内部景观、工程、建筑、规划和产品设计团队之间的合作。该建筑由与Unicon密切合作开发的Uni-Green混凝土制成。BIG的新总部位于哥本哈根Nordhavn社区的一个狭窄码头上，是一座27米高的7层建筑，以港口的工业遗产为基础。
Text description provided by the architects. At the tip of Sundmolen in Copenhagen, BIG's new 4,488 m2 headquarters stands among warehouses and maritime infrastructure. Completed in the spring of 2024, the HQ is one of the studio's first realized examples of BIG's integrated LEAPP approach – a collaboration between BIG's internal Landscape, Engineering, Architecture, Planning, and Product Design teams. The building is made of Uni-Green concrete developed in close collaboration with Unicon. Located on a narrow pier in Copenhagen's Nordhavn neighborhood, BIG's new headquarters is a 27-meter-tall, 7-story structure, anchored in the harbor's industrial heritage.

经过与LM Byg、Unicon、Energy Machines、El Team Vest、Eiler Thomsen和HB Trapper合作两年的建设，该建筑成为BIG 300名哥本哈根员工的家园。该建筑旨在实现DGNB Gold，整合了太阳能和地热能系统，使60%的建筑依赖可再生能源。结合自然通风等被动设计策略，地热能系统提供了建筑84%的热量需求和100%的制冷需求。
Following two years of construction in collaboration with LM Byg, Unicon, Energy Machines, El-Team Vest, Eiler Thomsen, and HB Trapper, the building is the home of BIG's 300 Copenhagen-based employees. Designed to achieve DGNB Gold, the building integrates solar and geothermal energy systems that contribute to a 60% reliance on renewable energy. Combined with passive design strategies such as natural ventilation, the geothermal energy system provides 84% of the building's heat demand and 100% of the cooling demand.

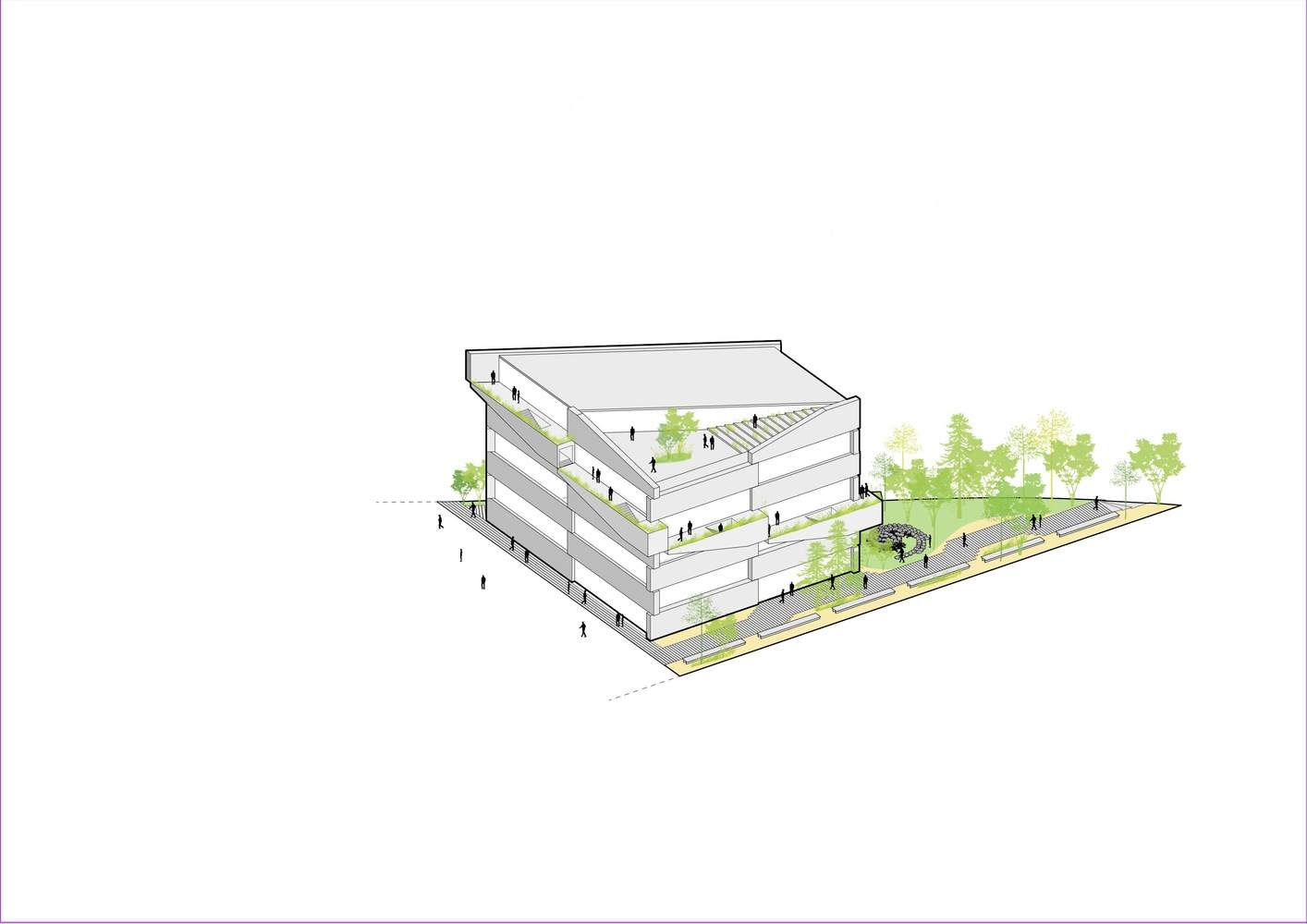

Axo

该建筑体现了与Unicon合作开发的Uni-Green混凝土的首次应用，其中一部分水泥熟料被煅烧粘土和石灰填料代替，与等效的传统混凝土混合物相比，二氧化碳减少了约25%。BIG HQ在施工过程中经过测试和开发，证明了Uni-Green的耐用性和潜力，不仅在材料方面，而且在建筑方法方面都是一个先驱项目，为混凝土的可能性突破了界限。“LEAPP背后的理念是一种建筑实践，是一种复兴的、跨学科的人和知识体系——LEAPP是景观、工程、建筑、产品和规划的缩写。
The building embodies the first application of Uni-Green concrete, developed in collaboration with Unicon, where a portion of the cement clinker is replaced with calcined clay and lime filler, representing a CO2 reduction of approximately 25% compared to an equivalent traditional concrete mix. Tested and developed during construction, BIG HQ stands as a testament to the durability and potential of Uni-Green, as well as a pioneer project not only in terms of materials, but also in building methods - pushing the boundaries for the possibilities of concrete. "The idea behind LEAPP is an architecture practice as a renaissance, interdisciplinary body of people and knowledge - LEAPP being the acronym for Landscape, Engineering, Architecture, Product, and Planning.

LEAPP的每一个方面都涉及到了我们的总部，包括规划、产品设计、混凝土元素的非常复杂的堆叠。由于它的设计方式，整个建筑中只有一根柱子。一系列斯堪的纳维亚花岗岩和大理石堆叠在梁之间，其他一切都是这些相互依存的混凝土墙。每层楼都有一个室外露台，该露台与上下室外露台相连。其中一种出口方式是，你可以从屋顶一直走到一楼。当你穿过建筑时，这会创造出令人难以置信的框架视图——有时你会看到诺德哈文社区的一部分，有时你会看见一帧水，有时会看到米德尔格伦登风车的框架视图。“-Bjarke Ingels，BIG创始人兼创意总监-Bjark Ingels Group
Every single aspect of LEAPP has been involved in our HQ, including the planning, the product design, the very complex stacking of the concrete elements. Because of the way it's engineered, it only holds one column in the whole building. A series of Scandinavian granite and marble are stacked between the beams and everything else is these concrete walls resting on each other. Every floor has access to an outdoor terrace that is connected to the outdoors terrace above and below. One of the means of egress is that you can walk all the way from the roof to the ground floor. This creates incredibly framed views as you move through the building – sometimes you see a fragment of the Nordhavn community, sometimes you see a frame of the water, sometimes a framed view of the windmills at Middelgrunden." - Bjarke Ingels, Founder and Creative Director, BIG – Bjarke Ingels Group

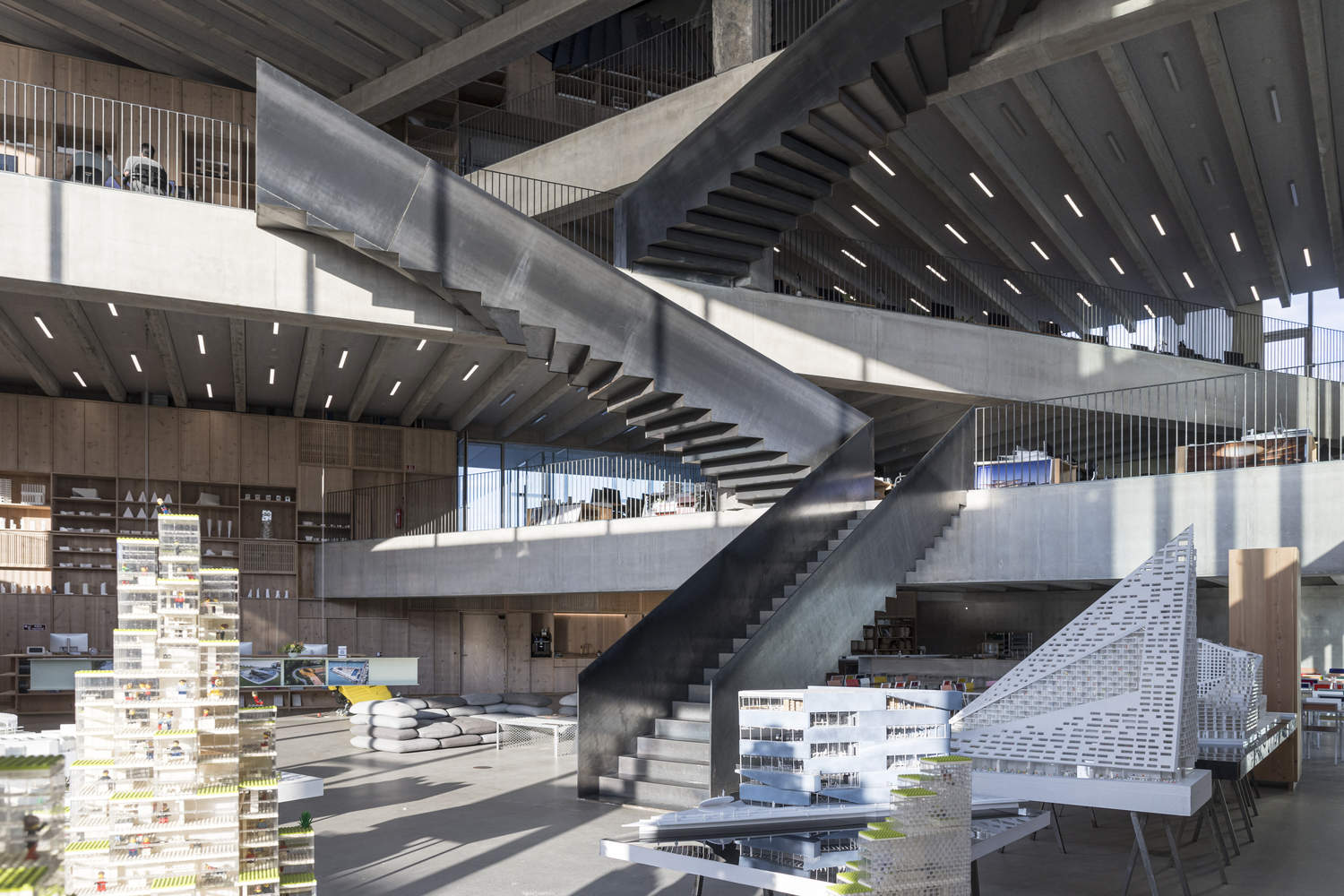

通过一扇3米高的玻璃门进入主入口后，BIG的主人和客人会发现自己身处一个皮拉尼斯式的空间，在那里，建筑的内部生活通过对角线一直延伸到顶层，由一个由黑色钢制成的曲折中央楼梯引导，在视觉和物理上连接了所有七层楼。一根由六种不同类型的岩石组成的承重石柱——从底部的致密花岗岩到顶部的多孔大理石——在开放空间的中心形成了一个图腾柱，重力在每层楼旋转，与它所承载的梁对齐。

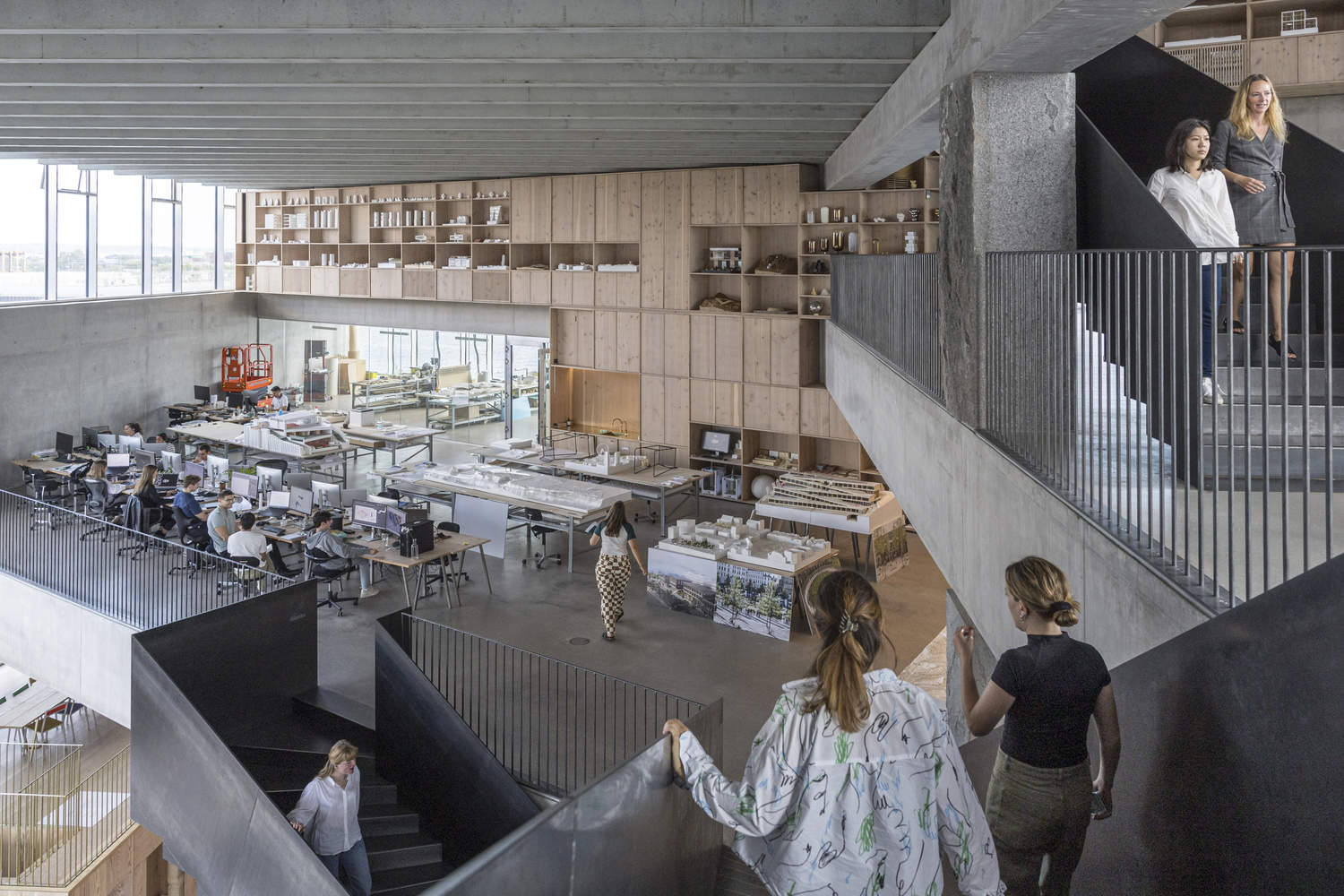

Upon entering the main entrance through a 3-meter-tall glass door, BIGsters and guests will find themselves in a Piranesian space, where the inner life of the building reveals itself through diagonal views all the way up to the top floor, led by a zig-zagging central staircase of blackened steel, connecting all seven floors both visually and physically. A single load-bearing stone column of six different types of rock – ranging from dense granite at the bottom to a porous marble at the top – forms a totem pole to gravity at the heart of the open space that rotates on each floor to align with the beam that it's carrying.

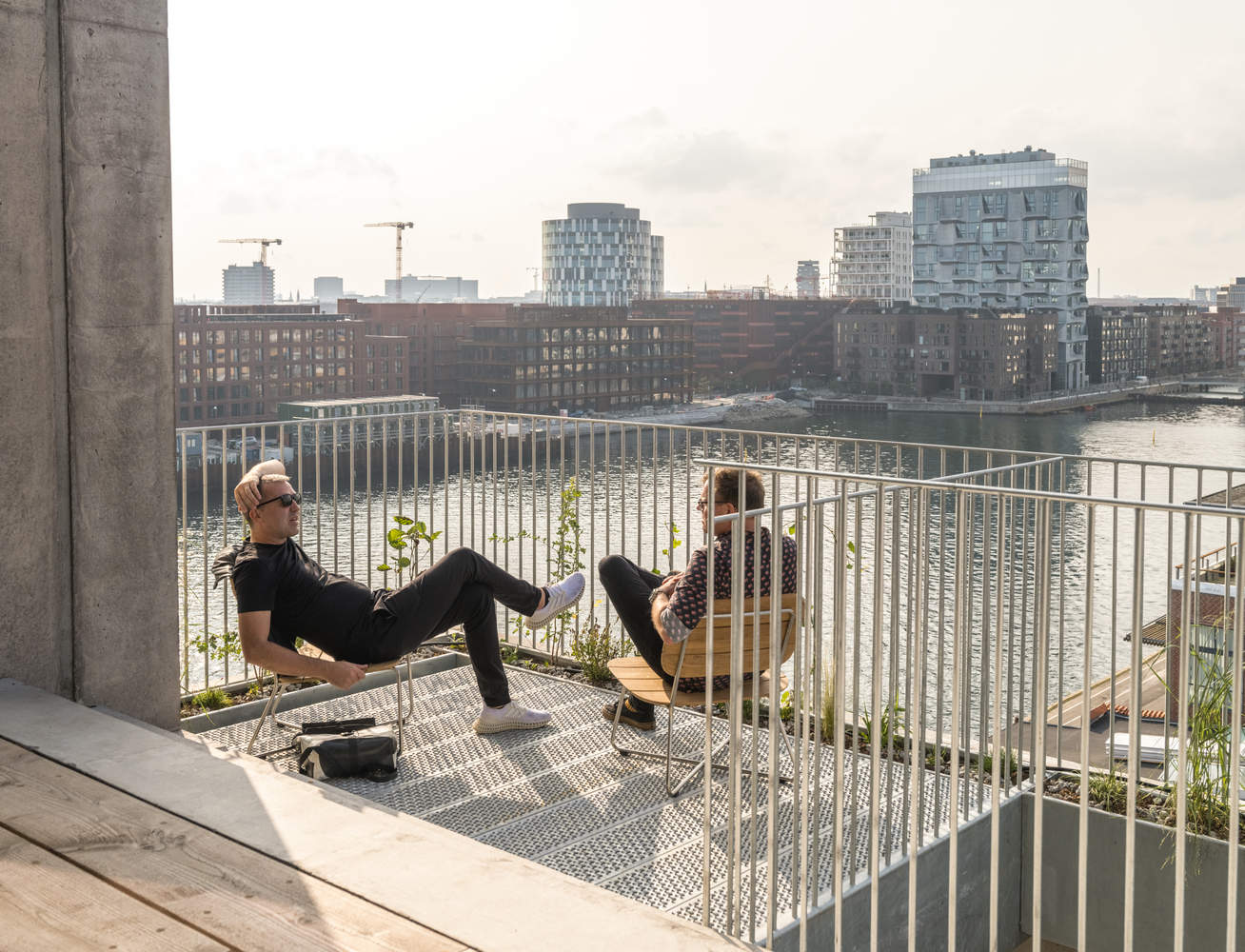

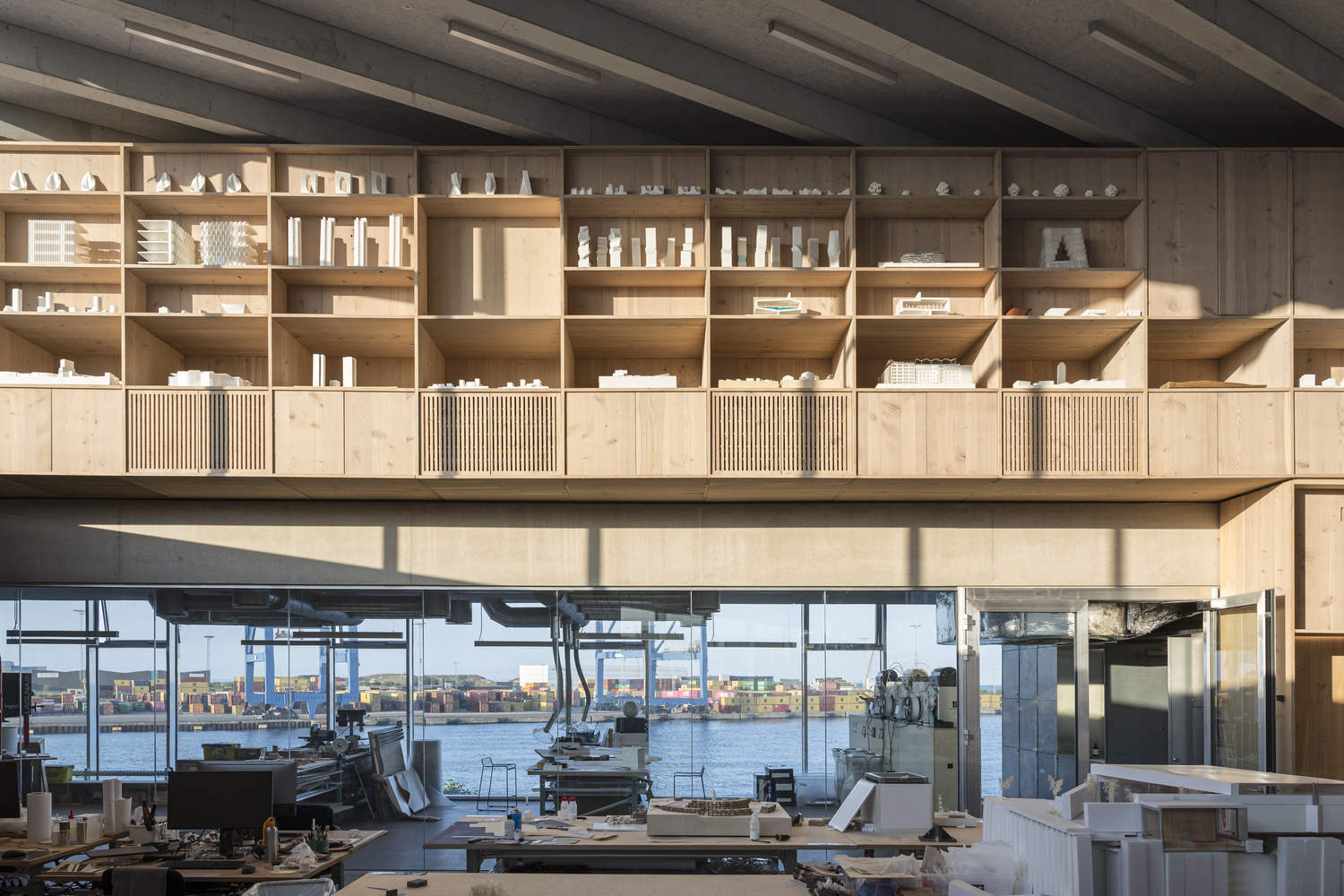

在立面上，一条140米长的楼梯从屋顶盘旋到码头区，为每层楼提供了一个室外露台，同时允许沿着建筑外部在楼层之间移动。楼梯兼作额外的消防通道，将内部从传统核心的障碍中解放出来。电梯、垂直立管和较小的二级出口楼梯被移动到建筑的北侧边缘，使工作区尽可能开放，包括模型店和会议室，在那里他们可以利用增加的光线。
On the facade, a 140-meter-long staircase spirals around the building from the roof to the quayside, providing each floor with an outdoor terrace while allowing movement between floors along the exterior of the building. The staircase doubles as the additional fire escape freeing up the interior from the obstruction of the traditional core. An elevator, vertical risers, and a smaller, secondary egress staircase are moved to the north edge of the building, leaving the work areas as open as possible, including both the model shop and meeting rooms, where they can take advantage of the increased light.

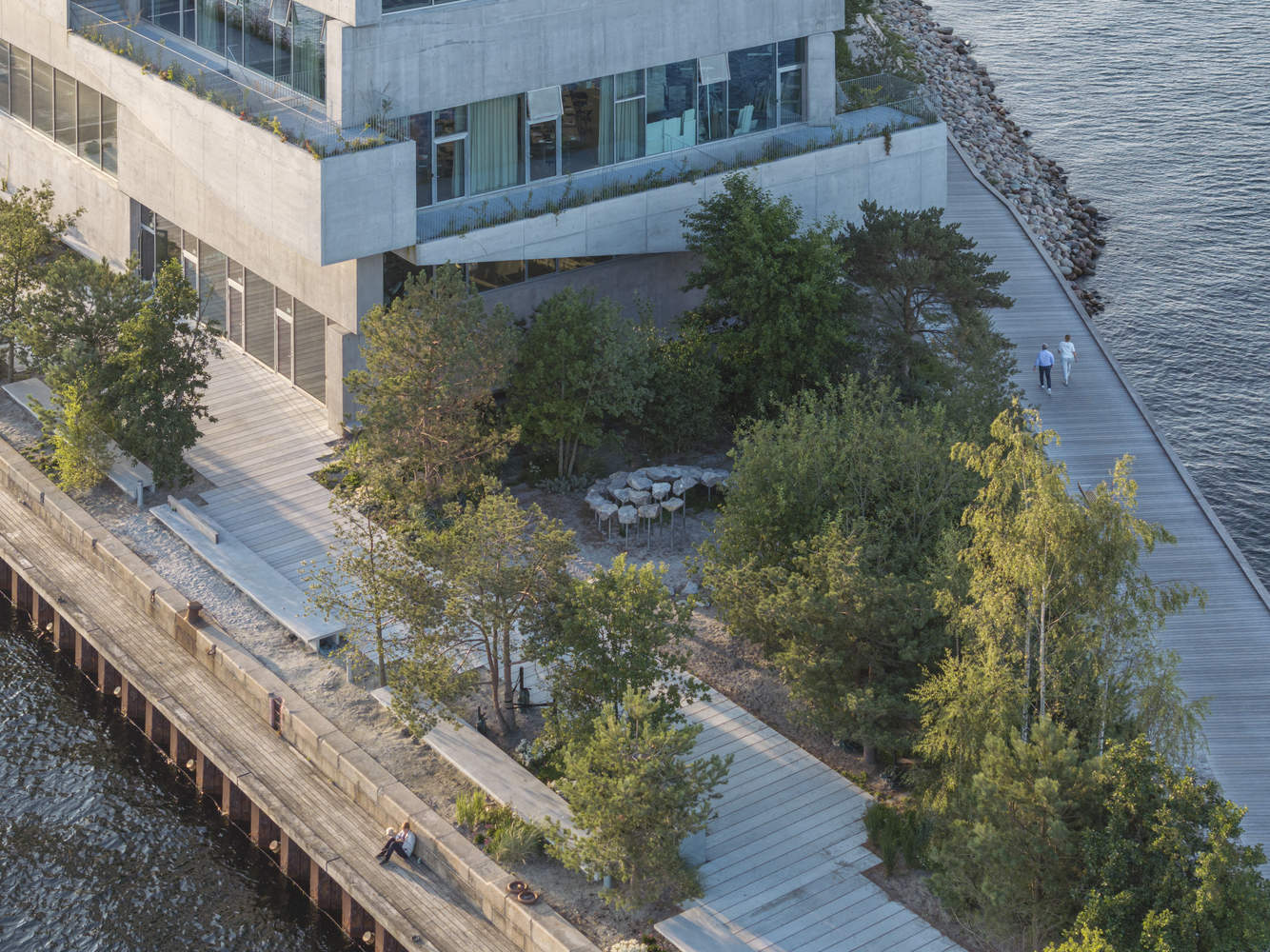

在建筑脚下，BIG Landscape将一个以前的停车场改造成了一个1500平方米的公共公园，灵感来自丹麦风景的沙滩和沿海森林。在北面，松树和橡树等原生森林树木可以抵御港口的强风。在南面，创建了种植区、岩石和树林，以支持生物多样性的栖息地创造，以及玩耍和放松的柔软表面。

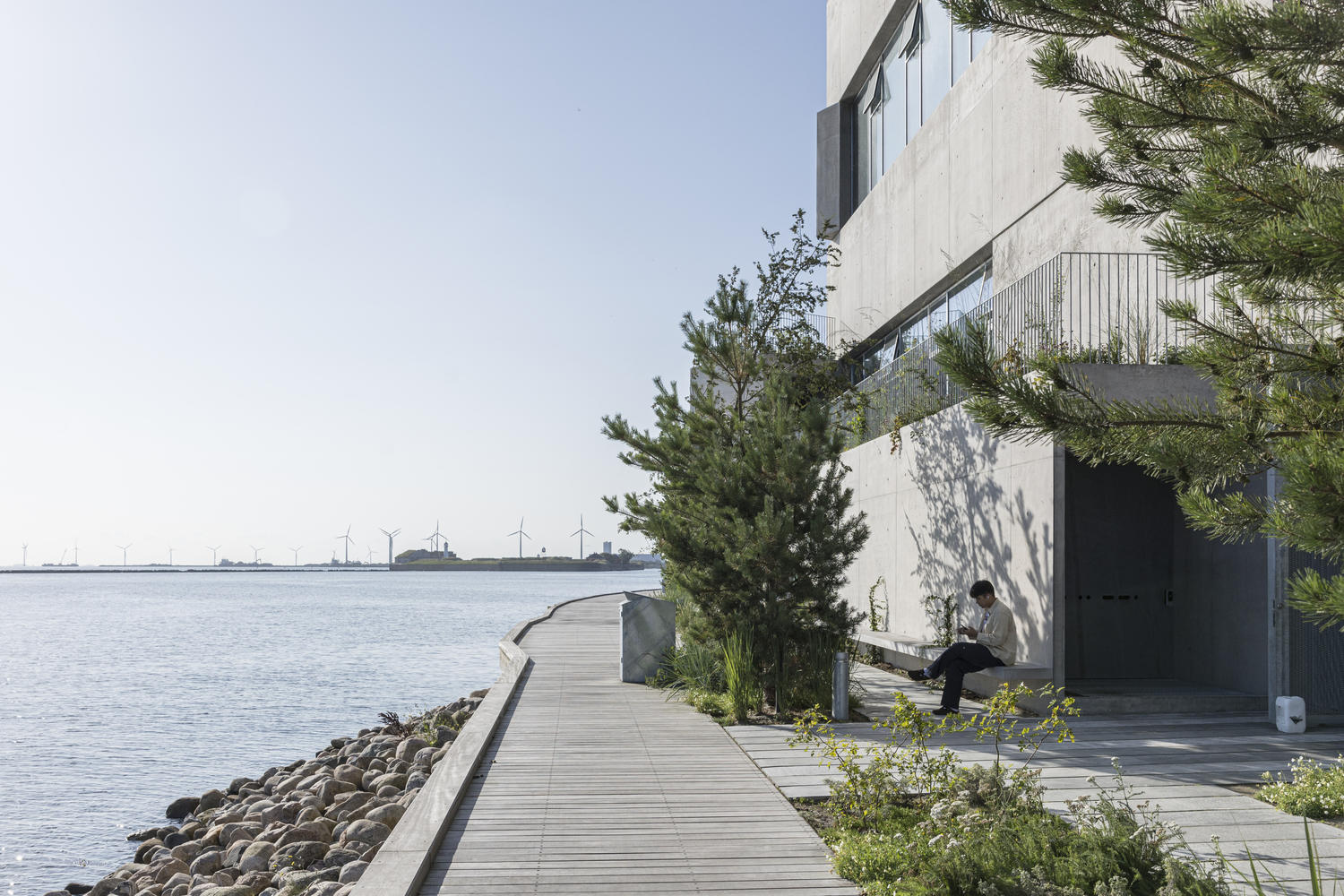

At the foot of the building, BIG Landscape has transformed a former parking area into a 1,500 m2 public park, inspired by the sandy beaches and coastal forests of the Danish landscape. Towards the north, native forest trees, such as pines and oaks, protect against the harsh winds of the harbor. Towards the south, areas with planting, rocks and woods are created to support habitat creation for biodiversity as well as a soft surface for play and relaxation.

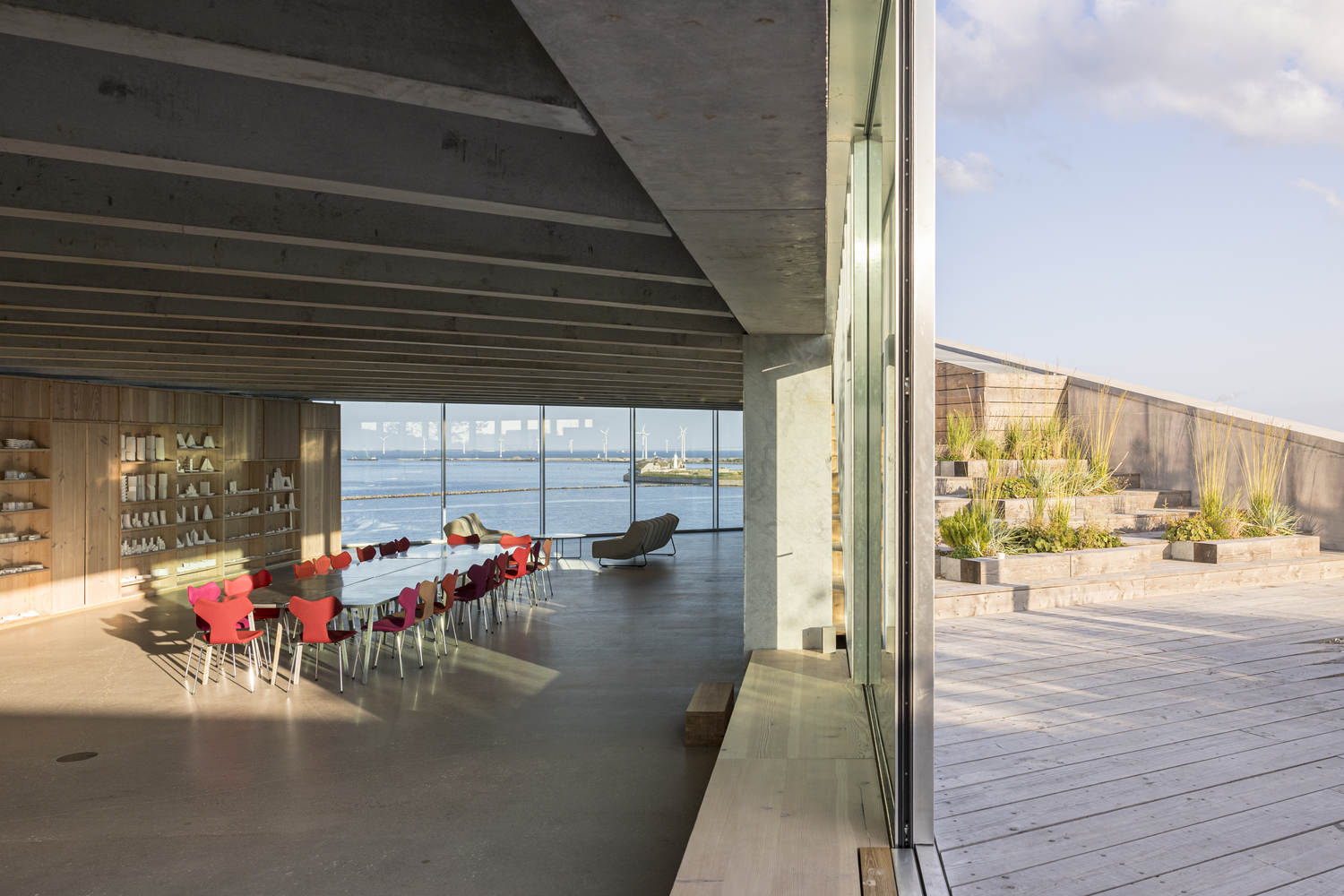

美国艺术家本杰明·朗霍尔茨（Benjamin Langholz）的一座名为“石头40”的雕塑藏在树林之间，将给所有年龄段的游客带来惊喜和吸引力。这座雕塑由40块石头组成，呈螺旋状排列，是一条挑战感官的俏皮之路。沿着环绕总部的外部楼梯，种植了抗风树种、灌木、多年生植物和草本植物，工作室食堂的厨师也使用这些草本植物。屋顶露台铺有当地锯木厂的木材，延续了公园的天然材料主题，在城市空间和建筑之间建立了整体联系，同时为员工和客人提供了独特的城市和水景。
Tucked away between the trees, a sculpture by American artist Benjamin Langholz titled "Stone 40" will surprise and engage visitors of all ages. The sculpture consists of 40 stones arranged in a spiral form, acting as a playful path that challenges the senses. Along the outside staircase wrapping around the HQ, wind-tolerant species of trees, shrubs, perennials, and herbs are planted, with the herbs used by chefs in the studio's canteen. The rooftop terrace, paved with wood from a local sawmill, continues the park's theme of natural materials to create a holistic connection between urban space and architecture, while offering employees and guests a unique view of the city and the water.

“在Nordhavn的Sundmolen尖端，我们将曾经的停车场改造成了一个1500平方米的海滩公园，这是城市中心的一块隐藏的宝石。受丹麦美丽的沿海景观的启发，我们设想了一个人们可以放松、玩耍、钓鱼和与自然联系的地方。该公园反映了港口出现之前这里自然生长的东西，使其成为对过去和未来的致敬。通过保留该地的工业特征并将其与丹麦沿海景观融合，它提供了一个自然和人类共同繁荣的生活空间。我们希望它成为游客记忆中永恒的一部分，也是可居住自然的一个例子。”-Giulia Frittoli，Partner and BIG-Bjarke Ingels集团大景观负责人。
"At the tip of Sundmolen in Nordhavn, we've transformed what was once a parking lot into a 1,500 m² beach park—a hidden gem in the heart of the city. Inspired by Denmark's beautiful coastal landscapes, we envisioned a place where people can relax, play, fish, and connect with nature. The park reflects what would have naturally grown here before the harbor emerged, making it an homage to both the past and future. By preserving the site's industrial character and merging it with the Danish coastal landscape, it offers a living space where nature and people thrive together. We hope it becomes a lasting part of visitors' memories and an example of inhabitable nature." - Giulia Frittoli, Partner and Head of BIG Landscape, BIG - Bjarke Ingels Group.
