学生体验Minervahaven/VURB建筑师

建筑设计 / 教育建筑 2024-12-11 16:00

学生体验Minervahaven/VURB建筑师
Student Experience Minervahaven / VURB Architects

功能与社交:学生体验 Minervahaven 是阿姆斯特丹码头区的城市激活者。它满足了国际学生的住宿需求,提供了丰富的设施,创造了社会安全且愉快的居住地点。半沉式地下停车场划分集体空间,多功能基座朝向内部花园,营造出愉快轻松的氛围,让学生们容易相互联系,促进社交互动。

可持续创新:该建筑在可持续能源领域极具创新性。通过安装在建筑侧面的光伏板产生能源,获得 BREEAM 优秀证书。这种可持续发展的整体方法不仅为学生提供了环保的居住环境,也为未来建筑的可持续发展提供了范例。

建筑特色与价值:建筑体积呈方形,交错的屋顶露台提供了良好的视野。不同高度的内环和外环及不同材料的运用,进一步区分了音量。特别的屋顶景观连接花园、体育设施和露台,为城市提供额外的集体和社会空间,将人类、社会和城市品质完美结合。

© Stijn Bollaert

© Stijn Bollaert

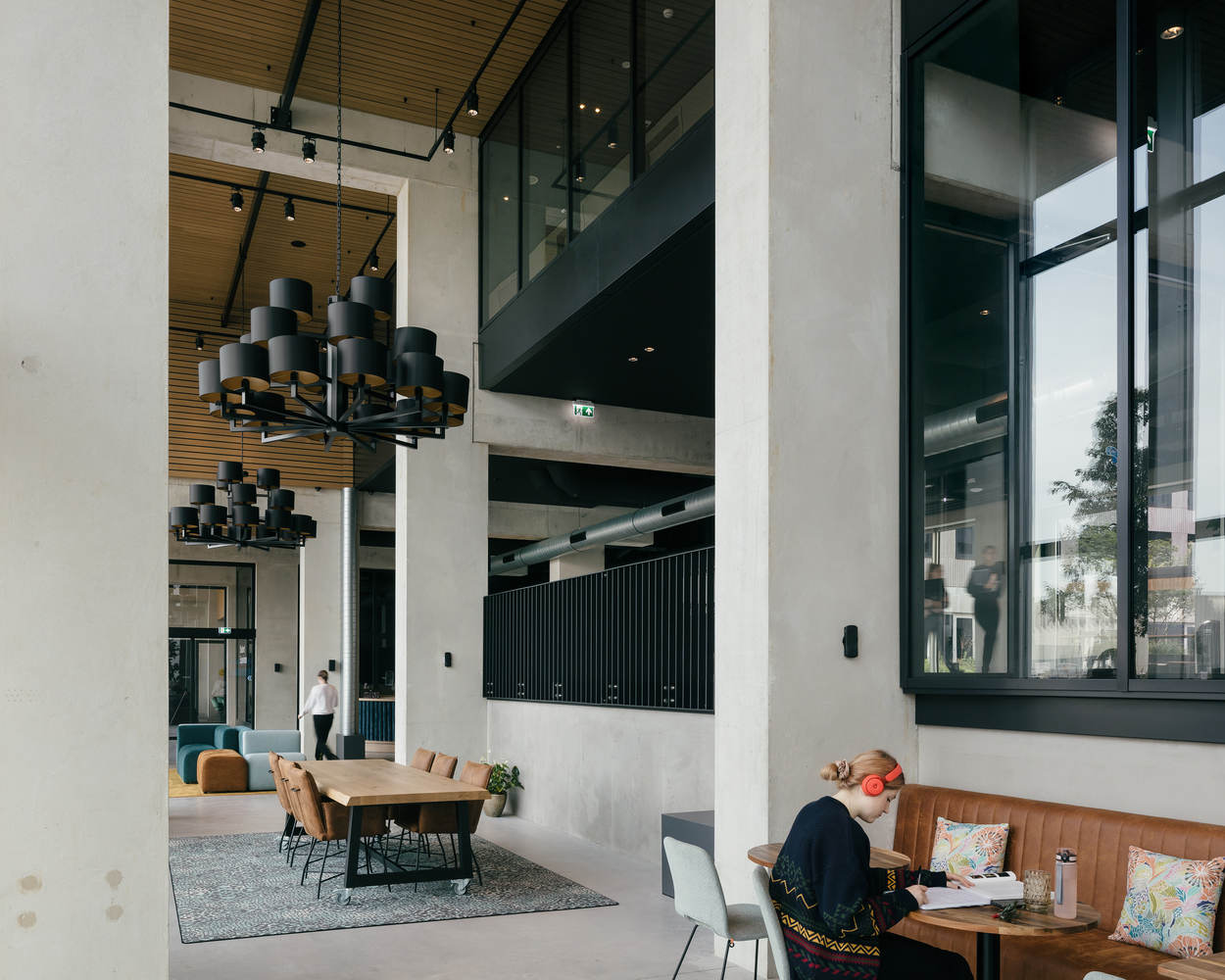

建筑师提供的文字描述学生体验Minervahaven(SEM)是阿姆斯特丹不断变化的码头区的城市激活者。SEM旨在满足国际学生对城市长期住宿日益增长的需求。该综合体有许多专门针对国际学生的设施。除了近600间客房外,它还提供各种功能:咖啡吧、洗衣吧、健身房、休息室、学习、会议和商业空间,以及一个轻型街道自行车设施。这些功能都位于一楼。
Text description provided by the architects. Student Experience Minervahaven (SEM) is an urban activator in a changing dockland area of Amsterdam. SEM is designed to meet the growing demand for extended stay accommodation in the city by international students. The complex has a number of facilities specifically aimed at international students. Besides the almost 600 rooms, it provides a variety of functions: a coffee bar, a ‘laundry bar’, gym, lounge, study, conference and commercial spaces, and a light street-level bike facility. These functions are all located on the ground floor.

© Stijn Bollaert

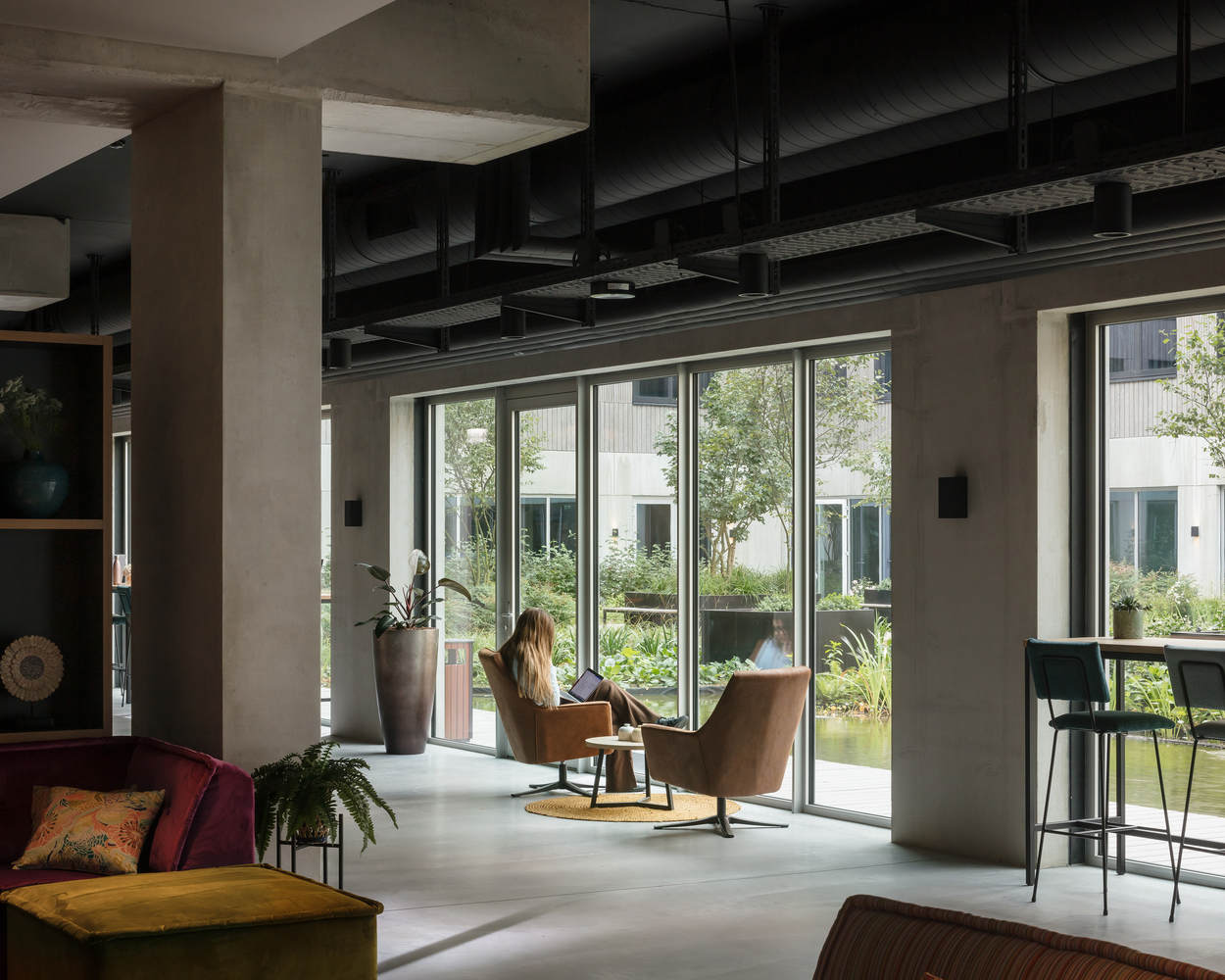

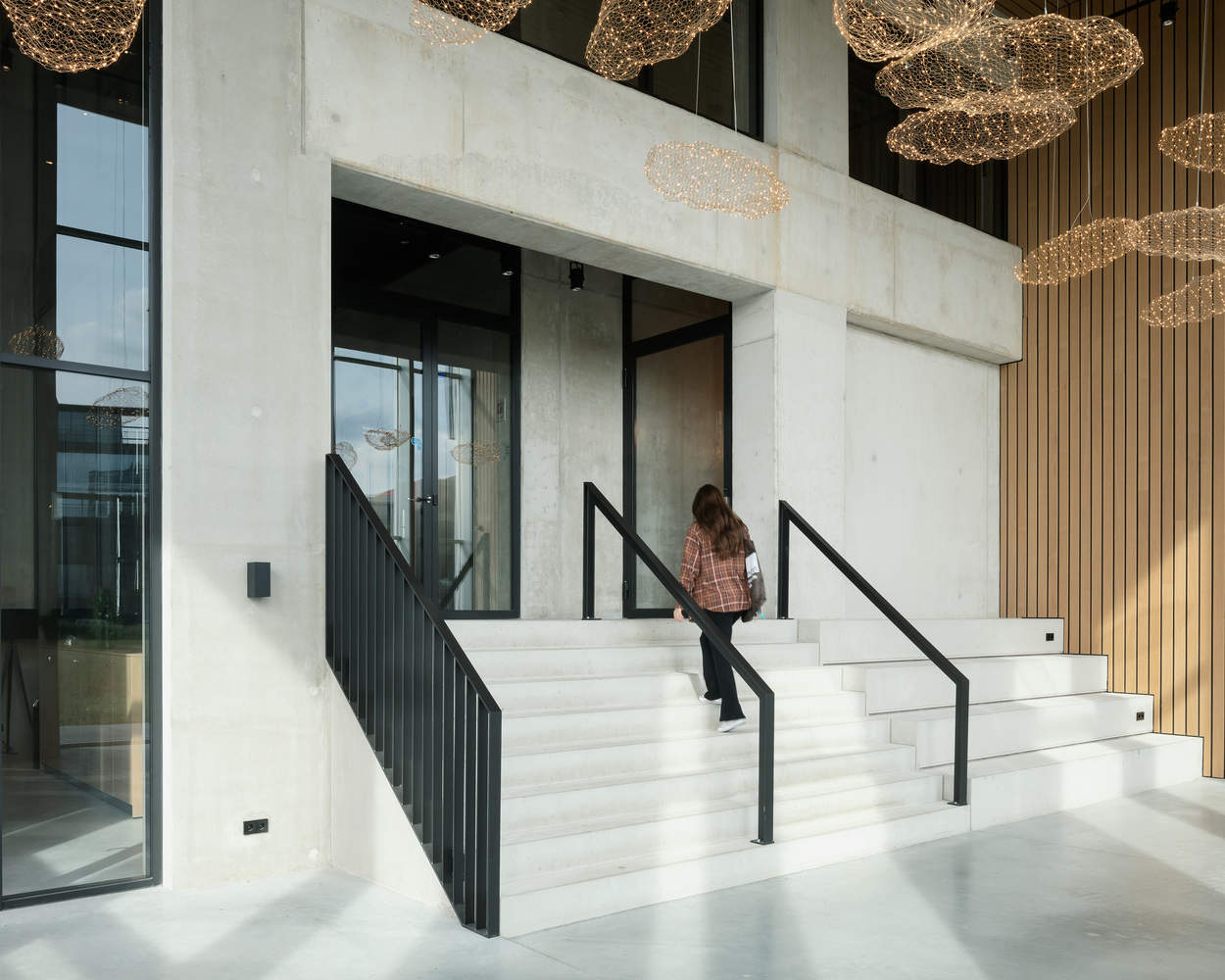

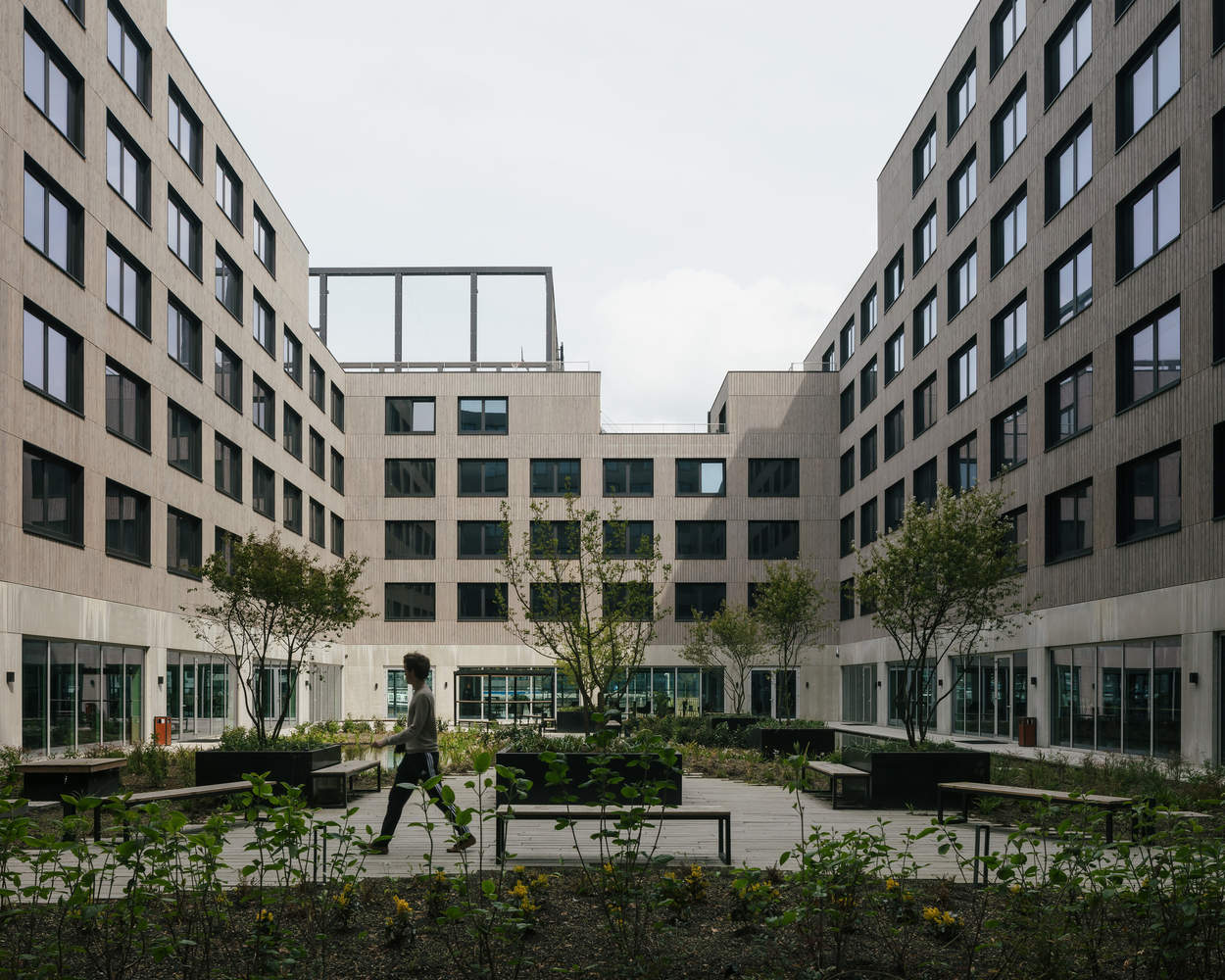

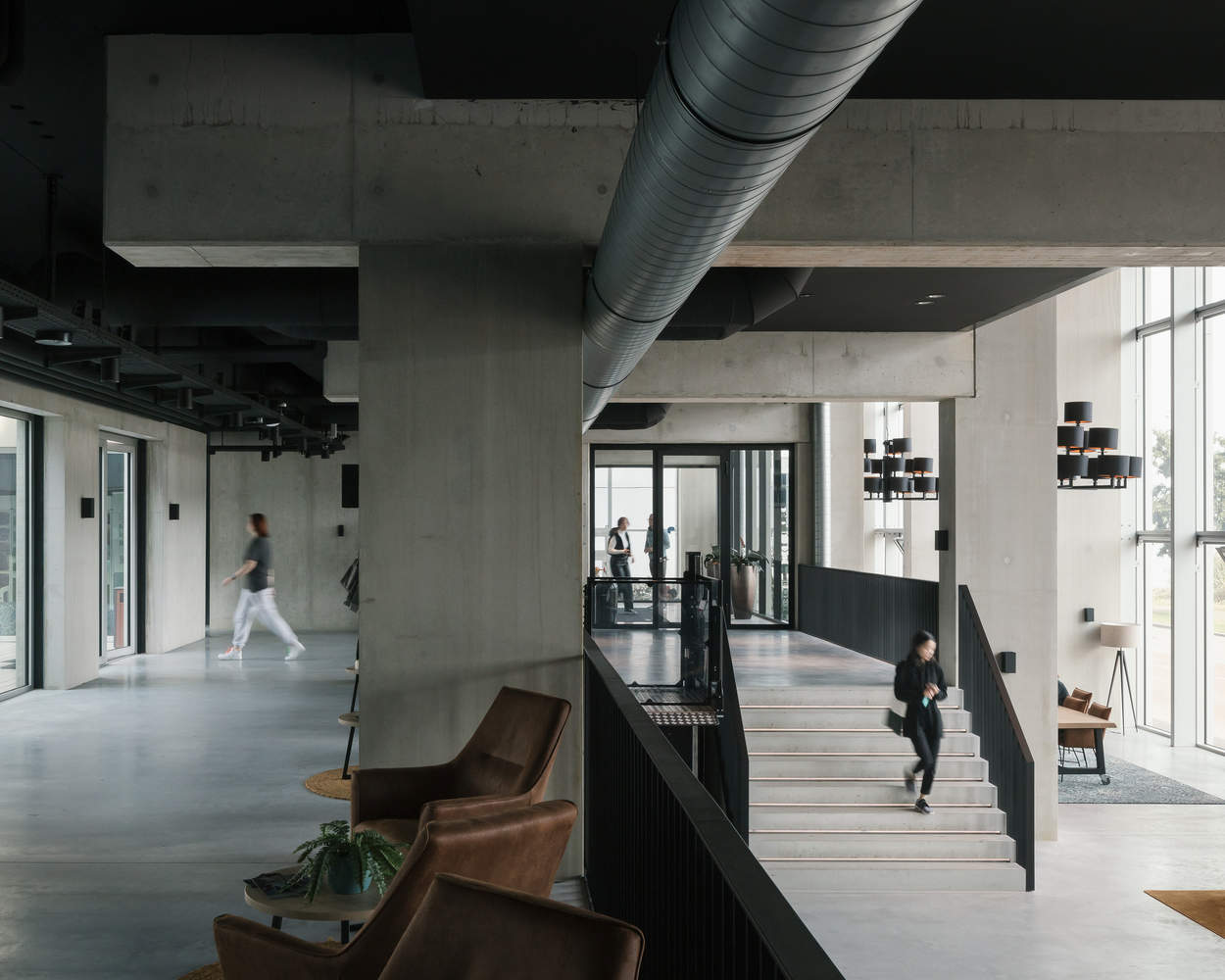

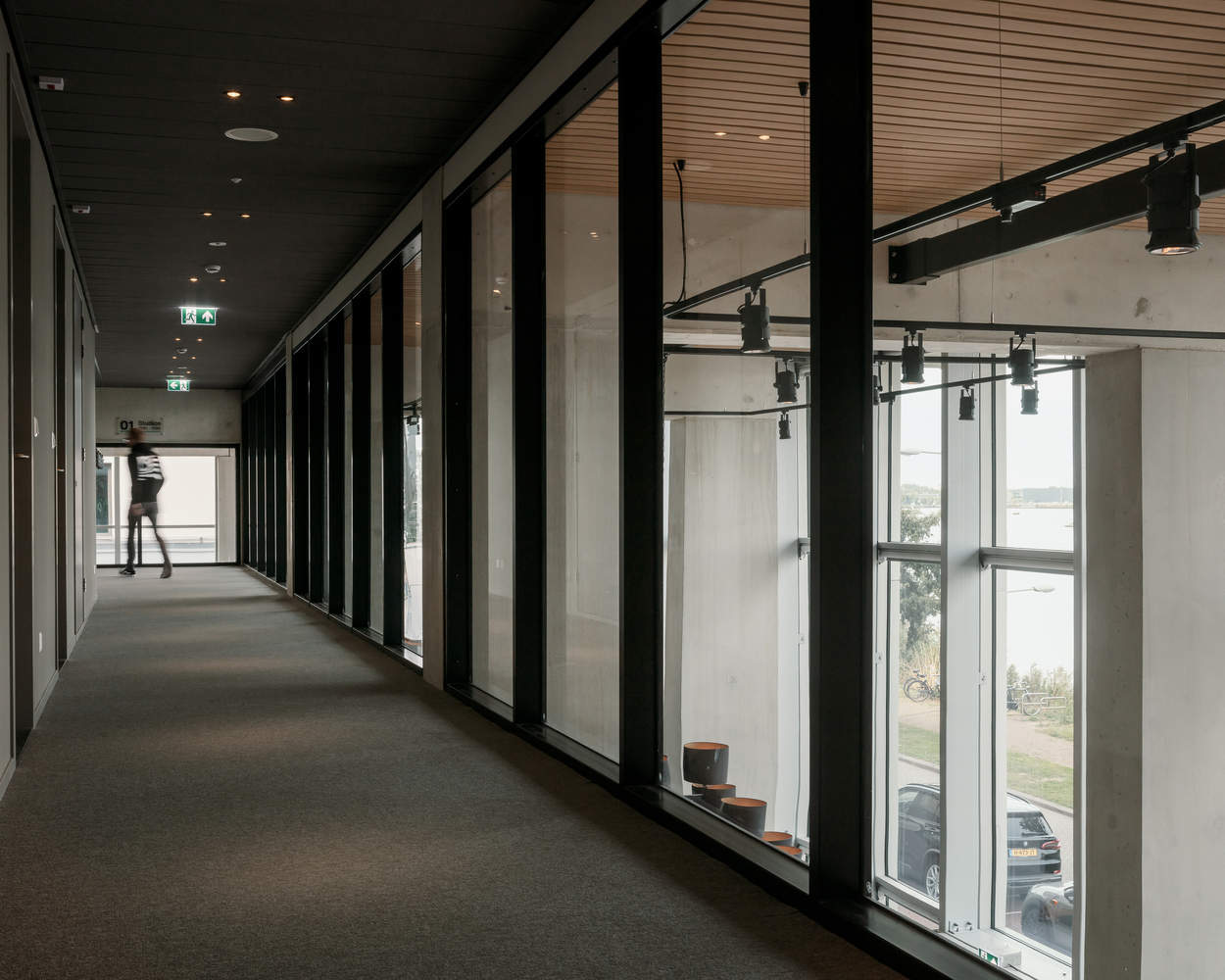

通过这种方式,SEM提供了一个社会安全和愉快的居住地点,以及一个非正式的环境,学生可以很容易地相互联系。一个半沉式地下停车场创造了一个错层,为学生们划分了集体空间。原材料与内部细致细节的轻触相结合,让居民感到轻松自在。多功能基座朝向一个无障碍的绿色内部花园,也有助于营造愉快轻松的氛围。围绕这个内部花园的各种功能是可见的。因此,这是一个邀请学生在那里度过时光并相互见面的地方。
In this way, SEM offers a socially safe and enjoyable residential location and an informal environment in which students can easily make contact with one another. A half-sunken underground car park creates a split level and differentiates the collective spaces for the students. The combination of raw materials with the light touch of the meticulous details of the interior makes the residents feel at ease. The multifunctional plinth, orientated towards an accessible green inner garden, also contributes to the pleasant and relaxing atmosphere. The various functions grouped around this inner garden are visible. It is thus a place that invites the students to spend time there and to meet one another.

© Stijn Bollaert

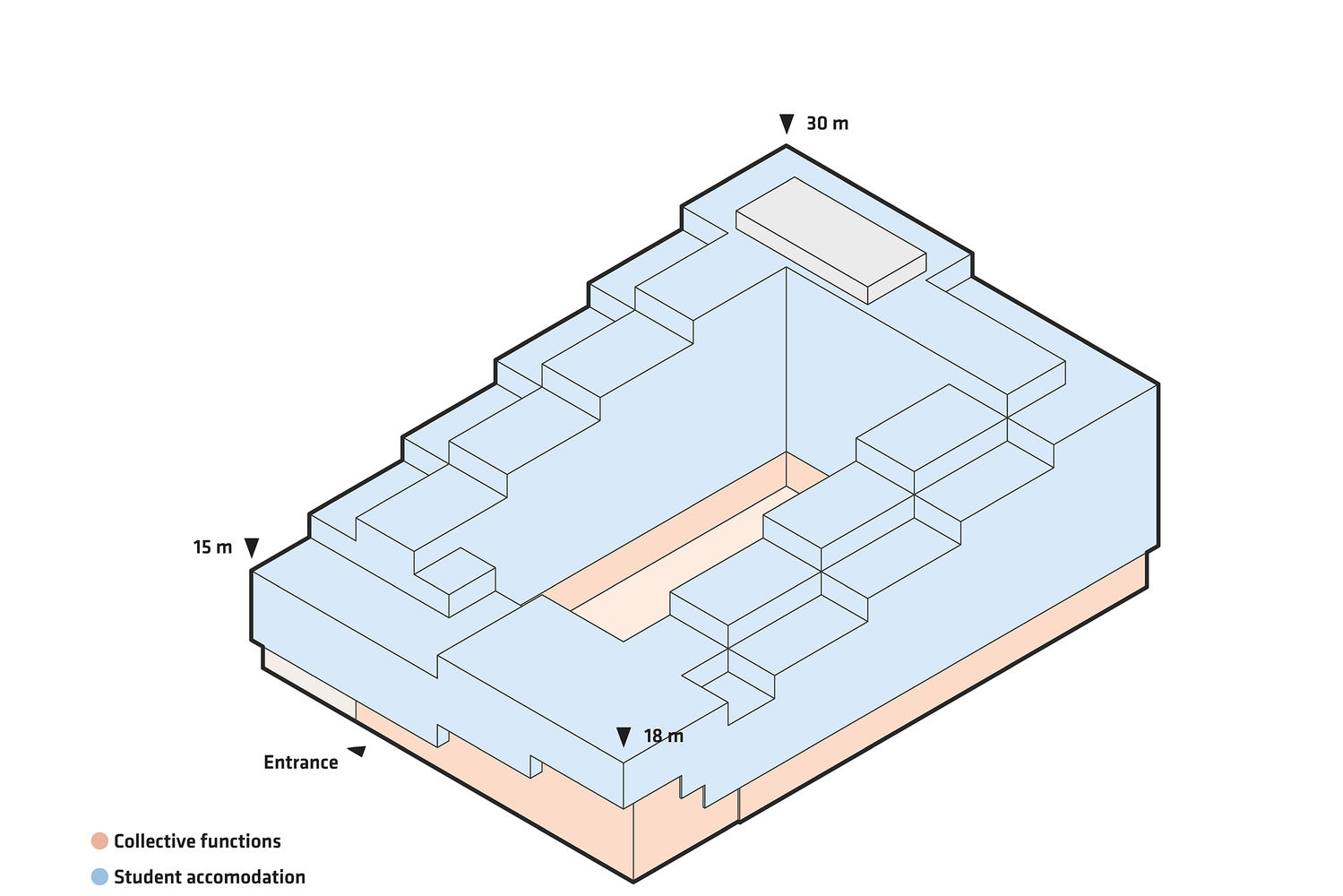

Diagram

© Stijn Bollaert

Minervahaven的前码头活动正逐渐为越来越多的国际媒体和时尚公司让路。SEM通过其功能和新用户激活了社区。除了社会学方法外,该建筑在可持续能源领域也具有创新性。目前,SEM是欧洲最具可持续性的学生综合体之一。可持续发展的整体方法获得了BREEAM优秀证书。
The former dock activities in the Minervahaven are gradually making way for a growing number of international media and fashion companies. SEM activates the neighbourhood with its functions and new users. Besides its sociological approach, the building is innovative in the field of sustainable energy. At the moment SEM is one of the most sustainable student complexes in Europe. The integral approach to sustainability won the BREEAM Excellent certificate.

© Stijn Bollaert

© Stijn Bollaert

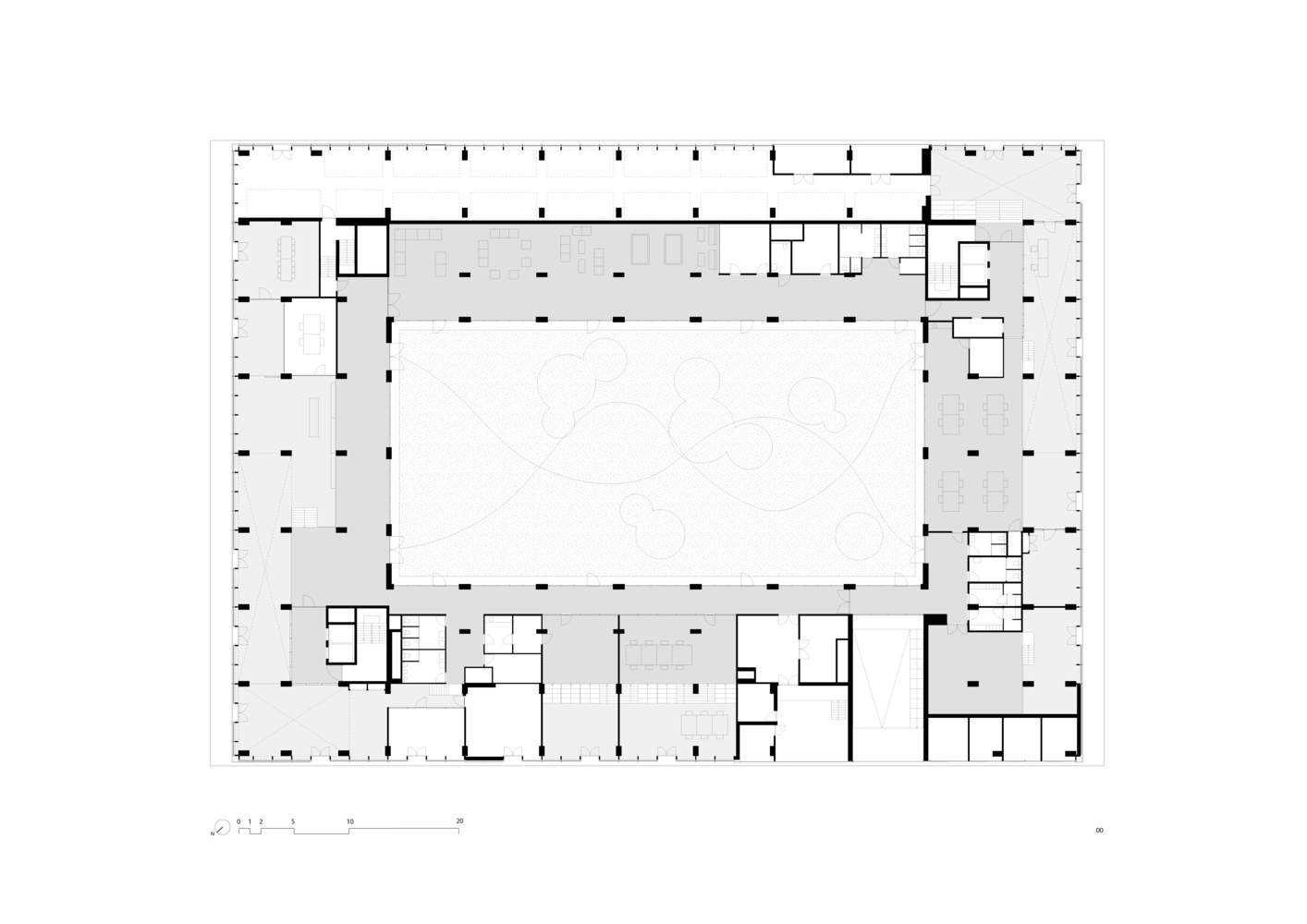

Plan

能源由安装在建筑群朝南、向西和朝东的侧面的光伏板产生,使屋顶可供居民使用。Solarlab拥有定制设计和生产的面板,这些面板配有选择性玻璃板、水平智能和弹性,以及自清洁的防眩光表面,以确保长寿命和高效率。Kromatix涂层仅反射特定的光频率,将侧面的高效率与微妙而生动的色彩感相结合。
Energy is generated by photovoltaic panels applied to the sides of the complex facing south, west, and east, leaving the roof free for the residents to use. Solarlab has custom-designed and produced panels that are fitted with a selective sheet of glass, level intelligence, and resiliency, as well as a non-glare surface that is self-cleaning to ensure long life and high efficiency. The Kromatix coating only reflects certain light frequencies, combining a high efficiency on the sides with a subtle and lively colour sensation.

© Stijn Bollaert

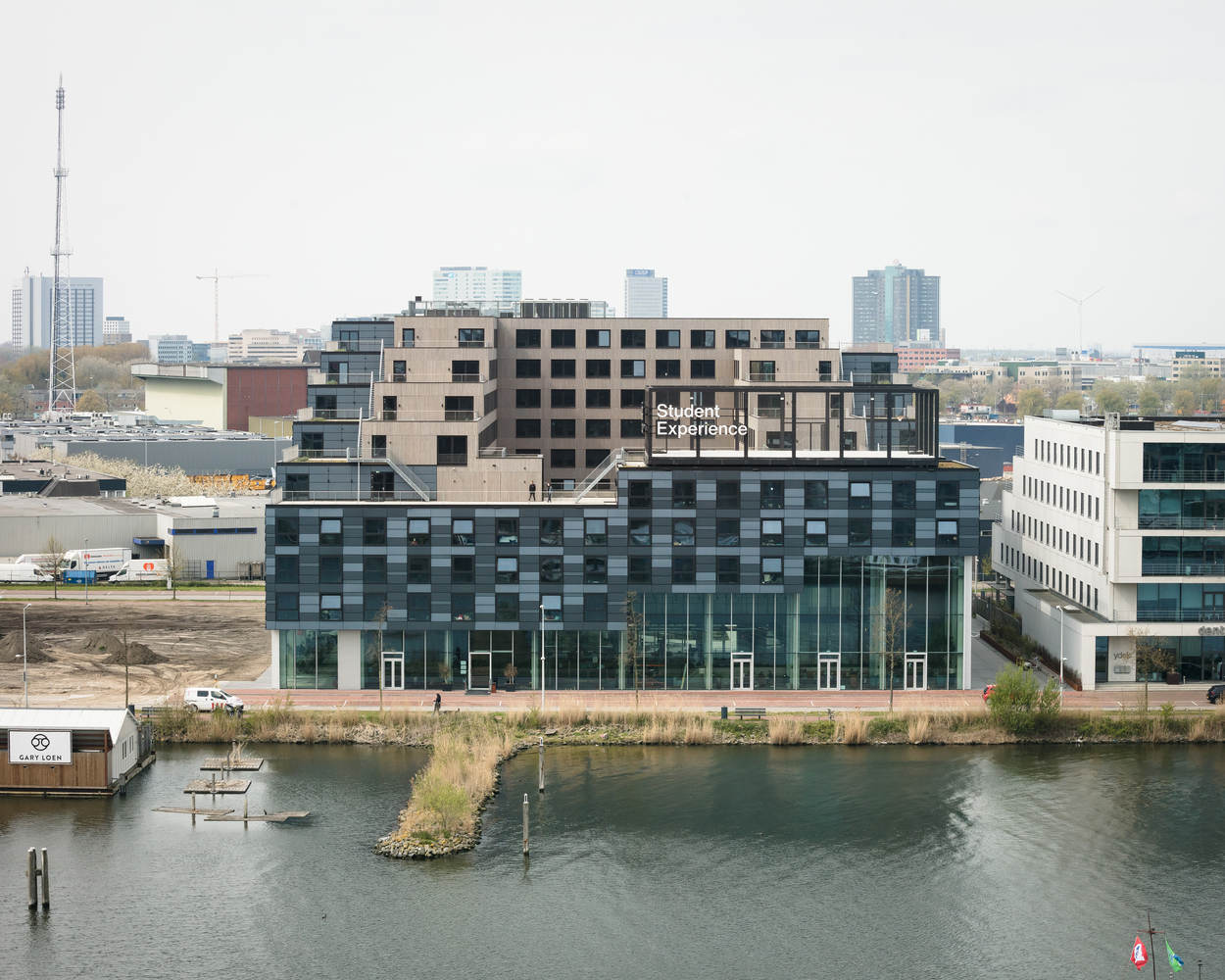

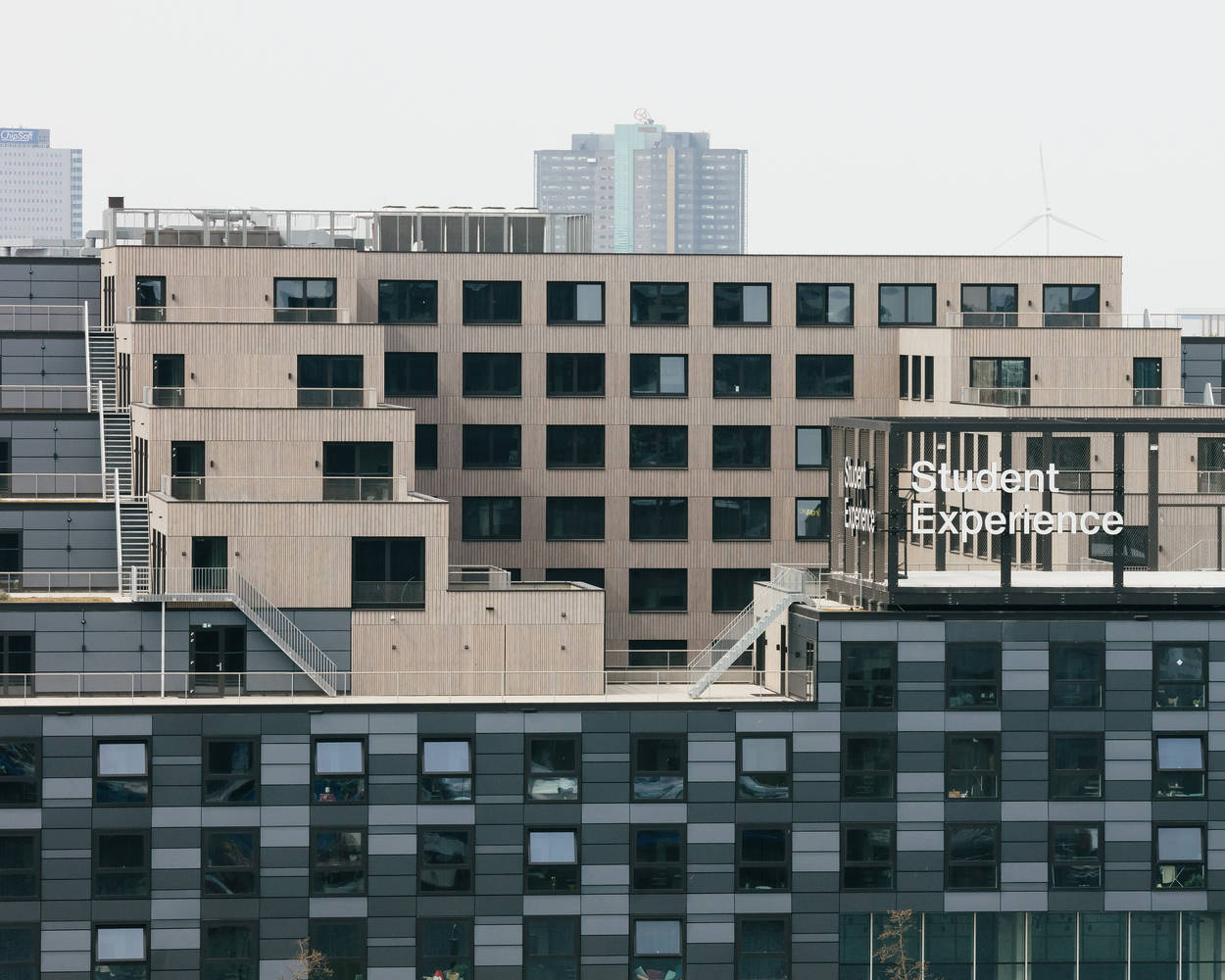

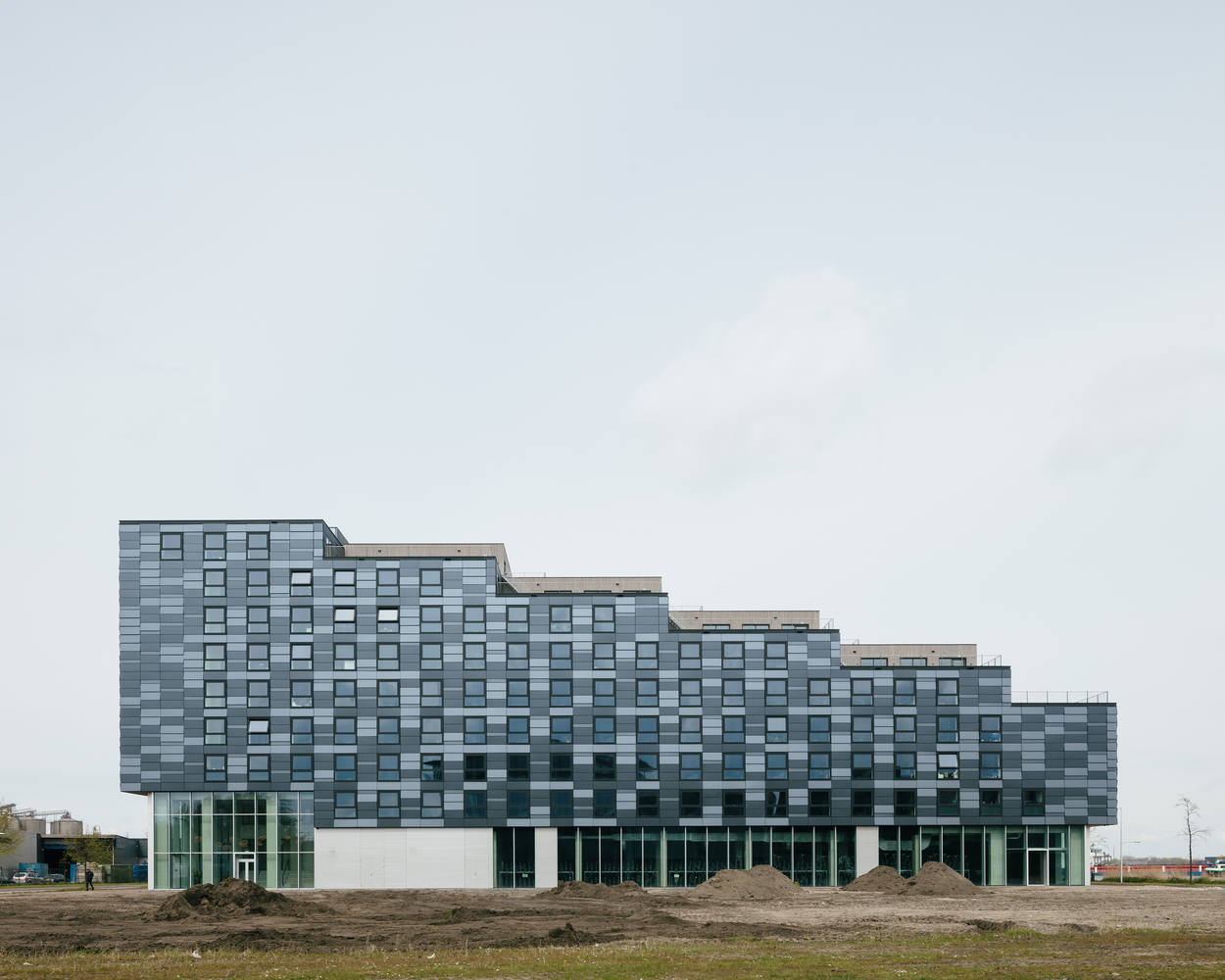

SEM的体积呈方形,通过交错的屋顶露台从第四层延伸到第九层。这个网站上的许多房间都可以看到Minervahaven附近的水。建筑的内环和外环高度不同,采用不同的材料建造。这种细微差别有助于进一步区分音量。

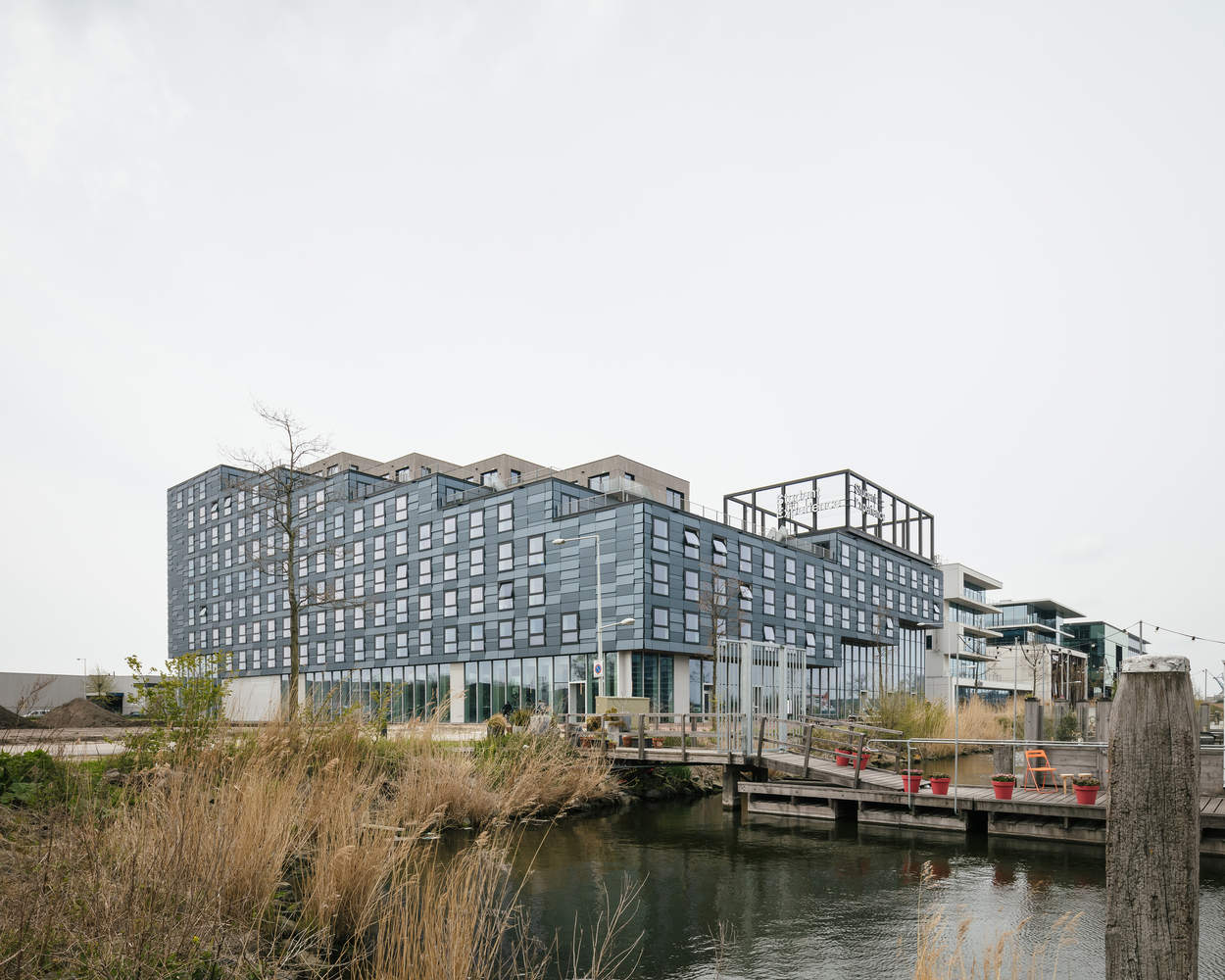

The volume of SEM is square in shape and runs from the fourth to the ninth storey via staggered roof terraces. A large number of rooms on this site have a view of the adjacent water of the Minervahaven. The inner and outer rings of the building differ one story in height and are constructed with different materials. This nuance contributes to further differentiation of the volume.

© Stijn Bollaert

最后,不同寻常的屋顶景观在SEM的外观和使用中起着重要作用。屋顶步道将花园、体育设施以及集体和私人露台相互连接。有了这个屋顶,这个综合体为城市提供了额外的集体和社会空间。总的来说,SEM是一座多方面的建筑。它是一个强大的城市街区,舒适的居住环境和能源机器,但最重要的是,它将人类、社会和城市品质结合在一起。
Finally, the unusual roof landscape plays a large part in the appearance and use of SEM. A rooftop footpath connects gardens, sports facilities, and collective and private terraces with one another. With this roof, the complex gives the city extra collective and social space. As a whole, SEM is a multi-faceted building. It is a robust urban block, comfortable residential environment, and energy machine, but above all, it is something that brings together human, social and urban qualities.

© Stijn Bollaert
