LCI BARCELONA 22@ CAMPUS. International School of Design & Visual Arts / CIRCULAR STUDIO

创新的垂直校园设计：该项目将建筑打造为“垂直校园”，容纳约 3000 名学生。地上部分包含各类教学和学生活动区域，流通在外围与立面平行，兼具多种功能。地下部分提供广阔开放空间，有灵活大厅、工作室等，自然光透过双层空间和天窗照亮。这种垂直布局充分利用空间，为学生提供了丰富多样的学习和社交环境。

独特的立面设计策略：建筑立面采用统一策略应对不同方向，阻挡直射阳光防眩光同时增加间接光进入。外部覆盖铝并涂透明粉末涂层，保留金属质感和光反射，与周围环境互动。内部白色镶板增强自然光。这种设计既美观又实用，提升了建筑的整体品质。

优质的城市环境融合：一楼作为可渗透空间增强公共区域，玻璃立面提高透明度和视觉连续性。通过桥连接街道与内部广场，模糊底层边界融入城市空间。广场成为学生和居民的社区空间。地下部分的社交之旅也丰富了学生的体验。整体设计旨在提供优质城市环境，促进学生的成长与交流。

建筑师提供的文字描述该建筑是国际设计和视觉艺术大学网络LCI Education的欧洲枢纽。它位于巴塞罗那的Poblenou前工业区，现在是正在进行城市转型的22@技术区。
Text description provided by the architects. The building accommodates the European hub for the international network of design and visual arts universities, LCI Education. It is located in the former industrial district of Poblenou in Barcelona, now the technological district 22@, which is undergoing an urban transformation.

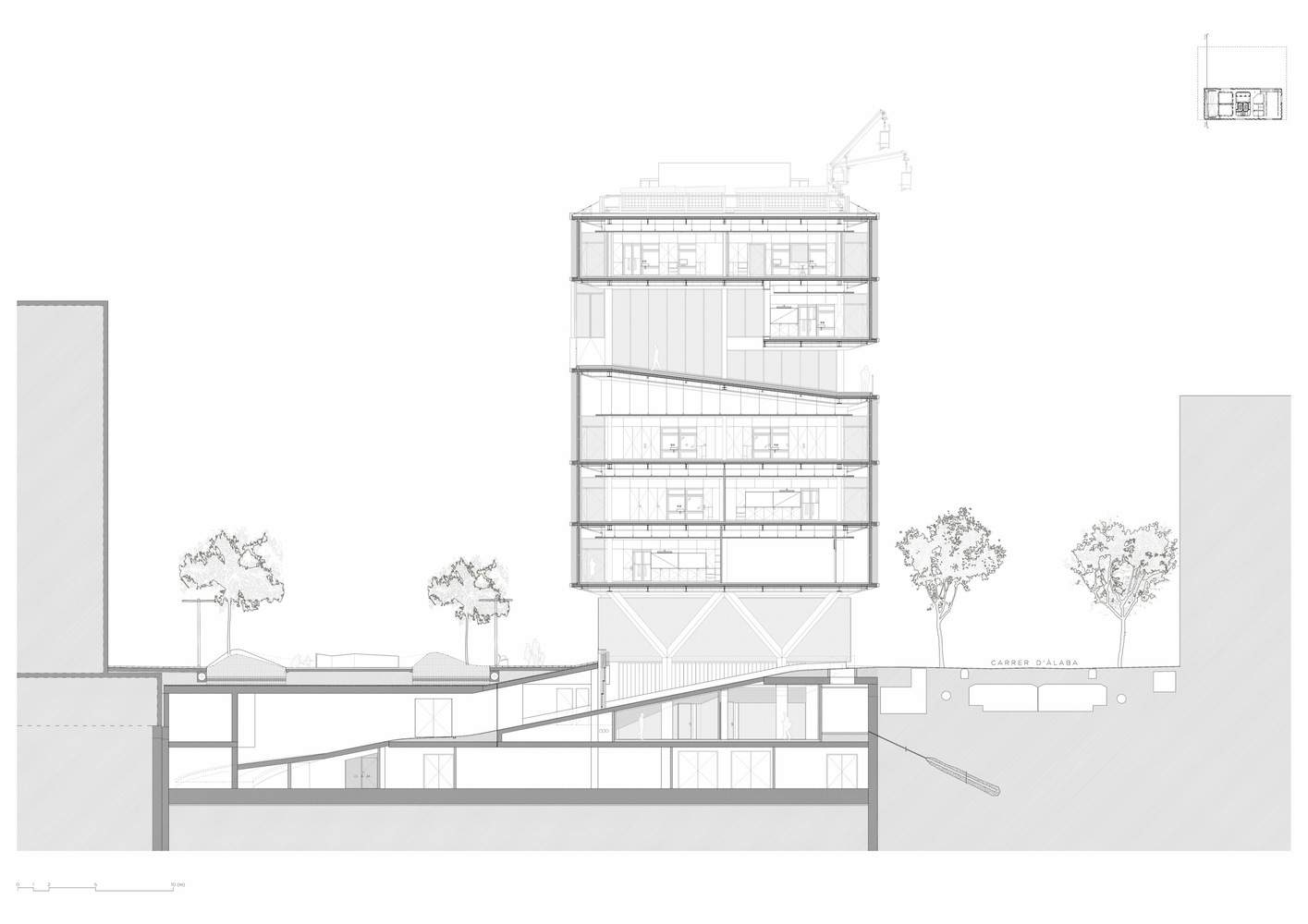

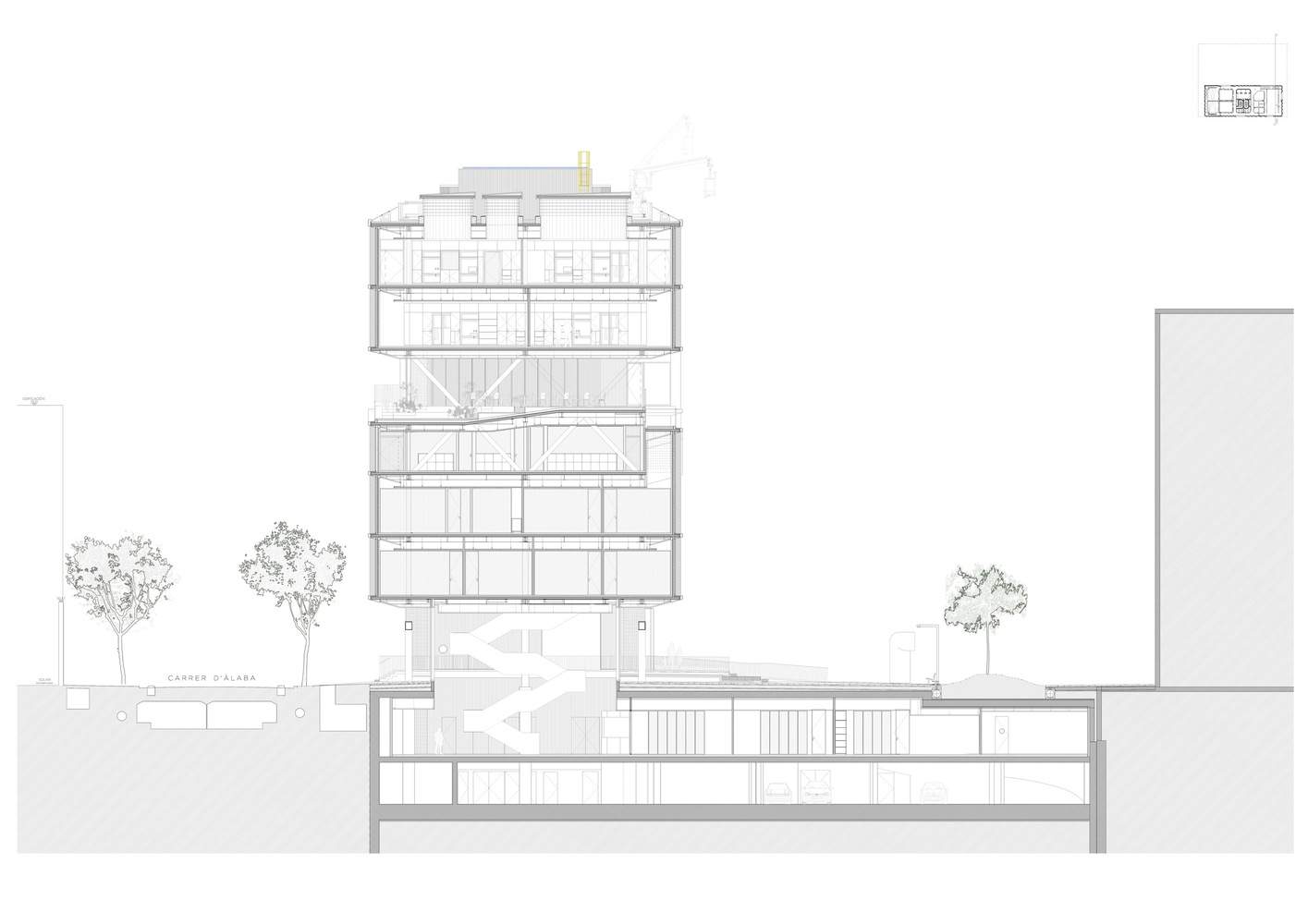

Section 07

该建筑的地上部分包括教室、实践实验室、行政办公室、图书馆和学生区。流通是在外围组织的，与立面平行。这个空间充当过滤器、社交区、工作环境和展览空间。就像古典门廊中固体和空隙的相互作用一样，立面的节奏模糊了内部和外部之间的界限，将建筑的旅程变成了一种体验。
The above-ground volume of the building includes classrooms, practical labs, administrative offices, a library, and student areas. Circulation is organized peripherally and parallel to the façade. This space acts as a filter, a social area, a working environment, and an exhibition space. Much like the interplay of solid and void in a classical portico, the rhythm of the façade blurs the boundaries between the interior and the exterior, transforming the journey through the building into an experience.

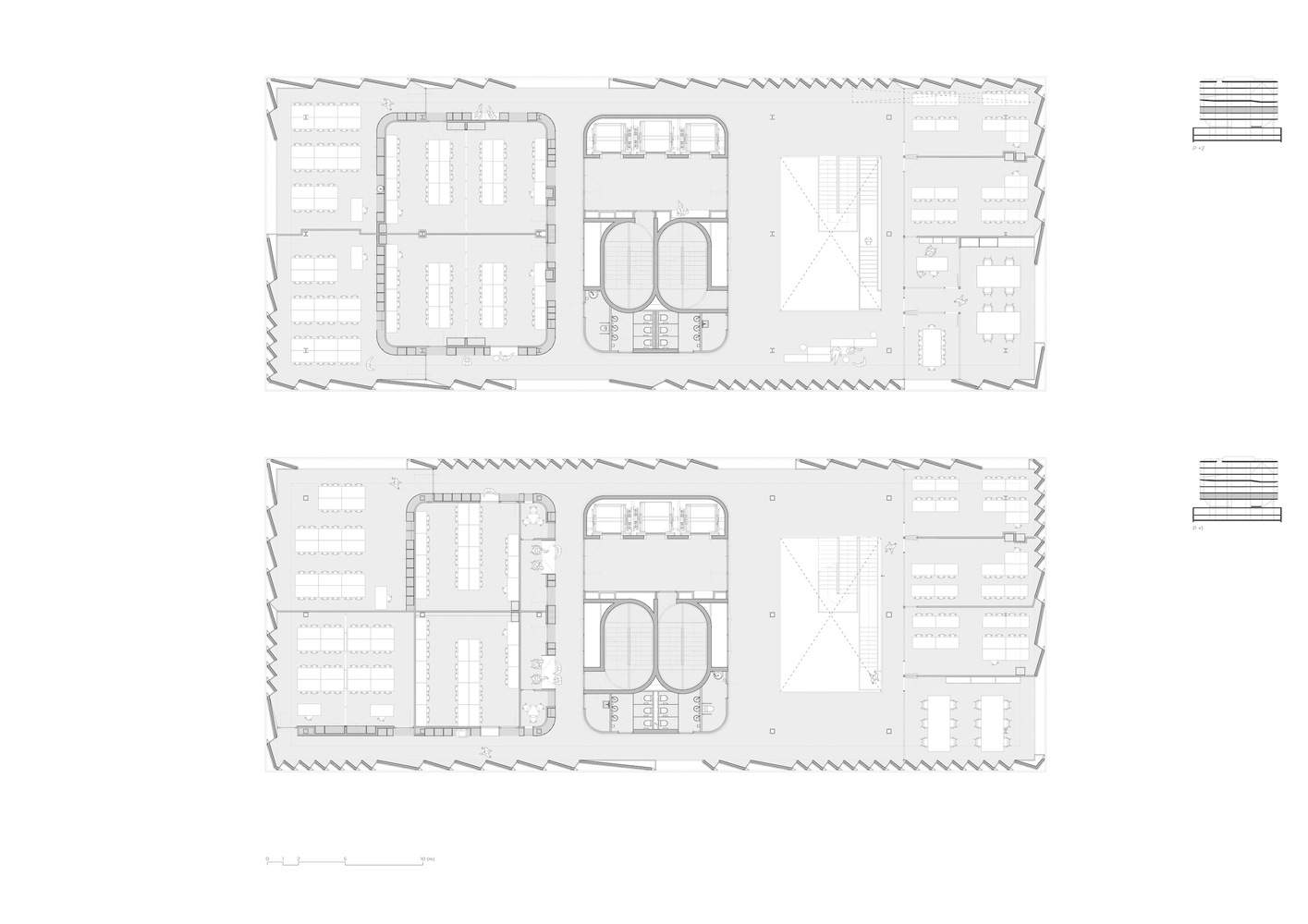

Plan - 1st and 2nd Floor

在地下，该建筑还融入了广场的足迹，为学生提供了广阔的开放空间。在这里，两个用于各种活动的大型灵活大厅与工作室、实验室和制造车间共存，所有这些都由自然光透过一楼双层空间和上方广场的天窗照亮。

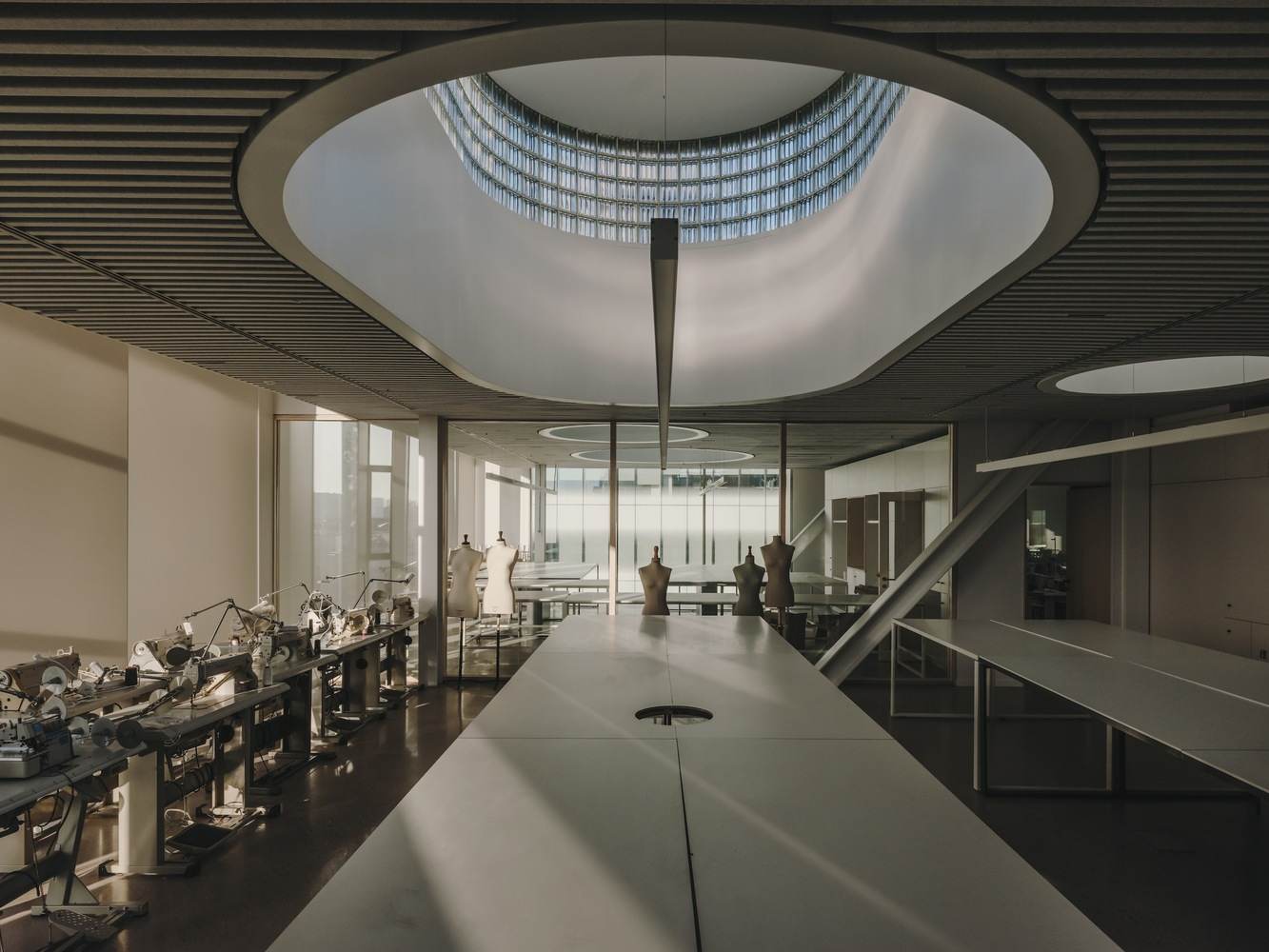

Underground, the building also incorporates the plaza footprint, resulting in a vast open space for students. Here, two large flexible halls for various activities coexist with workrooms, laboratories, and fabrication workshops, all illuminated by natural light filtering through the ground floor double-height spaces and skylights from the plaza above.

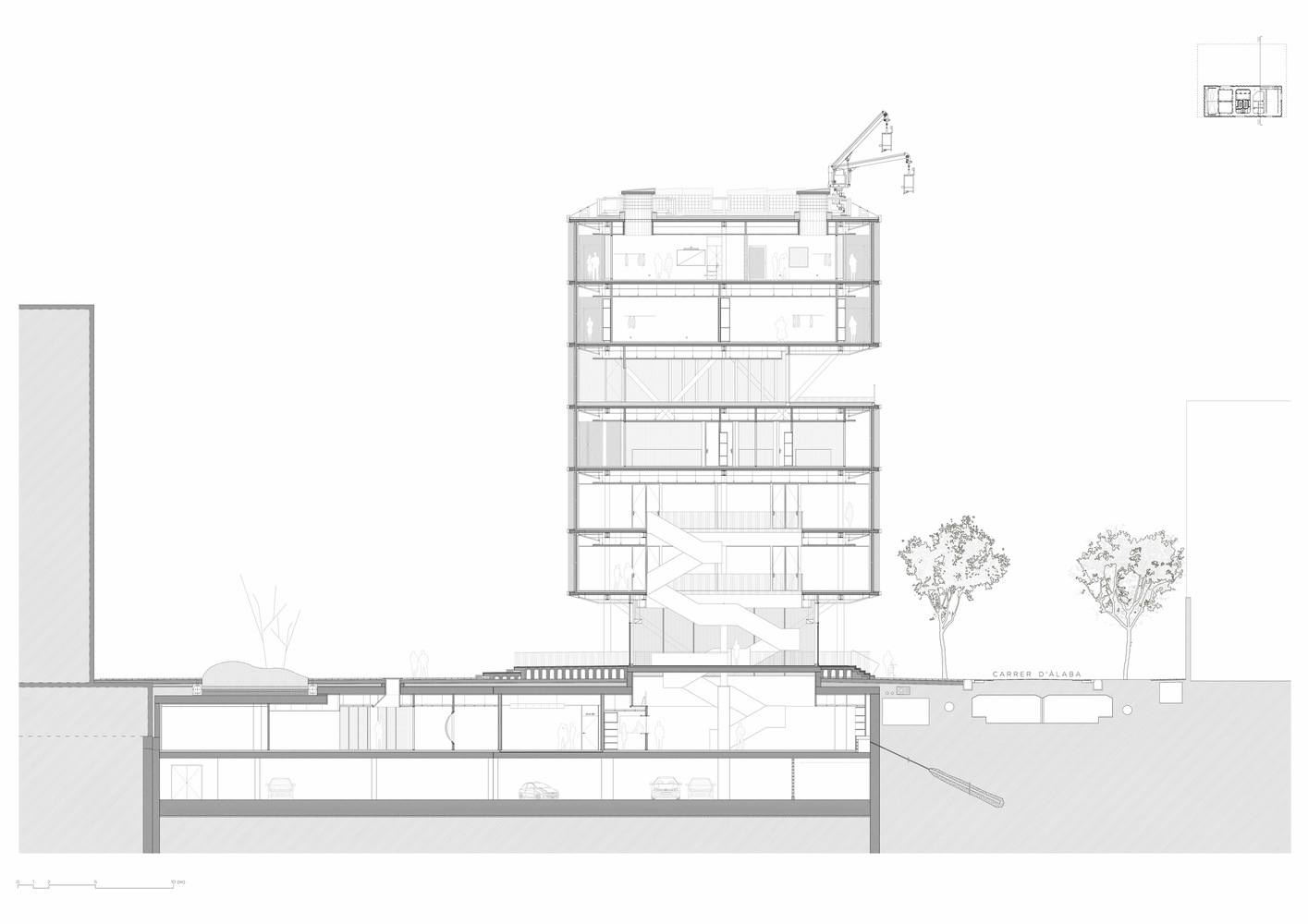

Section 08

建筑的立面通过统一的策略来应对各种方向。它阻挡直射阳光以防止眩光，同时最大限度地增加间接光的进入。外观上，立面覆盖着铝，并涂有透明的粉末涂层。这保留了金属的质地和光反射，使铝能够与周围环境和全天变化的阳光相互作用。在内部，墙壁采用白色镶板，增强了内部的自然光。

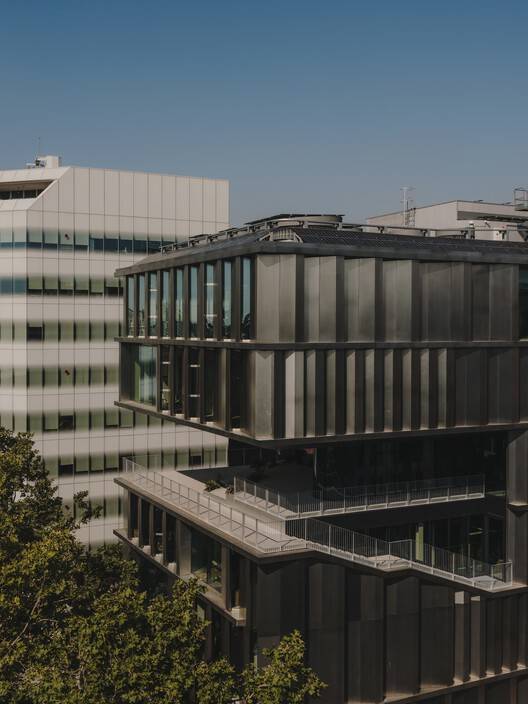

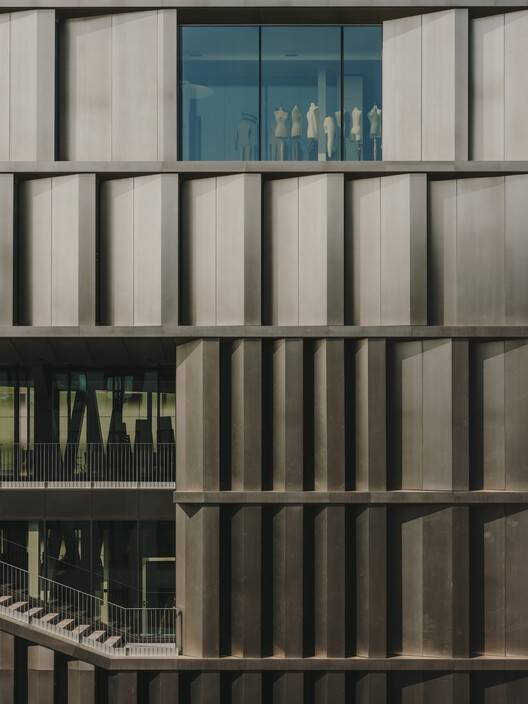

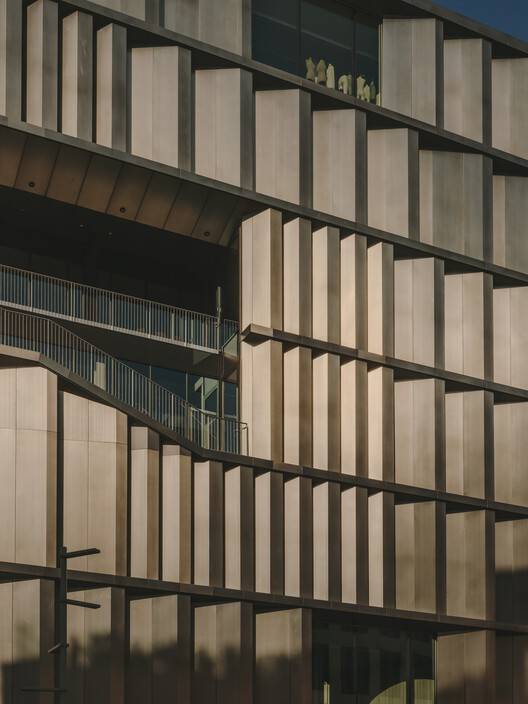

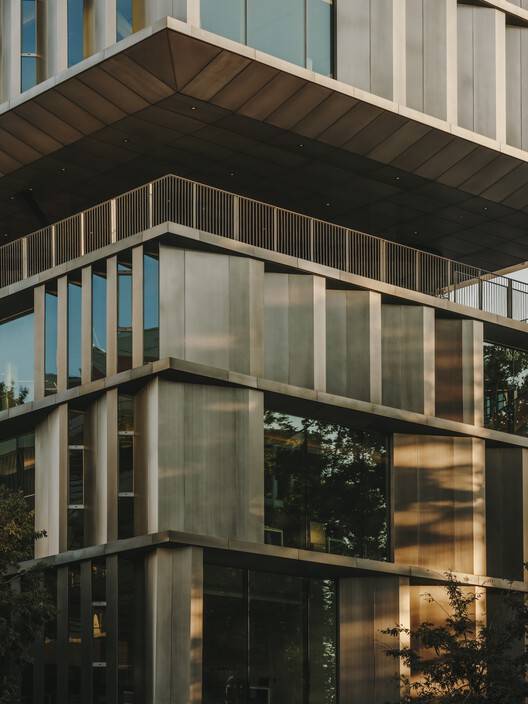

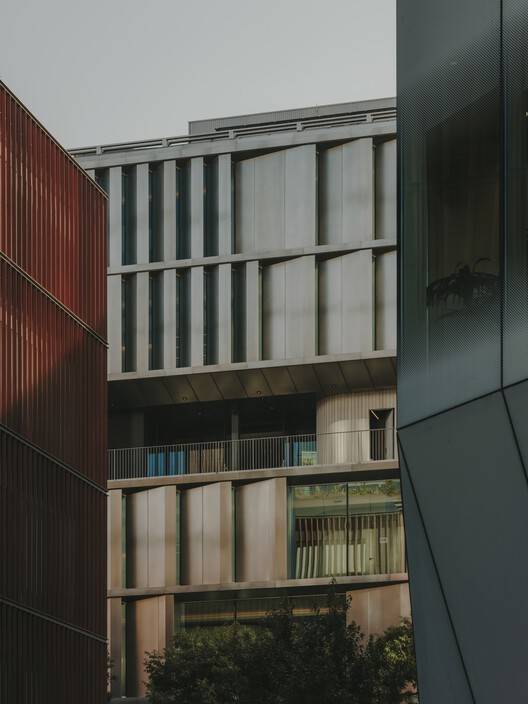

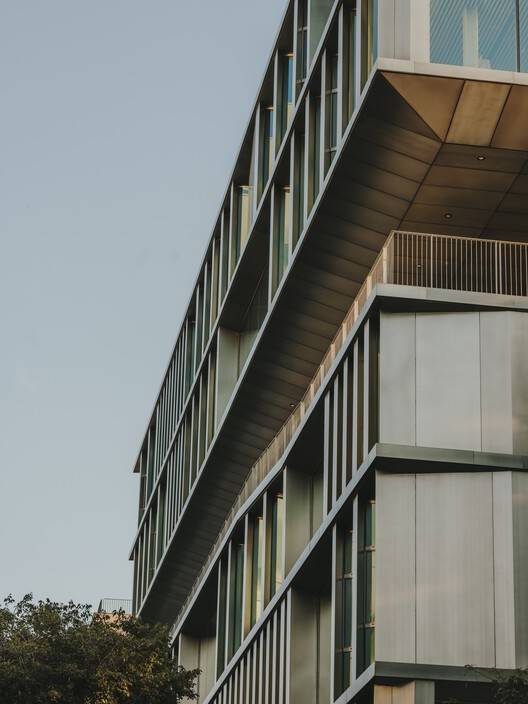

The façade of the building responds to various orientations through a unified strategy. It blocks direct sunlight to prevent glare while maximizing the entry of indirect light. Externally, the facade is clad in aluminum and finished with a transparent powder coating. This preserves the textural qualities and light reflection of the metal, allowing the aluminum to interact with its surroundings and the changing sunlight throughout the day. Internally, the walls are paneled in white, enhancing the natural light within.

该建筑是一个“垂直校园”，可容纳约3000名学生。该设计旨在提供一个优质的城市环境，在这个环境中，通过空间的旅程有助于学生的体验。
The building is a "vertical campus" designed to accommodate approximately 3,000 students. The design aims to provide a quality urban environment in which the journey through the space, contributes to the student experience.

为了实现这一目标，一楼作为一个可渗透的空间，从建筑的周边向后延伸，以增强公共区域，其玻璃立面可提高透明度和视觉连续性。通过一座穿过建筑物的桥提供通道，将街道与内部广场连接起来。这就像一个座位空间，有台阶和入口坡道，从而模糊了底层的边界，并将其融入城市空间。广场成为学生和当地居民的社区空间。

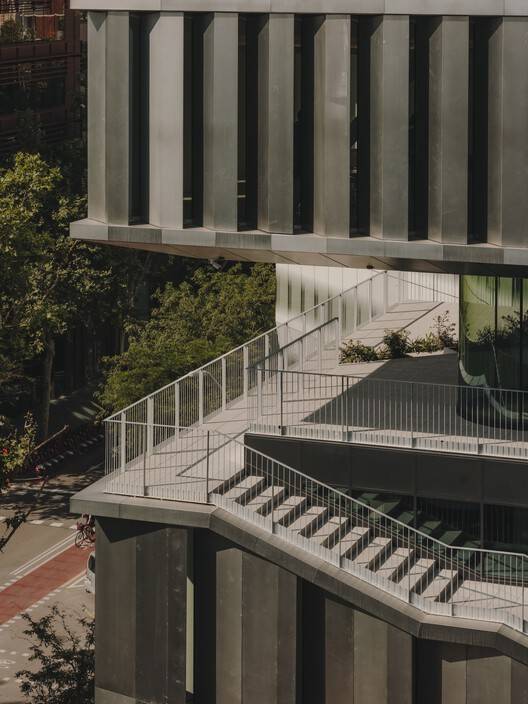

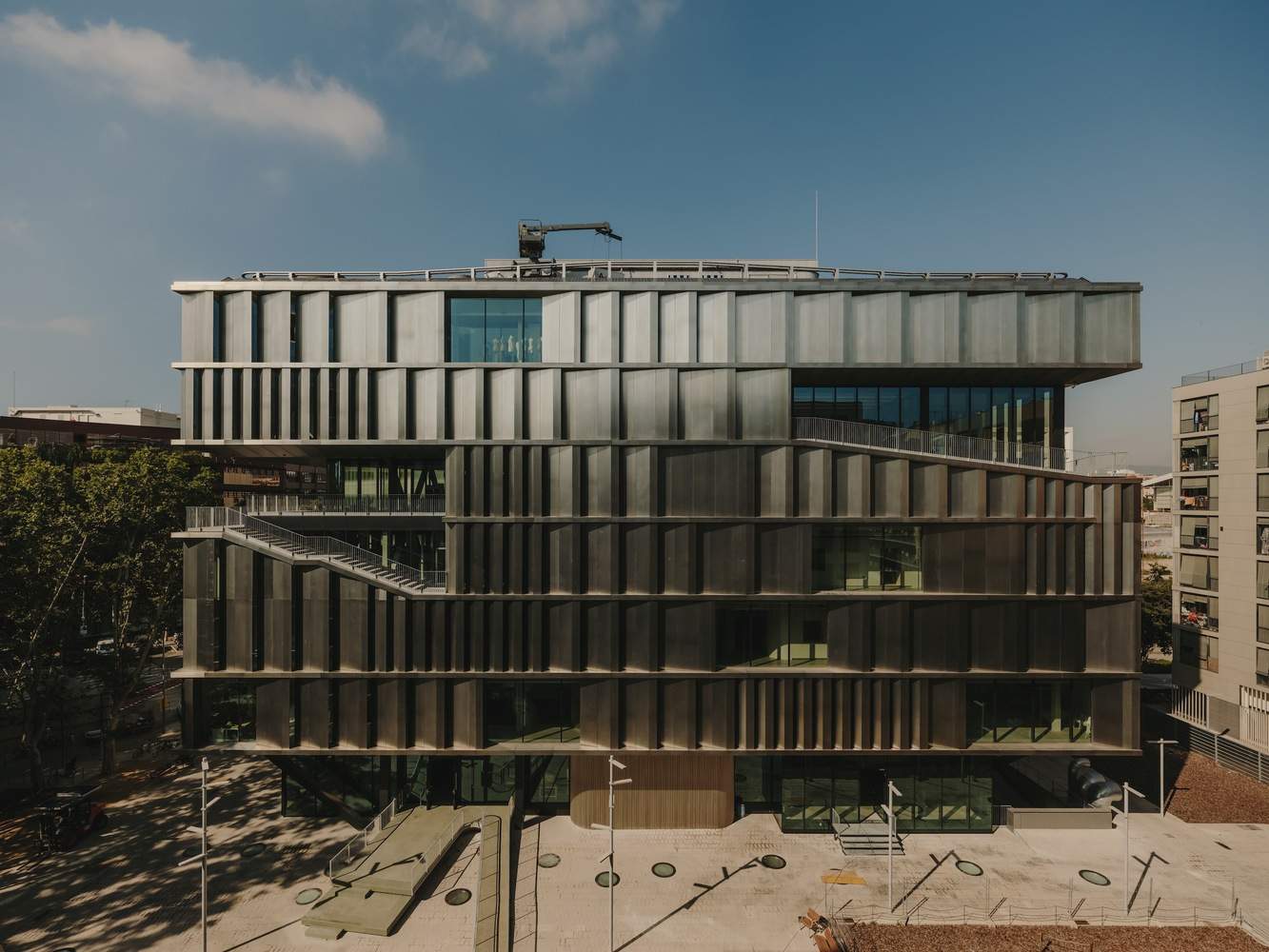

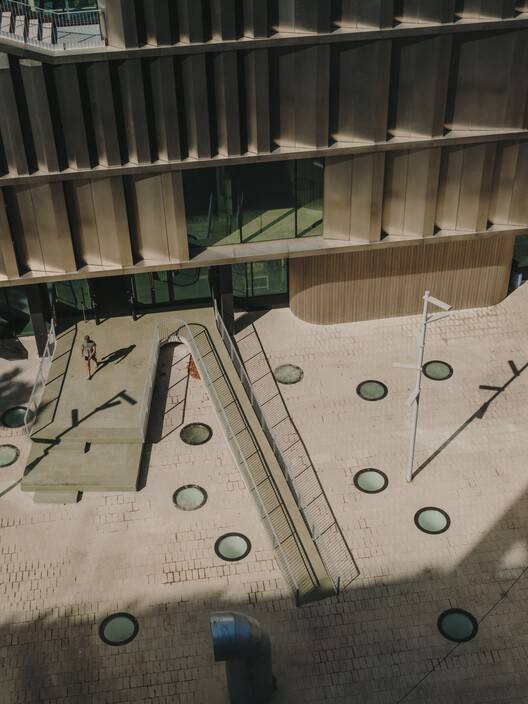

To achieve this, the ground floor serves as a permeable space, set back from the building's perimeter to enhance the public area, featuring glass façades that promote transparency and visual continuity. Access is provided via a bridge that crosses through the building, linking the street to the interior plaza. This unfolds like a seating space, with steps and an access ramp, thereby blurring the boundaries of the ground floor and integrating it into the urban space. The plaza becomes a community space for both students and local residents.

Section 02

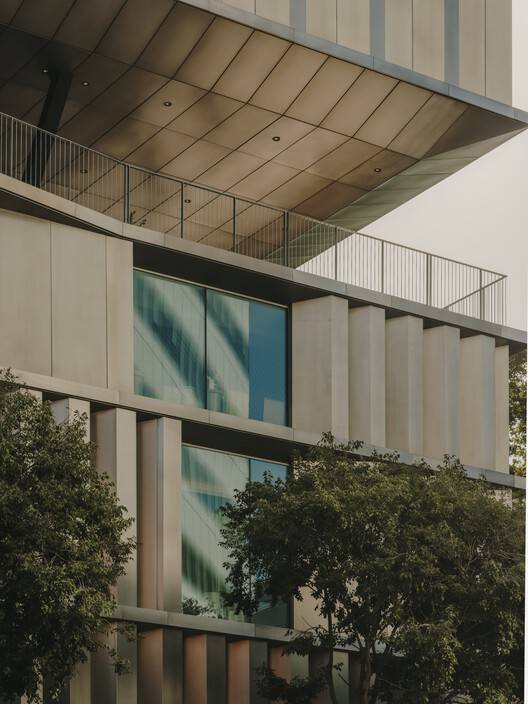

在地下，学生们展开了一段社交之旅，通过穿过四层高入口门厅的金属楼梯将一楼和前两层连接起来。在第三层和第五层之间，流通继续沿着凹进的立面向外延伸，环绕图书馆，并与位于建筑中心（四楼）的校园“凸起广场”相连。这个空间面向大海，利用微风，同时借助保护性悬垂物遮挡阳光直射。

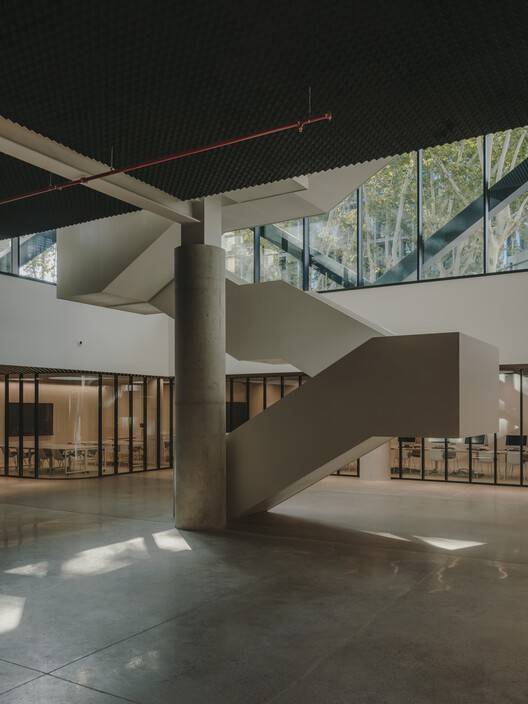

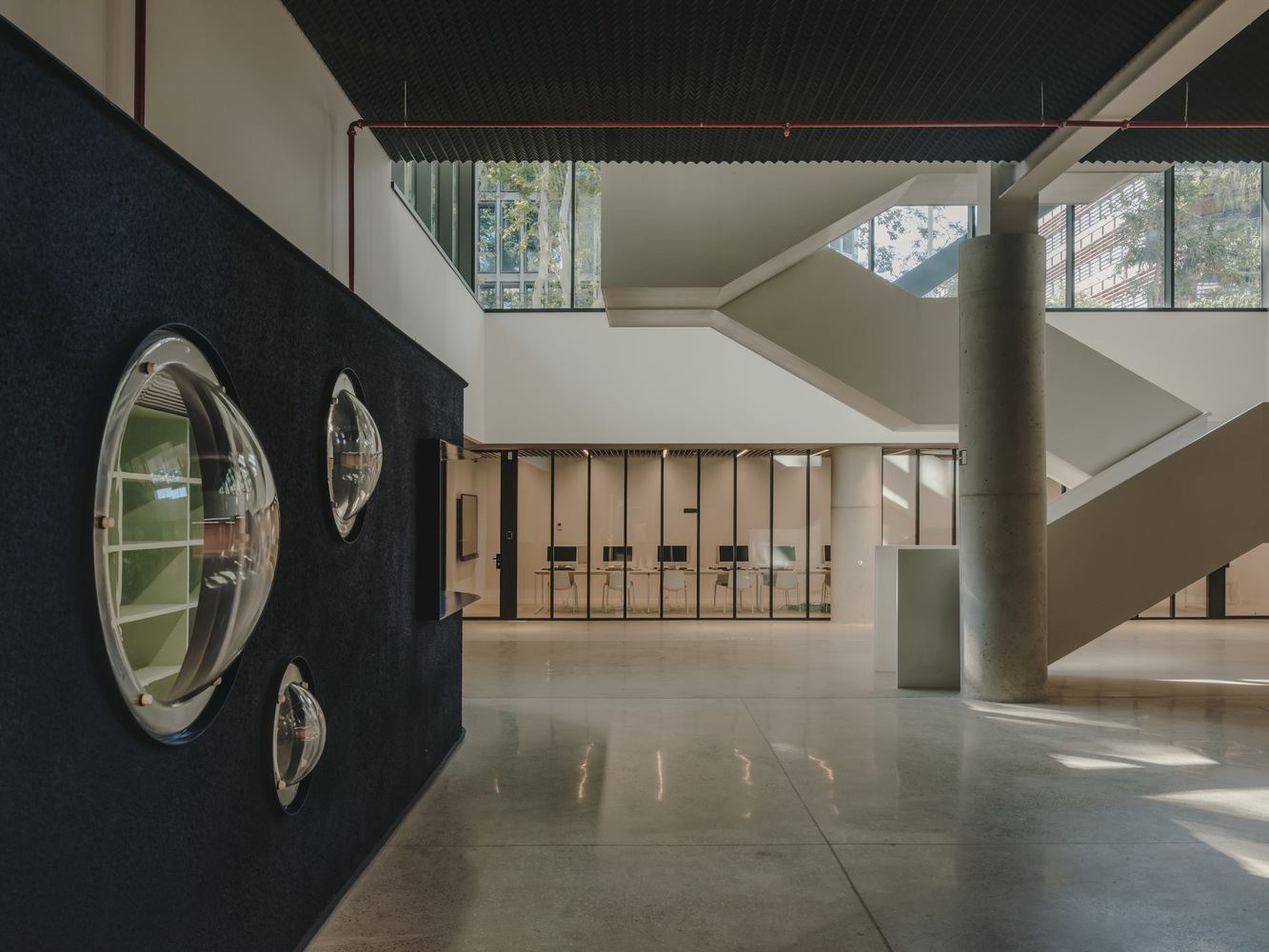

Below ground, a social journey for students unfolds, linking the ground floor and the first two levels through a metal staircase that crosses a quadruple-height entrance foyer.Between the third and fifth floors, circulation continues externally along the recessed façade, encircling the library and linking to the "raised plaza" of the campus, located at the heart of the building (fourth floor). This space faces the sea, taking advantage of the breeze while sheltering from direct sunlight thanks to a protective overhang.
