Big Pen Building Ensamble / LOVE architecture and urbanism

独特的城市开发项目：Big Pen Building Ensamble 项目位于维也纳 Penzing，前 Siemensgründe 的旧址上。这里一方面有着公园般的景观和安静环境，同时又能欣赏到维也纳和美泉宫的美景。项目由四栋建筑组成，每栋建筑都根据位置质量和营销理念进行装修，形成了既独立又统一的单元。花园框架结构的建筑有着生动的立面，南入口建筑让人想起意大利历史城镇，创造出热闹的街道空间。

创新的设计与功能结合：ZickZack 建筑的锯齿形阳台面板和可移动屏幕元素，改变了建筑外观，同时提供隐私和眩光保护，还创造出亲密的内部空间。户外空间无障碍概念将现场及附近的焦点通过路径网络连接，成为邻里互动的活动中心。克服了不同楼层之间的差异，让建筑工地上的所有目的地都能通过不同路径到达，实现了创新设计与实用功能的完美结合。

建筑师提供的文字描述城市开发区Pen 76位于维也纳Penzing，位于公司前总部Siemensgründe的旧址上。一方面，前Siemensgründe以其绿色的“岛屿位置”为特征。在大型周边街区结构的掩护下，这是一个安静环境中的公园般景观。同时，楼上可以欣赏到维也纳和美泉宫的美景。梯田与相邻的绿地和全封闭的周边街区开发使开发一个噪音防护公园成为可能；所有居民的花园区。这种品质以一种非常独特的方式反映在每栋独立的建筑中。根据维也纳市目前的发展计划，将在现场放置四栋建筑。每栋建筑都将根据其位置的质量和潜在的营销理念进行装修。其结果是，一系列独立的建筑形成了一个独立的单元。
Text description provided by the architects. The urban development area Pen 76 is located in Vienna Penzing on the site of the former Siemensgründe – the company's former headquarters. On the one hand, the former Siemensgründe is characterized by its green "insular location." Shielded by a large-scale perimeter block structure, this is a park-like landscape in a quiet setting. At the same time, the upper floors have a fantastic view far over Vienna and of Schönbrunn Palace. The terraced plot with the adjacent green spaces and the all-enclosing perimeter block development enables the development of a noise-protected park & garden area for all residents. This quality is reflected in each separate building in a very individual way. Four buildings will be placed on the site according to the current development plan of the City of Vienna. Each building will be worked through according to the quality of its location on the one hand and the underlying marketing concept on the other. The result is an ensemble of separate buildings that nevertheless form a self-contained unit.

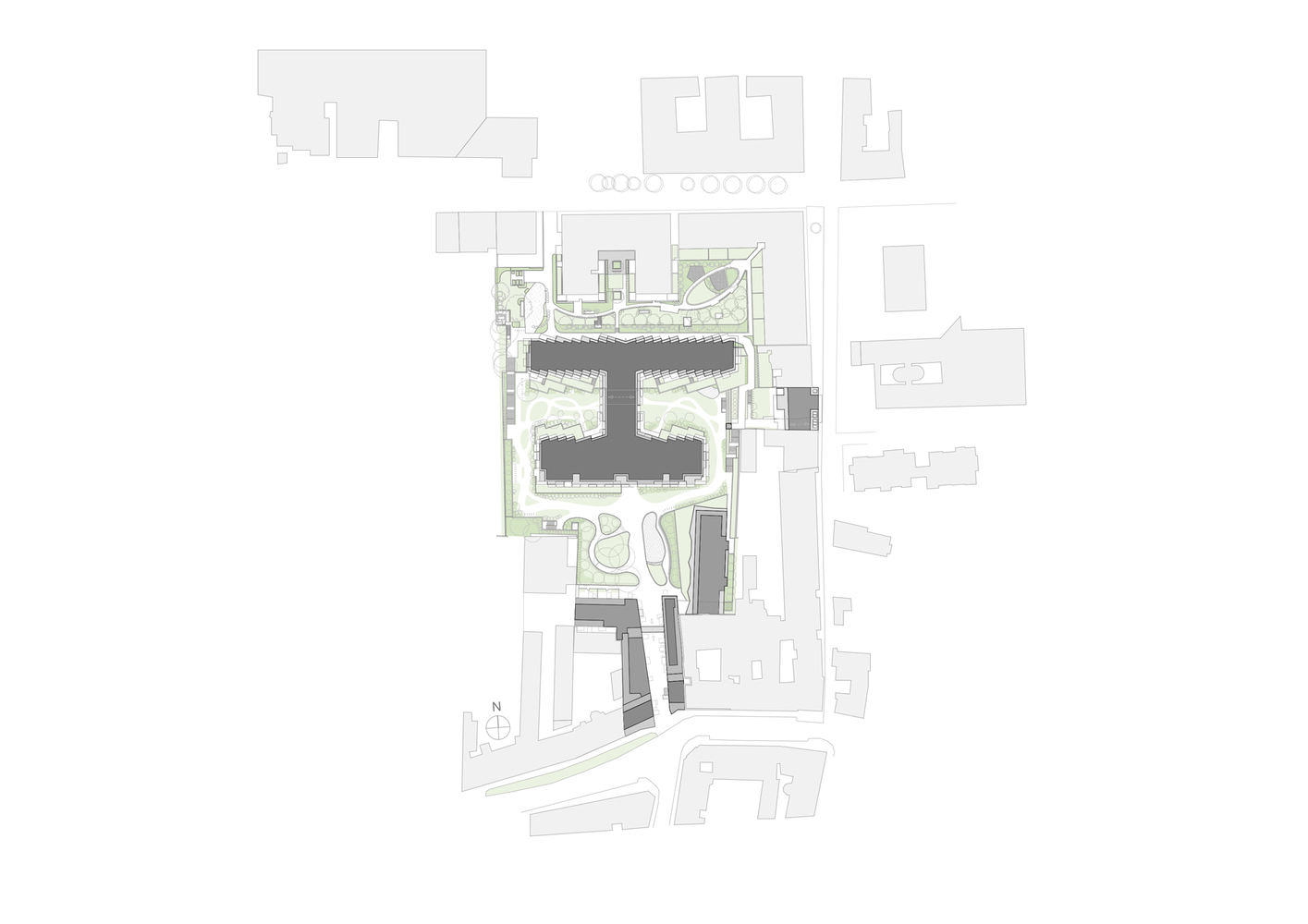

Site Plan

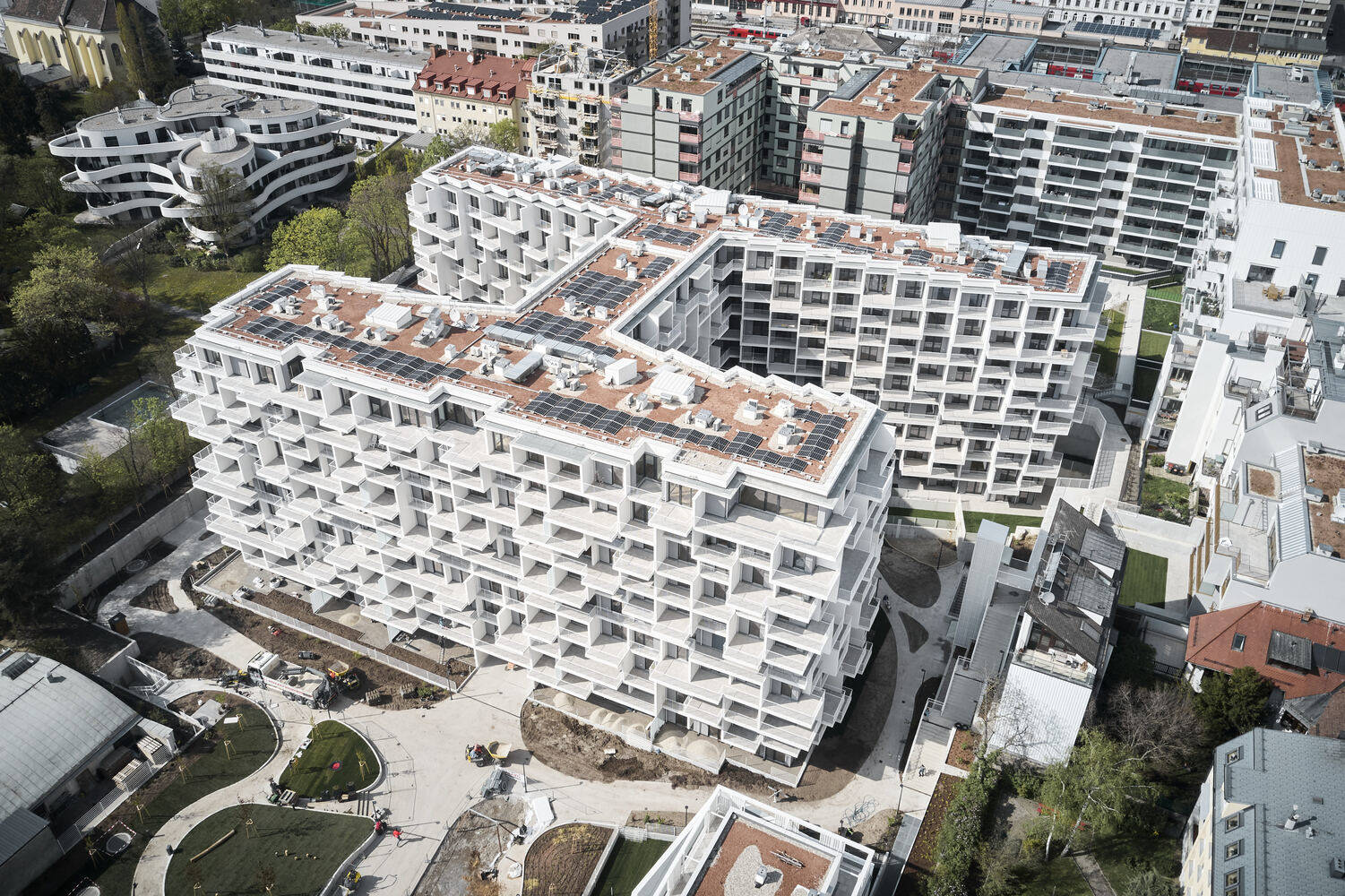

花园框架-位于中心的H形结构的特点是其生动的立面结构，在结构的每个房间前面都有不同形式的凉廊框架和阳台投影。公园的南入口建筑让人想起意大利历史城镇：五颜六色的悬挑百叶窗和阳台似乎相互靠近，创造了一个密集、热闹、以交流为导向的街道空间。

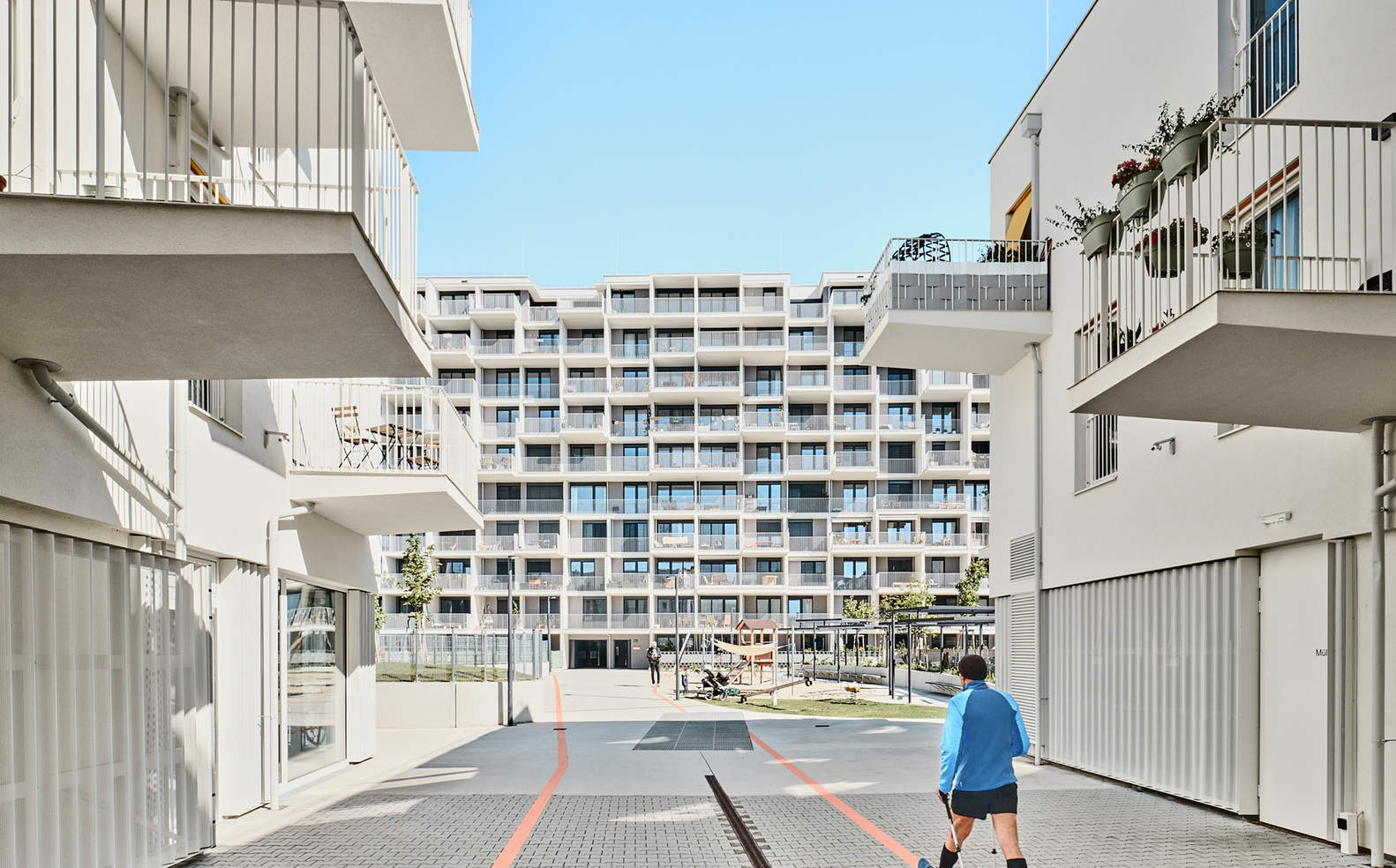

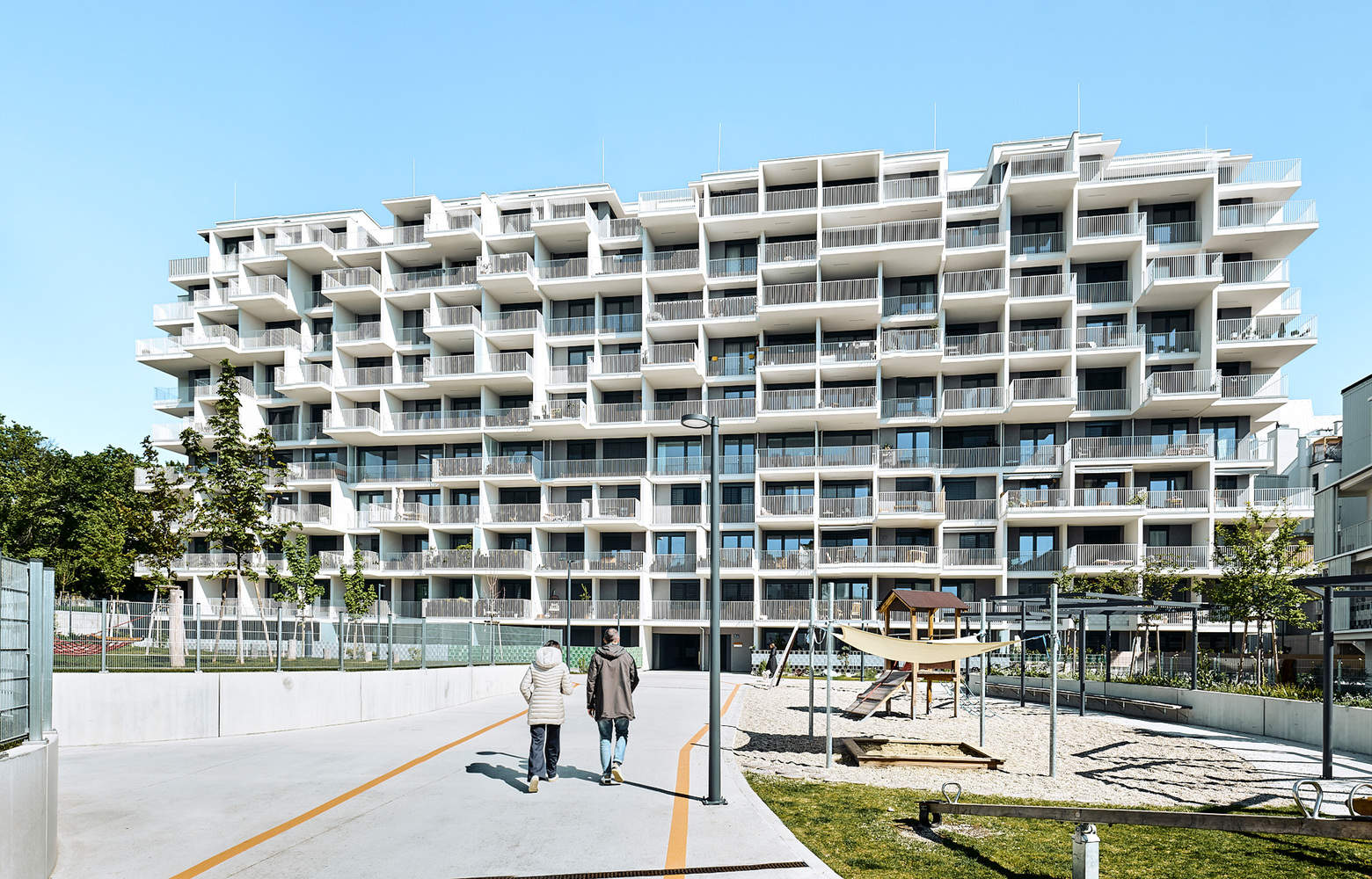

Garden Frames - The centrally located H-shaped structure is characterized by its lively facade structure of differently formulated loggia frames and balcony projections in front of each room of the structure. The southern entrance building to the park is reminiscent of historic Italian towns: colorful cantilevered blinds and balconies that seem to approach each other create a dense, lively, and communication-oriented street space.

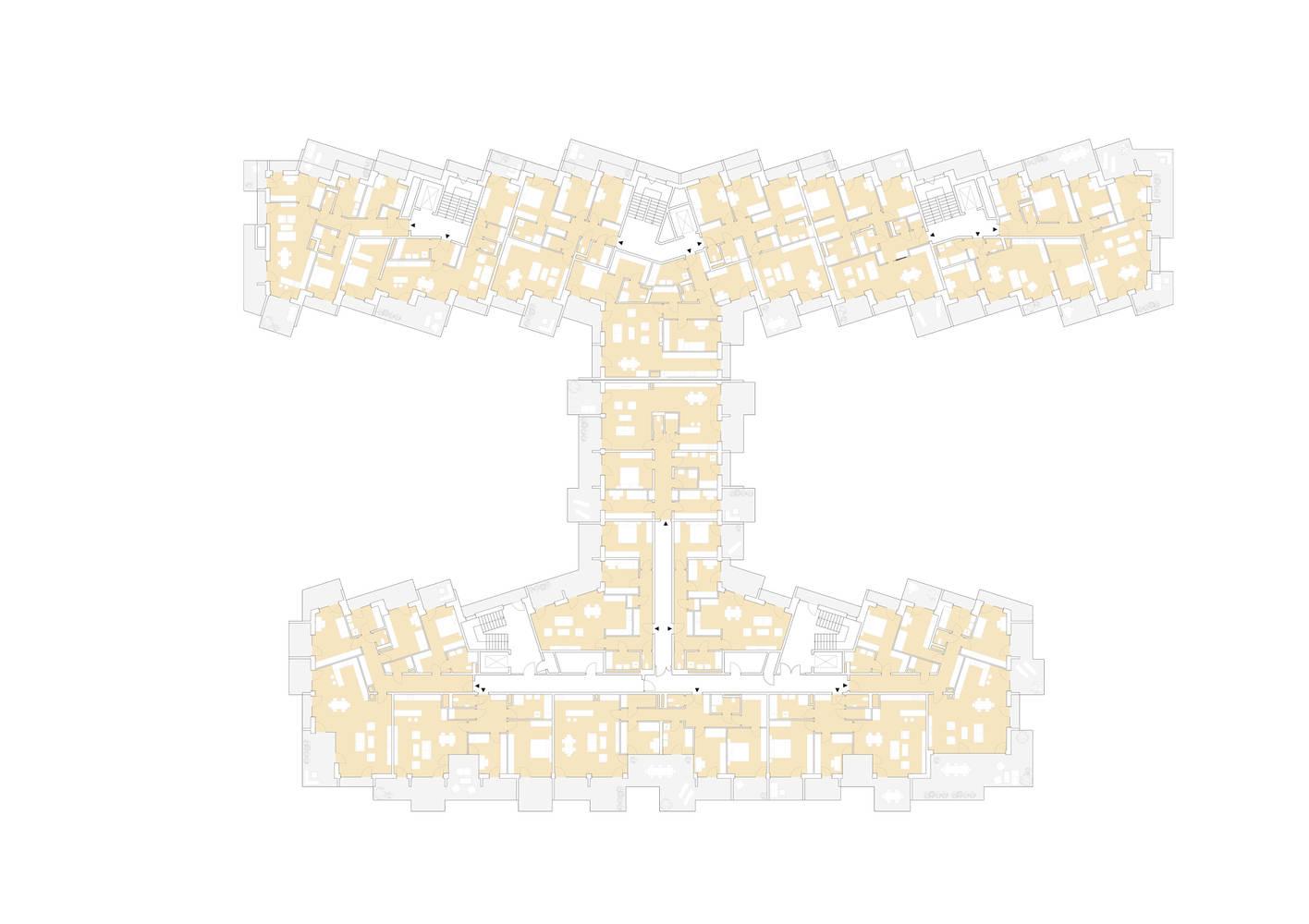

Plan 1

ZickZack-《说你好！》的直接邻居！全方位的锯齿形阳台面板和可移动的大型屏幕元素，根据屏幕的位置改变建筑的外观。屏幕不仅可以作为可变的隐私和眩光保护，还可以让公寓的内部向外扩展，在阳台上创造出一个亲密的、帐篷般的内部空间。严重的是，西入口建筑分为两层，大部分是贯穿楼层的公寓，其中一些也有几层。它的立面以宽敞的凉廊为特征，可以封闭起来形成温室。

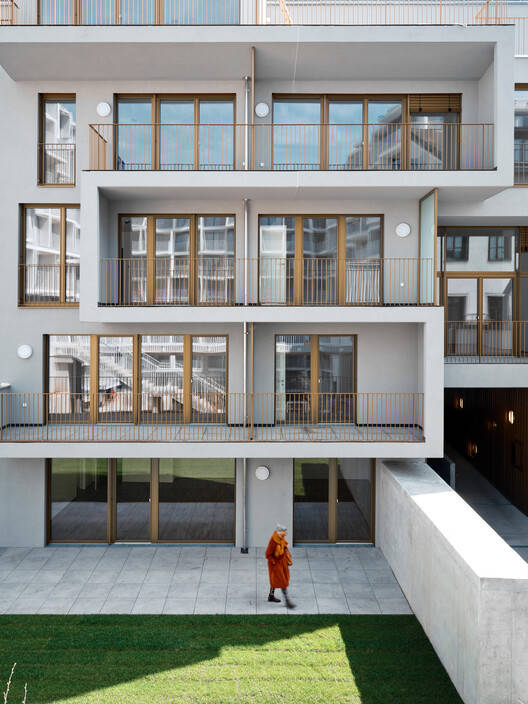

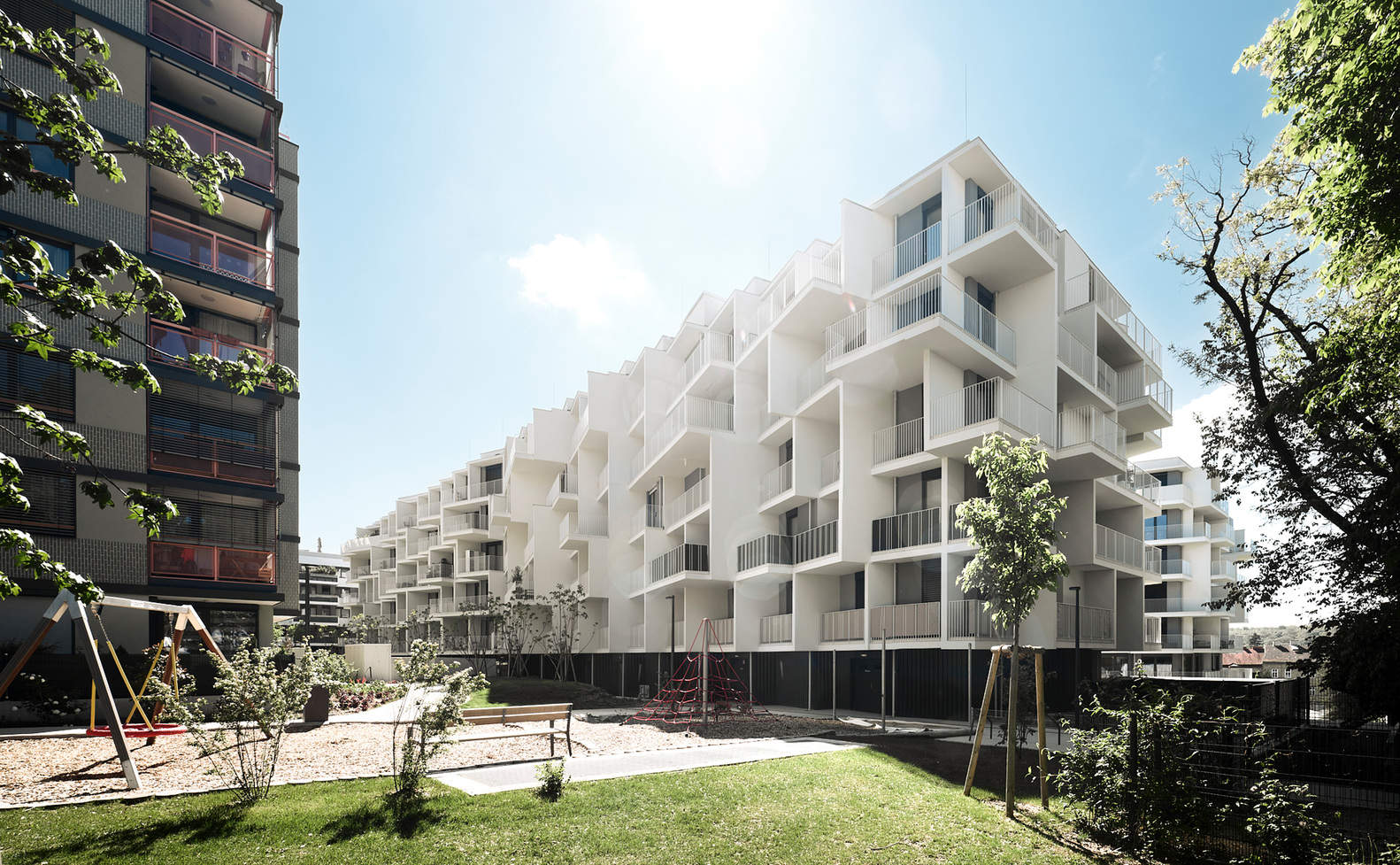

ZickZack - The direct neighbor of Say Hello! with all-around, zigzag-shaped balcony panels and movable, large-scale screen elements that alter the external appearance of the building depending on the position of the screens. The screens not only serve as variable privacy and glare protection but also allow the interior of the apartment to grow outward – creating an intimate, tent-like interior space on the balcony. Serious - The western entrance building is organized on split levels with mostly floor-through apartments, some of which also have several levels. Its facades are characterized by generous loggias that can be closed off to form conservatories.

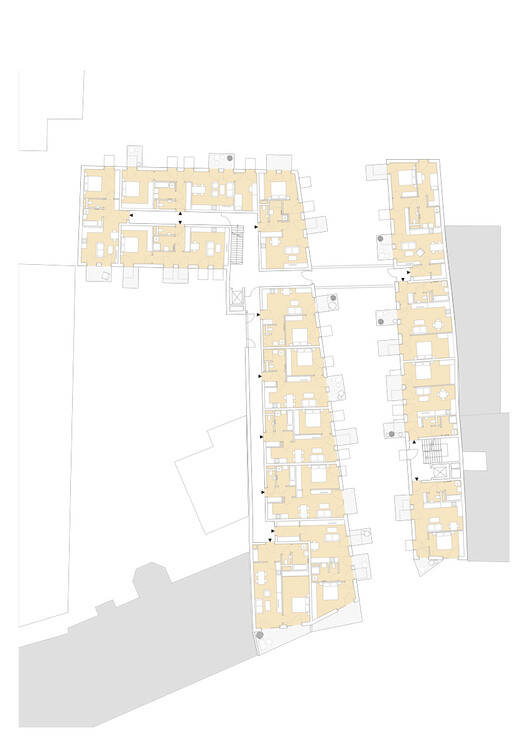

Plan 2

户外空间无障碍概念——现场（拱廊、游乐场、城市园艺等）以及附近（当地供应商、地铁、学校）的各个焦点通过路径网络连接起来。这些焦点不仅是节点，也是邻里互动的活动中心。北部和南部楼层之间的差异在两点上得到了克服：在东部，通过一个带电梯的楼梯，沿着室外空间设计的露台。西侧的通道仍需设计（邻里问题）。重要的是，建筑工地上的所有目的地都可以通过不同的路径到达。

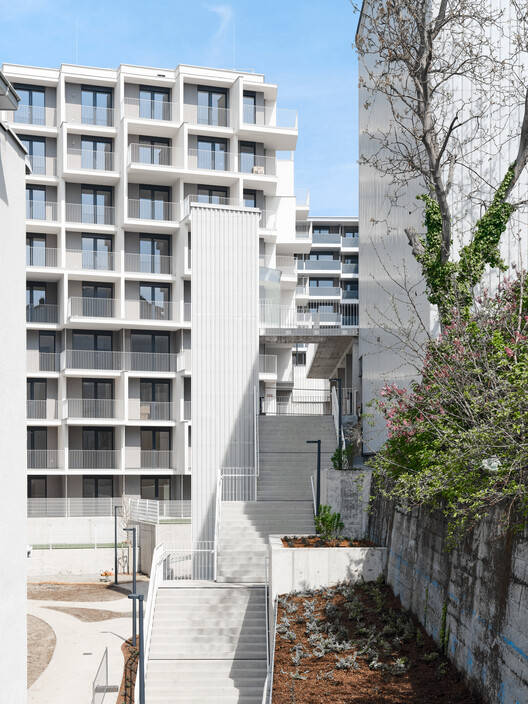

Outdoor space accessibility concept - Various focal points on the site (arcade, playgrounds, urban gardening, etc.) as well as in the immediate vicinity (local suppliers, subway, school) are connected by a network of paths. These focal points are not only nodes but also living centers of activity for neighborly interaction. The difference between the northern and southern levels is overcome at two points: in the east, via a staircase with a lift that follows the terraces of the outdoor space design. The passage on the west side still has to be designed (neighborhood problems). It is important that all destinations on the building site can always be reached via different paths.
