Wall House / EZ Studio

创新的空间设计：墙屋的设计独具匠心，以一堵中央墙为核心，将空间分为公共和私人区域，打破了传统墙的封闭概念。墙成为空间的连接点和组织者，墙层之间的过渡区创造了独特的阈值空间，既不局限于内部也不局限于外部，这种设计带来了全新的空间体验，激发好奇心和社交互动，让建筑充满活力。

传统与现代的融合：该项目在美学上呼应了波斯传统建筑，拱形天花板和融入的庭院提供自然光和通风，同时营造出户外聚会和私人沉思区域。从外部到内部，涂有泥土色调的墙壁向传统致敬，与周围环境和谐相融，自然光与家具色调共同营造出沉默内省的氛围，实现了传统与现代的完美融合。

这座房子坐落在伊斯法罕东北约24公里处的一块土地上（1000平方米），南临Zyandehrod河，被委托为面向河流的复式住宅，供一家四口居住。该项目位于Kaaj村的边缘地带，这是一个历史悠久的乡村环境，其中保留了伊尔汗王朝的一座清真寺和一座被毁的住宅堡垒的遗迹。
Nestled On a plot of land (1000 sqm) that lies about 24 kilometers to the northeast of Isfahan, and neighbored by Zyandehrood River to the south, the house was commissioned to be a duplex that faces the river for a family of four. The project is located in the peripheral realms of Kaaj village, a historic rural setting where remnants of a mosque and a ruined residential fortress from the Ilkhanid dynasty remained.

Wall House占地350平方米，布局动感流畅。该项目有3间主卧室、一间阳光房、一个起居区和气候庭院，其核心思想是一堵中央墙，将土地分为两个独立的区域：公共和私人。这房子是一堵墙，但超乎想象。连接的墙，而不是分离的墙。一个生活的编年史家，一个对高峰和低谷、爱、悲伤、欢乐和悲伤的见证人。童年的一个僻静角落，一块画布，让故事在时间中回荡。我体现了历史与现在的联系，与所生活的本质融为一体。
Encompassing 350sqm, the Wall House features a dynamic and fluid layout. With 3 master bedrooms, a sun room, a living area and climatic courtyards, the core idea of the project represents a central wall that divides the land into two separate zones: Public and private. The house is all about a wall, but beyond imagination. A wall of connection, not separation. A chronicler of lives, a witness to peaks and valleys, love, lament, joy, and sorrow. A secluded corner of childhood, a canvas for whispers of stories resonating through time. I embody the connection of history to the present, flowing with the essence of lives lived.

墙，模糊的空间-在这个项目中，墙超越了仅仅封闭和结构化的概念；它成为不同空间领域之间的连接点。同时，它不仅仅是剖面框上的厚度或背景，它还转变为一个空间组织者，重新定义了它在复杂的建筑关系网中的作用。
Wall, ambiguous space - In this project, the wall transcends concepts of mere enclosing and structuring; it becomes a joint connector between diverse spatial realms. Meanwhile, it is not just a thickness or background on the section box, it transforms into a spatial organizer instead, redefining its role within a complex web of architectural relationships.

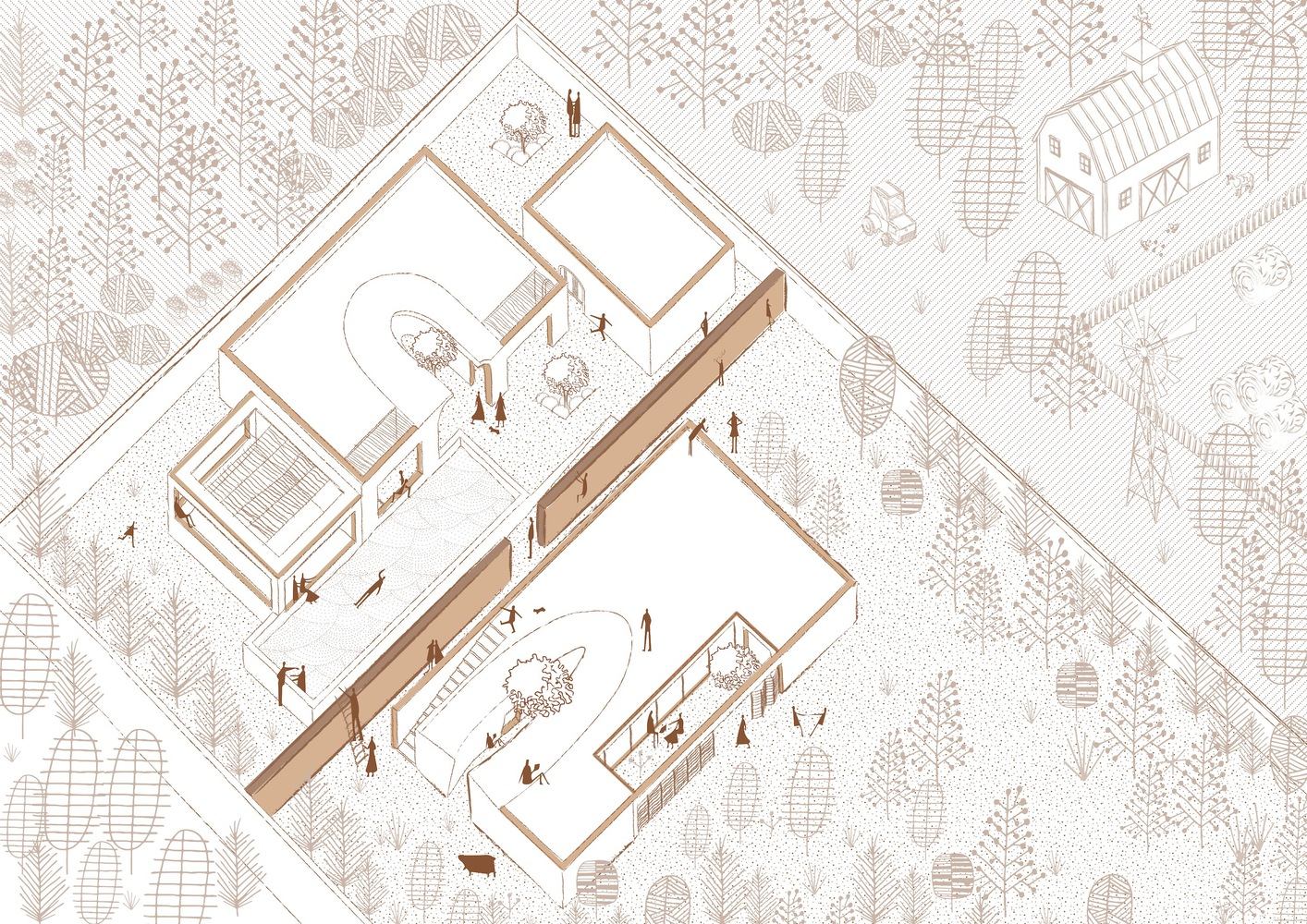

Site colot

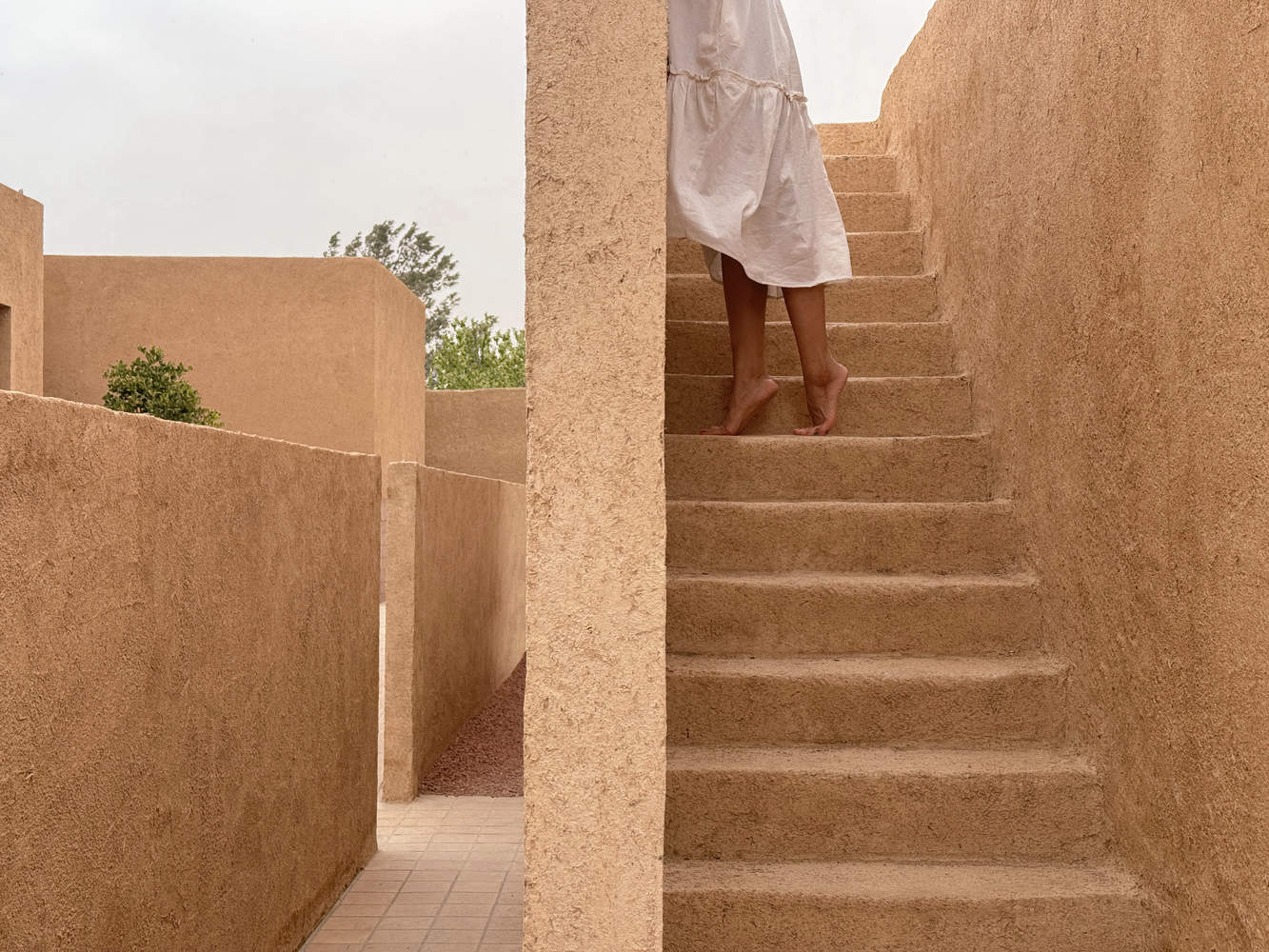

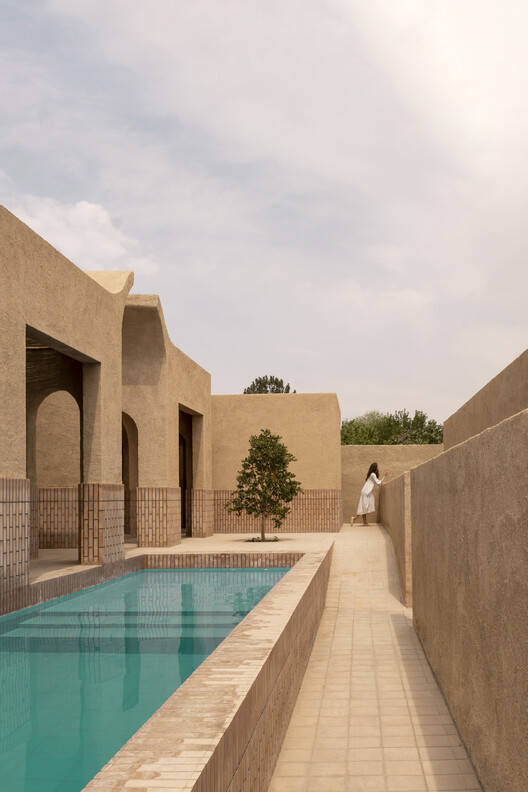

首先，建立一个核心线性墙，划定空间，然后是平行于核心线的墙层。在这些层中，空间被激活。每一层都代表一个独立的空间，为了从一个空间过渡到另一个空间，一个人穿过墙上的缝隙，瞬间成为它的一部分（阈值）。这个阈值不仅仅是与不同空间相关的时刻；它本身就是各种空间条件的扩展。它既不在这里也不在那里；住宅的内部空间并不局限于宜居区域，而是存在于两个垂直墙面之间的间隙中，而外部空间则定义了住宅的内部。
First of all, a core linear wall is established, delineating spaces, followed by layers of wall parallel to the core line. Within these layers, space becomes activated. Each layer represents an independent space, and to transition from one space to another, one passes through the gap in the wall, becoming momentarily part of it (threshold). This threshold is not merely a moment in connection to different spaces; it is itself an expansion of various spatial conditions. It is neither here nor there; The interior spaces of the home are not confined to livable areas but exist within the interstice between two vertical wall surfaces (in-between), while spaces outside define the interior of the home.

墙层之间的过渡区允许阈值延伸到所有空间（极限性），这意味着中心墙尽管位于两侧区域之间的中心位置，但不是一个独立的实体；它与其他空间动态交互。极限可以将平凡的转变转变为难忘的旅程，唤起好奇心和惊奇感，可以在喧嚣中提供暂停和反思的时刻，并成为社交互动的中心，促进社区和联系。
The transitional zone among the wall layers allows the threshold to extend into all spaces (liminality), meaning that the central wall, despite its central position between the zones on either side, is not an independent entity; it interacts dynamically with other spaces. The liminality can transform mundane transitions into memorable journeys, evoking curiosity and wonder, can offer moments of pause and introspections amidst the hustle and bustle, and become hubs of social interaction, fostering community and connection.

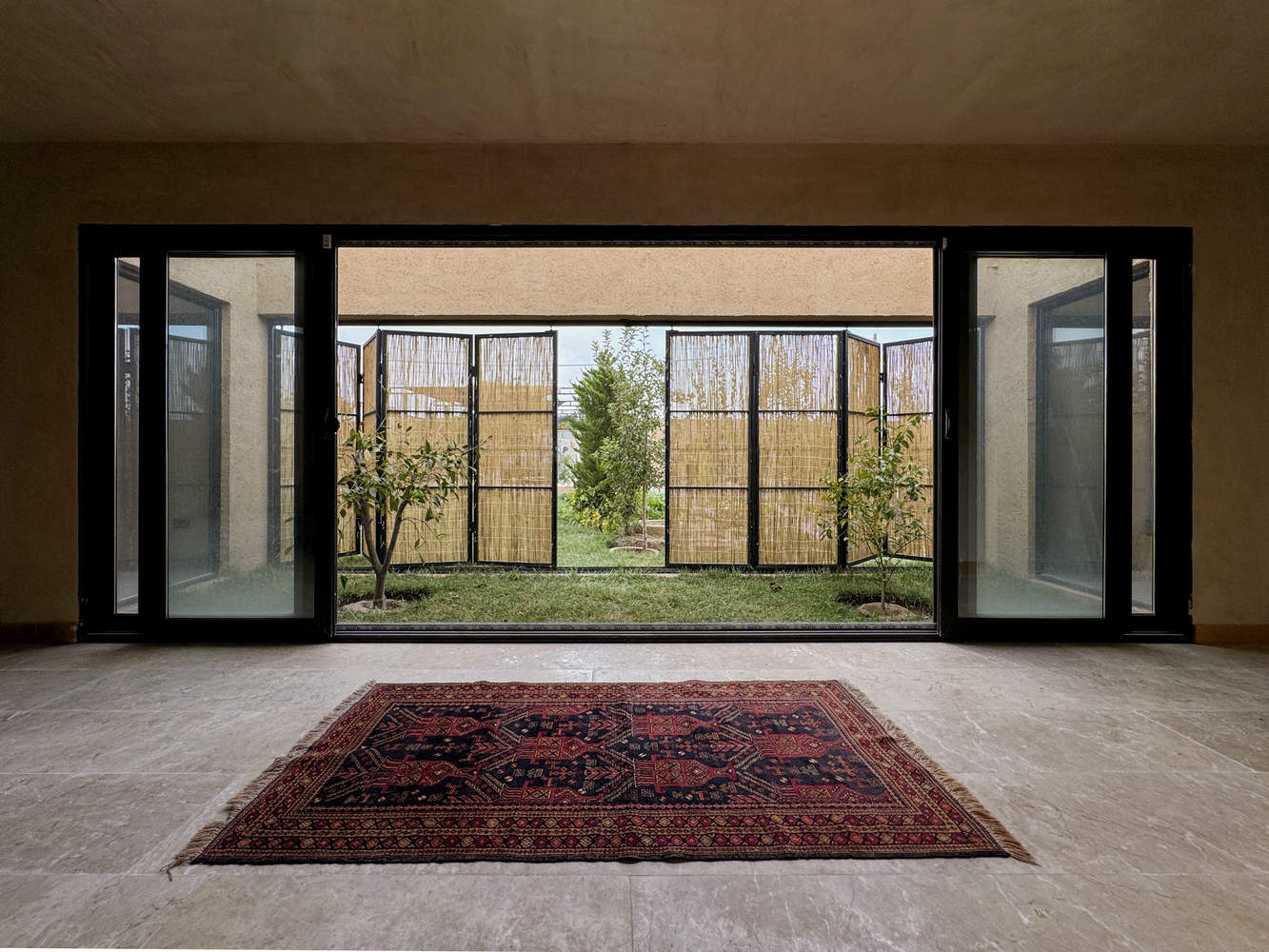

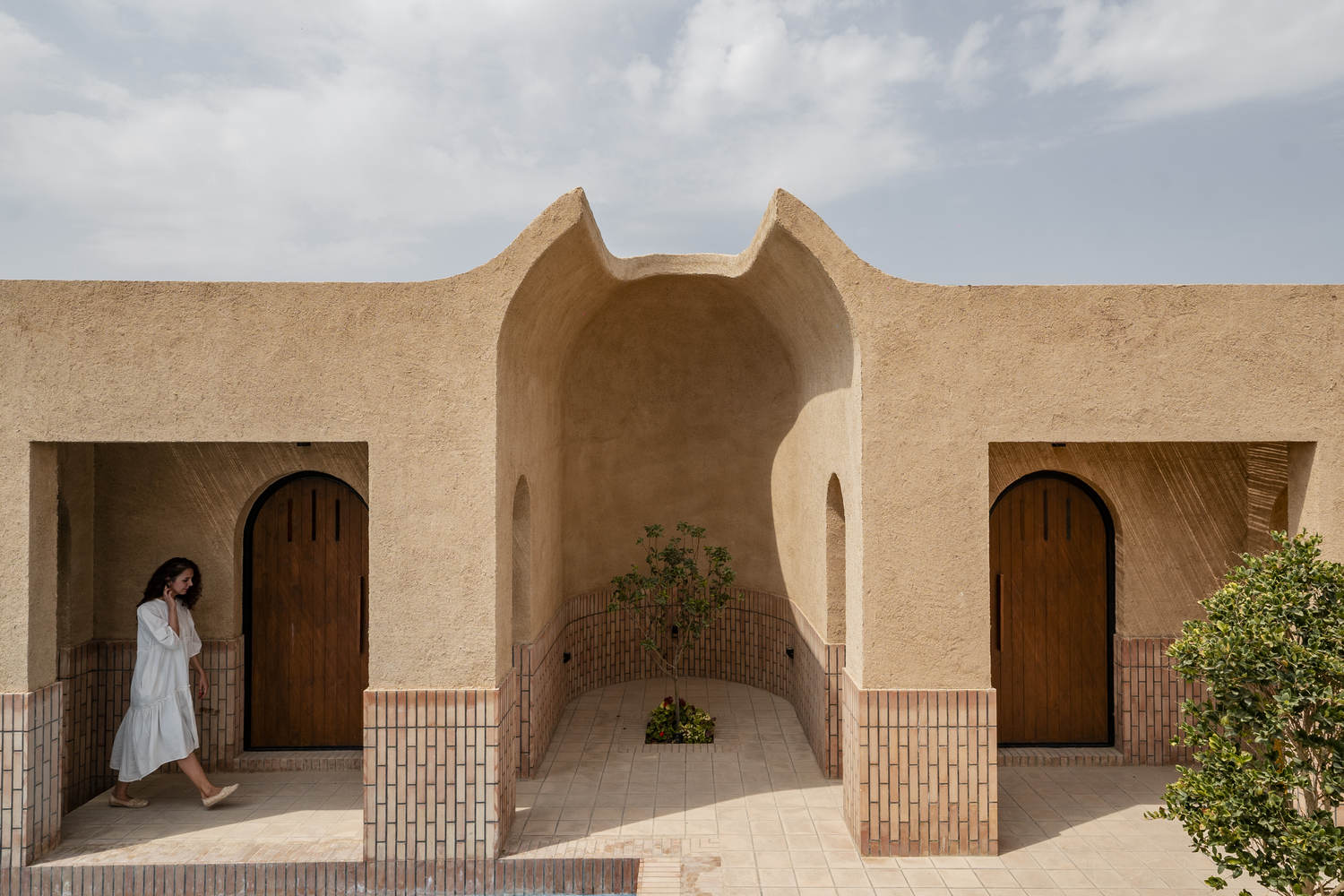

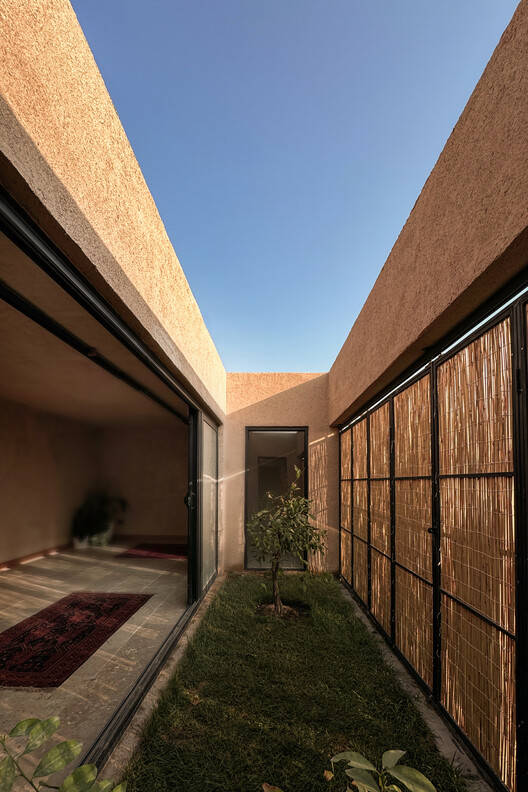

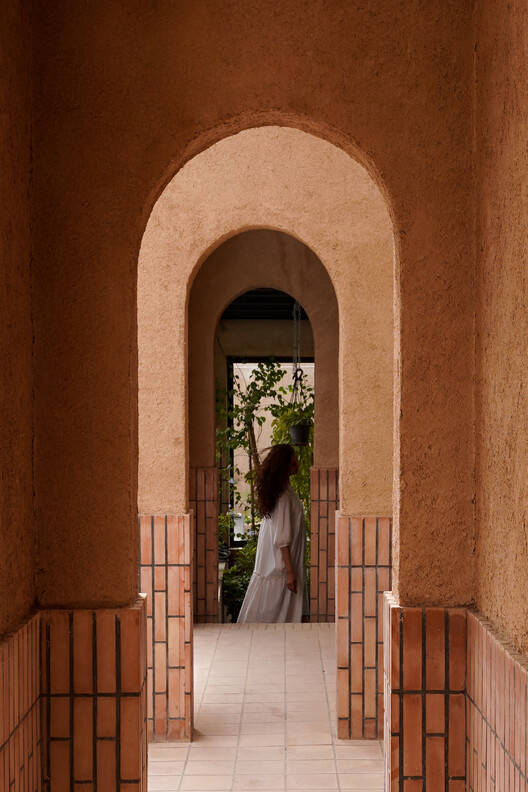

从美学上讲，拱形天花板与波斯著名的传统建筑和庭院的曲线几何形状相呼应，庭院是另一种波斯本土传统，被融入其中，提供自然光和通风，同时创造了各种户外聚会空间和私人沉思区域。
Aesthetically, arched ceilings, echoes the curvilinear geometries of Persian's acclaimed traditional architecture and courtyards, another Persian vernacular tradition, are incorporated within to provide natural light and ventilation while creating a variety of outdoor gathering spaces and areas for private contemplation.

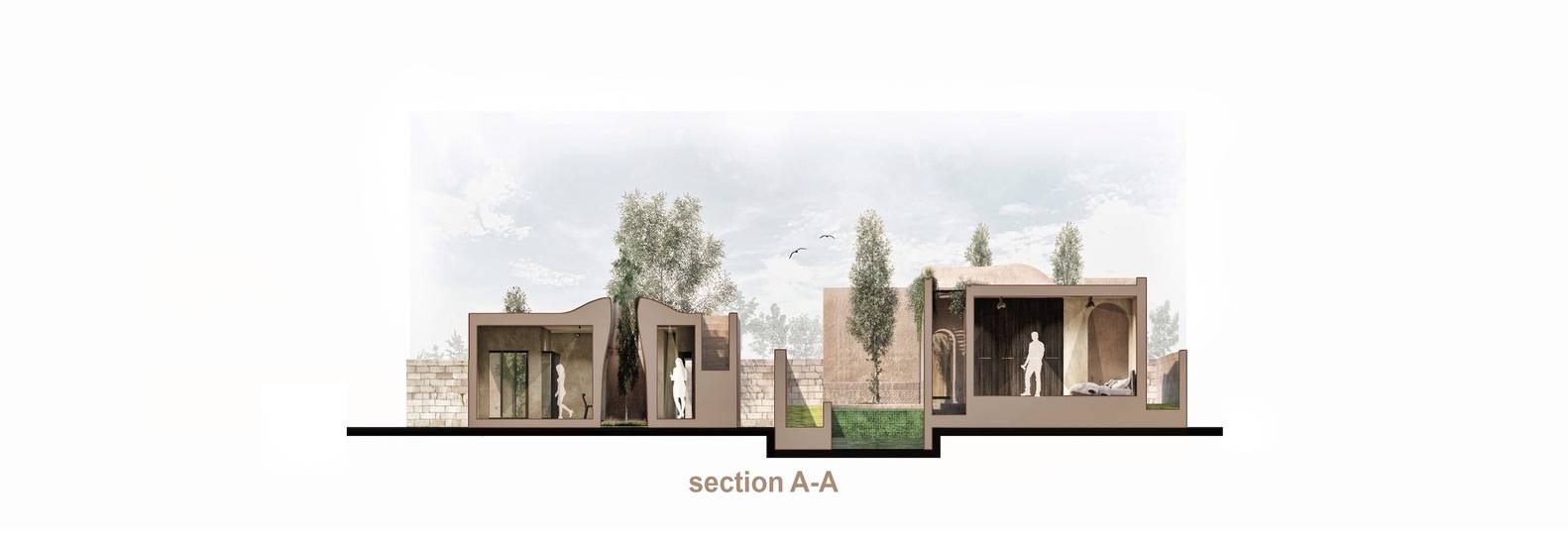

Section A-A

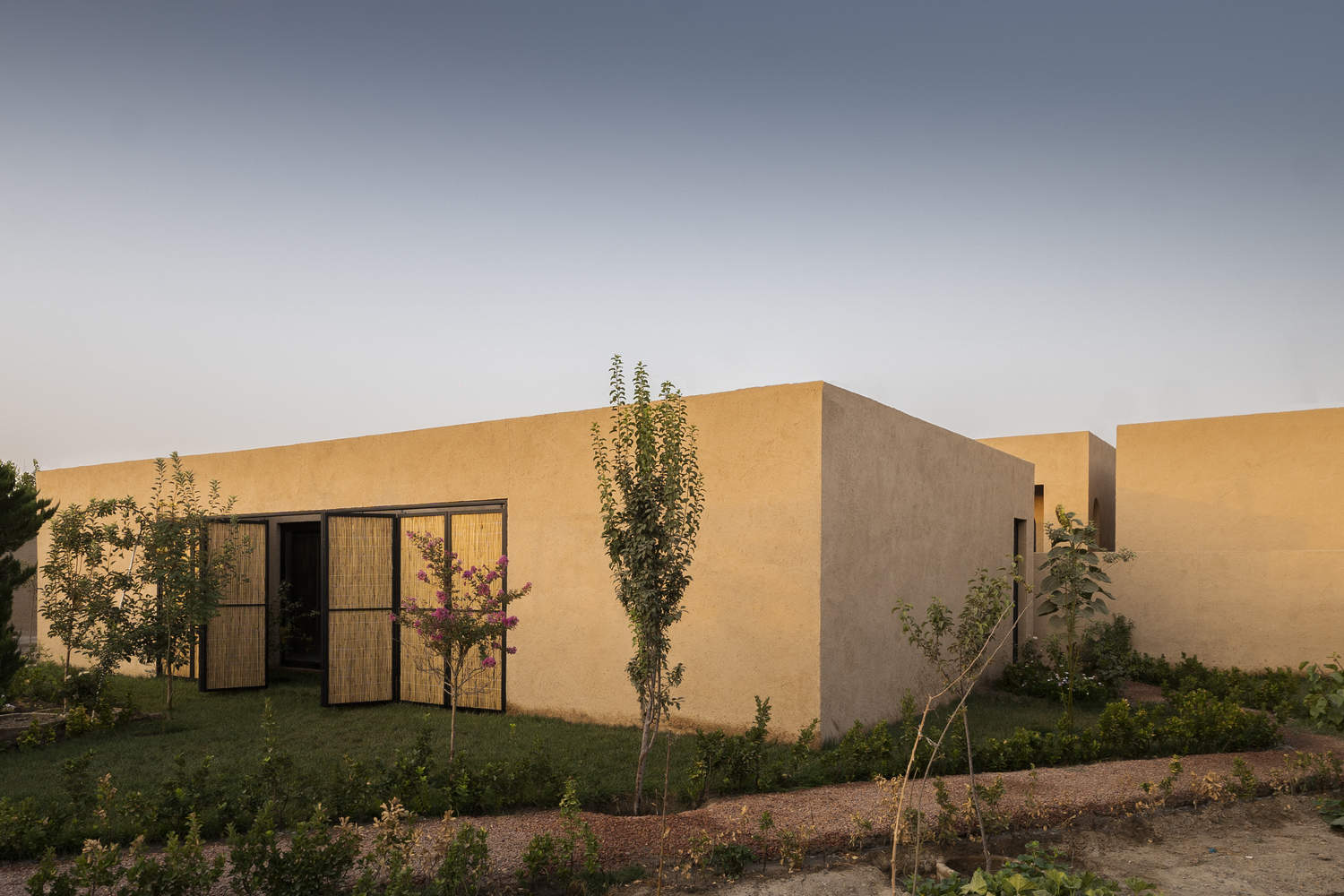

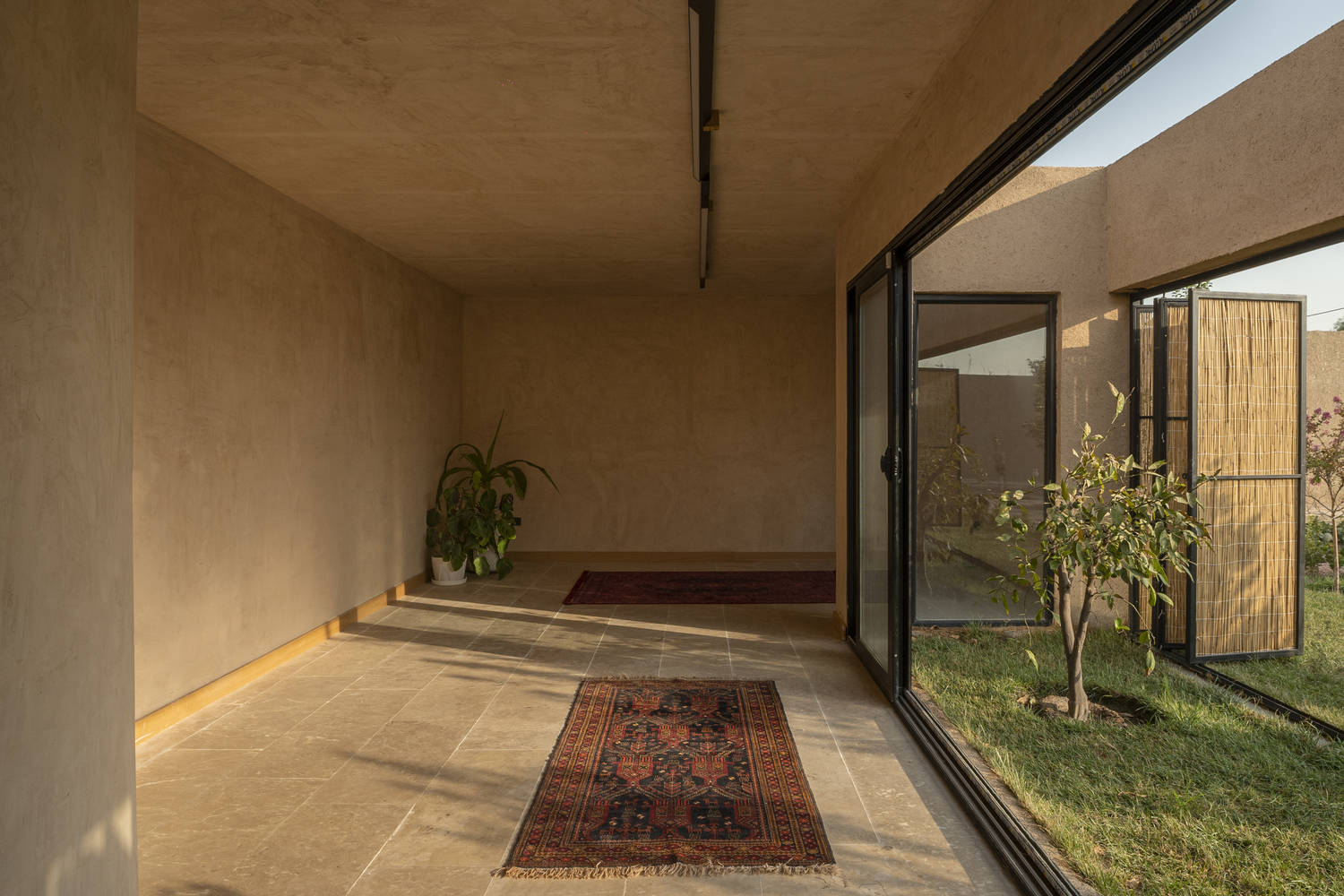

从外部和内部来看，这座房子都有一个整体的特点，向传统的波斯建筑致敬，通过使用涂有泥土色调的墙壁来庆祝几何形状、物质性和颜色。这种建筑系统提供了一种独特的颜色和纹理调色板，在房子和周围环境之间创造了和谐。走进室内，自然光渗入家具的温暖色调，营造出一种唤起沉默和内省的氛围。
Externally and internally, the house has a monolithic character that pays homage to traditional Persian architecture, celebrating geometry, materiality, and color with the use of walls tinted with hues of earth color. This construction system provides a unique color and textural palette, creating harmony between the house and its surroundings. Stepping inside, the natural light that seeps in the warm tones of the furniture, creating an ambiance that evokes silence and introspection.
