Casa Gana / TOUCH Architect

项目优势 Casa Gana别墅项目位于考艾郊区旅游胜地，环境优美，交通便利。建筑设计充分利用了场地优势，别墅位于场地尽头，最大化风景和隐私。通过巧妙的空间布局，如狭窄开口引导进入主入口庭院，以及开放式生活空间与室外露台的无缝连接，满足了度假和婚礼等多种功能需求。

材料运用 考虑到建筑的多种用途和当地特点，采用了当地材料。外墙应用粗砂压制石膏纹理技术，颜色中性，既适合婚礼主题又可作投影屏幕。同时使用天然木材增强放松感，室内黑色装饰元素增添奢华，钢化玻璃窗促进室内外空间连接。

设计创新 在施工方面，因场地标高低于周围环境，通过清除地下石头避免打桩，并将石头用作挡土墙，体现了因地制宜的设计思路。此外，屋顶露台与室内楼梯分开，有独立的室外楼梯，既作为私人度假和婚礼舞台，又作为婚礼宾客欢迎路线，设计独特且实用。

该地点位于著名的郊区旅游胜地考艾的宁静环境中，距离曼谷仅三小时车程，占地600平方米。它被大自然环绕，享有高耸山丘的壮丽景色，是度假别墅逃离城市混乱的理想场所，也是亲密庆祝活动的婚礼场所，在美学氛围中提供隐私。由于施工现场的标高低于周围环境，必须清除地下石头，以避免打桩，并将石头重新用作高架施工现场的挡土墙。

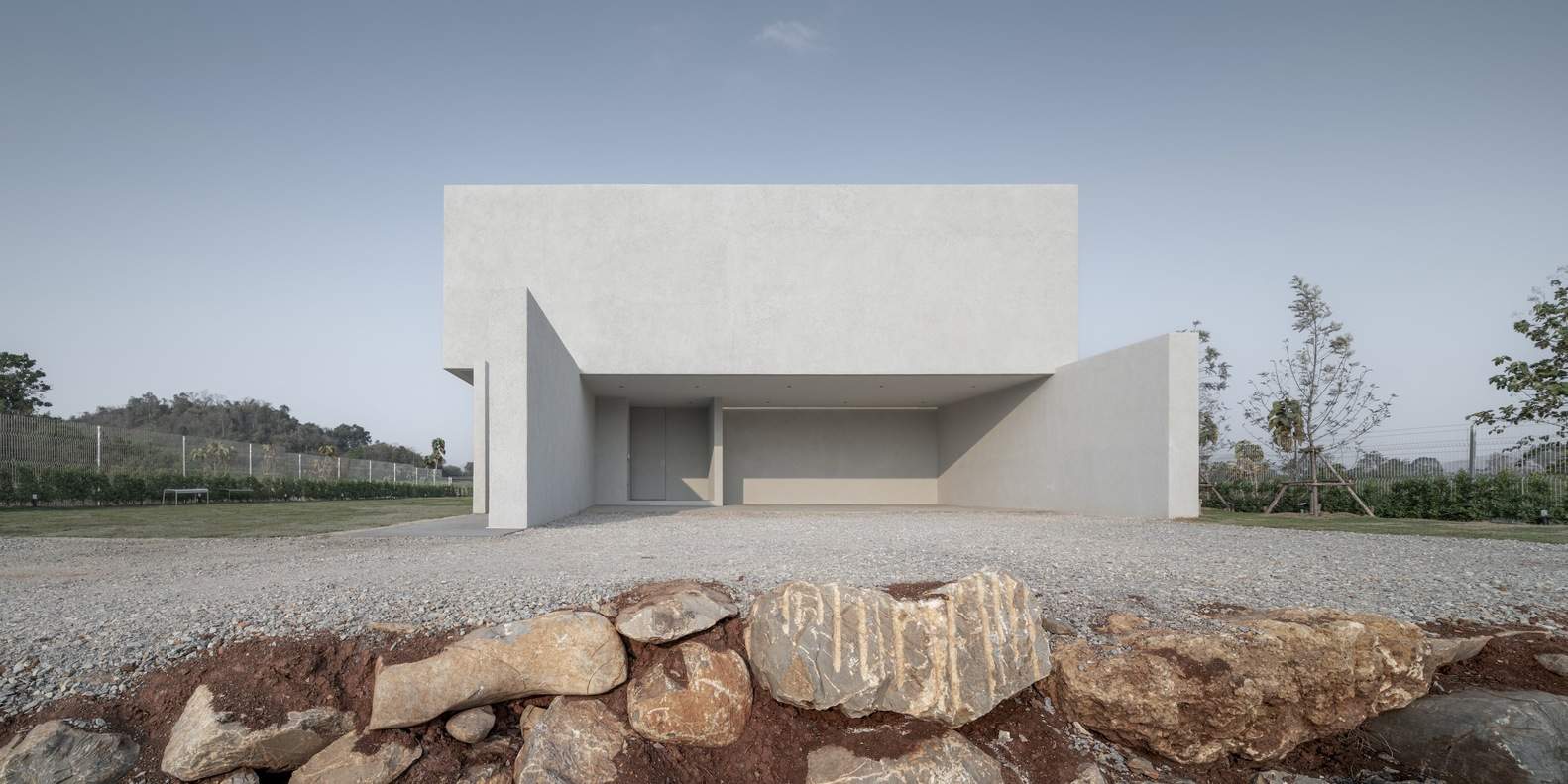

Located in the serene surroundings of Khao Yai, a renowned suburban tourist destination just a three-hour drive from Bangkok, this site spans six hundred square wah. Surrounded by nature and offering stunning views of towering hills, it serves as an ideal location for a vacation villa to escape the chaos of the city and a wedding venue for intimate celebrations, providing privacy amidst an aesthetic ambiance. Due to the lower elevation of the construction site compared to its surroundings, subterranean stones must be removed to avoid the need for pile driving, with the stones repurposed as a retaining wall for the elevated construction site.

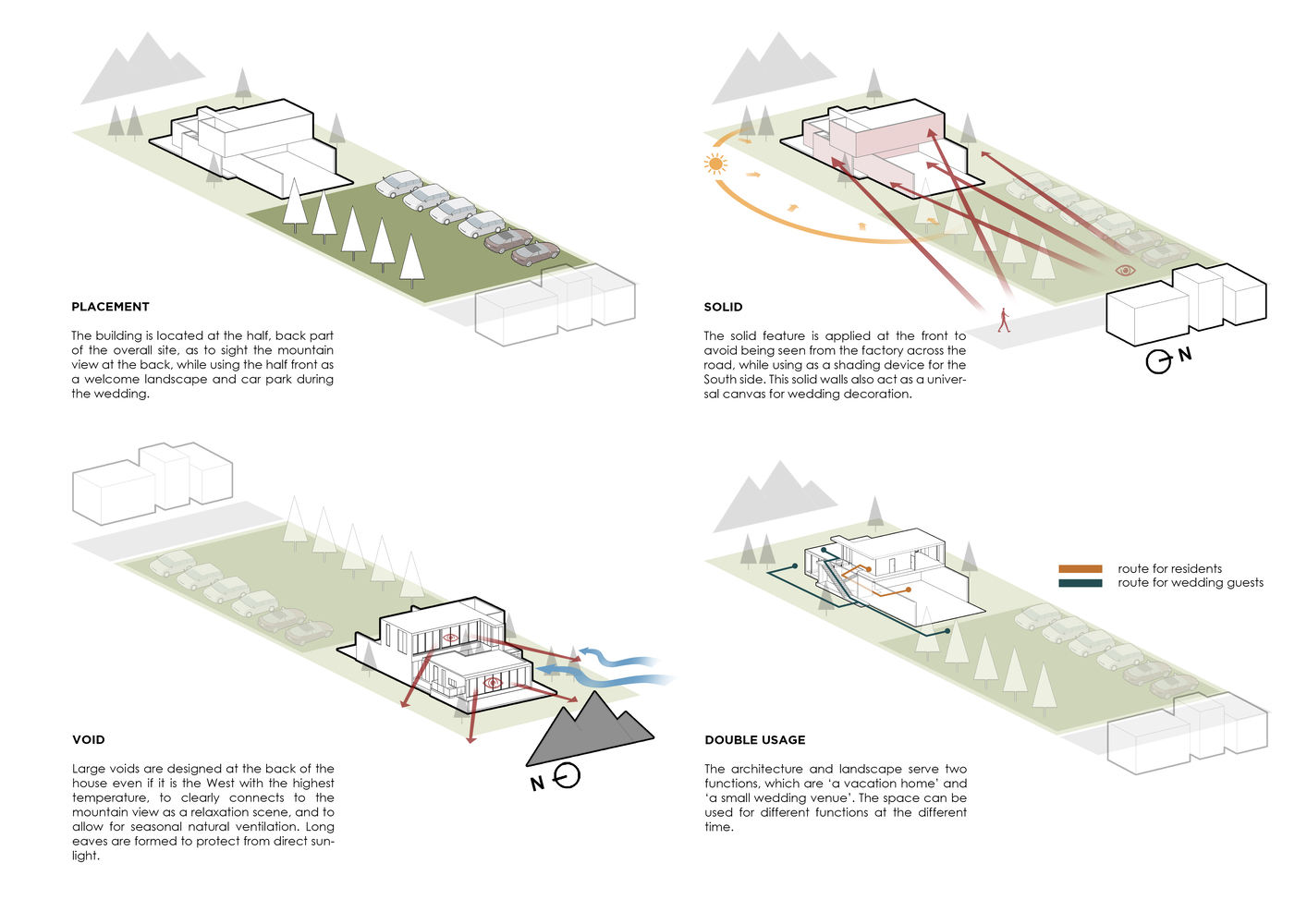

Process Diagram

别墅位于场地的尽头，以最大限度地发挥其风景如画和隐私的优势，其坚固的立面可以遮挡道路上的不雅景色。游客被引导穿过一个狭窄的开口，进入一个宁静的主入口庭院，在轻松的室内空间中创造出一个诱人的过渡。这座两层楼的别墅具有度假胜地和婚礼等活动场所的双重用途。一楼的开放式生活空间通过西侧的落地窗享有全景，与纵向室外露台无缝连接，为各种活动提供了灵活的选择。这个露台还连接到室外游泳池和烧烤区，可通过侧楼梯进入高架室外淋浴间。

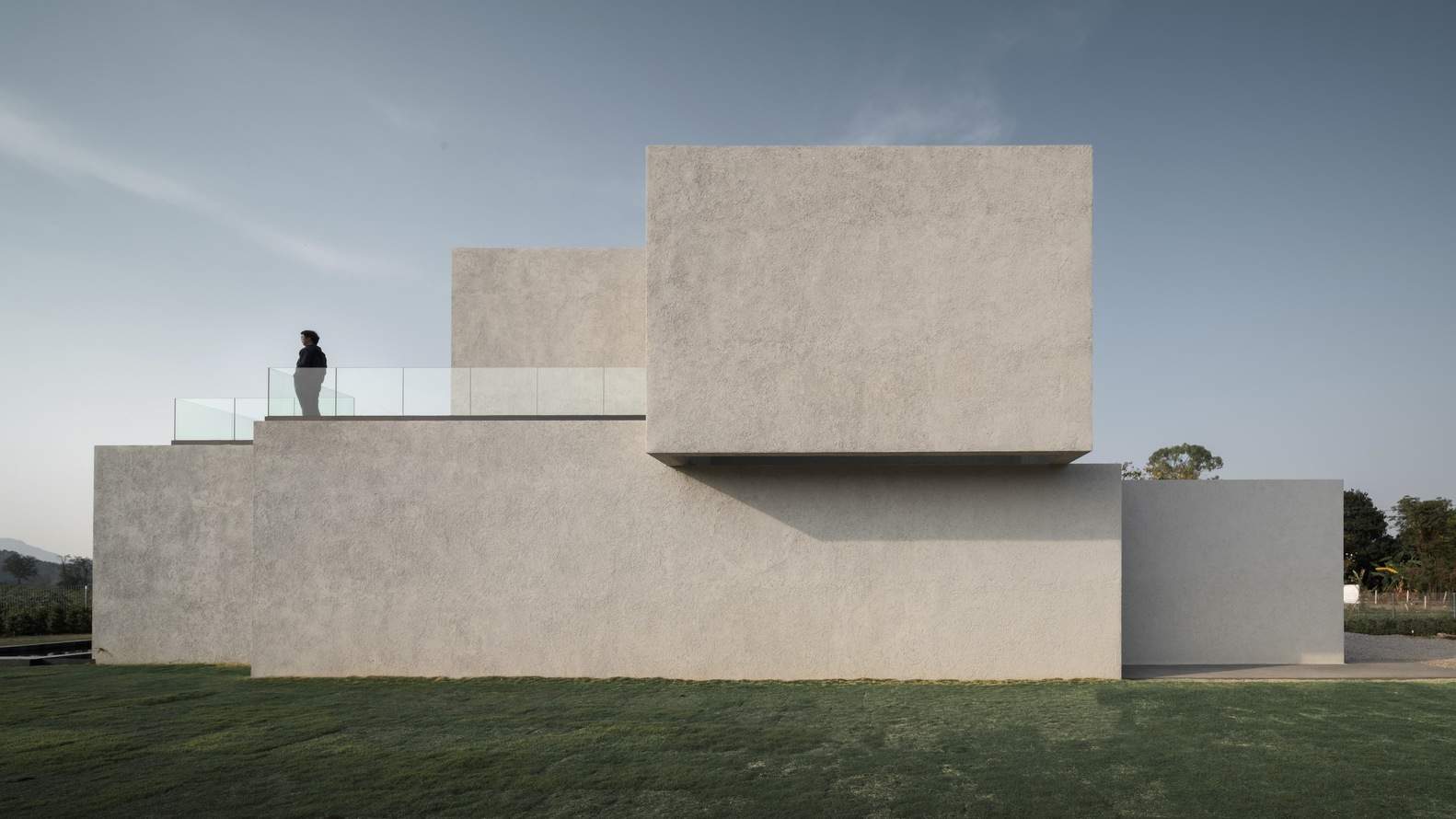

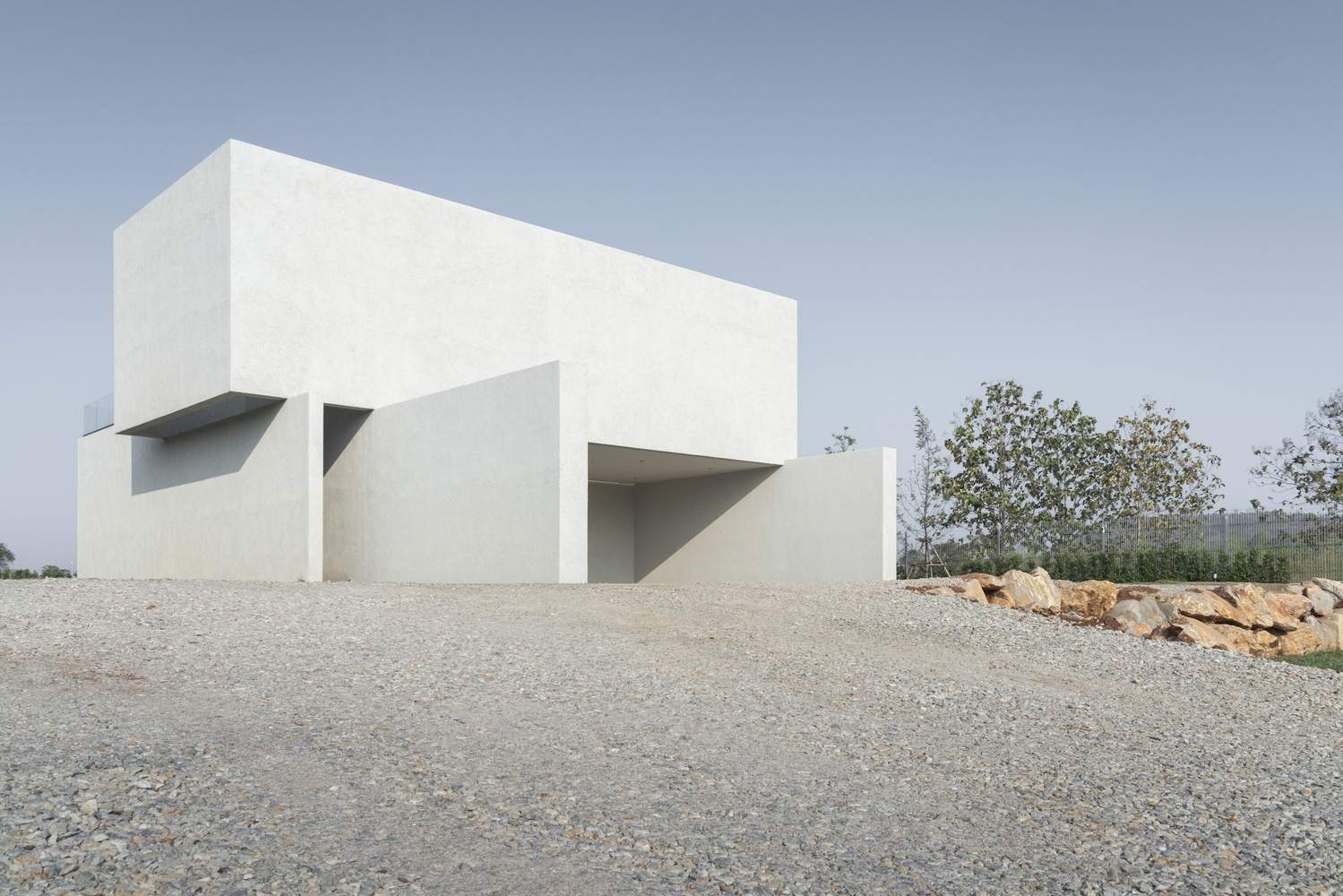

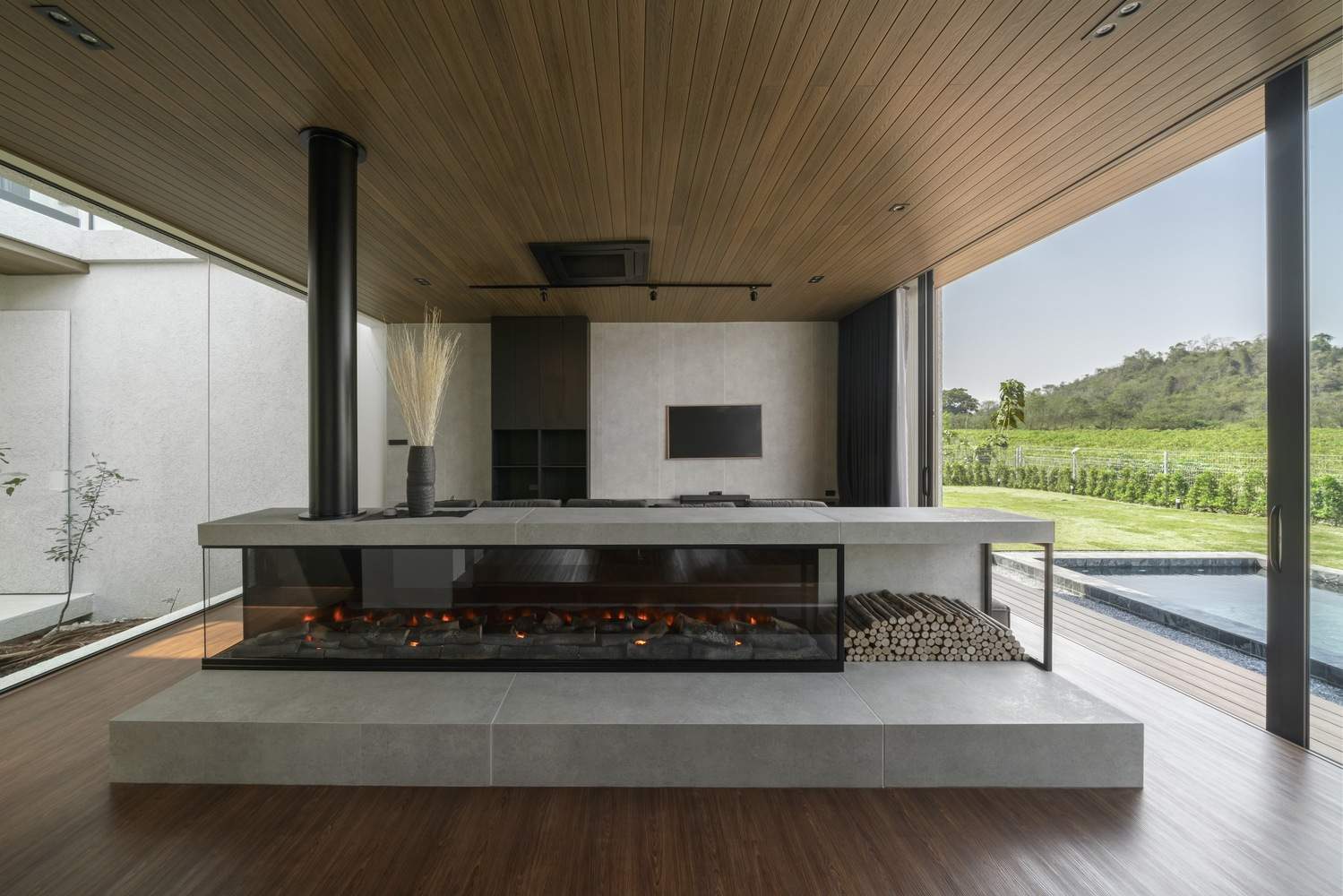

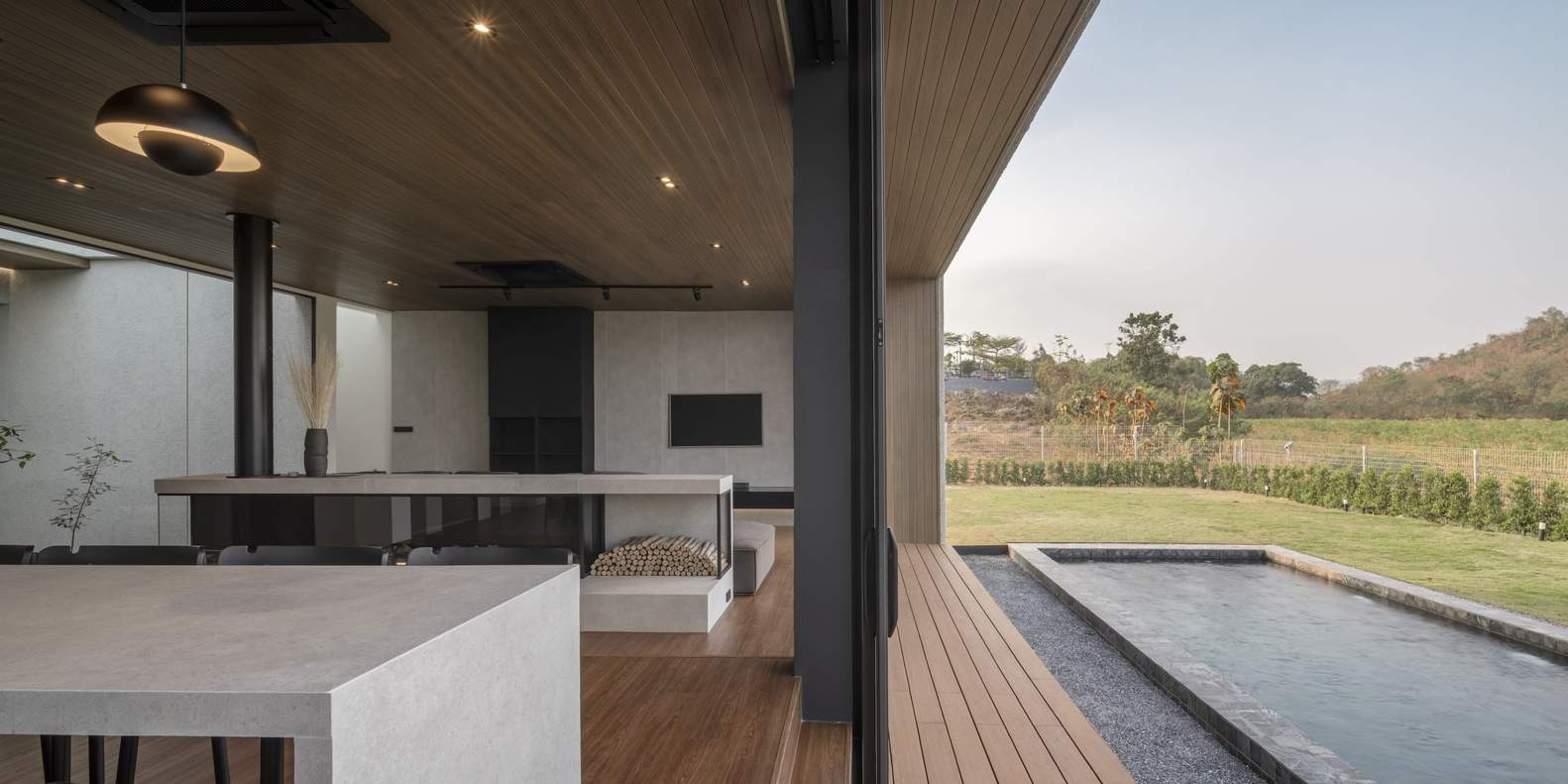

Positioned at the end of the site to maximize its advantage of the picturesque view and privacy, the villa features a solid facade to shield against unsightly views from the road. Visitors are guided through a narrow opening to a serene main entrance courtyard, creating an inviting transition into the relaxing indoor space. The two-story villa serves dual purposes as a vacation retreat and a venue for events such as weddings. The open-plan living space on the first floor boasts panoramic views through floor-to-ceiling windows along the west side, seamlessly connecting to a longitudinal outdoor terrace and providing flexible options for various activities. This terrace also connects to the outdoor swimming pool and barbecue area, with access to an elevated outdoor shower via a side staircase.

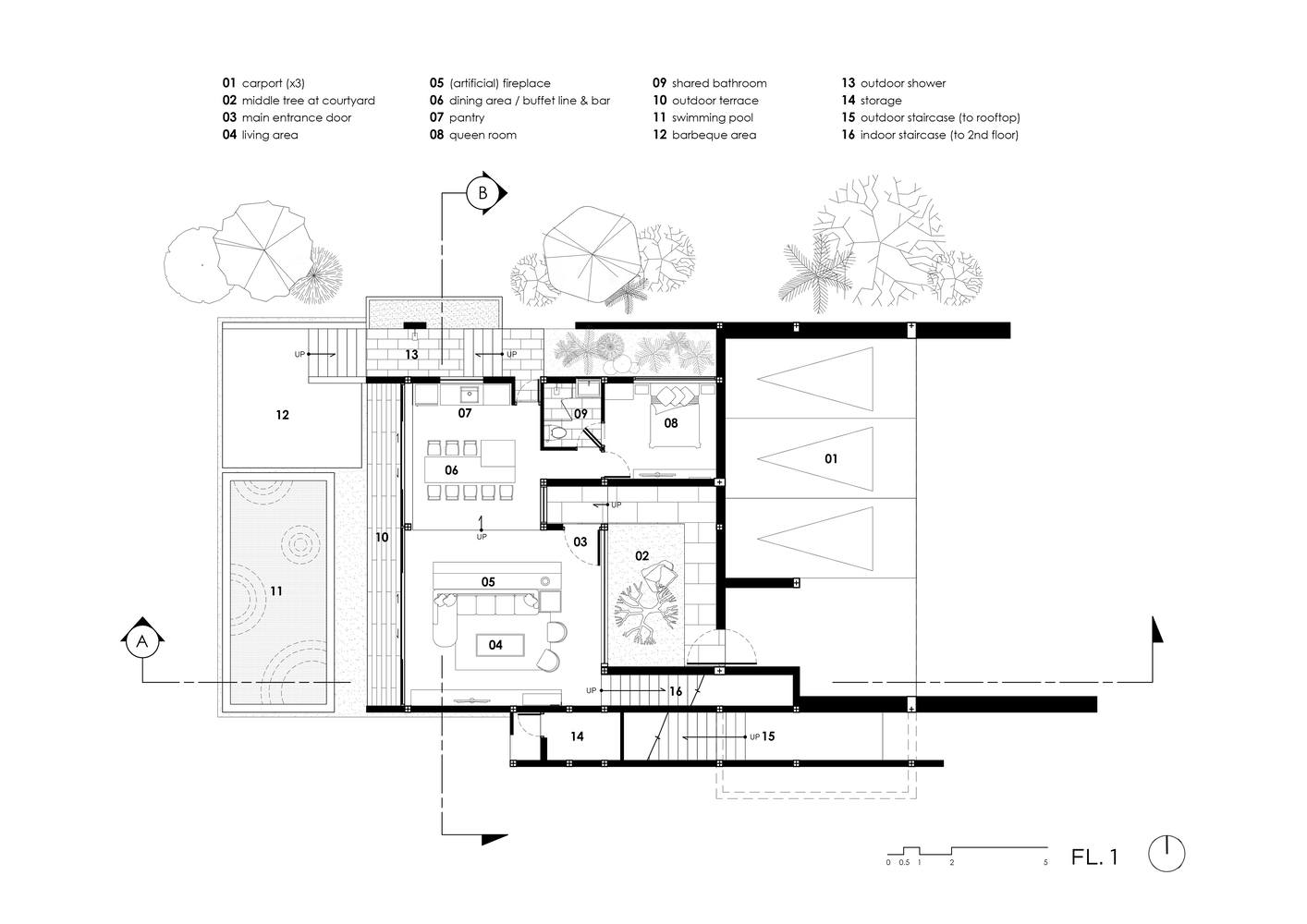

Plan - Ground Floor

私人宿舍，包括楼上的两间卧室和室外设施，位于北侧，享有宁静的花园景色，尤其是从主卧室内的室内浴缸可以欣赏到。此外，还有一间带两间卧室的独立派对空间，适合家庭和团体旅行者。屋顶露台可从两间卧室进入，是私人度假胜地和婚礼舞台，与下面的花园在视觉上相连。室外楼梯通往这个屋顶的捷径，屋顶与室内楼梯分开。它还作为婚礼宾客的欢迎路线，因为光线在混凝土画布上闪耀和反射。

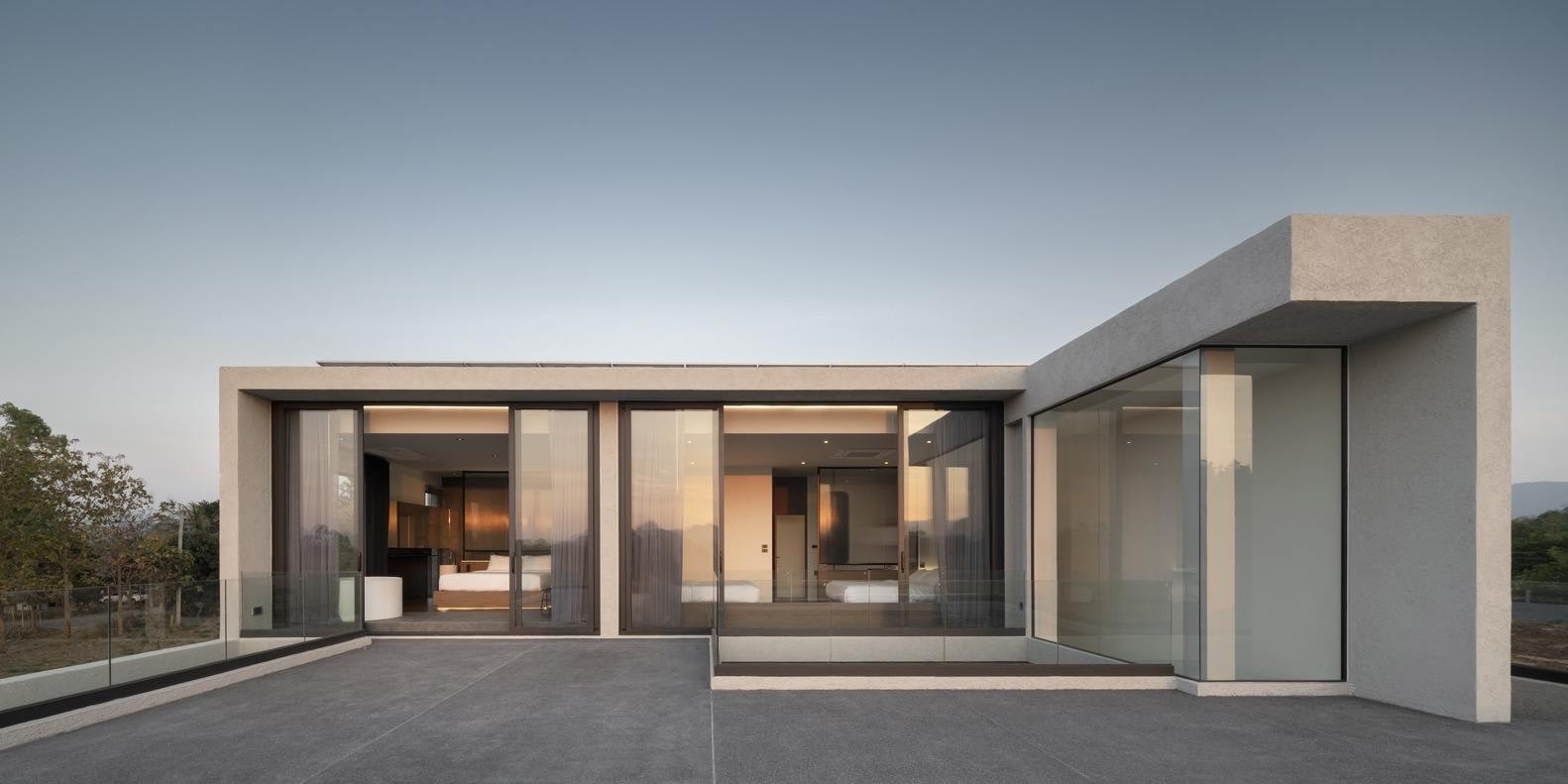

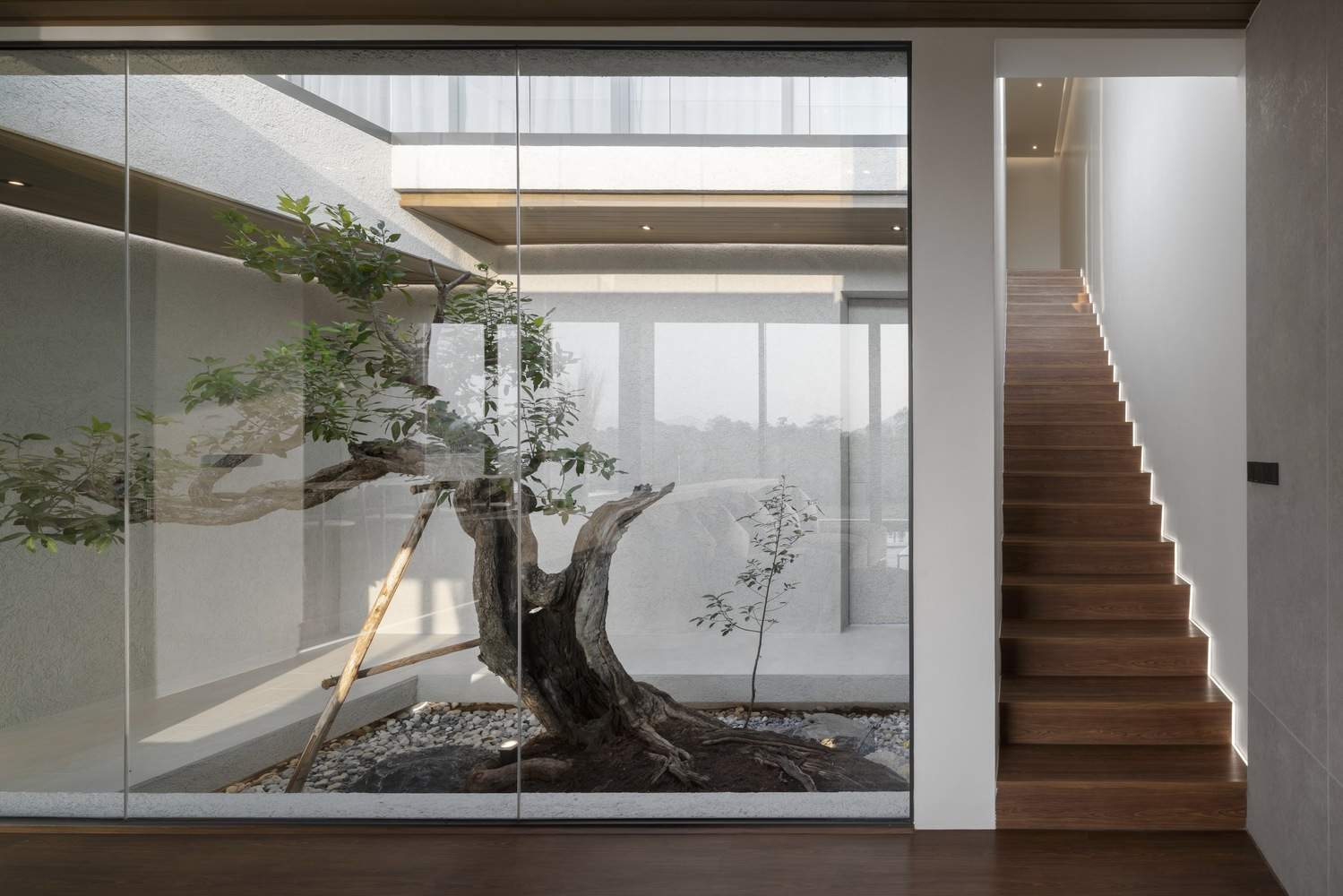

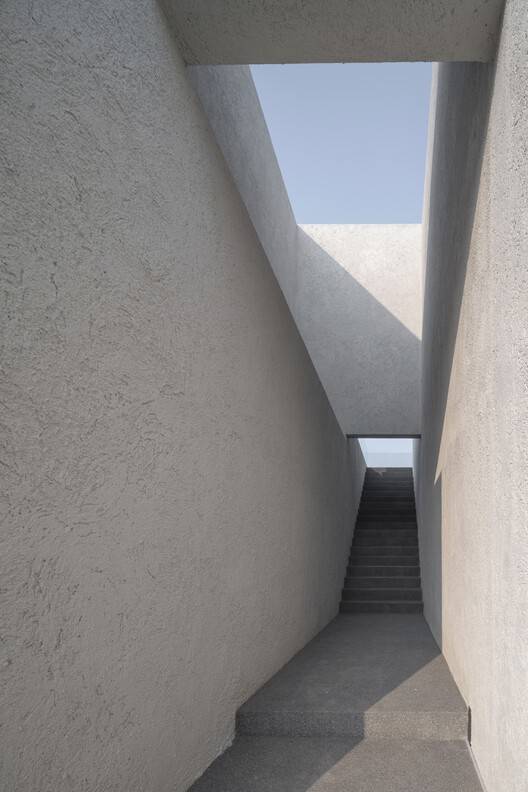

The private quarters, including two bedrooms and outdoor amenities on the upper floor, are situated to the north, offering tranquil garden views, especially from an indoor bathtub inside the master bedroom. Additionally, a separate party space room with two bedrooms caters to families and group travelers. Accessible from both bedrooms, the rooftop terrace serves as a private retreat and a stage for wedding ceremonies, visually connected to the garden below. An outdoor staircase leads shortcut to this rooftop which separates from an indoor staircase. It also acts as a welcoming route for the wedding guests as the light shines and reflects on the concrete canvas.

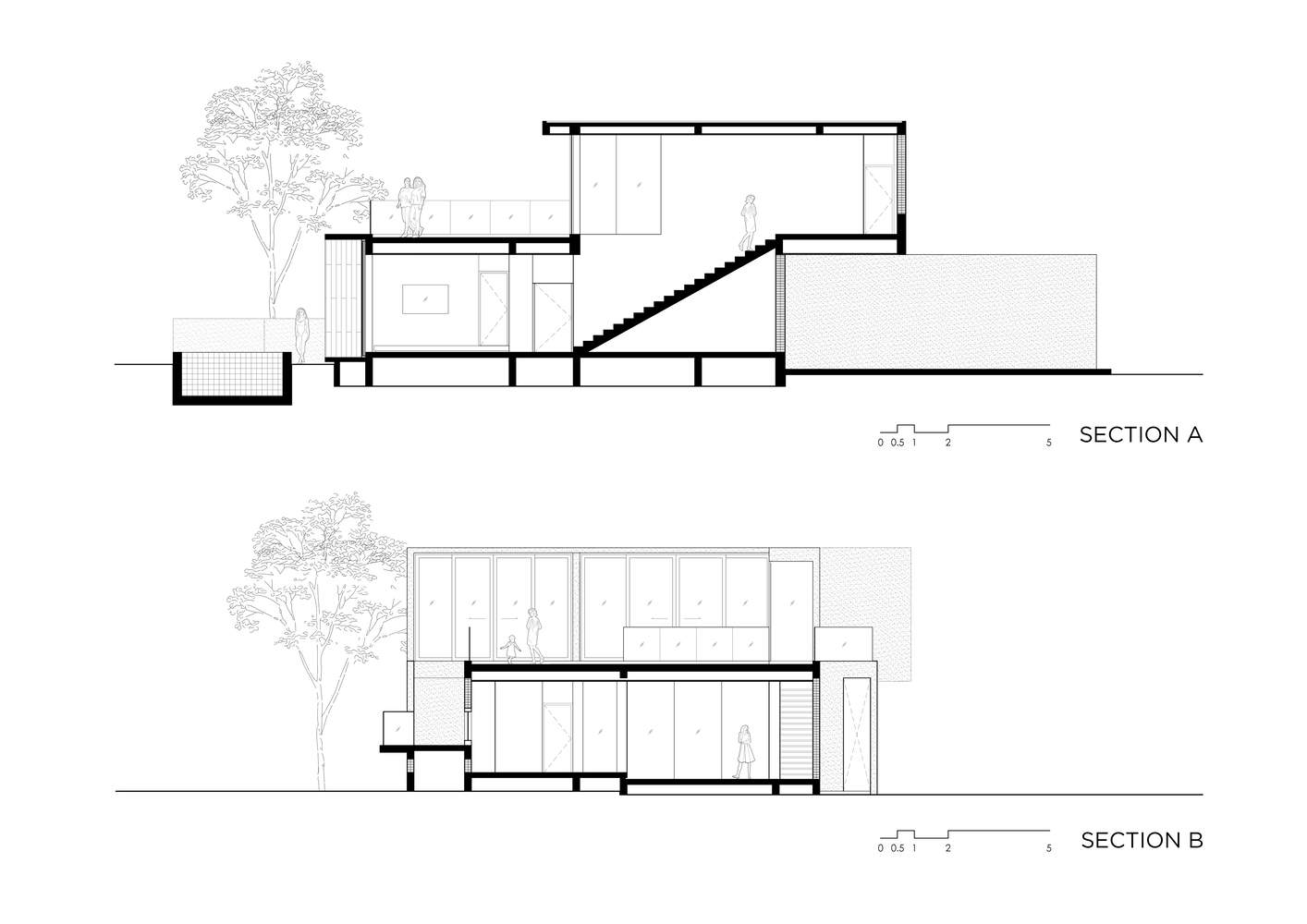

Sections AA - BB

由于该建筑在该地区具有多种用途，反映了城市的特点并确保了易于维护，因此使用了当地材料。具体来说，一种涉及用粗砂压制石膏纹理的技术被应用于整个外墙。这款空白画布因其中性色，不仅适合婚礼的任何主题，易于搭配各种装饰，还可以作为户外电影的投影屏幕。此外，天然木材被用来增强放松感，而室内空间中的黑色装饰元素则增添了一丝奢华。此外，还安装了钢化玻璃窗，可以欣赏到西面的全景，促进室内外空间的无缝连接。
Since the architecture serves various purposes in this location, reflecting the characteristics of the city and ensuring easy maintenance, local materials are utilized. Specifically, a technique involving plaster texture pressed with coarse sand is applied to the entire exterior wall. This blank canvas not only suits any theme of the wedding ceremony due to its neutral color, easily matching all kinds of decorations but also functions as a projector screen for outdoor movies. Additionally, natural woods are used to enhance the sense of relaxation, while black decorative elements within the interior space add a touch of luxury. Moreover, tempered glass windows are installed to provide panoramic views along the west, facilitating the seamless connection between indoor and outdoor spaces.
