House of Facades / Marcos Bertoldi Arquitetos

独特的私密设计：这个“立面之家”项目展现出了独特的设计理念。在海滨共管公寓中，面对周围传统房屋带来的隐私问题，设计师巧妙地在无窗的空中墙壁间放置方案，确保内部空间私密性。前后立面的可移动木制 mashrabiya 在高温下增加了隐私和舒适度。露天庭院和双层天花板的设计既保护了玻璃幕墙，又照亮了主要区域，整体设计在保障隐私的同时，营造出独特的空间氛围。

简洁的美学与材料运用：项目美学受石材幕墙制约，其几乎无开口的设计加上东西轴线上的 mashrabiya 屏风保护，呈现出朦胧而抽象的美感。仅基于洞石和木材两种材料，打造出简洁的质感，从一楼社交区到阁楼，都体现出统一的风格。家具从现代主义到当代风格的选择，以及景观美化的设计，进一步丰富了项目的整体效果，使其成为一个兼具美观与实用性的建筑作品。

建筑师提供的文字描述在一栋海滨共管公寓里，520平方米的矩形平坦地块被带阁楼的传统两层房屋包围着。无数的窗户和开口给这座490平方米的住宅带来了很大的隐私问题。因此，计划中的方案被放置在两个无窗的空中墙壁之间，有洞石覆层，由柱子支撑，并位于房产的法定边界内。这些空中墙壁构成了建筑的侧立面，确保了内部空间的私密性，远离最近的邻居。唯一的例外是每日餐厅的双层天花板。在对面，一个露天庭院，也有双层高的天花板，保护着更多的玻璃幕墙，照亮了房子的主要区域。前后立面被可移动的木制mashrabiya包围，以增加高温下的隐私和舒适度。

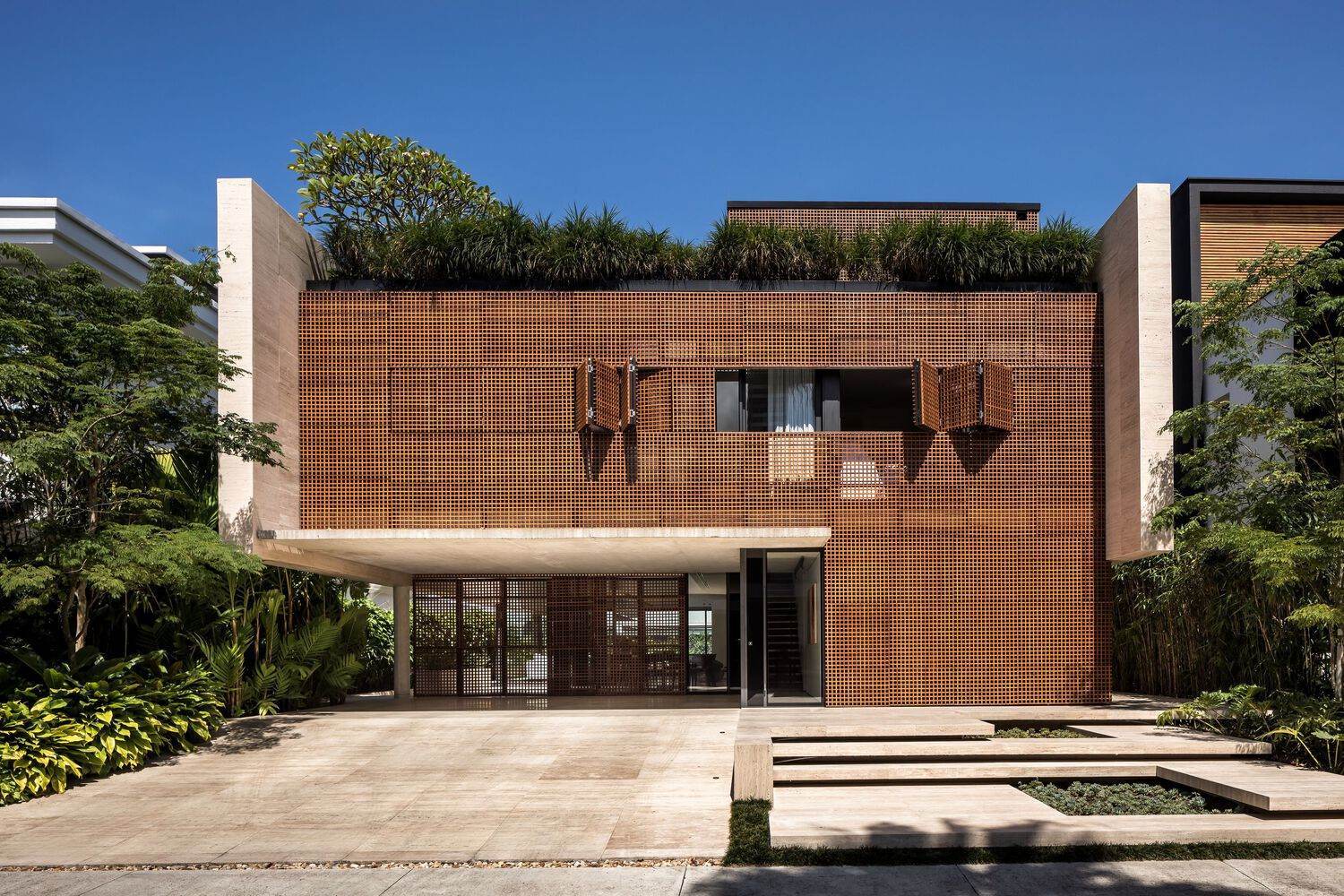

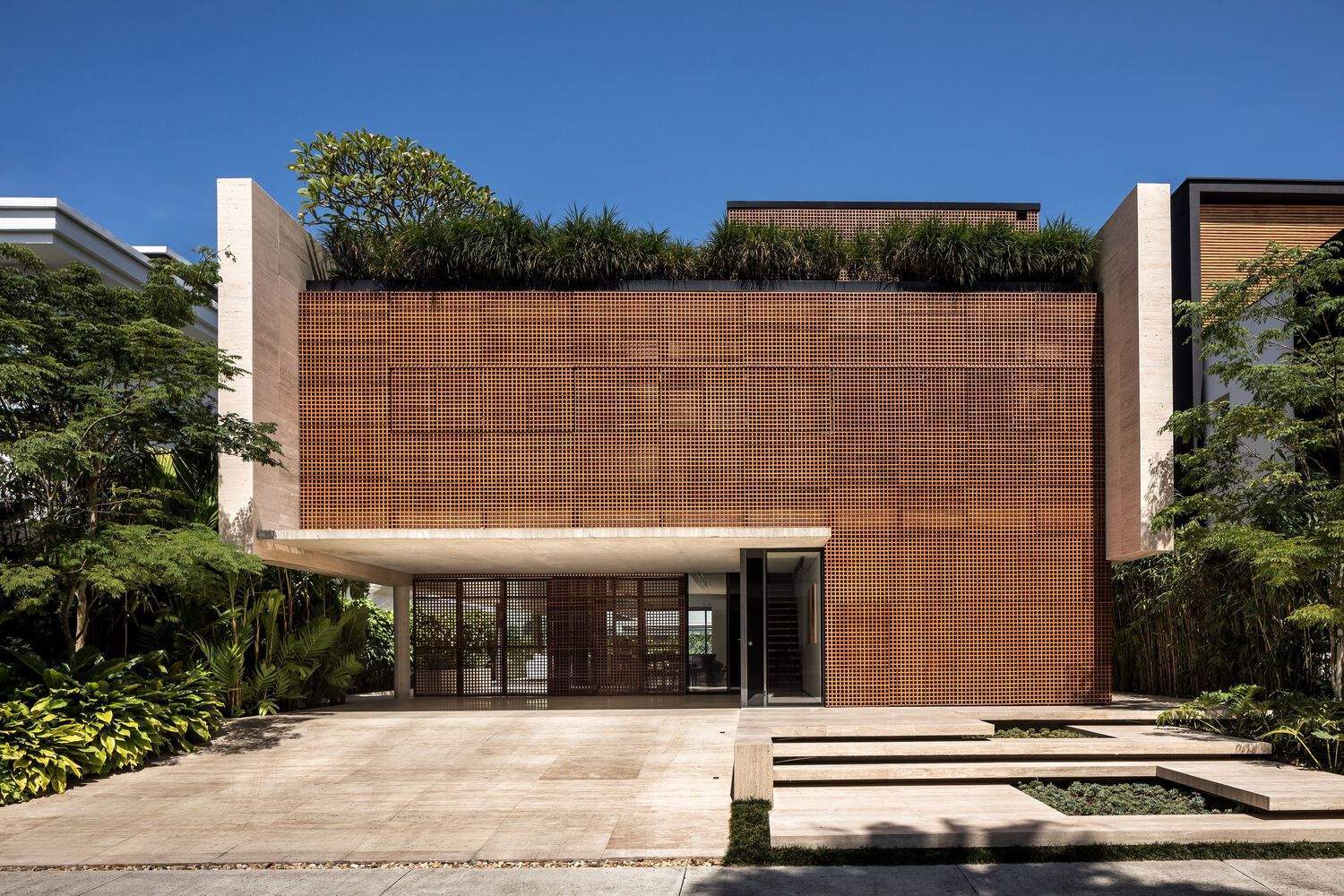

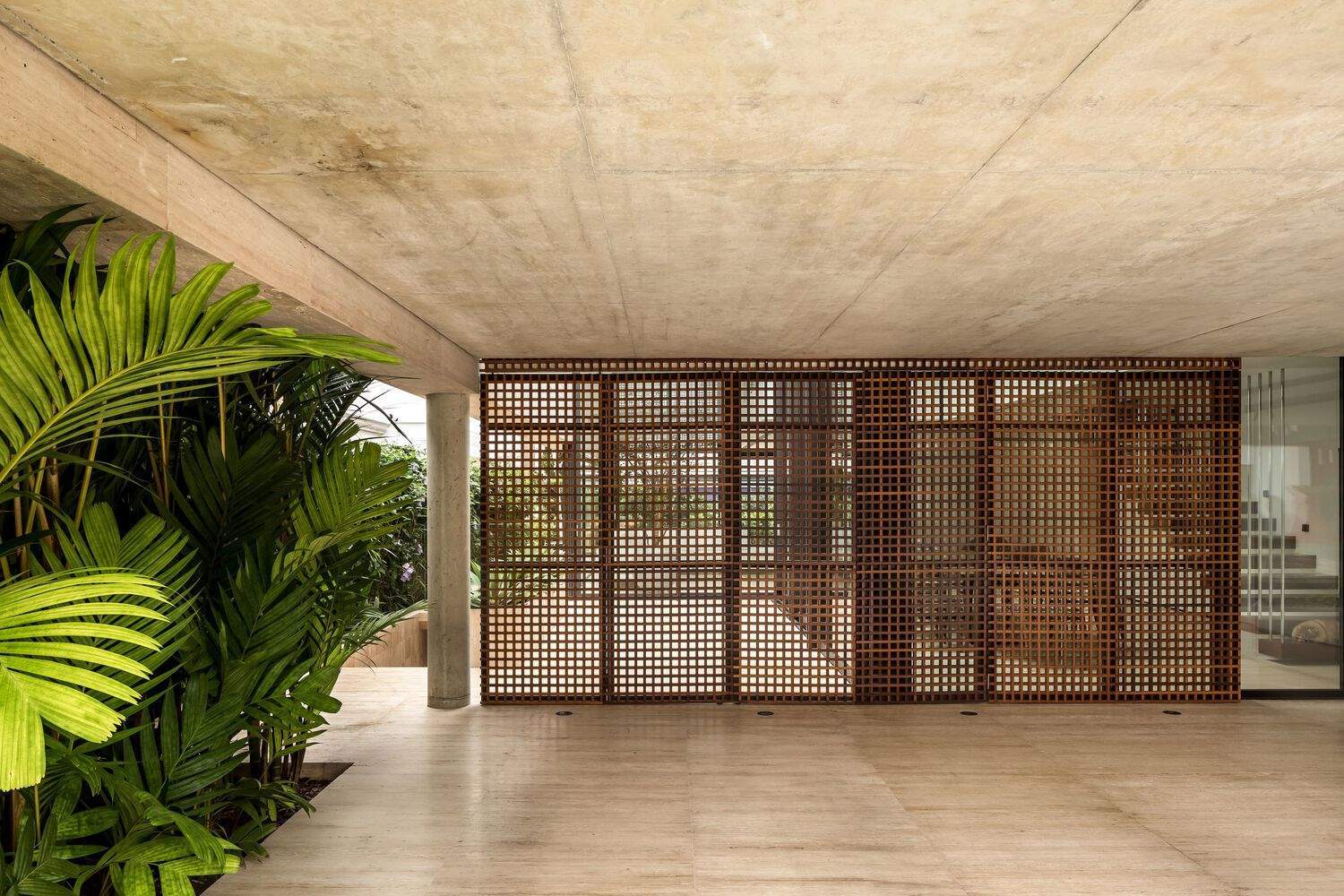

Text description provided by the architects. In a seaside condominium, the rectangular and flat lot of 520 sq m is surrounded by conventional two-story houses with attic. Countless windows and openings brought a big privacy issue for this 490 sq m residence. Therefore, the planned program was placed between two windowless and aerial walls, with travertine cladding, supported by columns, and positioned within the legal boundaries of the property. These aerial walls configure the side facades of the building, ensuring the privacy of the internal spaces from the nearest neighbors. The exception is the double-height ceiling that serves the daily dining room. On the opposite side, an open-air courtyard, also with double-height ceiling, protects the more glassed facades and illuminates the main areas of the house. The front and rear facades are enveloped by movable wooden mashrabiya to increase privacy and comfort in high temperatures.

一楼是社交区，在单层和双层天花板之间交替，还有房子的服务和车库。在楼上，空隙之间有一个私密的阳台区域，还有一个工作室和3间套房。阁楼里有这对夫妇的房间和花园露台上的第二个玻璃游泳池。美学受到石材幕墙的制约，这些幕墙几乎没有开口，主要开口由东西轴线上的mashrabiya屏风保护，是朦胧而抽象的。这种材料仅基于两种材料：洞石和木材，它们也包裹着阁楼。

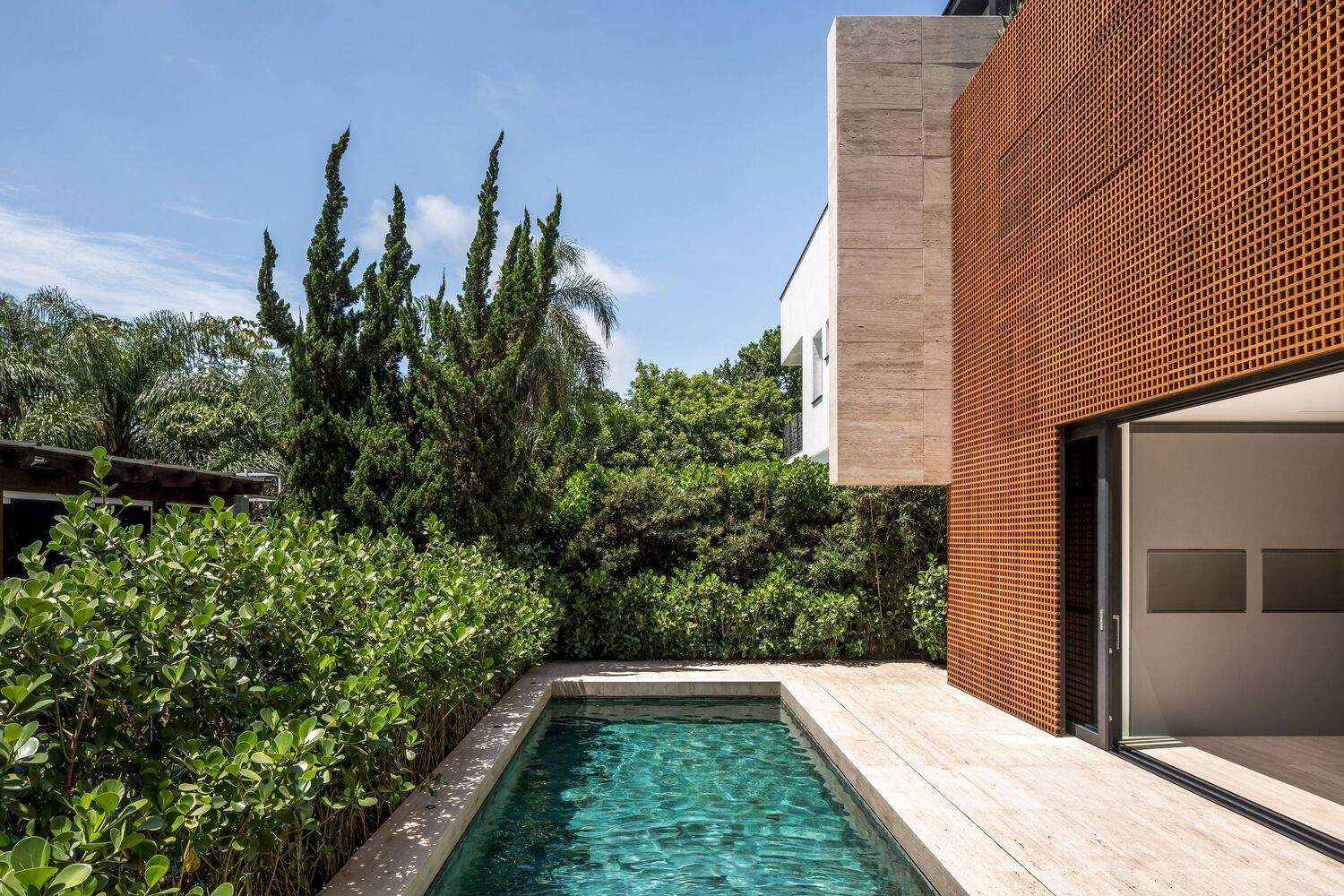

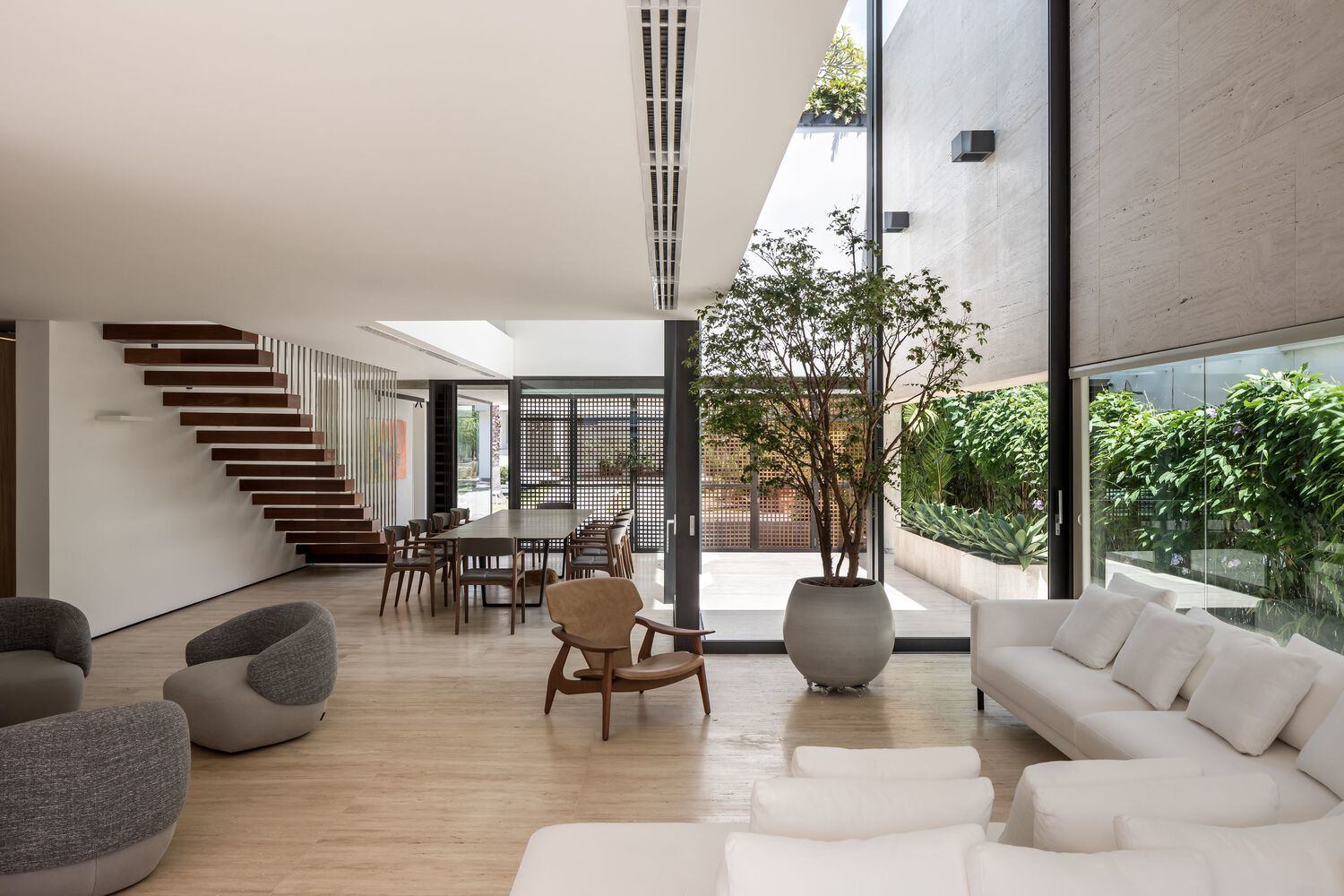

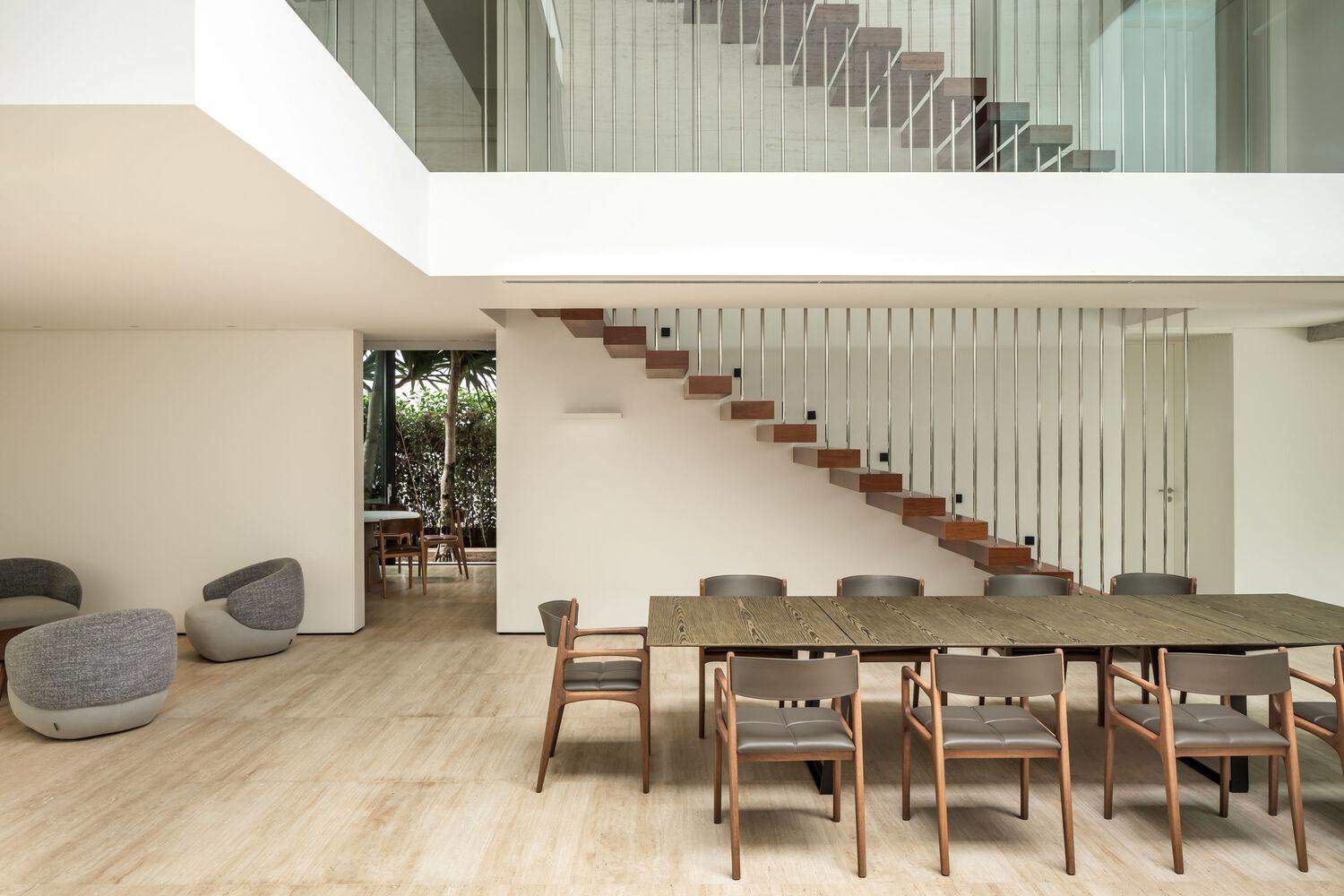

On the ground floor are the social areas, alternating between single and double-height ceilings, along with the house's services and garages. On the upper floor, there's the intimate balcony area between voids, as well as a studio and 3 suites. In the attic, there is the couple's room and a second glass swimming pool on the garden terraces. The aesthetics, conditioned by the stone cladding walls with few openings and with the main openings protected by the mashrabiya screens along the east-west axis, are veiled and abstract. The materiality is based on just two materials: travertine and wood, which also envelops the attic.

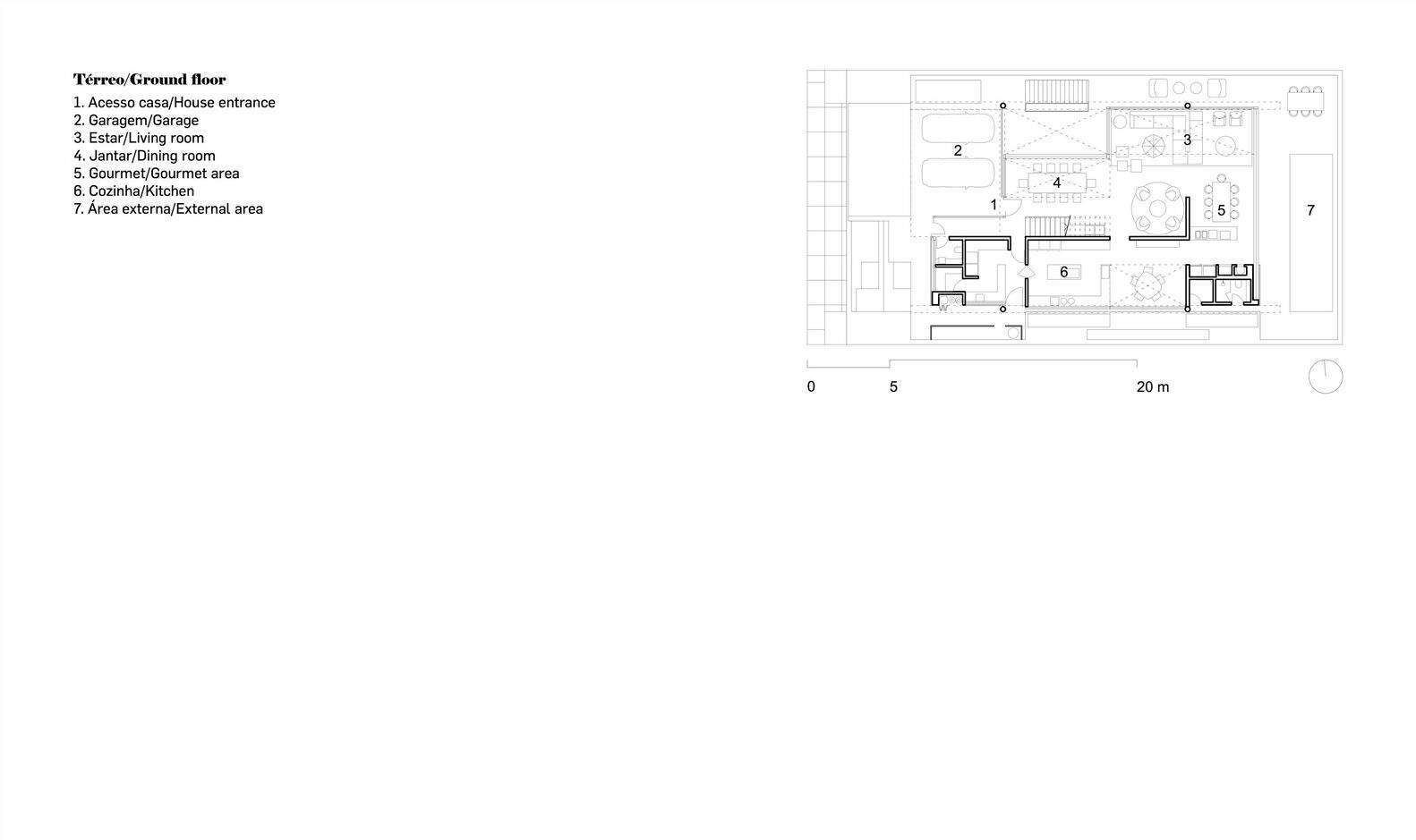

Plan - Ground floor

家具从现代主义到现代主义都有。该项目的主要区域进行了景观美化，主要通道高原上点缀着多汁的花坛和台阶。餐厅安装了熊猫植物，以保护双层高的窗户，而竹篱笆和罗汉果树则勾勒出地形。在屋顶上，黑色金属板和不同高度的花箱以紫梅植物为主要元素。

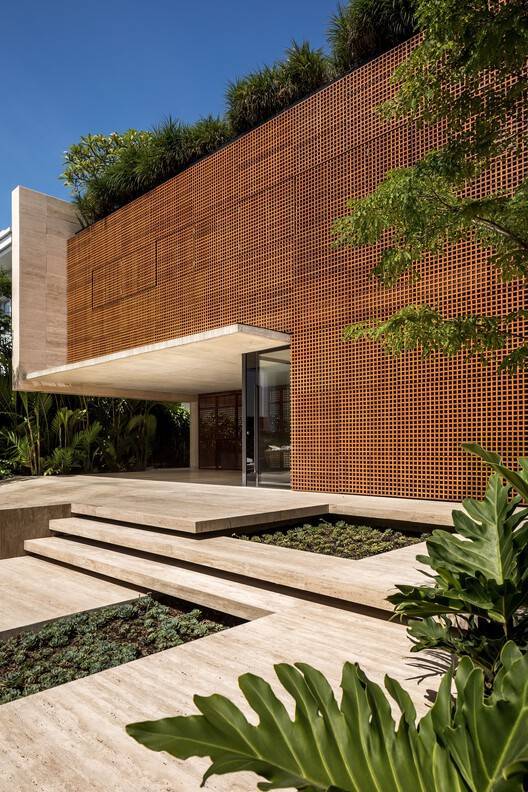

The furniture ranges from modernism to contemporary. Landscaping is present in the project's main areas, with succulent flower beds interspersed with steps in the main access plateaus. Pandanus plants have been installed to visually protect the double-height window in the dining room, while bamboo hedges and Podocarpus trees outline the terrain. On the roof, flower boxes in black sheet metal and varying heights feature Plumeria rubra plants as their main element.
