NINE X NINE House / Sanjay Puri Architects

设计理念与场地融合： 桑杰·普里建筑师事务所的 NINE X NINE House 项目，其核心在于对环境的深刻理解和巧妙利用。设计者最大限度地保留了场地原有的九棵树木，并将建筑巧妙地融入其中，体现了对自然环境的尊重。建筑师通过“T”字形的平面布局，在南侧设置建筑空间，北侧则打造宽敞的花园，这样的设计既是对当地炎热气候的被动应对，又巧妙地利用了现有树木的遮荫，营造出宜人的微气候。入口处的设计也别具匠心，通过蜿蜒的路径，让建筑在进入时逐渐显现，增强了空间的仪式感和探索感。

空间布局与被动式设计： 该项目在空间布局上展现出卓越的创造力。建筑师将公共区域设置在入口层，卧室则分布在上层，地下一层则规划为娱乐和艺术展示空间，满足了居住者的多样化需求。更重要的是，设计融入了大量的被动式设计手法，例如，西侧的下沉式庭院，利用瀑布和开放楼梯，实现了自然采光和空气流通，从而降低了室内的温度。悬挑式甲板的运用，部分遮蔽、部分开放，使得过渡空间可以根据天气状况灵活使用，最大程度地利用自然资源，减少了对空调的依赖。

材料选择与可持续性： NINE X NINE House 在材料的选择和可持续性方面也堪称典范。项目大量使用了天然材料，例如白色大理石地板和木制家具，营造出简约而舒适的内部氛围。设计充分考虑了节能，采用了水回收、雨水收集等措施，力求实现建筑的可持续发展。这种设计理念与场地内的现有树木相呼应，通过减少热量增加和优化朝向，创造了与自然融为一体的居住空间，体现了对环境负责任的设计理念，并为其他建筑项目提供了宝贵的经验。

建筑师提供的文字描述The Nine X Nine house位于印度甘地讷格尔。在3311平方米的地块南侧，9棵现有树木之间流动着大量的液体，其中2棵树木点缀着露天甲板区域；其他人都在房子附近。该地块的入口位于西北角的一大片树木之间，当人们从大门进入时，房子慢慢地显露出来。

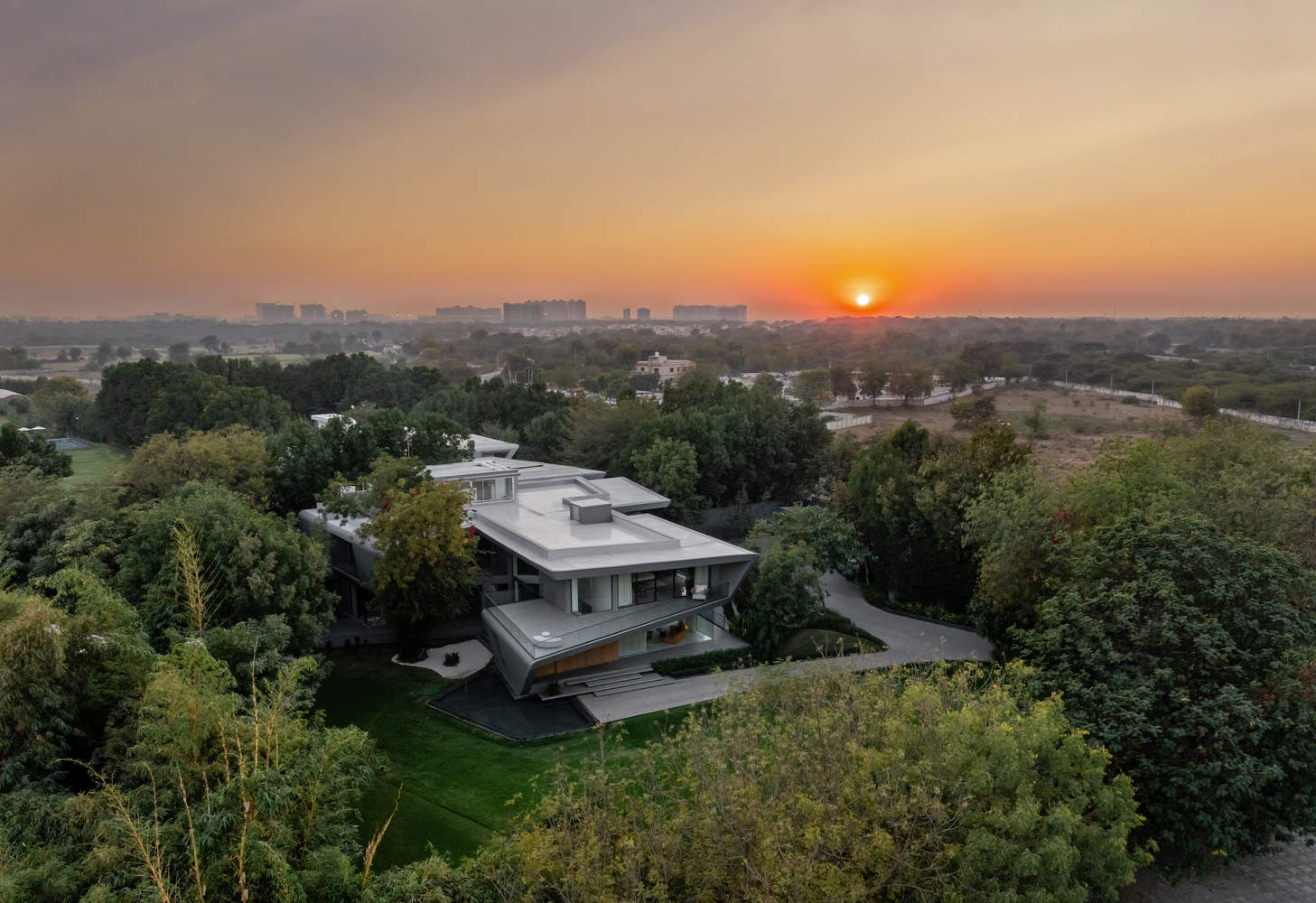

Text description provided by the architects. The Nine X Nine house is located in Gandhinagar, India.Fluid volumes traverse between 9 existing trees on the southern side of a 3311 sqm plot, with 2 of the trees punctuating the open deck areas & the others in close proximity of the house. The entry to the plot is located between a large cluster of trees on the northwestern corner revealing the house slowly as one moves inside, from the gate.

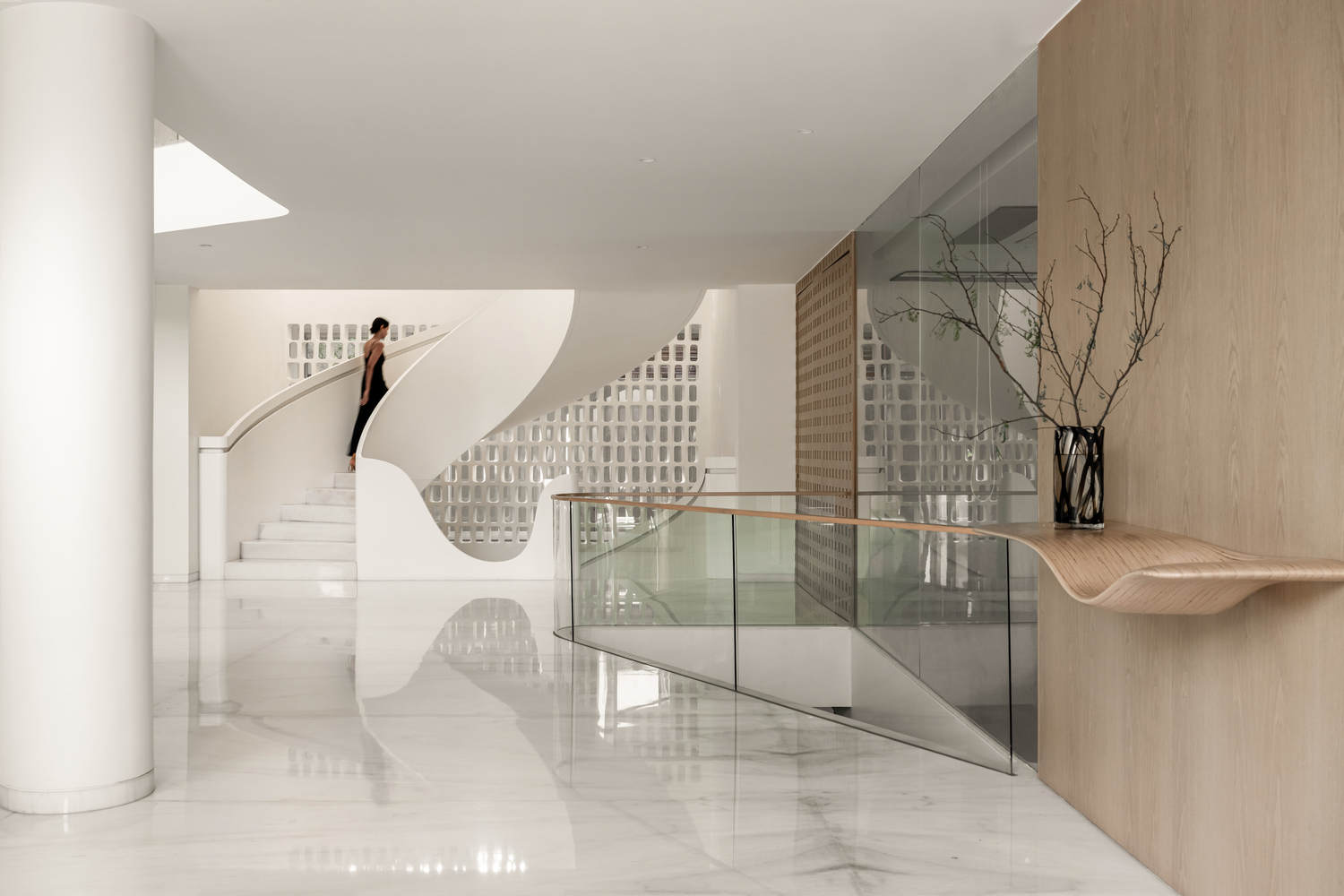

建筑空间朝向南侧的位置在北侧形成了一个大花园，所有房间都朝向花园。这是为了应对该地区一年中大部分时间气温超过35°C的炎热气候而计划的；南半球的太阳。房子在平面图上呈“T”形；部分同时。从北侧进入，中央脊柱向东和西分支，中心有一个焦点螺旋楼梯。从剖面上看，房子是从地面进入的，上面有一层；下面一层。

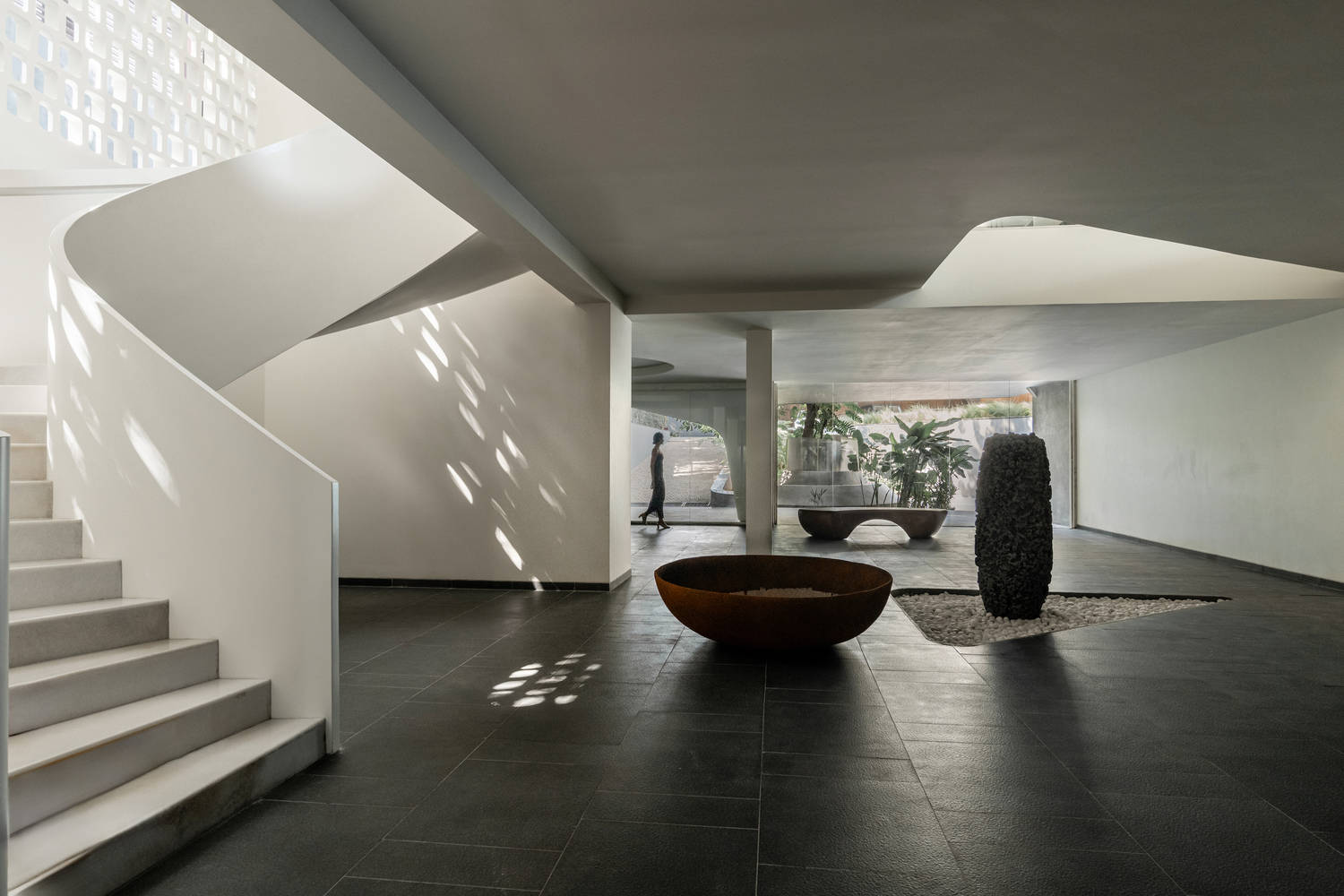

The location of the built spaces towards the southern side generates a large garden on the northern side with all the rooms oriented towards the garden. This is planned in response to the hot climate prevalent in this location with temperatures in excess of 35°C for most of the year & the sun in the southern hemisphere. The House forms a 'T' shape in plan & section simultaneously. Entered from the northern side a central spine branches towards the east and west with a focal spiral stairway at the center. Sectionally, the house is entered at the ground level with one level above & one level below.

西侧宽敞的下沉式庭院空间允许自然光和阳光照射；空气通过一条沿着有瀑布的波状墙壁的开放楼梯连接到地下花园。西侧的瀑布和东北侧的浅水反射池为空间提供了被动冷却。现场现有的6棵树被保留在下沉的庭院内；另外3个在东南侧。

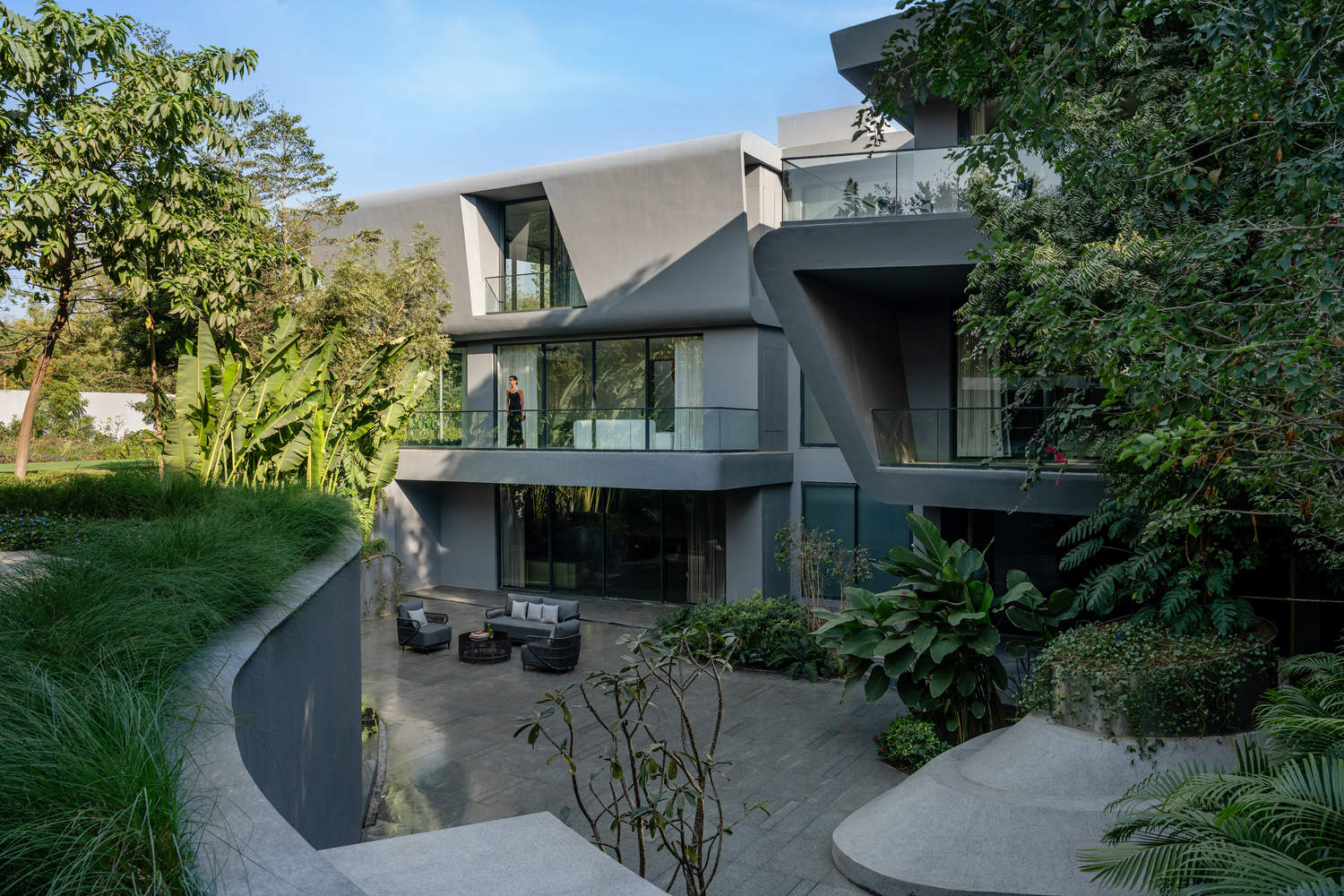

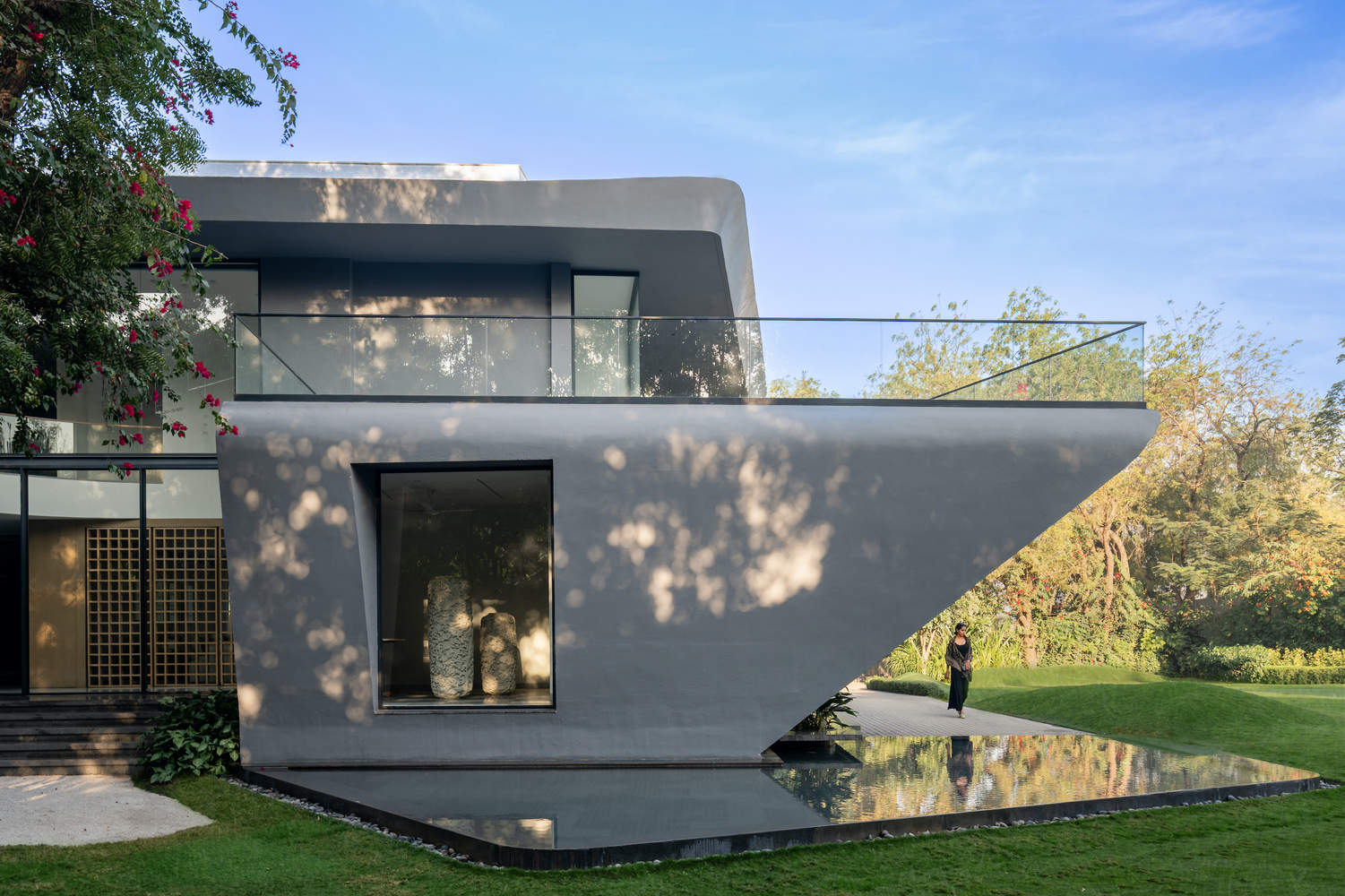

A generous sunken courtyard space on the western side allows natural light & air to the subterranean level linked to the ground level garden by an open stairway along an undulating wall with a waterfall. This waterfall on the western side and a shallow reflecting the pool on the northeastern side provides passive cooling to the spaces. 6 of the existing trees onsite were retained within the sunken courtyard & another 3 on the southeastern side.

房子的入口层有公共区域，包括客厅、餐厅、厨房和客厅；客房。上层为家庭提供了3间卧室，每间卧室的两侧都朝向树木和花园。地下一层规划有娱乐空间和；一个小画廊，用来收藏主人的艺术品。

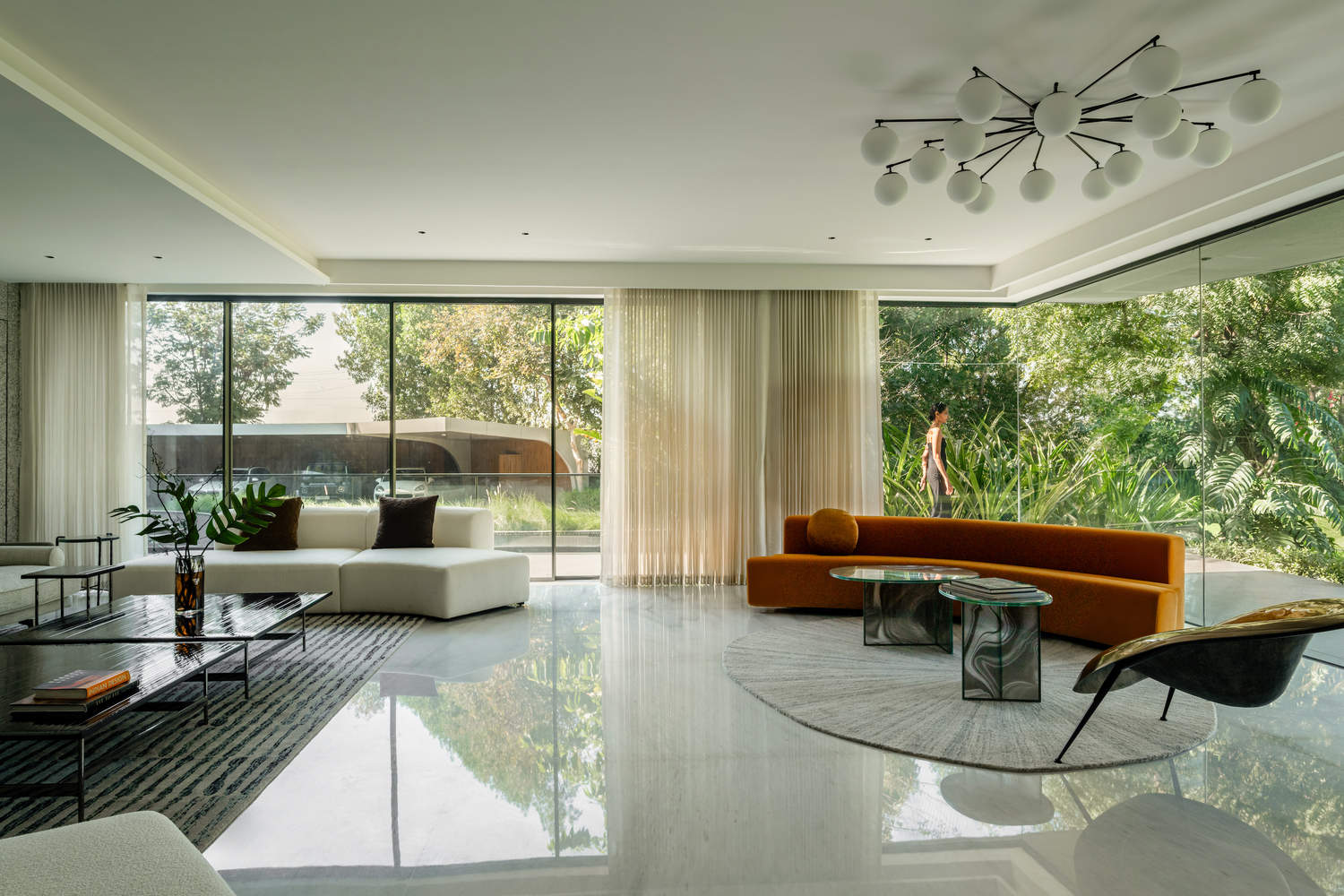

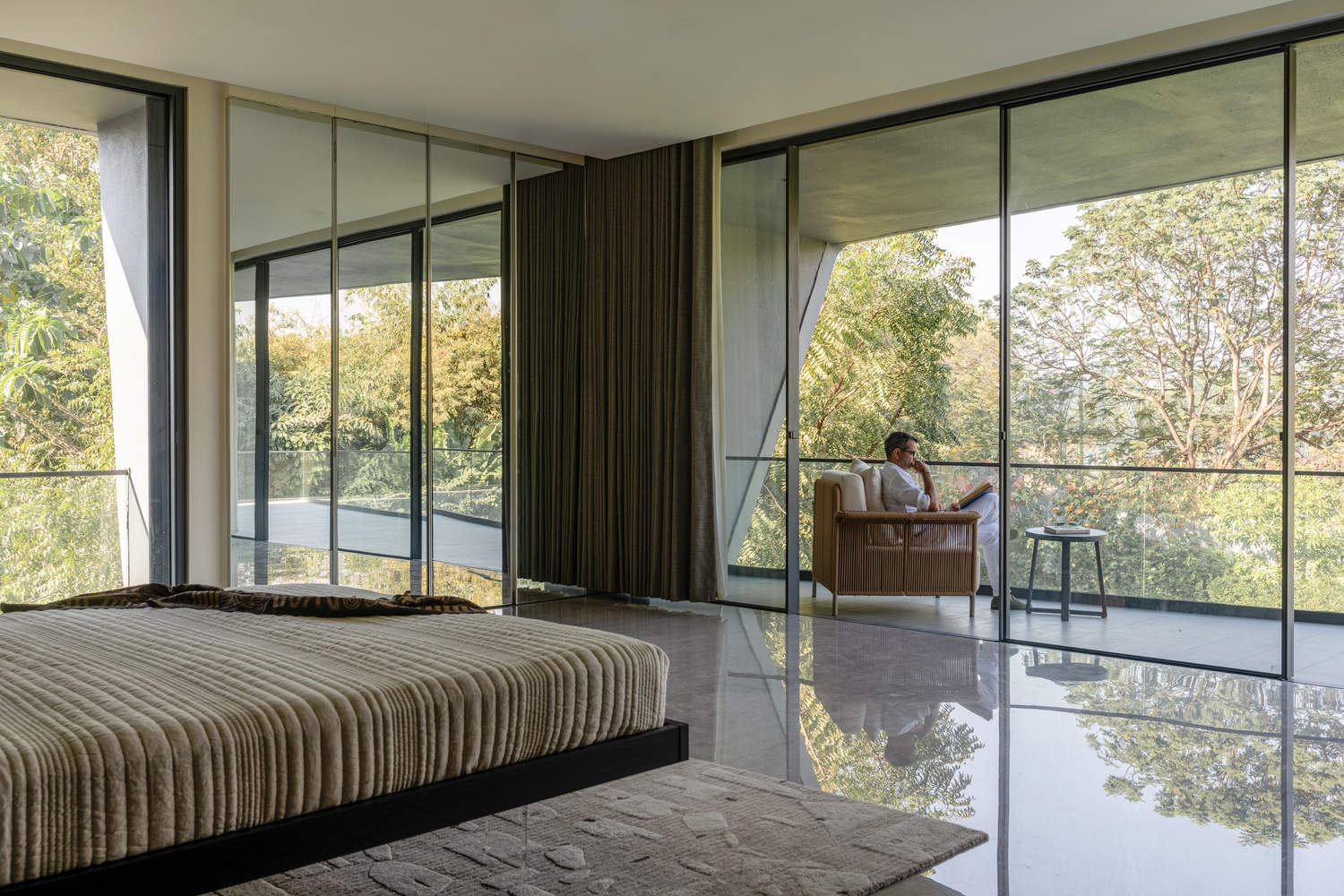

The entrance level of the house has the common areas including the living, dining, kitchen & a guest bedroom. The upper-level houses 3 bedrooms for the family, each one opening up on 2 sides towards trees and the garden. The subterranean level is planned with entertainment spaces & a small gallery to house the art collection of the owners.

房子里的每个空间都通向巨大的悬挑甲板，这些甲板部分有遮蔽；部分开放，允许这些过渡空间根据天气以不同的方式使用。这些深凹槽用于在炎热的夏季保持内部空间凉爽，此时温度可能升至50°C。内部色调很小，有白色大理石地板、木制家具和；口音低沉。

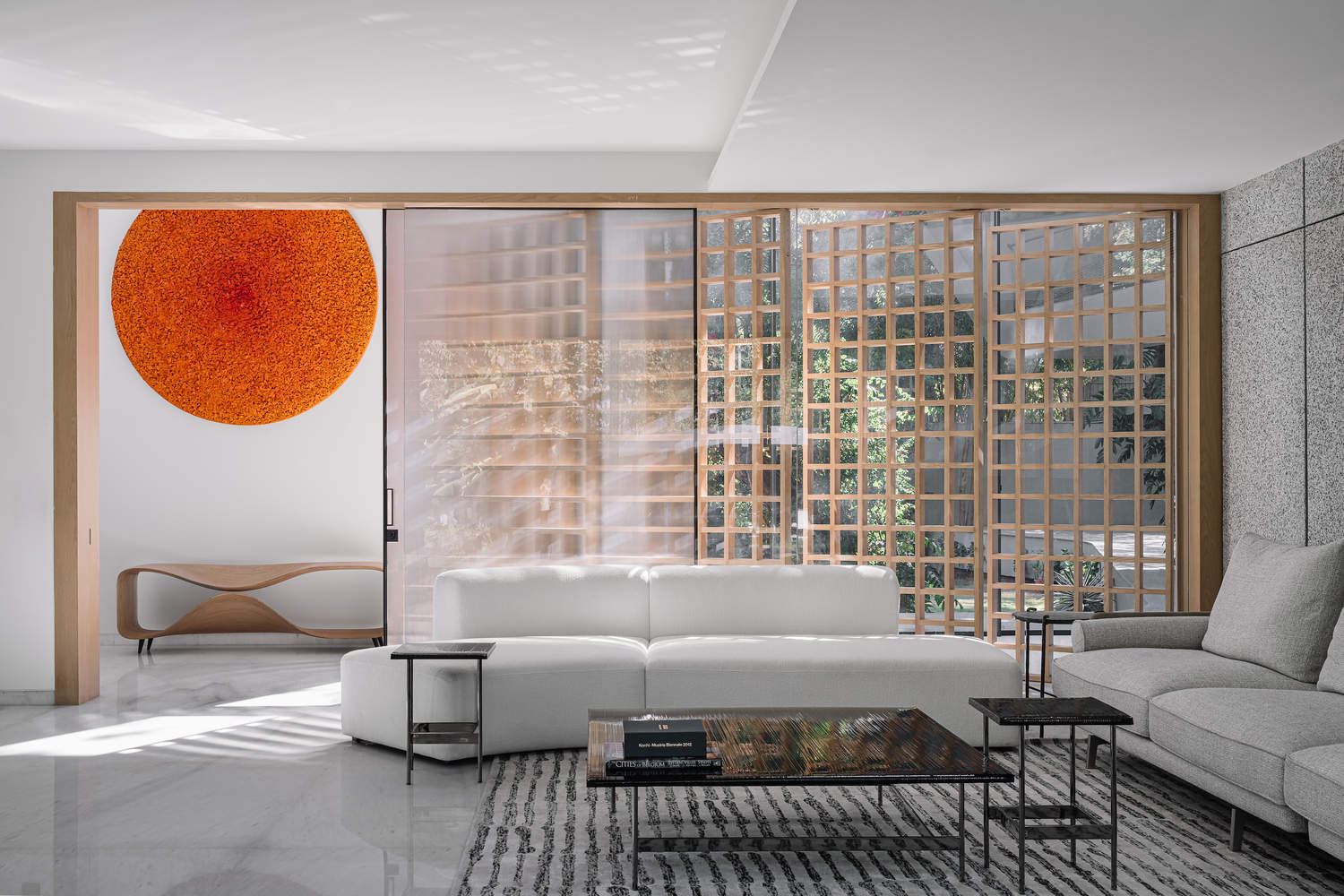

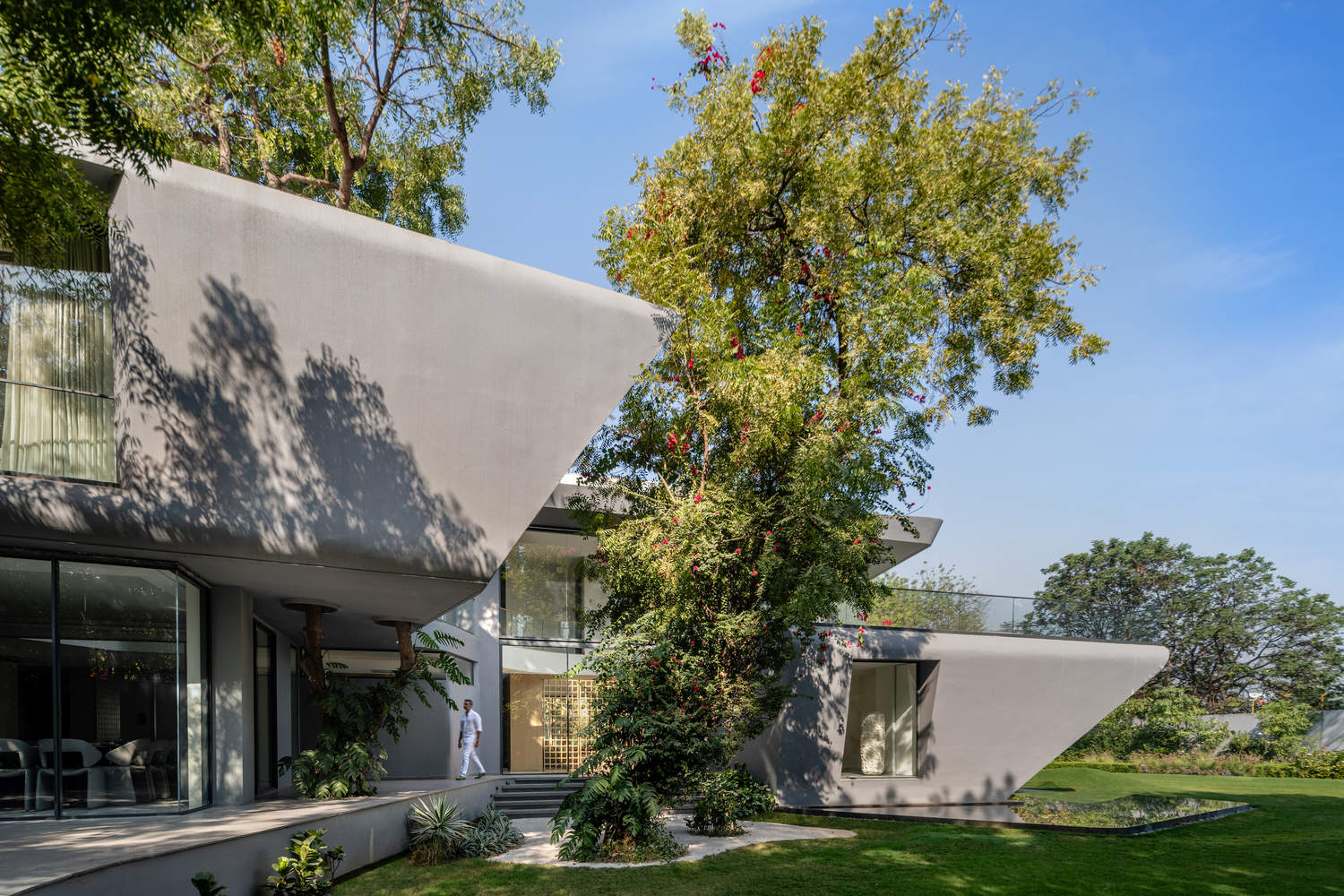

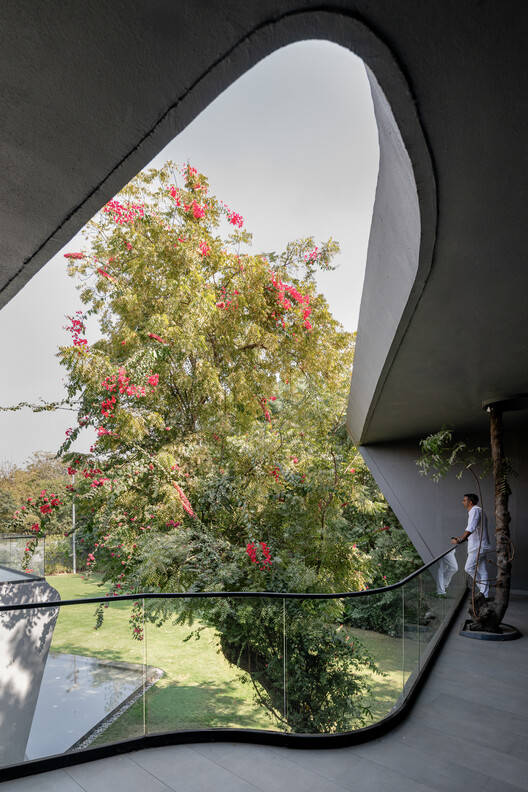

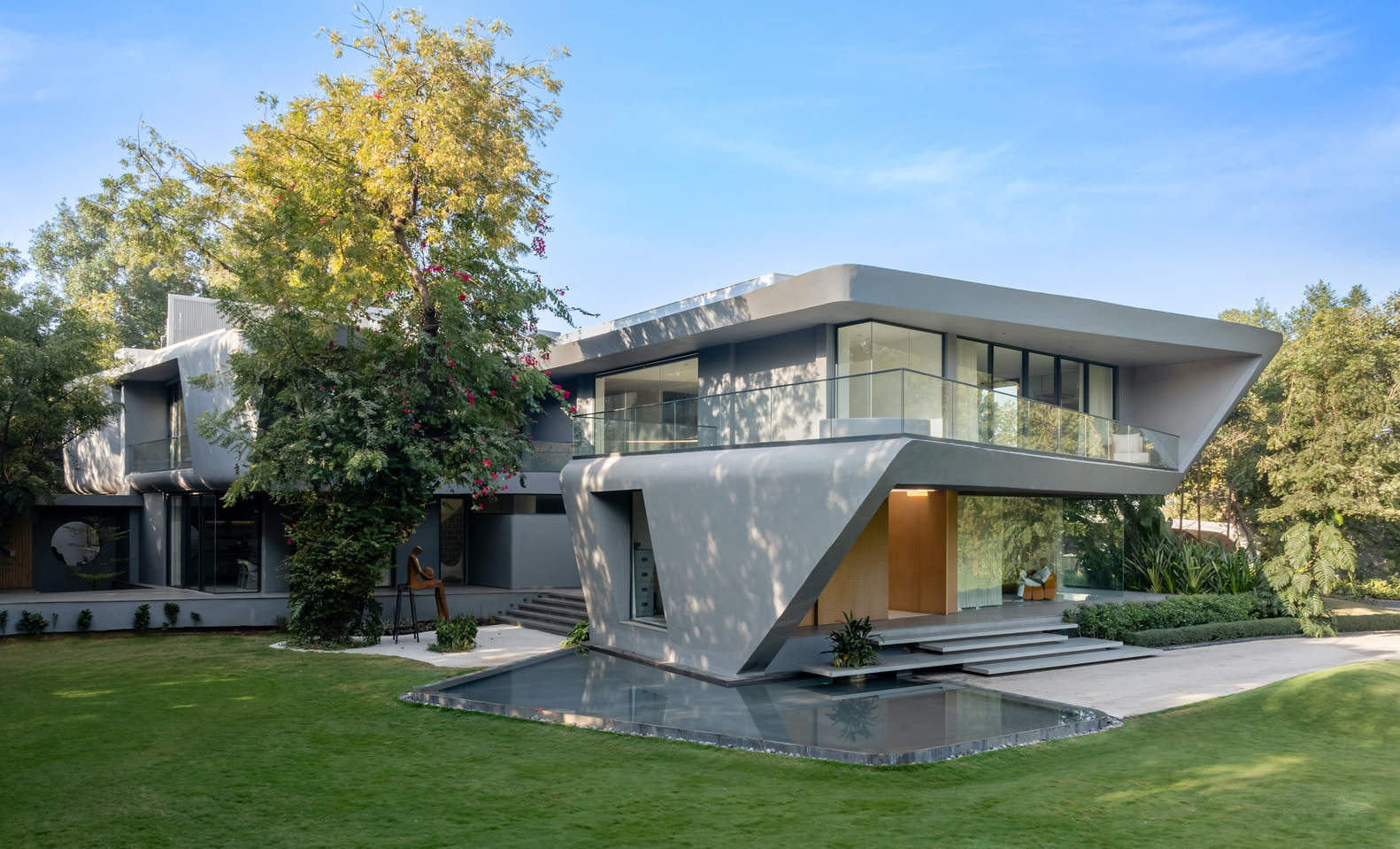

Every space in the house opens into large, cantilevered decks that are partially sheltered & partially open allowing these transitional spaces to be used in different ways based upon the weather. These deep recesses serve to keep the internal volumes cool throughout the hot summer months when temperatures can rise to 50°C. The internal palette is minimal with white marble flooring, wood furniture & subdued accents throughout.

这所房子的设计是节能的，几乎全年都不需要空调，每个部分都有充足的自然光，水回收，雨水收集和；室内使用天然材料。Nine X Nine住宅的设计与保留所有现有树木和树木的场地相呼应；在它们之间建造，通过规划和减少热量增加来应对气候变化；方向创造与自然融为一体的空间。
The house is designed to be energy efficient with no air-conditioning required almost throughout the year, ample natural light in each part, water recycling, rainwater harvesting & the use of natural materials within the interior. The Nine X Nine home is designed contextual to the site retaining all the existing trees & building between them, responsive to the climate by reducing heat gain due to its planning & orientation creating spaces that merge with nature.
